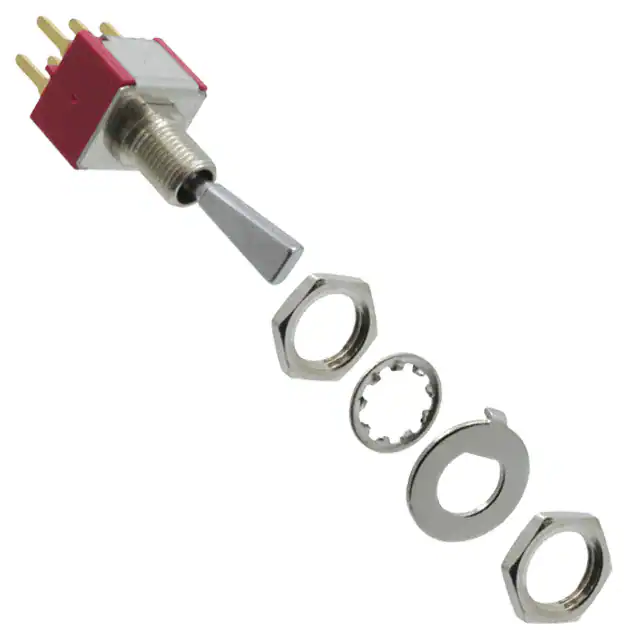

100DP1T6B15M2REH

SHEET 1 OF 1 4.70 [.185 in] 4.70 [.185 in] 5.95 [.234 in] 12.70 [.500 in] 1.85 [ .073 in] 4.83 [.190 in] 11.43 [.450 in] 6.35 P.C.B. MOUNTING [.250] PANEL MOUNTING POS. 1 POS. 3 5.08 [.20 in] 25 SWITCH FUNCTION POS. 1 POS. 2 POS. 3 ON NONE ON 2-3, 5-6 N/A 2 1 2-1, 5-4 2.54 [.100 in] 5 3 4 6 12.30 [.484 in] 5.72 [.225 in] FLAT CIRCUIT: DPDT E-SWITCH MARKING ON OPPOSITE SIDE NOTE: 1. ALL DIMENSIONS IN MM [INCH] 2. GENERAL TOLERANCE: X.X = 0.4 X.XX = 0.25 3. TERMINAL NUMBERS FOR REF ONLY 4. PLATING MATERIAL: GOLD 5. RATING: 0.4VA MAX @20V MAX (AC or DC) 6. ELECTRIC LIFE: 40,000 MAKE-AND-BREAK CYCLES AT FULL LOAD. 7. INSULATION RESISTANCE: 1,000 MEGA-OHM MIN. 8. DIELECTRIC STRENGTH: 1,000 V RMS @SEA LEVEL. 9. OPERATING TEMP.: -30 C to 85 C 10. DENOTES CRITICAL PARAMETER. 11. HARDWARE TO BE SHIPPED BULK: T100011 - LOCK WASHER, QTY 1 T100002 - LOCK RING, QTY 1 T100000 - HEX NUT, QTY 2 8.89 [.35 in] 6.60 [.26 in] 4 5 5.10 [.201 in] 6 .76 [.030 in] 24278 update print 5/4/20 MW A 16157 NEW PART RELEASE 6/19/06 CT REV PCR NO DESCRIPTION DATE BY THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED TITLE 6 3 1.27 [.050 in] 4.70 [.185 in] B 1/4-40 UNS-2A THREADS 1.44 7.55 [.057 in] [.297 in] 4.70 [.185 in] 4.83 [.190 in] 100DP1T6B15M2REH DATE SCALE 2:1 DR 6/19/2006 REV DWG CT ST121077 B
