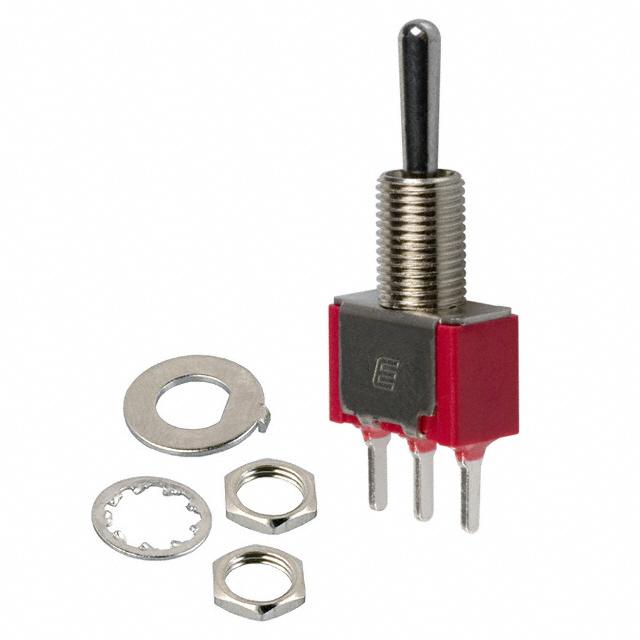

100SP4T1B1M2QEH

SHEET 1 OF 1 12.70 [.500 in] SWITCH FUNCTION POS. 1 POS. 2 POS. 3 6.86 [.270 in] KEYWAY (ON) 2-3 OFF OPEN (ON) POS. 1 2-1 (ON) = MOMENTARY POS. 2 POS. 3 n[.115 in] 2.92 25~ 10.41 [.410 in] 1/4-40 UNS - 2A 2 8.89 [.350 in] 1 3 E-SWITCH MARKING ON OPPOSITE SIDE 1 2 3 CIRCUIT: SPDT NOTE: 1. ALL DIMENSIONS IN MM [INCH] 2. GENERAL TOLERANCE: X.X=±0.4 X.XX=±0.25 3. TERMINAL NUMBERS FOR REF ONLY 4. CONTACT MATERIAL: SILVER 5. RATING: 2A @ 250 VAC 5A @ 120 VAC OR 28 VDC 6. ELECTRIC LIFE: 40,000 MAKE-AND-BREAK CYCLES AT FULL LOAD. 7. INSULATION RESISTANCE: 1,000 MEGA-OHM MIN. 8. DIELECTRIC STRENGTH: 1,000 V RMS @SEA LEVEL. 9. OPERATING TEMP.: -30°C to 85°C 10. DENOTES CRITICAL PARAMETER. 11. 2002/95/EC (ROHS) COMPLAINT. 12. HARDWARE TO BE SHIPPED BULK T100011 - LOCK WASHER (1) T100015 - LOCK RING (1) T100000 - HEX NUT (2) A REV 16473 PCR NO NEW RELEASE DESCRIPTION 8.89 [.350 in] EPOXY SEAL 4.70 [.185 in] 3 6.35 [.250 in] 1.27 [.050 in] .76 [.030 in] 9/20/2006 DATE TN BY TITLE SCALE 100SP4T1B1M2QEH 2:1 DATE DR DWG REV THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED 9/20/2006 TN ST114001 A
