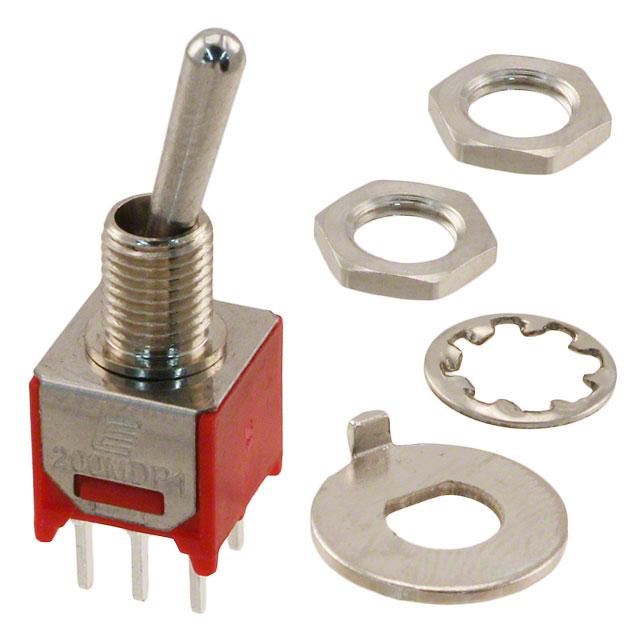

200MDP1T1B1M2QEH

SERIES 200 SWITCHES SPECIFICATIONS Life Expectancy: Contact Resistance: Insulation Resistance: Dielectric Strength: 30,000 make-and-break cycles at full load 20 mΩ max. typical initial @ 2-4 VDC 100 mA for both silver and gold plated contacts 1,000 MΩ min. 1,000 V RMS @ sea level PUSHBUTTON SWITCHES SEAL HARDWARE NAVIGATION SWITCHES CAP OPTIONS ON (ON) ON (ON) (ON) 2-1 ON 3 -1 DETECTOR SWITCHES ROTARY SWITCHES KEYLOCK SWITCHES DIP SWITCHES *MSP6 - not available with M1, M6 & M7 termination Specifications subject to change without notice. Contact Rating: Dependent upon contact material Operating Temperature: -30° C to 85° C MATERIALS Case: Toggle Handle: Diallyl Phthalate (DAP) or glass filled nylon (UL94-V0) Brass, chrome plated Brass, nickel plated Brass, tin plated Stainless steel FEATURES & BENEFITS Variety of switching functions Sub-miniature Multiple actuator & bushing options APPLICATIONS/MARKETS Telecommunications Instrumentation Networking Medical equipment Bushing: Housing: Switch Support: Contacts / Terminals: Silver or gold plated copper alloy HOW TO ORDER SERIES MODEL NO. ACTUATOR BUSHING TERMINATION CONTACT MATERIAL 200 MSP1 MSP2 MSP3 MSP4 MSP5 MSP6* MDP1 MDP2 MDP3 T1 T2 T3 T4 T5 B1 B2 B3 B4 B5 B6 B7 B8 M1 M2 M6 M7 VS2 Q = Silver R = Gold E E = Epoxy Sealed at Base of Terminal H = Hardware SNAP-ACTION SWITCHES Example Ordering Number 200_ MSP1_ T4_ B5_ M1_ R_ E_ H SPDT Epoxy Seal POS 1 Model No. MSP-1 MSP-2 MSP-3 MSP-4 MSP-5 Term. Comm. MSP-6 Term. Comm. ON ON ON (ON) ON 2-3 OFF OPEN POS 2 NONE NONE OFF OFF OFF OPEN NONE NONE POS 3 POS 3 POS 2 POS 1 ( ) = Momentary SCHEMATIC w ww.e-switch.com info @ e-switch.com SLIDE SWITCHES ROCKER SWITCHES TOGGLE SWITCHES TACT SWITCHES TOGGLE SWITCHES - SUB MINIATURE ▲ ▲ ▲ ▲ ▲ ▲ 127 SERIES 200 SWITCHES TACT SWITCHES TOGGLE SWITCHES - SUB MINIATURE DPDT Epoxy Seal POS 1 Model No. MDP-1 MDP-2 MDP-3 Term. Comm. ON ON ON 2-3, 5-6 POS 2 NONE NONE OFF OPEN POS 3 ON (ON) ON 2-1, 5-4 NAVIGATION SWITCHES POS 3 POS 2 POS 1 ( ) = Momentary PUSHBUTTON SWITCHES SCHEMATIC TOGGLE SWITCHES ACTUATOR OPTIONS ROCKER SWITCHES T1 T2 T3 * SNAP-ACTION SWITCHES SLIDE SWITCHES T4 ** T5 ** KEYLOCK SWITCHES DIP SWITCHES * Actuator shown with B1, B2, B3, or B4 bushing; subtract 0.09 (2.29) for B5, B6 bushing. Subtract 0.040 (1.02) for B7, B8 bushing. ** Actuator shown with B5, B6 bushing; add 0.09 (2.29) for B1, B2, B3, and B4 bushing. Add 0.50 (1.27) for B7, B8 bushing. DETECTOR SWITCHES ROTARY SWITCHES PANEL MOUNTING CAP OPTIONS Without locking ring With std. locking ring Without locking ring With std. locking ring 10-48 BUSHING 1/4 IN. BUSHING 128 Phone: 800-867-2717 Fax: 763-531-8235 BUSHING OPTIONS TERMINATION OPTIONS M2 B4 B2 B3 B1 SPDT THD THD SPDT M1 w ww.e-switch.com NON-THD B8 B6 B7 B5 NON-THD M2 M1 THD THD NON-THD NON-THD DPDT DPDT KEYLOCK SWITCHES DIP SWITCHES SNAP-ACTION SWITCHES SLIDE SWITCHES ROCKER SWITCHES TOGGLE SWITCHES PUSHBUTTON SWITCHES NAVIGATION SWITCHES TACT SWITCHES info @ e-switch.com 129 CAP OPTIONS DETECTOR SWITCHES ROTARY SWITCHES 130 CAP OPTIONS PUSHBUTTON SWITCHES NAVIGATION SWITCHES TACT SWITCHES DETECTOR SWITCHES ROTARY SWITCHES KEYLOCK SWITCHES DIP SWITCHES SNAP-ACTION SWITCHES SLIDE SWITCHES ROCKER SWITCHES TOGGLE SWITCHES M7 M7 M6 M6 SPDT SPDT SERIES 200 SWITCHES TOGGLE SWITCHES - SUB MINIATURE DPDT DPDT Phone: 800-867-2717 P.C. MOUNTING P.C. MOUNTING P.C. MOUNTING P.C. MOUNTING Fax: 763-531-8235 VS2 SPDT P.C. MOUNTING VS2 DPDT CONTACT MATERIAL OPTIONS Q Fixed Terminal: Moving Contact: Rating: Silver plated copper alloy Silver plated copper alloy 3 Amps @ 120 VAC or 28 VDC; 1 Amp @ 250 VAC Fixed Terminal: Moving Contact: Rating: Copper alloy with gold plate over nickel plate Copper alloy with gold plate over nickel plate 0.4 VA max. @ 20 VAC or DC max. HARDWARE HDW21 NUT 8.08 HDW22 LOCK WASHER 10-48 UNS 1.32 w ww.e-switch.com info @ e-switch.com CAP OPTIONS DETECTOR SWITCHES 7.00 ROTARY SWITCHES KEYLOCK SWITCHES DIP SWITCHES R SNAP-ACTION SWITCHES SLIDE SWITCHES P.C. MOUNTING ROCKER SWITCHES TOGGLE SWITCHES PUSHBUTTON SWITCHES NAVIGATION SWITCHES TACT SWITCHES 131
