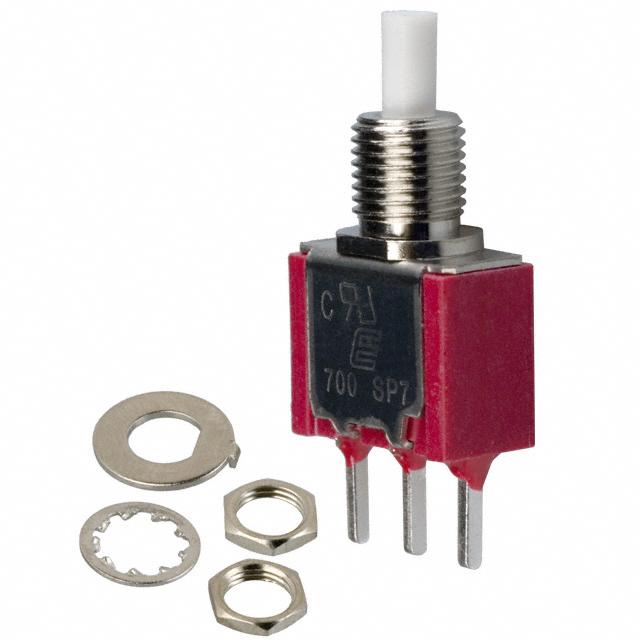

700SP7B10M2QEH

SERIES 700 SWITCHES TACT SWITCHES PUSHBUTTON SWITCHES - SNAP-ACTING SPECIFICATIONS NAVIGATION SWITCHES Contact Ratings: Life Expectancy: Contact Resistance: Insulation Resistance: Dielectric Strength: Actuation Force: Travel: 1A @ 250 VAC 3A @ 120 VAC or 28 VDC 50,000 cycles typical 20mΩ max. typical @ 2-4 VDC 100mA for both silver and gold plated contacts 1,000 MΩ min. 1,000 V RMS @ sea level 200 ± 50 gf 1.20mm Typ PUSHBUTTON SWITCHES Operating Temperature: -30°C to +85°C TOGGLE SWITCHES MATERIALS FEATURES & BENEFITS APPLICATIONS/MARKETS Telecommunications Networking Computers/servers Performance audio Instrumentation Low power on/off designs External hard drives and modems Case: Plunger: Bushing: Frame: Contacts: DAP Glass filled nylon or glass filled polyester Nickel plated brass Stainless steel Silver or Gold plated copper alloy SLIDE SWITCHES ROCKER SWITCHES Snap acting contact design Gold & silver contact options Multiple termination options Snap-in panel mount option ▲ ▲ ▲ HOW TO ORDER SERIES MODEL NO. BUSHING TERMINATION CONTACT MATERIAL SEAL HARDWARE CAP CAP COLOR SNAP-ACTION SWITCHES 700 SP7 DP7 B10 B11 B20 B21 M1 M2 M51 M52 M53 M6 M7 VS2 VS3 VS4 VS5 Q = Silver R = Gold E E = Epoxy Sealed at Base of Terminal H= Hardware See Cap Options DIP SWITCHES ▲ ▲ ▲ Example Ordering Number 700_ DP7_ B10_ M1_ Q _ E_ H_ C1_ BLK Specifications subject to change without notice. KEYLOCK SWITCHES SPDT ROTARY SWITCHES P.C. MOUNTING DETECTOR SWITCHES Model No. SP-7 Term. Comm ON 1-3 Type (ON) 1-2 SCHEMATIC ( ) = Momentary CAP OPTIONS 60 Phone: 800-867-2717 Fax: 763-531-8235 DPDT P.C. MOUNTING PUSHBUTTON SWITCHES SCHEMATIC TOGGLE SWITCHES Model No. Type DP-7 ON (ON) Term. Comm. 1-3, 4-6 1-2, 4-5 ( ) = Momentary KEYWAY B10 B20 THD STD NON-THD FLAT B11 B21 THD STD NON-THD TERMINATION OPTIONS M1 SOLDER LUG M2 P. C. MOUNT P.C. MOUNTING DPDT M5 WIRE WRAP P.C. MOUNTING Option Code M51 M52 M53 Dim. ’A’ .750 (19.05) .964 (24.48) .425 (10.80) w ww.e-switch.com info @ e-switch.com CAP OPTIONS DETECTOR SWITCHES ROTARY SWITCHES KEYLOCK SWITCHES DIP SWITCHES SPDT SNAP-ACTION SWITCHES SLIDE SWITCHES ROCKER SWITCHES BUSHING OPTIONS FOR P.C. MOUNTING NAVIGATION SWITCHES TACT SWITCHES 61 SERIES 700 SWITCHES TACT SWITCHES PUSHBUTTON SWITCHES - SNAP-ACTING M6 SPDT NAVIGATION SWITCHES TOGGLE SWITCHES PUSHBUTTON SWITCHES SCHEMATIC P.C. MOUNTING M6 DPDT ROCKER SWITCHES SCHEMATIC SLIDE SWITCHES P.C. MOUNTING SNAP-ACTION SWITCHES M7 SPDT DIP SWITCHES SCHEMATIC KEYLOCK SWITCHES P.C. MOUNTING ROTARY SWITCHES M7 DPDT DETECTOR SWITCHES SCHEMATIC P.C. MOUNTING CAP OPTIONS 62 Phone: 800-867-2717 Fax: 763-531-8235 VS2 or VS3 SPDT SCHEMATIC Option Code VS2 VS3 Dim. ’A’ .460 (11.68) .630 (16.00) P.C. MOUNTING VS2 or VS3 DPDT SCHEMATIC Option Code VS2 VS3 Dim. ’A’ .460 (11.68) .630 (16.00) P.C. MOUNTING VS4 or VS5 SPDT SCHEMATIC Option Code VS4 VS5 Dim. ’A’ .460 (11.68) .630 (16.00) P.C. MOUNTING KEYLOCK SWITCHES VS4 or VS5 DPDT 1 Com 4 Com 3 NC 2 NO 6 NC 5 NO SCHEMATIC P.C. MOUNTING w ww.e-switch.com info @ e-switch.com CAP OPTIONS Option Code VS4 VS5 Dim. ’A’ .460 (11.68) .630 (16.00) DETECTOR SWITCHES ROTARY SWITCHES DIP SWITCHES SNAP-ACTION SWITCHES SLIDE SWITCHES ROCKER SWITCHES TOGGLE SWITCHES PUSHBUTTON SWITCHES NAVIGATION SWITCHES TACT SWITCHES 63 SERIES 700 SWITCHES TACT SWITCHES PUSHBUTTON SWITCHES - SNAP-ACTING PANEL MOUNTED SPECIFICATIONS NAVIGATION SWITCHES Contact Rating: Life Expectancy: Contact Resistance: Insulation Resistance: Dielectric Strength: Actuation Force: 1A @ 250 VDC 3A @ 120 VDC or 28VDC 50,000 cycles typical 10mΩ max., typical @ 2-4 VDC, 100mA for both silver and gold plated contacts 1,000 MΩ min. 1,000 V rms at sea level 200 ± 50 gf PUSHBUTTON SWITCHES Operating Temperature: -30°C to +85°C TOGGLE SWITCHES MATERIALS FEATURES & BENEFITS Snap acting contact design Gold & silver contact options Multiple termination options Snap-in panel mount option APPLICATIONS/MARKETS Telecommunications Networking Computers/servers Performance audio Instrumentation Low power on/off designs External hard drives and modems Case: Plunger: Bushing: Housing: Contacts: Diallyl Phthalate (DAP) Glass filled nylon or glass filled polyester Nickel plated brass Stainless steel Silver or Gold plated copper alloy SLIDE SWITCHES ROCKER SWITCHES ▲ ▲ ▲ HOW TO ORDER SERIES MODEL NO. TERMINATION CONTACT MATERIAL SEAL CAP/FRAME CAP COLOR FRAME COLOR SNAP-ACTION SWITCHES 700 SP7 DP7 M1 M3 Q = Silver R = Gold E E = Epoxy Sealed at Base of Terminal AP1 AP2 BLK = Black RED = Red GRY = Grey WHT= White BLK = Black RED = Red GRY = Grey WHT= White ▲ ▲ ▲ DIP SWITCHES Example Ordering Number 700_ DP7_ M1_ Q _ E_ AP1_ RED_ RED Specifications subject to change without notice. KEYLOCK SWITCHES AP1 CAP/FRAME SPDT DETECTOR SWITCHES ROTARY SWITCHES SCHEMATIC PANEL MOUNT CAP OPTIONS 64 Phone: 800-867-2717 Fax: 763-531-8235 AP2 CAP/FRAME SPDT SCHEMATIC PANEL MOUNT AP2 CAP/FRAME DPDT SCHEMATIC PANEL MOUNT SNAP-ACTION SWITCHES TERMINATION OPTIONS FOR PANEL MOUNT M1 SOLDER LUG M3 QUICK CONNECT CONTACT MATERIAL OPTIONS Q Fixed Terminal: Moving Contact: Rating: Silver plated copper alloy Silver plated copper alloy 1 AMP @ 250 VAC 3 AMP @ 125 VAC or 28 VDC R Fixed Terminal: Moving Contact: Rating: Copper alloy with gold plate over nickel plate 0.4 VA max. @ 20 VAC Copper alloy with gold plate over nickel plate w ww.e-switch.com info @ e-switch.com CAP OPTIONS DETECTOR SWITCHES ROTARY SWITCHES KEYLOCK SWITCHES DIP SWITCHES SLIDE SWITCHES ROCKER SWITCHES TOGGLE SWITCHES PUSHBUTTON SWITCHES NAVIGATION SWITCHES TACT SWITCHES 65
