S E R I E S 8 00A
SWITCHES
SEALED SUB-MINIATURE PUSHBUTTON SWITCHES
SPECIFICATIONS
Ratings: Electrical Life: Contact Resistance: Insulation Resistance: Dielectric Strength: Operating Force: 1A @ 120 VAC 50,000 cycles typical 10mΩ max. typical @ 2-4 VDC 100mA for both silver and gold plated contacts. 1,000MΩ min. 1,000 V rms @ sea level. 200 ± 50 gf
MATERIALS
Case: Plunger: Bushing: Housing: Contacts: Diallyl Phthalate (DAP) Glass filled nylon or glass filled polyster Nickel plated brass Stainless steel Silver or Gold plated copper alloy.
Series
Model No.
Termination
Contact Material
Seal
800A
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.
E
WSP8 WSP9 M2 M6 M61 M7 VS2 Q=Silver R=Gold E= Epoxy Seal at Base of Terminal
EXAMPLE
800A WSP9 M7
2.54 [.100] 4.57 [.180] 5.46 [.215]
R
6 5]
E
P.C. MOUNTING
1.09 [0.43] (2 PL)
Model No. WSP8 WSP9 ON OFF
TYPE (ON) (ON)
13.39 [.527] 4.50 [.177]
Schematic
( ) = Momentary
1 3
3.30 [.130] 0.51 [.020] 0.76 [.030]
5.08 [.200] Epoxy Seal Base
SPST
1
3
5.08 [.200] 8.13 [.320] 5.08 [.200]
TERMINATION OPTIONS
M2
P.C. Mounting
Phone: 763-504-3525
Fax: 763-531-8235
www.e -switch.com
info@e-switch.com
143
PP 139-166Pushbutton.qxd
5/7/02
4:15 PM
Page 144

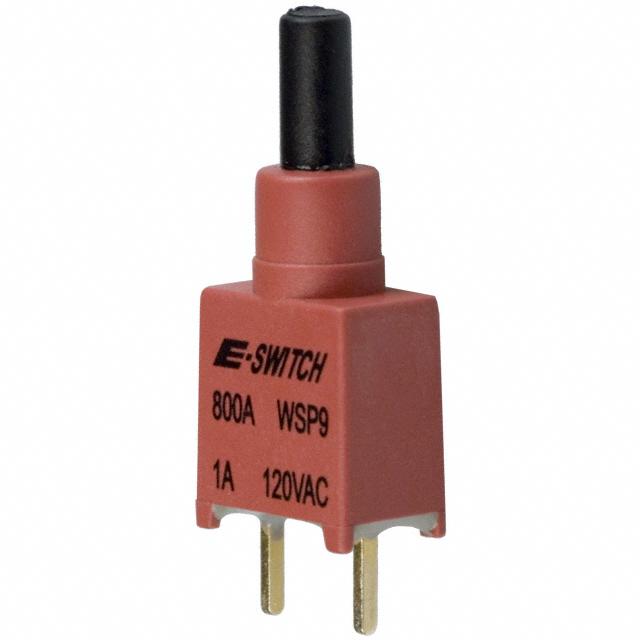

S E R I E S 8 00A SEALED SUB-MINIATURE PUSHBUTTON SWITCHES
SWITCHES
TERMINATION CONTINUED
P.C. MOUNTING
M6
SPST
FLAT
4.39 [.173]
3.53 [.139] 4.41 [.174] 3.30 [.130] 8.13 [.320] EPOXY SEAL BASE 1.09 P.C. MOUNTING [.043] (4 PL) 5.08 [.200]
6.10 [.240] 2.54 [.100] 0.76 [.030] 5.08 [.200] CRIMPED BRACKET
.51 [.020]
5.08 [.200]
1.09 [.043] (4 PL) 5.08 [.200]
1 0.80 [.031] 4.01 [.158] 5.08 [.200]
3 0.51 [.020] 5.08 [.200]
M61
SPST
Switch Support 0.41mm THICK
5.08 [.200]
5.08 [.200]
P.C. MOUNTING
M7
SPST
P.C. MOUNTING
VS-2
SPST
CONTACT MATERIAL OPTIONS
Q Fixed Terminal: Silver plated copper alloy. Moving Contacts Silver plated copper alloy. Rating: 1 AMP @ 120VAC or 28 VDC. R Fixed Terminal: Copper alloy with gold plate over nickel plate. Moving Contact: Copper alloy with gold plate over nickel plate. Rating: 0.4 VA max. @ 20 VAC or DC max.
144
Phone: 763-504-3525
Fax: 763-531-8235
www.e -switch.com
info@e-switch.com
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.
