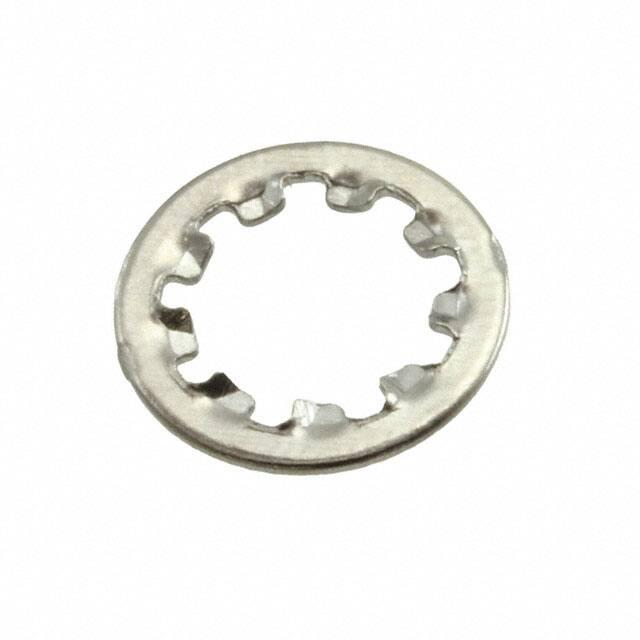

HDW22LOCKWASHERPLTD

SHEET 1 OF 1 + n 7.92 - .20 .23 [.312 +.008 - .009 ] TOOTH PROJECTION SEE NOTE #6 in ISOMETRIC 6.55 [.258 in] 5.08 `.13 [.200 `.005 in] ON CENTER BY .010 IN. .46 `.05 [.018 `.002 in] NOTE: 1. ALL DIMENSIONS IN MM [INCH] 2. GENERAL TOLERANCE: X.X=±0.4 TOOTH WIDTH X.XX=±0.25 SEE NOTE #5 3. MATERIAL: CRS TYPE SAE 1050 HEAT TREAT TO RC 44-48 4. PLATING SPEC: SULFAMATE NICKEL, DUCTILE NICKEL PLATE .00015/.00025 COPPER STRIKE .00020/.00050 5. NO. OF TEETH : 8 EQUALLY SPACED. 6. MININUM PROJECTION OF ANY SINGLE TOOTH SHALL BE .00015, PART TO HAVE A MIN OF THE TEETH ON ONE SIDE, 2 SIDES IS OPTIONAL. 7. 2002/95/EC (ROHS) COMPLIANT C 16820 REV PCR NO REVISED AND REDRAWN DESCRIPTION 1/3/07 TN DATE BY THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED TITLE SCALE HDW22 LOCKWASHER (FITS 10-48 BUSHING) 8:1 DATE DR 1/3/2007 TN REV DWG T200000 C
