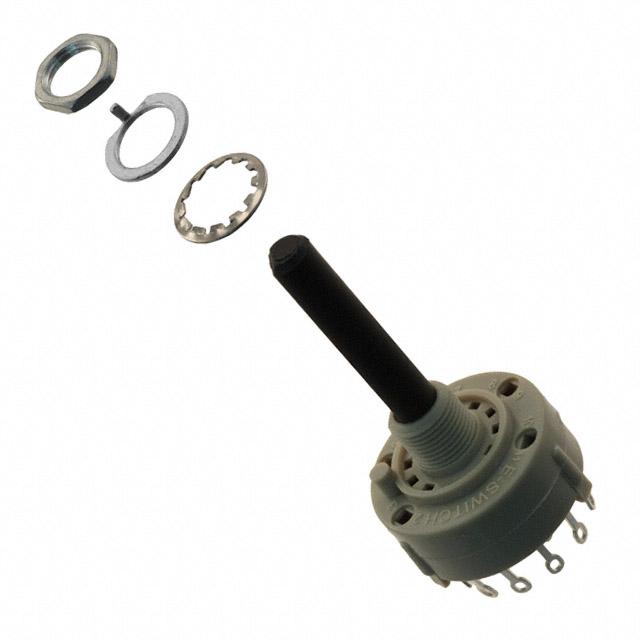

KC26A30.001NLS

SHEET 1 OF 1 A C 1 2 3 4 5 6 7 8 9101112 CONTACT CONFIGURATION TIMING (BBM) NON-SHORTING 38.00 [1.496 in] 8.00 [.315 in] n26.00 [1.024 in] HARDWARE SUPPIED ON SWITCH 2.00 [.079 in] ISOMETRIC ISOMETRIC 30.00 [1.181 in] 5.50 [.217 in] FLAT NOTE: 1. ALL DIMENSIONS IN MM[INCH]. 2. GENERAL TOLERANCE: X.X=`0.4 X.XX=`0.25 3. TERM. NOS. FOR REFERANCE ONLY. 4. CONTACT MATERIAL: SILVER 5. CONTACT RATING: 150MILLIAMP, 250VAC/DC 350MILLIAMP, 110VAC/DC 6. CONTACT RATING (NON-SWITCHING) 5A 7. OPERATING FORCE 425`100CM/STANDARD 8. OPERATING TEMP: -30~C TO 85~C 9. CIRUIT DP: 6 POSITION 30~ INDEX. 10. DIELECTRIC STRENGTH: 1000V RMS MIN.@ SEA LEVEL. 11. HARDWARE SUPPLIED ON SWITCH: LOCKWASHER, HEXNUT, STOP RING 12. DENOTES CRITICAL PARAMETER. C B REV 15702 14498 PCR NO ADD STOP RING TO HARDWARE REVISED AND REDRAWN DESCRIPTION 1/25/06 11/12/04 DATE PH AR BY 0 . 5 n] 27 83 i .0 [1 3/8-32 UNEF-2A THREADS 2.00 [.079 in] 14.20 [.559 in] 6.30 [.248 in] [.118 in] n3.00 30.0° TITLE SCALE KC26A30.001NLS 1.5:1 DATE DR DWG REV THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED 3/5/2001 CJB G510250 C
