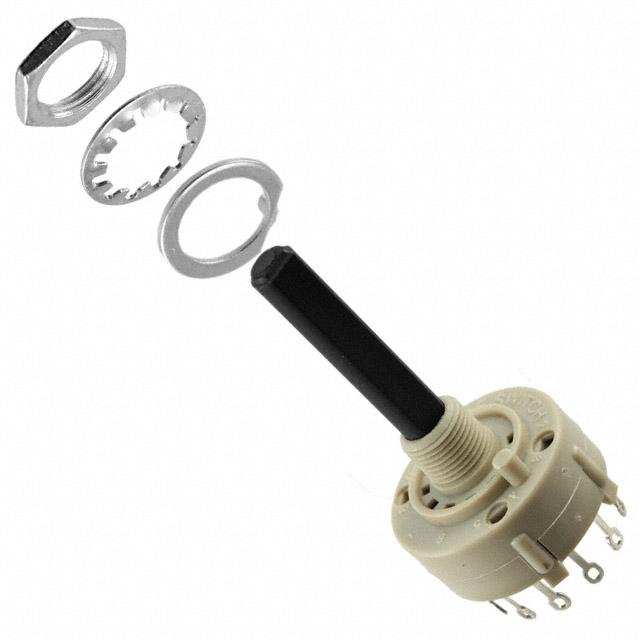

KC52A30.001NLS

SHEET 1 OF 1 A 1 2 3 4 5 6 7 8 9101112 CONTACT CONFIGURATION TIMING (BBM) NON-SHORTING 14.20 [.559 in] 8.00 [.315 in] 30.00 [1.181 in] 2.00 [.079 in] HARDWARE SUPPLIED ON SWITCH n26.00 [1.024 in] 5.50 [.217 in] FLAT NOTE: 1. ALL DIMENSIONS IN MM[INCH]. 2. GENERAL TOLERANCE: X.X=`0.4 X.XX=`0.25 3. TERM. NOS. FOR REFERANCE ONLY. 4. CONTACT MATERIAL: SILVER 5. CONTACT RATING: 150MILLIAMP, 250VAC/DC 350MILLIAMP, 110VAC/DC 6. CONTACT RATING (NON-SWITCHING) 5A 7. OPERATING FORCE 425`100CM/STANDARD 8. OPERATING TEMP: -30~C TO 85~C 9. CIRUIT SP: 12 POSITION 30~ INDEX. 10. DIELECTRIC STRENGTH: 1000V RMS MIN.@ SEA LEVEL. 11. HARDWARE SUPPLIED ON SWITCH: LOCKWASHER, HEXNUT 12. DENOTES CRITICAL PARAMETER. 13. 2002/95/EC (ROHS) COMPLIANT G F E D C REV 17313 16135 14487 12821 21249 PCR NO FIXED ACT LENGTH, ADD NOTE 13 EDIT NOTE 9 REVISED & REDRAWN RECVISED TO SHOW HARDWARE REVISED NOTE 11 DESCRIPTION 5/21/07 6/12/06 11/10/04 3/3/03 6/19/02 DATE TN CT AR CJB CJB BY 0 .5 n ] 27 83 i .0 [1 n6.35 [.250] n3.00 [.118 in] 3/8-32 UNEF-2A THREADS 2.00 [.079 in] 18.80 [.740 in] 6.60 [.260 in] 30.0° TITLE SCALE KC52A30.001NLS 1.5:1 DATE DR DWG REV THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED 5/21/2007 TN G510240 G
