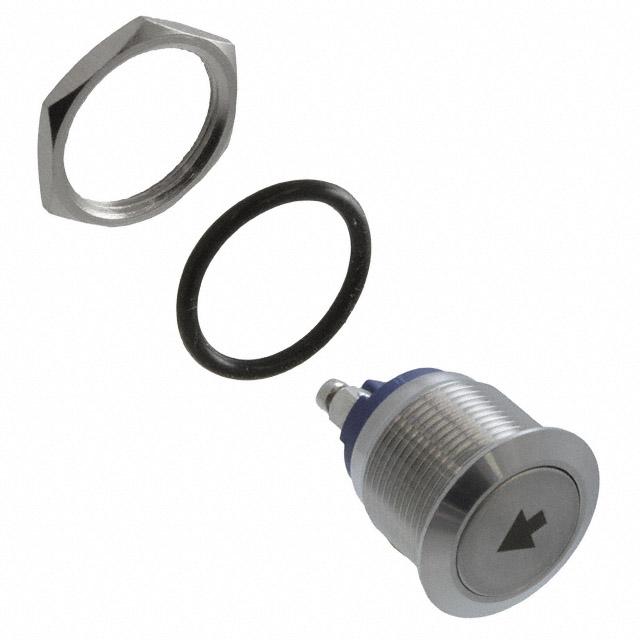

PV1F640BBG-M06

SHEET 1 OF 1 n14.90 [.587 in] n22.00 [.866 in] n19.00 [.748 in] PANEL MOUNTING MAX. PANEL THICKNESS 8.0mm FLAT ACTUATOR BRUSHED STAINLESS STEEL FINISH SWITCH FUNCTION 1 POS. 1 POS. 2 OFF (ON) OPEN 1-2 2 CIRCUIT: SPST BODY FINISH BRUSHED STAINLESS STEEL (ON) = MOMENTARY 2.00 [.079 in] 19.00 `.50 [.748 `.020 in] NOTE: M19x1.0 1. ALL DIMENSIONS IN MM [INCH] 2. GENERAL TOLERANCE: X.X = ± 0.4 X.XX = ± 0.25 3. TERMINAL NOS. FOR REF. ONLY 4. FUNCTION: SPST 5. RATING: 2A @ 48VDC 6. CONTACT RESISTANCE: 50mΩ MAX. @ 1A 12VDC 7. INSULATION RESISTANCE: 1,000MΩ @ 500VDC 1 8. DIELECTRIC STRENGTH: 2,000VAC MIN. FOR 1 MINUTE 9. ELECTRICAL LIFE: 200,000 CYCLES 9.00 10. CONTACT MATERIAL: GOLD PLATED [.354 in] 11. OPERATING TEMPERATURE: -20°C TO 55°C 12. INGRESS PROTECTION: IP65 13. DENOTES CRITICAL PARAMETER 14. 2002/95/EC (ROHS) COMPLIANT 15. HARDWARE INCLUDED: HEX NUT AND O-RING (NOT SHOWN) B 20340 REV PCR NO CORRECT TEMP RATING AND CONVERT DESCRIPTION 12/19/11 BMA DATE BY THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED TITLE SCALE 2:1 23.00 `.50 [.906 `.020 in] 24.00 `.50 [.945 `.020 in] 2 2 PV1F640BBG-MO6 DATE 12/19/2011 DR BMA DWG 52-PV1F640BBGM06 REV B
