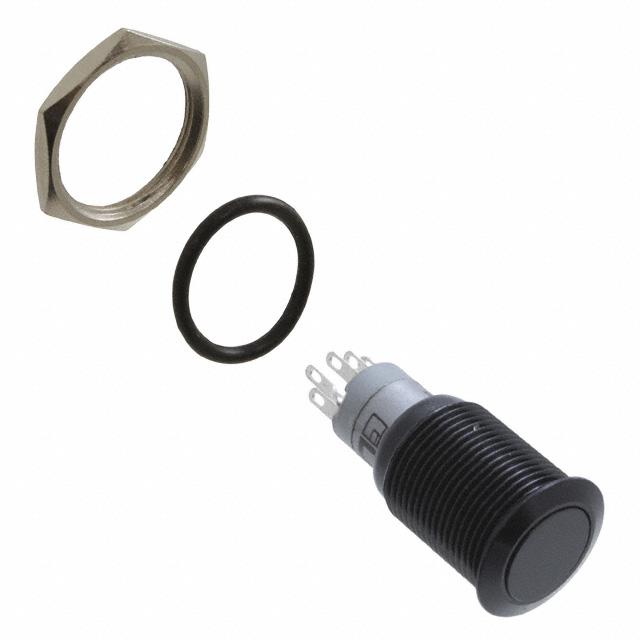

PV3F2H011

SHEET 1 OF 1 16.00 [.630 in] 18.00 [.71 in] PANEL CUTOUT MAX. PANEL THICKNESS 14.0mm [.55] SWITCH FUNCTION POS. 1 ON 1-3, 4-6 11.8 [.46 in] 1 3 1 2 4 6 4 5 FLAT ACTUATOR BLACK ANODIZED BODY BLACK ANODIZED 1.50 [.06 in] POS. 2 (ON) 1-2, 4-5 (ON) = MOMENTARY 18.5 1.0 [.73 .04 in] M16x1.0 30.2 1.0 [1.19 .04 in] DPDT ON-(ON) CONTACT CONFIGURATION 36.0 1.0 [1.42 .04 in] 2.00 [.079 in] NOTE: 1. ALL DIMENSIONS IN MM [INCH] 2. GENERAL TOLERANCE: X.X = 0.4 X.XX = 0.25 3. TERMINAL NUMBERS FOR REF ONLY 4. CONTACT MATERIAL: SILVER 5. RATING: 2A 48VDC 6. ELECTRIC LIFE: 50,000 MAKE-AND-BREAK CYCLES AT FULL LOAD. 7. INSULATION RESISTANCE: 1,000 M MIN. 8. DIELECTRIC STRENGTH: 2,000 VAC MIN. FOR 1 MINUTE 9. CONTACT RESISTANCE: 50m MAX. @ 1A 12VDC 10. OPERATING TEMP.: -20 C to 55 C 11. DENOTES CRITICAL PARAMETER. 12. HARDWARE SUPPLIED: O-RING AND HEXNUT 13. INGRESS RATING: IP40 14. 2011/65/EU (ROHS) COMPLIANT 15. LAMP VOLTAGE: NO LAMP 3 .80 [.031 in] 6 5 4 1.80 [.071 in] .40 [.016 in] 2.80 [.110 in] 5.00 [.197 in] 5.60 [.220 in] TERMINAL 6 TERMINAL 3 TERMINAL 5 TERMINAL 2 TERMINAL 4 TERMINAL 1 F 23361 UPDATED RATING TO 2A 48VDC 5/14/18 MJR E 22884 UPDATED RATING TO 1A 24VDC 6/12/17 MJR REV PCR NO DATE BY DESCRIPTION 6 THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED TITLE PV3F2H011 DATE SCALE 3:2 DR 1/24/2012 REV DWG EBP 52-PV3F2H011 F
