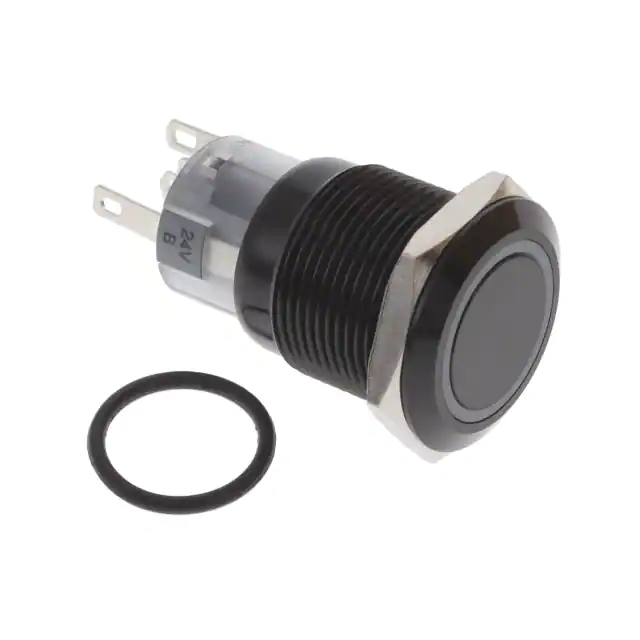

PV4F23011-345

SHEET 1 OF 1 19.00 [.748 in] SWITCH FUNCTION PANEL CUTOUT MAX. PANEL THICKNESS 11.0mm [.433] POS. 1 POS. 2 ON ON 1-3 1-2 22.00 [.866 in] RING ILLUMINATION 13.20 [.520 in] (ON) = MOMENTARY ACTUATOR FINISH BLACK FLAT ACTUATOR 1 3 1 2 1.80 [.071 in] BODY FINISH BLACK (-) (+) SPDT CONTACT CONFIGURATION NOTE 15 HARDWARE SUPPLIED 28.9 1.0 [1.14 .04 in] M19x1.0 38.0 1.0 [1.50 .04 in] NOTE: 1. ALL DIMENSIONS IN MM [INCH] 2. GENERAL TOLERANCE: X.X= 0.4 X.XX= 0.25 3. TERMINAL NUMBERS FOR REF ONLY 4. CONTACT MATERIAL: SILVER 5. RATING: 2A 24VDC 6. ELECTRIC LIFE: 50,000 MAKE-AND-BREAK CYCLES AT FULL LOAD. 7. INSULATION RESISTANCE: 1,000 M MIN. 8. DIELECTRIC STRENGTH: 2,000 VAC MIN. FOR 1 MINUTE 9. CONTACT RESISTANCE: 50m MAX. @ 1A 12VDC 10. OPERATING TEMP.: -20 C to 55 C 11. TRAVEL: 2.8mm 12. DENOTES CRITICAL PARAMETER. 13. LAMP VOLTAGE: 24V 14. INGRESS PROTECTION: IP67 15. HARDWARE SUPPLIED: O-RING AND HEXNUT 16. ILLUMINATION COLOR: BLUE (-) 1 1 (+) (+) 3.50 [.138 in] 12.00 [.472 in] B 23599 UPDATED RATING TO 2A @ 24VDC 10/9/18 MJR A 21014 RELEASE FOR PRODUCTION 2/19/13 EBP REV PCR NO DESCRIPTION DATE BY THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED 3 2.80 [.110 in] 5.00 [.197 in] TITLE 5.00 [.197 in] PV4F23011-345 DATE SCALE 3:2 DR 2/19/2013 REV DWG EBP 52-PV4F23011345 B
