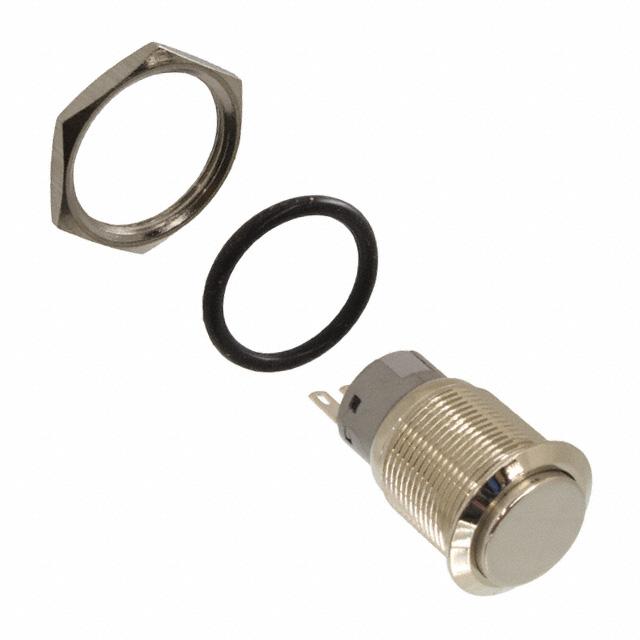

PV4H230NN

SHEET 1 OF 1 19.00 +- .20 .00 [.748 +.008 - .000 22.00 [.866 in] ] in 15.5 [.61 in] Recommended PANEL CUTOUT MAX. PANEL THICKNESS 11.0mm [.433] BODY FINISH: NICKEL HIGH ACTUATOR FINISH: NICKEL 1.80 [.07 in] SWITCH FUNCTION POS. 1 POS. 2 ON ON 1-3 1-2 1 3 1 2 2.0 [.08 in] M19x1.0 SPDT CONTACT CONFIGURATION 27.0 1.0 [1.06 .04 in] 35.0 1.0 [1.38 .04 in] NOTE: 1. ALL DIMENSIONS IN MM [INCH] 2. GENERAL TOLERANCE: X.X = 0.4 X.XX = 0.25 3. TERMINAL NUMBERS FOR REF ONLY 4. CONTACT MATERIAL: SILVER 5. RATING: 2A 48VDC 6. ELECTRIC LIFE: 50,000 MAKE-AND-BREAK CYCLES AT FULL LOAD. 7. INSULATION RESISTANCE: 1,000 M MIN. 8. DIELECTRIC STRENGTH: 2,000 VAC MIN. FOR 1 MINUTE 9. CONTACT RESISTANCE: 50m MAX. @ 1A 12VDC 10. OPERATING TEMP.: -20 C to 55 C 11. TRAVEL: 2.8mm 12. DENOTES CRITICAL PARAMETER. 13. INGRESS PROTECTION: IP65 14. HARDWARE SUPPLIED: O-RING AND HEXNUT 15. 2002/95/EC (ROHS) COMPLIANT 3 2 1 B 22601 UPDATE PRINT, CORRECT FUNCTION TO ON-ON 11/18/16 MW A 20942 RELEASE FOR PRODUCTION 12/26/12 EBP REV PCR NO DATE BY DESCRIPTION THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED TITLE PV4H230NN DATE SCALE 3:2 DR 12/26/2012 REV DWG EBP 52-PV4H230NN B
