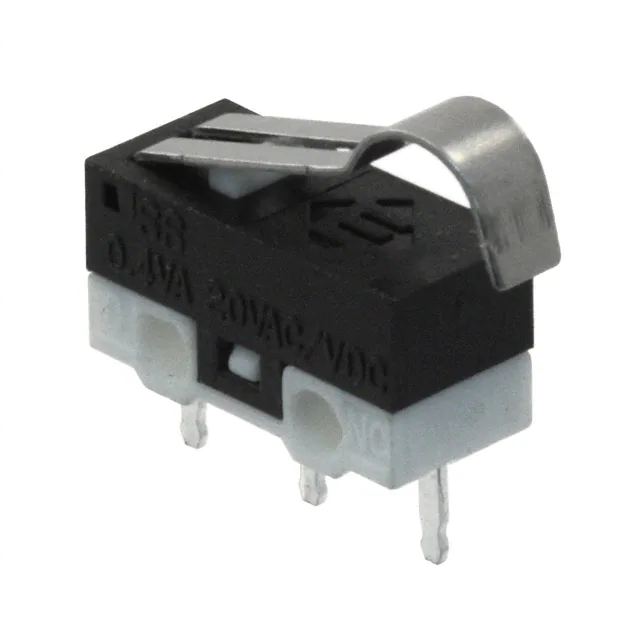

SS075R103F050P1A

SHEET 1 OF 1 12.70 [.500 in] 5.08 [.200 in]TYP. n1.20 TYP. [.047 in] C NO NC ISOMETRIC SCALE: 3:1 P.C. MOUNTING COM 3.60 [.142 in] P.T. 5.77 [.227 in] 5.7 [.22 in] 2.20 x 2.00 SLOT NC NO CIRCUIT: SPDT O.P. O.P. (MM) 9.65 `0.8 P.T. (MM) 6.00 [.236 in] 1.35 MAX. 1.50 [.059 in] O.P. = OPERATING POINT P.T. = PRE-TRAVEL NOTES: 1. ALL DIMENSIONS IN MM [INCH] .50 2. GENERAL TOLERANCE: X.X=`0.4 [.020 in] X.XX=`0.25 3. RATING: 0.4VA MAX. @ 20VDC MAX. 3.15 4. CONTACT RESISTANCE: 100 Milli-OHMS MAX. [.124 in] 5. OPERATING FORCE: 50 ` 15 GRAMS 6. OPERATING TEMP: -25~C TO 75~C 7. ELECTRICAL LIFE: 10,000 CYCLES MIN. 8. MECHANICAL LIFE: 1,000,000 CYCLES MIN. 9. INSULATION RESISTANCE: 100 MEGA-OHMS MIN. 10. DIELECTRIC STRENGTH: 1,500VAC - 1 MINUTE 11. DENOTES CRITICAL PARAMETER. 12. PACKAGED IN TRAYS, 120 PIECES PER TRAY. 13. 2002/95/EC (ROHS) COMPLIANT A 18632 REV PCR NO Release For Production DESCRIPTION C NO NC 4.00 [.157 in] n2.00 [.079 in] .90 [.035 in] .40 [.016 in] 6.50 [.256 in] 5.08 [.200 in] 5.80 [.228 in] 5.08 [.200 in] 10.41 [.410 in] 9/22/09 BLR DATE BY THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED TITLE SCALE SS075R103F050P1A 4:1 DATE DR 9/22/2009 BLR REV DWG Q971026 A
