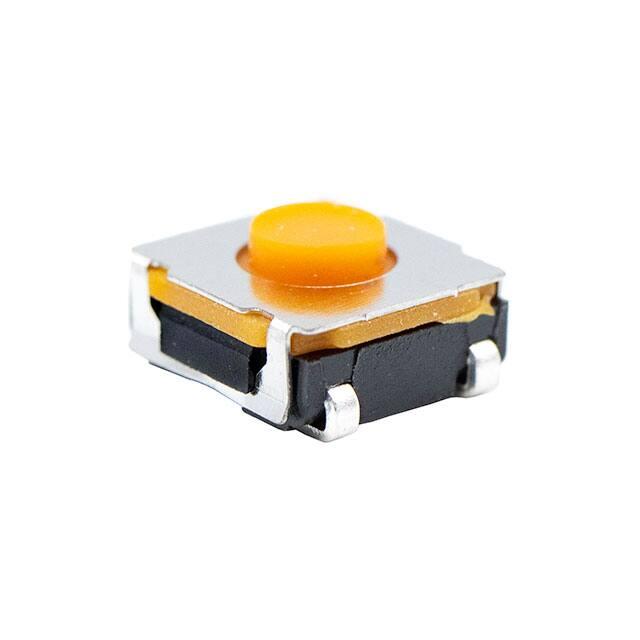

TL3145AF350QJ

TL3145 Series Tact Switch Audio / Visual Computer Peripherals Consumer Electronics Instrumentation Medical Equipment Telecommunication RoHS Specifications Features & Benefits • • • • Electrical Rating: 50mA, 12VDC Electrical Life: up to 3,000,000 Cycles Contact Resistance: 100mΩ Max. Insulation Resistance: 100MΩ Min. at 500VDC Dielectric Strength: 250VAC for 1 Minute Operating Temperature: -40°C to 85°C Operating Force: 180gf ± 50gf (3,000,000 cycles) 260gf ± 50gf (500,000 cycles) 350gf ± 80gf (500,000 cycles) Travel: 0.5mm Dust/Moisture Protection: IP67 Function: SPST, Off-(On) Up to 3,000,000 cycle life expectancy Tape and Reel packaging IP67 ratings Multiple force options Part Number Configurator Series Circuit Actuator Force Plating Termination TL 3145 A - 3.50 B - 5.20 F180 - 180 gf - White F260 - 260 gf - Red F350 - 350 gf - Orange Q - Silver J - J Lead Specifications subject to change without notice 7.6.2021 CAP OPTIONS TOGGLE SWITCHES TACTILE SWITCHES SNAP ACTION SWITCHES SLIDE SWITCHES ROTARY SWITCHES ROCKER SWITCHES PUSHBUTTON SWITCHES NAVIGATION SWITCHES KEYLOCK SWITCHES DIP SWITCHES DETECTOR SWITCHES ANTI-VANDAL SWITCHES Applications / Markets www.e-switch.com 800.867.2717 1 TL3145 Series Tact Switch ANTI-VANDAL SWITCHES Body Dimensions 2 3.00 [.118 in] 1.40 [.055 in] 4 1 2 3 4 DIP SWITCHES 4.00 [.157 in] 3 DETECTOR SWITCHES 1 5.40 [.213 in] KEYLOCK SWITCHES Schematic CIRCUIT: SPST 7.00 [.276 in] NAVIGATION SWITCHES Recommended PCB Layout PUSHBUTTON SWITCHES ROCKER SWITCHES 3.00 [.118 in] 6.45 [.254 in] ROTARY SWITCHES 2 1 6.45 [.254 in] 5.60 6.10 [.220 in] [.240 in] "X" A B 3.50 5.20 4 3 SLIDE SWITCHES ACTUATOR SNAP ACTION SWITCHES TACTILE SWITCHES .10 [.004 in] "X" 6.80 [.268 in] TOGGLE SWITCHES 2.65 [.104 in] .70 [.028 in] CAP OPTIONS 4.00 [.157 in] www.e-switch.com 800.867.2717 2
