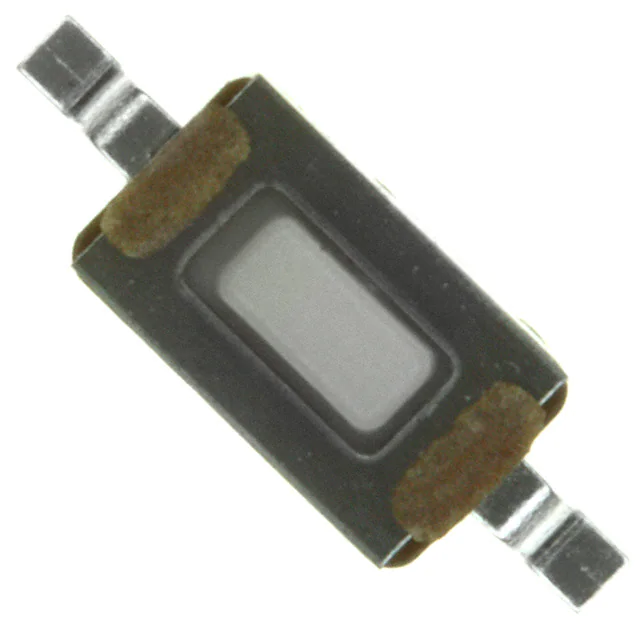

TL3302AF260QG

SERIES TL 3302 SWITCHES SPECIFICATIONS Life Expectancy: Contact Resistance: Insulation Resistance: Dielectric Strength: Actuation Force: Travel: 20,000 - 50,000 cycles, depending on model 100mΩ max., typical @ 2-4 VDC 100mA for both silver and gold plated contacts 100MΩ min. 250 VAC 130 ± 50 gf, 180 ± 50 gf, 260 ± 50 gf 0.25 Typ. PUSHBUTTON SWITCHES CAP OPTIONS DETECTOR SWITCHES ROTARY SWITCHES KEYLOCK SWITCHES Specifications subject to change without notice. Operating Temperature: -20°C to 70°C MATERIALS FEATURES & BENEFITS 3.5 x 6mm packaged design Reliable dome contact technology Strong tactile/audible feedback APPLICATIONS/MARKETS Telecommunications Consumer Electronics Audio/visual Medical Testing/instrumentation Computer/servers/peripherals Housing: Actuator: Cover: Contacts: Terminals: PPS Tin plated steel Silver plated phosphor bronze Silver plated brass ROCKER SWITCHES G = Gull Wing J = J-Lead DIP SWITCHES SNAP-ACTION SWITCHES TERMINATION SLIDE SWITCHES PPS HOW TO ORDER SERIES MODEL NO. ACTUATOR ("L" Dimension) OPERATING FORCE CONTACT MATERIAL TL TL 3302 A = 4.3mm B = 5.0mm F130 F180 F260 Q = Silver Example Ordering Number TL _ 3302_ A_ F180_ Q _ G w ww.e-switch.com info @ e-switch.com TOGGLE SWITCHES NAVIGATION SWITCHES Contact Rating: 50mA @ 12 VDC TACT SWITCHES TACT SWITCHES SMT - RECTANGULAR ▲ ▲ ▲ ▲ ▲ ▲ 15 SERIES TL 3302 SWITCHES TACT SWITCHES TACT SWITCHES SMT - RECTANGULAR TL 3302 GULL WING TERMINATION PUSHBUTTON SWITCHES NAVIGATION SWITCHES ROCKER SWITCHES TOGGLE SWITCHES SCHEMATIC P.C. MOUNTING TL 3302 SLIDE SWITCHES J-LEAD TERMINATION DIP SWITCHES SNAP-ACTION SWITCHES SCHEMATIC P.C. MOUNTING KEYLOCK SWITCHES TL 3302 STANDARD REEL CAP OPTIONS DETECTOR SWITCHES ROTARY SWITCHES 16 Phone: 800-867-2717 Fax: 763-531-8235
