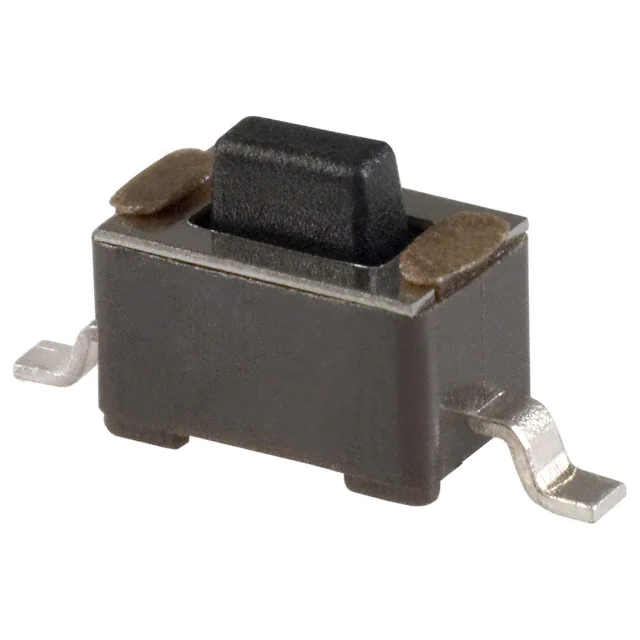

TL3302BF180QG/TR

SHEET 1 OF 1 13.20 [.520 in] 6.50 [.256 in] 2.16 [.085 in] RECOMMENDED P.C.B. LAYOUT 1 6.00 [.236 in] 3.50 [.138 in] ISOMETRIC 4.10 [.161 in]MAX. 3.00 [.118 in] 2 CIRCUIT: SPST .40 [.016 in] 3.50 [.138 in] .30 [.012 in] 1.13 [.044 in] HOUSING COLOR: BROWN TERMINALS MUST BE COPLANAR WITHIN 0.10 [.004] TOTAL 1.00 [.039 in] TYP. 10.20 `.20 [.402 `.008 in] E 16702 FIXED ACTUATOR COLOR 11/27/06 TN D 16691 REVISED AND REDRAWN 11/22/06 TN REV PCR NO DATE BY DESCRIPTION .20 [.008 in] 5.00 [.197 in] NOTES: 1. ALL DIMENSIONS IN MM [INCH] 2. GENERAL TOLERANCE: X.X=±0.4 1.27 X.XX=±0.25 [.050 in] 3. TERM. NOS. FOR REFERENCE ONLY. 4. RATING: 50mA @ 12VDC 5. OPERATING FORCE: 180 `50gf 6. TRAVEL: 0.25 +0.2/-0.1mm 7. CONTACT RESISTANCE: 100 MILLI OHMS MAX. (INITIAL) 8. MECHANICAL/ELECTRICAL LIFE: 40,000 CYCLES. 9. CONTACT MATERIAL: SILVER 10. PACKAGE: TAPE AND REEL, 1800 PER 11. DENOTES CRITICAL PARAMETER 12. 2002/95/EC (ROHS) COMPLIANT THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED ACTUATOR COLOR: BLACK 1.50 [.059 in] TITLE SCALE TL3302BF180QG 4:1 DATE DR 11/27/2006 TN REV DWG P010523 E
