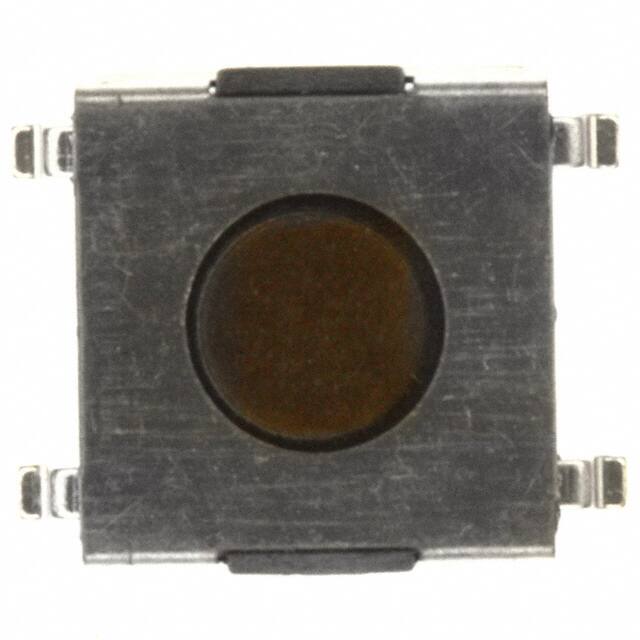

TL3303F100QG

SHEET 1 OF 1 10.00 [.394 in] 3.10 [.122 in] 8.00 [.315 in] 6.80 [.268 in] 3 5.90 [.232 in] 6.20 [.244 in] 4 n3.00 [.118 in] 4.50 [.177 in] 1 P.C.B MOUNTING 2 .70 [.028 in] 3 4 1 2 6.00 [.236 in] CIRCUIT: SPST NOTES: 1. ALL DIMENSIONS IN MM [INCH] 2. GENERAL TOLERANCE: X.X=`0.4 X.XX=`0.25 3. TERMINAL NUMBERS FOR REF ONLY. 4. TRAVEL: 0.25mm +0.2/-0.1 5. RATING: 50mA, 12VDC 6. OPERATING FORCE: 100`50gf 7. CONTACT RESISTANCE: 100M OHM MAX. 8. ACTUATOR COLOR: BROWN 9. DENOTES CRITICAL PARAMETER 10. PACKAGING: TAPE AND REEL 1,500 PCS PER 11. 2002/95/EC (ROHS) COMPLIANT .10 [.004 in] D 16024 UPDATE ACTUATOR COLOR 5/16/06 CT C 15915 REVISED REDRAWN 3/29/06 PH REV PCR NO DATE BY DESCRIPTION 3.10 [.122 in] 2.60 [.102 in] THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED TERMINALS TO BE COPLANAR WITH IN 0.10mm .30 [.012 in] TITLE SCALE TL3303F100QG 4:1 DATE DR 3/29/2006 -- REV DWG P010425 D
