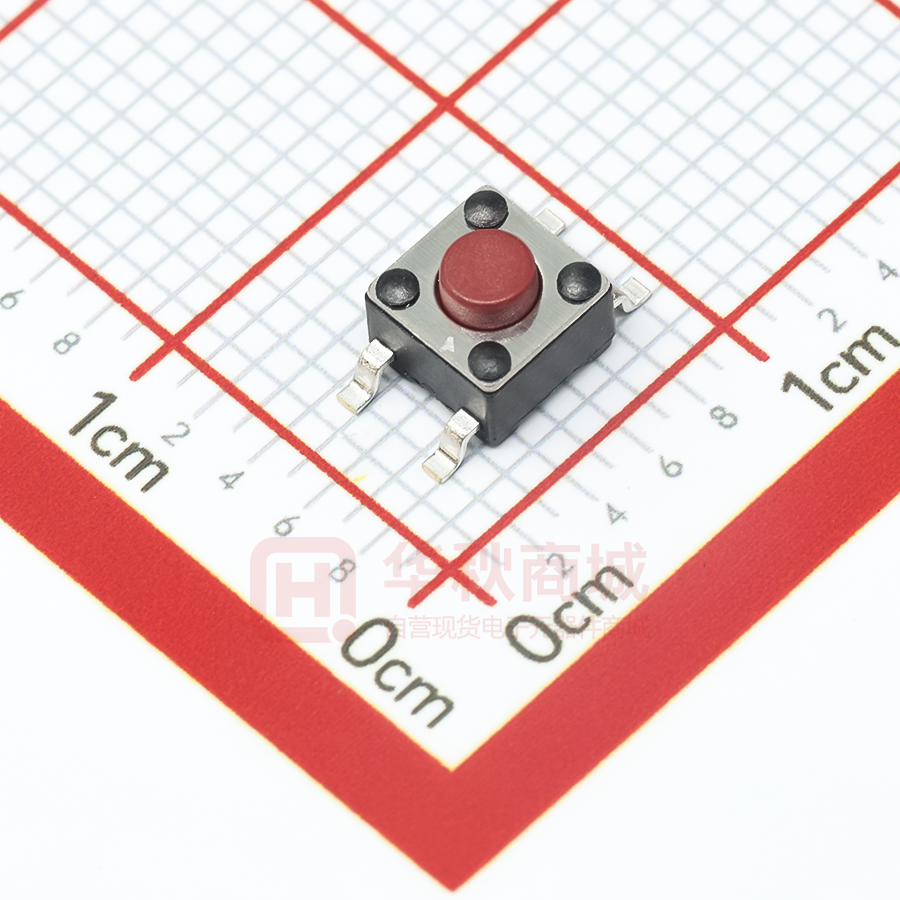

TL3305AF260QG

SHEET 1 OF 1 8.80 [.346 in] 1.60 [.063 in] 7.50 [.295 in] 4 3 4.40 [.173 in] 1 4.50 [.177 in] 2 5.60 [.220 in] 4.50 [.177 in] 3 3.00 [.118 in] 3 4 1 2 4 .70 [.028 in] 2.50 [.098 in] 1 .40 MAX. [.016 in] ACTUATOR COLOR: RED 2 CIRCUIT: SPST 3.80 [.150 in] NOTES: 1. ALL DIMENSIONS IN MM 2. GENERAL TOLERANCE: X.X= 0.4 X.XX= 0.25 3. TERM. NOS. FOR REFERENCE ONLY. 4. CONTACT MATERIAL: SILVER 5. RATING: 12VDC, 50mA 6. OPERATING FORCE: 260 50 gms 7. TRAVEL: 0.20 +/- 0.10 mm 8. CONTACT RESISTANCE: 100 MILLI OHMS MAX. (INITIAL) 9. MECHANICAL/ELECTRICAL LIFE 200,000 CYCLES MIN. 10. INSULATION RESISTANCE: 100M OHMS MIN @ 100VDC 11. DIELECTRIC STRENGTH: 250VAC 12. OPERATING TEMPERATURE: -20 C TO +70 C 13. STORAGE TEMPERTURE: -30 C TO +80 C 14. DENOTES CRITICAL PARAMETER 15. 2011/65/EU (ROHS) COMPLIANT 16. PACKAGING: TAPE AND REEL, 2,000 PIECES PER REEL. .00 - .10 [.000 - .004 in] C 22653 ADDED PIN NUMBER TO PAD LAYOUT 12/28/16 MJR B 22265 ADDED RED ACTUATOR CALLOUT 4/12/16 MJR REV PCR NO DATE BY DESCRIPTION THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED TITLE .30 [.012 in] TL3305AF260QG DATE SCALE 4:1 DR 10/9/2015 rc REV DWG P010471 C
