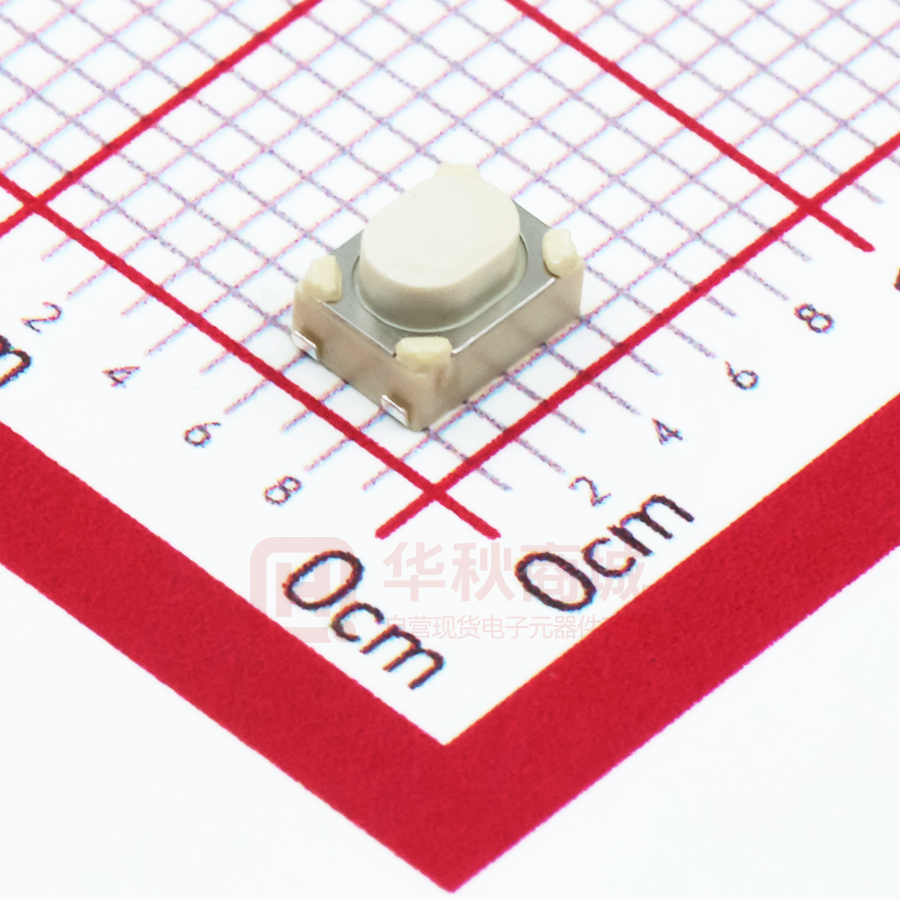

TL3365AF180QG

TL3365 Series Tact Switch Audio / Visual Computer Peripherals Consumer Electronics Instrumentation Telecommunication Medical Equipment RoHS Specifications Features & Benefits Electrical Rating: 50mA @ 12VDC Electrical Life: 100,000 Cycles Mechanical Life: 100,000 Cycles Contact Resistance: 100mΩ Max. Initial Insulation Resistance: 100M Ω at 100VDC Dielectric Strength: 250VAC for 1 min. Operating Temperature: -20°C to 70°C Storage Temperature: -30°C to 80°C Operating Force: 180 gf Travel: 0.2mm Contact Arrangement: SPST • Ultraminiature • Surface mount Part Number Configurator Series Model Actuator Option Actuation Force Contact Material Termination TL 3365 A - 2.25mm F180 - 180 gf Q - Silver G - Gullwing CAP OPTIONS TOGGLE SWITCHES TACTILE SWITCHES SNAP ACTION SWITCHES SLIDE SWITCHES ROTARY SWITCHES ROCKER SWITCHES PUSHBUTTON SWITCHES NAVIGATION SWITCHES KEYLOCK SWITCHES DIP SWITCHES DETECTOR SWITCHES ANTI-VANDAL SWITCHES Applications / Markets Specifications to change notice Specifications subject subject to change without without notice 1.4.2019 www.e-switch.com 800.867.2717 1 TL3365 Series Tact Switch ANTI-VANDAL SWITCHES Body Dimensions DETECTOR SWITCHES DIP SWITCHES KEYLOCK SWITCHES NAVIGATION SWITCHES PUSHBUTTON SWITCHES ROCKER SWITCHES ROTARY SWITCHES SLIDE SWITCHES 3.50 [.138 in] 3 .55 [.022 in] 3 4 2.90 [.114 in] 4.20 [.165 in] TACTILE SWITCHES 1.40 [.055 in] SNAP ACTION SWITCHES 5.50 [.217 in] 4 3.2 [.126 1 2 2 1 CAP OPTIONS PCB LAYOUT PCB Layout TOGGLE SWITCHES 2.15 [.085 in] Schematic 3.00 [.118 in] www.e-switch.com 800.867.2717 [.0 2
