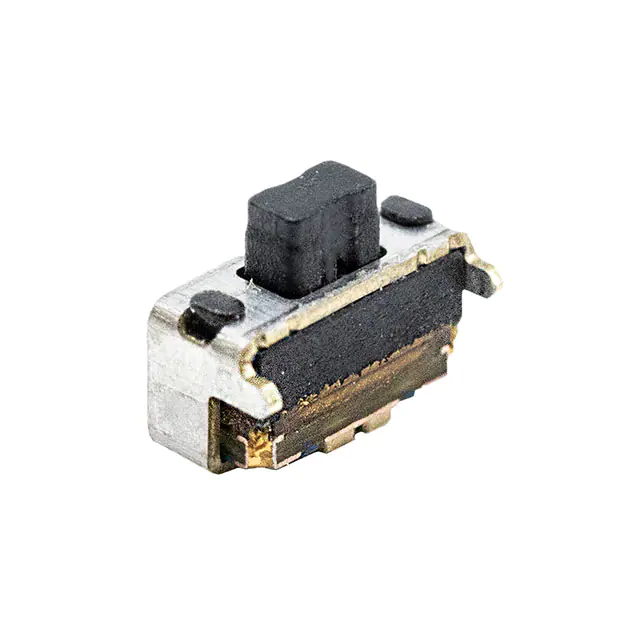

TL6340AF160Q

TL6340 Series Tact Switch Wearable Electronics Computer Peripherals Consumer Electronics Instrumentation Telecommunication Handheld Devices RoHS Specifications Features & Benefits Contact Arrangement: SPST Contact Rating: 12VDC, 20mA Contact Resistance: 100mOhms Insulation Resistance: 100MOHMS @ 100VDC Dielectric Strength: 250VAC for 1 Minute Operation Life: 200,000 Cycles Operating Temperature: -40°C to +85°C Storage Temperature: -40°C to +85°C Moisture Protection: IP67 Travel: 0.2mm Actuation Force: 160gf • • • • • SPST contact arrangement 2.90mm (W) x 3.85mm (L) x 2.00mm (H) dimensions Up to 200,000 cycle life expectancy IP67 moisture and dust protection Right angle surface mount design Part Number Configurator Series Model Actuator Option Actuation Force Contact Material TL 6340 A - 1.50mm F160 - 160gf Q - Silver CAP OPTIONS TOGGLE SWITCHES TACTILE SWITCHES SNAP ACTION SWITCHES SLIDE SWITCHES ROTARY SWITCHES ROCKER SWITCHES PUSHBUTTON SWITCHES NAVIGATION SWITCHES KEYLOCK SWITCHES DIP SWITCHES DETECTOR SWITCHES ANTI-VANDAL SWITCHES Applications / Markets Specifications subject without to change without notice Specifications subject to change notice 10.23.2019 www.e-switch.com 800.867.2717 1 TL6340 Series Tact Switch ANTI-VANDAL SWITCHES Body Dimensions 3.85 [.152 in] DETECTOR SWITCHES 1.95 [.077 in] 2.90 [.114 in] DIP SWITCHES 1.50 [.059 in] 1.40 [.055 in] .95 [.037 in] KEYLOCK SWITCHES 1.55 [.061 in] .80 .90 [.031 in] [.035 in] NAVIGATION SWITCHES 1 .78 [.031 in] .40 [.016 in] 1.55 [.061 in] .45 [.018 in] PUSHBUTTON SWITCHES .20 [.008 in] 3.65 [.144 in] ROCKER SWITCHES 2.75 [.108 in] SLIDE SWITCHES 2.30 [.091 in] 3.65 [.144 in] .65 [.026 in] 1.15 [.045 in] ROTARY SWITCHES 1 2 1.15 [.045 in] SNAP ACTION SWITCHES .60 [.024 in] .15 1.65 [.006 in] [.065 in] .80 2 1 [.031 in] 2 Schematic CAP OPTIONS 1.10 [.043 in] 1.10 [.043 in] 1.40 [.055 in] TOGGLE SWITCHES 1 .08 [.003 in] .35 [.014 in] .70 [.028 in] TACTILE SWITCHES 1.35 [.053 in] Recommended Surface Mount PCB Layout TL6340 Catalog Drawing 10/22/2019 SHEET 1 OF 1 www.e-switch.com 800.867.2717 2
