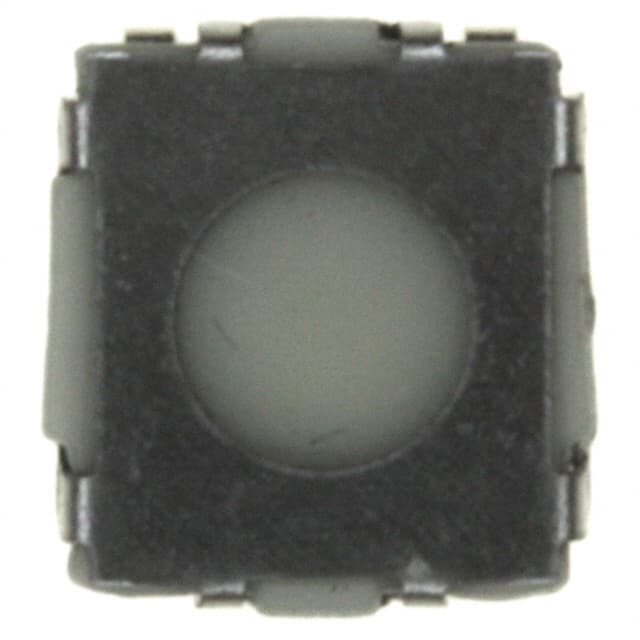

TL6700NF160QJ

SHEET 1 OF 1 9.60 [.378 in] 1.00 [.039 in] 6.90 [.272 in] 3.00 [.118 in] 3 4 3 1 4.00 [.157 in] 6.20 [.244 in] 2 4 1 2 4.00 [.157 in] 1 P.C.B. MOUNTING LAYOUT 3 4 .70 [.028 in] n3.40 [.134 in] 2.60 [.102 in] CIRCUIT: SPST NOTES: 1. GENERAL TOLERANCE: x.x `0.4 x.xx `0.25 2. RATING: 50mA@12VDC 3. TRAVEL: 0.35±0.2mm 4. CONTACT RESISTANCE: 100m OHMS B 5. LIFE CYCLES: 500,000 CYCLES 6. OPERATING FORCE: 160`50gf 7. DENOTES CRITICAL PARAMETER 8. PACKAGE: TAPE AND REEL, 1900 PIECES PER REEL 9. 2002/95/EC (ROHS) COMPLIANT 10. CONTACT MATERIAL: SILVER .10 [.004 in] 6.80 [.268 in] B 20290 CORRECT LIFE NOTE 11/17/11 BMA A 16658 RELEASED FOR PRODUCTION 11/14/2006 TN REV PCR NO DATE BY DESCRIPTION ISOMETRIC 2 THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED TITLE SCALE TL6700NF160QJ 5:1 DATE 11/14/2006 DR TN DWG P010464 REV B
