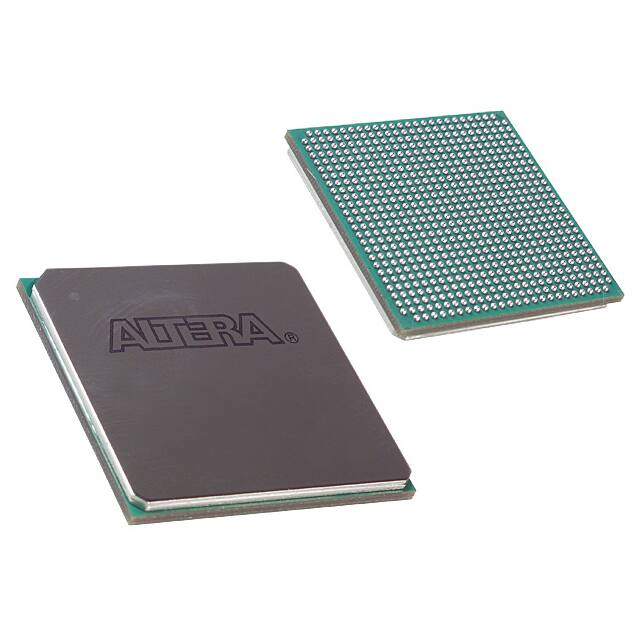

Intel® Cyclone® 10 GX Device Datasheet
Subscribe
Send Feedback
C10GX51002 | 2018.06.15
Latest document on the web: PDF | HTML
Contents
Contents
Intel® Cyclone® 10 GX Device Datasheet....................................................................................................................................3
Electrical Characteristics...................................................................................................................................................... 3
Operating Conditions.................................................................................................................................................. 3
Switching Characteristics....................................................................................................................................................21
Transceiver Performance Specifications....................................................................................................................... 21
Core Performance Specifications.................................................................................................................................29
Periphery Performance Specifications.......................................................................................................................... 36
Configuration Specifications................................................................................................................................................ 44
POR Specifications....................................................................................................................................................44
JTAG Configuration Timing.........................................................................................................................................45
FPP Configuration Timing.......................................................................................................................................... 45
AS Configuration Timing............................................................................................................................................49
DCLK Frequency Specification in the AS Configuration Scheme....................................................................................... 50
PS Configuration Timing............................................................................................................................................50
Initialization............................................................................................................................................................ 52
Configuration Files....................................................................................................................................................52
Minimum Configuration Time Estimation......................................................................................................................54
Remote System Upgrades......................................................................................................................................... 55
User Watchdog Internal Circuitry Timing Specifications..................................................................................................55
I/O Timing....................................................................................................................................................................... 55
Programmable IOE Delay................................................................................................................................................... 56
Glossary.......................................................................................................................................................................... 56
Document Revision History for the Intel Cyclone 10 GX Device Datasheet................................................................................. 60
Intel® Cyclone® 10 GX Device Datasheet
2
C10GX51002 | 2018.06.15
Intel® Cyclone® 10 GX Device Datasheet
This datasheet describes the electrical characteristics, switching characteristics, configuration specifications, and I/O timing
for Intel® Cyclone® 10 GX devices.
Intel Cyclone 10 GX devices are offered in extended and industrial grades. Extended devices are offered in –E5 (fastest) and –
E6 speed grades. Industrial grade devices are offered in the –I5 and –I6 speed grades.
Related Information
Intel Cyclone 10 GX Device Overview
Provides more information about the densities and packages in the Intel Cyclone 10 GX devices.
Electrical Characteristics
The following sections describe the operating conditions and power consumption of Intel Cyclone 10 GX devices.
Operating Conditions
Intel Cyclone 10 GX devices are rated according to a set of defined parameters. To maintain the highest possible performance
and reliability of the Intel Cyclone 10 GX devices, you must consider the operating requirements described in this section.
Absolute Maximum Ratings
This section defines the maximum operating conditions for Intel Cyclone 10 GX devices. The values are based on experiments
conducted with the devices and theoretical modeling of breakdown and damage mechanisms. The functional operation of the
device is not implied for these conditions.
Caution:
Conditions outside the range listed in the following table may cause permanent damage to the device. Additionally, device
operation at the absolute maximum ratings for extended periods of time may have adverse effects on the device.
Intel Corporation. All rights reserved. Intel, the Intel logo, Altera, Arria, Cyclone, Enpirion, MAX, Nios, Quartus and Stratix words and logos are trademarks of Intel
Corporation or its subsidiaries in the U.S. and/or other countries. Intel warrants performance of its FPGA and semiconductor products to current specifications in
accordance with Intel's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Intel assumes no
responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by
Intel. Intel customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for
products or services.
*Other names and brands may be claimed as the property of others.
ISO
9001:2008
Registered
Intel® Cyclone® 10 GX Device Datasheet
C10GX51002 | 2018.06.15
Table 1.
Absolute Maximum Ratings for Intel Cyclone 10 GX Devices
Symbol
Description
Condition
Minimum
Maximum
Unit
VCC
Core voltage power supply
—
–0.50
1.21
V
VCCP
Periphery circuitry and transceiver fabric interface power supply
—
–0.50
1.21
V
VCCERAM
Embedded memory power supply
—
–0.50
1.36
V
VCCPT
Power supply for programmable power technology and I/O pre-driver
—
–0.50
2.46
V
VCCBAT
Battery back-up power supply for design security volatile key register
—
–0.50
2.46
V
VCCPGM
Configuration pins power supply
(1)
–0.50
2.46
V
VCCIO
I/O buffers power supply
3 V I/O
–0.50
4.10
V
LVDS I/O
–0.50
2.46
V
VCCA_PLL
Phase-locked loop (PLL) analog power supply
—
–0.50
2.46
V
VCCT_GXB
Transmitter power supply
—
–0.50
1.34
V
VCCR_GXB
Receiver power supply
—
–0.50
1.34
V
VCCH_GXB
Transceiver output buffer power supply
—
–0.50
2.46
V
continued...
(1)
The LVDS I/O values are applicable to all dedicated and dual-function configuration I/Os.
Intel® Cyclone® 10 GX Device Datasheet
4
Intel® Cyclone® 10 GX Device Datasheet
C10GX51002 | 2018.06.15
Symbol
Description
Condition
Minimum
–25
Maximum
Unit
25
mA
(2)(3)(4)(5)
IOUT
DC output current per pin
—
TJ
Operating junction temperature
—
–55
125
°C
TSTG
Storage temperature (no bias)
—
–65
150
°C
(6)
Related Information
•
AN 692: Power Sequencing Considerations for Intel Cyclone 10 GX, Intel Arria 10, and Intel Stratix 10 Devices
Provides the power sequencing requirements for Intel Cyclone 10 GX devices.
•
Power-Up and Power-Down Sequences, Power Management in Intel Cyclone 10 GX Devices chapter
Provides the power sequencing requirements for Intel Cyclone 10 GX devices.
Maximum Allowed Overshoot and Undershoot Voltage
During transitions, input signals may overshoot to the voltage listed in the following table and undershoot to –2.0 V for input
currents less than 100 mA and periods shorter than 20 ns.
The maximum allowed overshoot duration is specified as a percentage of high time over the lifetime of the device. A DC signal
is equivalent to 100% duty cycle.
For example, a signal that overshoots to 2.70 V for LVDS I/O can only be at 2.70 V for ~4% over the lifetime of the device.
(2)
The maximum current allowed through any LVDS I/O bank pin when the device is not turned on or during power-up/power-down
conditions is 10 mA.
(3)
Total current per LVDS I/O bank must not exceed 100 mA.
(4)
Voltage level must not exceed 1.89 V.
(5)
Applies to all I/O standards and settings supported by LVDS I/O banks, including single-ended and differential I/Os.
(6)
Applies only to LVDS I/O banks. 3 V I/O banks are not covered under this specification and must be implemented as per the power
sequencing requirement. For more details, refer to AN 692: Power Sequencing Considerations for Intel Cyclone 10 GX, Intel Arria® 10,
and Intel Stratix® 10 Devices and Power Management in Intel Cyclone 10 GX Devices chapter.
Intel® Cyclone® 10 GX Device Datasheet
5
Intel® Cyclone® 10 GX Device Datasheet
C10GX51002 | 2018.06.15
Table 2.
Maximum Allowed Overshoot During Transitions for Intel Cyclone 10 GX Devices
This table lists the maximum allowed input overshoot voltage and the duration of the overshoot voltage as a percentage of device lifetime. The LVDS I/O values
are applicable to the VREFP_ADC and VREFN_ADC I/O pins.
Symbol
Description
Condition (V)
LVDS I/O
Vi (AC)
AC input voltage
(7)
Overshoot Duration as % at TJ = 100°C
Unit
3 V I/O
2.50
3.80
100
%
2.55
3.85
42
%
2.60
3.90
18
%
2.65
3.95
9
%
2.70
4.00
4
%
> 2.70
> 4.00
No overshoot allowed
%
For an overshoot of 2.5 V, the percentage of high time for the overshoot can be as high as 100% over a 10-year period.
Percentage of high time is calculated as ([delta T]/T) × 100. This 10-year period assumes that the device is always turned on
with 100% I/O toggle rate and 50% duty cycle signal.
(7)
The LVDS I/O values are applicable to all dedicated and dual-function configuration I/Os.
Intel® Cyclone® 10 GX Device Datasheet
6
Intel® Cyclone® 10 GX Device Datasheet
C10GX51002 | 2018.06.15
Figure 1.
Intel Cyclone 10 GX Devices Overshoot Duration
2.71 V
2.7V
1.8 V
DT
T
Recommended Operating Conditions
This section lists the functional operation limits for the AC and DC parameters for Intel Cyclone 10 GX devices.
Recommended Operating Conditions
Table 3.
Recommended Operating Conditions for Intel Cyclone 10 GX Devices
This table lists the steady-state voltage values expected from Intel Cyclone 10 GX devices. Power supply ramps must all be strictly monotonic, without plateaus.
Symbol
Description
Condition
Minimum
(8)
Typical
Maximum
(8)
Unit
VCC
Core voltage power supply
—
0.87
0.9
0.93
V
VCCP
Periphery circuitry and transceiver fabric
interface power supply
—
0.87
0.9
0.93
V
VCCPGM
Configuration pins power supply
1.8 V
1.71
1.8
1.89
V
1.5 V
1.425
1.5
1.575
V
continued...
(8)
This value describes the budget for the DC (static) power supply tolerance and does not include the dynamic tolerance requirements.
Refer to the PDN tool for the additional budget for the dynamic tolerance requirements.
Intel® Cyclone® 10 GX Device Datasheet
7
Intel® Cyclone® 10 GX Device Datasheet
C10GX51002 | 2018.06.15
Symbol
Description
Condition
Minimum
(8)
Typical
Maximum
(8)
Unit
1.2 V
1.14
1.2
1.26
V
Embedded memory power supply
0.9 V
0.87
0.9
0.93
V
Battery back-up power supply
(For design security volatile key register)
1.8 V
1.71
1.8
1.89
V
1.2 V
1.14
1.2
1.26
V
VCCPT
Power supply for programmable power
technology and I/O pre-driver
1.8 V
1.71
1.8
1.89
V
VCCIO
I/O buffers power supply
3.0 V (for 3 V I/O only)
2.85
3.0
3.15
V
2.5 V (for 3 V I/O only)
2.375
2.5
2.625
V
1.8 V
1.71
1.8
1.89
V
1.5 V
1.425
1.5
1.575
V
1.35 V
(10)
1.35
(10)
V
1.25 V
1.19
1.25
1.31
V
1.2 V
(10)
1.2
(10)
V
VCCERAM
VCCBAT
(9)
VCCA_PLL
PLL analog voltage regulator power supply
—
1.71
1.8
1.89
V
VREFP_ADC
Precision voltage reference for voltage
sensor
—
1.2475
1.25
1.2525
V
continued...
(8)
This value describes the budget for the DC (static) power supply tolerance and does not include the dynamic tolerance requirements.
Refer to the PDN tool for the additional budget for the dynamic tolerance requirements.
(9)
If you do not use the design security feature in Intel Cyclone 10 GX devices, connect VCCBAT to a 1.5-V to 1.8-V power supply. Intel
Cyclone 10 GX power-on reset (POR) circuitry monitors VCCBAT. Intel Cyclone 10 GX devices do not exit POR if VCCBAT is not powered
up.
(10)
For minimum and maximum voltage values, refer to the I/O Standard Specifications section.
Intel® Cyclone® 10 GX Device Datasheet
8
Intel® Cyclone® 10 GX Device Datasheet
C10GX51002 | 2018.06.15
Symbol
VI
(11)(12)
Description
DC input voltage
VO
Output voltage
TJ
Operating junction temperature
tRAMP
(13)
Power supply ramp time
Condition
Minimum
(8)
Typical
Maximum
(8)
Unit
3 V I/O
–0.3
—
3.3
V
LVDS I/O
–0.3
—
2.19
V
—
0
—
VCCIO
V
Extended
0
—
100
°C
Industrial
–40
—
100
°C
Standard POR
200 µs
—
100 ms
—
Fast POR
200 µs
—
4 ms
—
Related Information
I/O Standard Specifications on page 15
Transceiver Power Supply Operating Conditions
Table 4.
Transceiver Power Supply Operating Conditions for Intel Cyclone 10 GX Devices
Symbol
VCCT_GXB[L1][C,D]
Description
Transmitter power supply
Condition
Chip-to-chip ≤
12.5 Gbps
Or
Minimum
(14)
1.0
Typical
Maximum
1.03
(14)
Unit
1.06
V
continued...
(8)
This value describes the budget for the DC (static) power supply tolerance and does not include the dynamic tolerance requirements.
Refer to the PDN tool for the additional budget for the dynamic tolerance requirements.
(11)
The LVDS I/O values are applicable to all dedicated and dual-function configuration I/Os.
(12)
This value applies to both input and tri-stated output configuration. Pin voltage should not be externally pulled higher than the
maximum value.
(13)
tramp is the ramp time of each individual power supply, not the ramp time of all combined power supplies.
(14)
This value describes the budget for the DC (static) power supply tolerance and does not include the dynamic tolerance requirements.
Refer to the PDN tool for the additional budget for the dynamic tolerance requirements.
Intel® Cyclone® 10 GX Device Datasheet
9
Intel® Cyclone® 10 GX Device Datasheet
C10GX51002 | 2018.06.15
Symbol
Description
Condition
Minimum
(14)
Typical
Maximum
(14)
Unit
Backplane ≤
6.6 Gbps
VCCR_GXB[L1][C,D]
Receiver power supply
VCCH_GXBL
Transceiver output buffer power supply
Chip-to-chip ≤
11.3 Gbps
0.92
0.95
0.98
V
Chip-to-chip ≤
12.5 Gbps
Or
Backplane ≤
6.6 Gbps
1.0
1.03
1.06
V
Chip-to-chip ≤
11.3 Gbps
0.92
0.95
0.98
V
1.710
1.8
1.890
V
—
Related Information
•
Transceiver Performance for Intel Cyclone 10 GX Devices on page 21
•
Intel Cyclone 10 GX Pin Connection Guidelines
DC Characteristics
Supply Current and Power Consumption
Intel offers two ways to estimate power for your design—the Excel-based Early Power Estimator (EPE) and the Intel Quartus®
Prime Power Analyzer feature.
Use the Excel-based EPE before you start your design to estimate the supply current for your design. The EPE provides a
magnitude estimate of the device power because these currents vary greatly with the usage of the resources.
The Intel Quartus Prime Power Analyzer provides better quality estimates based on the specifics of the design after you
complete place-and-route. The Power Analyzer can apply a combination of user-entered, simulation-derived, and estimated
signal activities that, when combined with detailed circuit models, yield very accurate power estimates.
(14)
This value describes the budget for the DC (static) power supply tolerance and does not include the dynamic tolerance requirements.
Refer to the PDN tool for the additional budget for the dynamic tolerance requirements.
Intel® Cyclone® 10 GX Device Datasheet
10
Intel® Cyclone® 10 GX Device Datasheet
C10GX51002 | 2018.06.15
Related Information
•
Early Power Estimator User Guide
Provides more information about power estimation tools.
•
Power Analysis and Optimization User Guide: Intel Quartus Prime Pro Edition
Provides more information about power estimation tools.
I/O Pin Leakage Current
Table 5.
I/O Pin Leakage Current for Intel Cyclone 10 GX Devices
If VO = VCCIO to VCCIOMAX, 300 μA of leakage current per I/O is expected.
Symbol
Description
Condition
Min
Max
Unit
II
Input pin
VI = 0 V to VCCIOMAX
–80
80
µA
IOZ
Tri-stated I/O pin
VO = 0 V to VCCIOMAX
–80
80
µA
Bus Hold Specifications
The bus-hold trip points are based on calculated input voltages from the JEDEC standard.
Table 6.
Bus Hold Parameters for Intel Cyclone 10 GX Devices
Parameter
Symbol
Condition
VCCIO (V)
1.2
Min
Bus-hold, low,
sustaining
current
ISUSL
VIN > VIL
(max)
Bus-hold, high,
sustaining
current
ISUSH
VIN < VIH
(min)
1.5
Max
(15),
8
26
(16)
–8 (15),
–26 (16)
—
—
Min
12
32
(15),
(16)
–12 (15),
–32 (16)
Unit
1.8
Max
—
—
Min
30
55
(15),
(16)
–30 (15),
–55 (16)
2.5
3.0
Max
Min
Max
Min
Max
—
60
—
70
—
µA
—
–60
—
–70
—
µA
continued...
(15)
This value is only applicable for LVDS I/O bank.
(16)
This value is only applicable for 3 V I/O bank.
Intel® Cyclone® 10 GX Device Datasheet
11
Intel® Cyclone® 10 GX Device Datasheet
C10GX51002 | 2018.06.15
Parameter
Symbol
Condition
VCCIO (V)
1.2
1.5
Unit
1.8
2.5
3.0
Min
Max
Min
Max
Min
Max
Min
Max
Min
Max
Bus-hold, low,
overdrive current
IODL
0 V < VIN <
VCCIO
—
125
—
175
—
200
—
300
—
500
µA
Bus-hold, high,
overdrive current
IODH
0 V < VIN <
VCCIO
—
–125
—
–175
—
–200
—
–300
—
–500
µA
Bus-hold trip
point
VTRIP
—
0.3
0.9
0.38
1.13
0.68
1.07
0.70
1.7
0.8
2
V
OCT Calibration Accuracy Specifications
If you enable on-chip termination (OCT) calibration, calibration is automatically performed at power up for I/Os connected to
the calibration block.
Table 7.
OCT Calibration Accuracy Specifications for Intel Cyclone 10 GX Devices
Calibration accuracy for the calibrated on-chip series termination (RS OCT) and on-chip parallel termination (RT OCT) are applicable at the moment of calibration.
When process, voltage, and temperature (PVT) conditions change after calibration, the tolerance may change.
Symbol
Description
Condition (V)
Resistance Tolerance
–E5, –I5
–E6, –I6
Unit
25-Ω and 50-Ω RS
Internal series termination with calibration (25Ω and 50-Ω setting)
VCCIO = 1.8, 1.5, 1.2
± 15
± 15
%
34-Ω and 40-Ω RS
Internal series termination with calibration (34Ω and 40-Ω setting)
VCCIO = 1.5, 1.25, 1.2
± 15
± 15
%
VCCIO = 1.35
± 20
± 20
%
48-Ω, 60-Ω, 80-Ω, and 120-Ω
RS
Internal series termination with calibration (48Ω, 60-Ω, 80-Ω, and 120-Ω setting)
VCCIO = 1.2
± 15
± 15
%
240-Ω RS
Internal series termination with calibration
(240-Ω setting)
VCCIO = 1.2
± 20
± 20
%
30-Ω RT
Internal parallel termination with calibration
(30-Ω setting)
VCCIO = 1.5, 1.35, 1.25
–10 to +40
–10 to +40
%
34-Ω, 48-Ω, 80-Ω, and 240-Ω
RT
Internal parallel termination with calibration
(34-Ω, 48-Ω, 80-Ω, and 240-Ω setting)
VCCIO = 1.2
± 15
± 15
%
continued...
Intel® Cyclone® 10 GX Device Datasheet
12
Intel® Cyclone® 10 GX Device Datasheet
C10GX51002 | 2018.06.15
Symbol
40-Ω, 60-Ω, and 120-Ω RT
80-Ω RT
Description
Condition (V)
Resistance Tolerance
–E5, –I5
–E6, –I6
Unit
Internal parallel termination with calibration
(40-Ω, 60-Ω, and 120-Ω setting)
VCCIO = 1.5, 1.35, 1.25, 1.2
–10 to +40
–10 to +40
%
(17)
± 15
± 15
%
Internal parallel termination with calibration
(80-Ω setting)
VCCIO = 1.2
± 15
± 15
%
VCCIO = 1.2
Related Information
I/O Standards Support in Intel Cyclone 10 GX Devices
OCT Without Calibration Resistance Tolerance Specifications
Table 8.
OCT Without Calibration Resistance Tolerance Specifications for Intel Cyclone 10 GX Devices
This table lists the Intel Cyclone 10 GX OCT without calibration resistance tolerance to PVT changes.
Symbol
25-Ω and 50-Ω RS
(17)
Description
Internal series termination without calibration
(25-Ω and 50-Ω setting)
Condition (V)
Resistance Tolerance
Unit
–E5, –I5
–E6, –I6
VCCIO = 3.0, 2.5
± 40
± 40
%
VCCIO = 1.8, 1.5, 1.2
± 50
± 50
%
34-Ω and 40-Ω RS
Internal series termination without calibration
(34-Ω and 40-Ω setting)
VCCIO = 1.5, 1.35, 1.25, 1.2
± 50
± 50
%
48-Ω and 60-Ω RS
Internal series termination without calibration
(48-Ω and 60-Ω setting)
VCCIO = 1.2
± 50
± 50
%
120-Ω Rs
Internal series termination without calibration
(120-Ω setting)
VCCIO = 1.2
± 50
± 50
%
100-Ω RD
Internal differential termination
(100-Ω setting)
VCCIO = 1.8
± 35
± 40
%
Only applicable to POD12 I/O standard.
Intel® Cyclone® 10 GX Device Datasheet
13
Intel® Cyclone® 10 GX Device Datasheet
C10GX51002 | 2018.06.15
Pin Capacitance
Table 9.
Pin Capacitance for Intel Cyclone 10 GX Devices
Maximum
Unit
CIO_COLUMN
Symbol
Input capacitance on column I/O pins
Description
2.5
pF
COUTFB
Input capacitance on dual-purpose clock output/feedback pins
2.5
pF
Internal Weak Pull-Up and Weak Pull-Down Resistor
All I/O pins, except configuration, test, and JTAG pins, have an option to enable weak pull-up. The weak pull-down feature is
only available for the pins as described in the Internal Weak Pull-Down Resistor Values for Intel Cyclone 10 GX Devices table.
Table 10.
Internal Weak Pull-Up Resistor Values for Intel Cyclone 10 GX Devices
Symbol
RPU
Description
Value of the I/O pin pull-up resistor before and during configuration, as
well as user mode if you have enabled the programmable pull-up
resistor option.
Condition (V)
(18)
(19)
Unit
VCCIO = 3.0 ±5%
25
kΩ
VCCIO = 2.5 ±5%
25
kΩ
VCCIO = 1.8 ±5%
25
kΩ
VCCIO = 1.5 ±5%
25
kΩ
VCCIO = 1.35 ±5%
25
kΩ
VCCIO = 1.25 ±5%
25
kΩ
VCCIO = 1.2 ±5%
25
kΩ
(18)
Pin pull-up resistance values may be lower if an external source drives the pin higher than VCCIO.
(19)
Valid with ±25% tolerances to cover changes over PVT.
Intel® Cyclone® 10 GX Device Datasheet
14
Value
Intel® Cyclone® 10 GX Device Datasheet
C10GX51002 | 2018.06.15
Table 11.
Internal Weak Pull-Down Resistor Values for Intel Cyclone 10 GX Devices
Pin Name
Description
Condition (V)
Value
(19)
Unit
nIO_PULLUP
Dedicated input pin that determines the internal pull-ups on
user I/O pins and dual-purpose I/O pins.
VCC = 0.9 ±3.33%
25
kΩ
TCK
Dedicated JTAG test clock input pin.
VCCPGM = 1.8 ±5 %
25
kΩ
VCCPGM = 1.5 ±5%
25
kΩ
VCCPGM = 1.2 ±5%
25
kΩ
VCCPGM = 1.8 ±5%
25
kΩ
VCCPGM = 1.5 ±5%
25
kΩ
VCCPGM = 1.2 ±5%
25
kΩ
MSEL[0:2]
Configuration input pins that set the configuration scheme
for the FPGA device.
Related Information
Intel Cyclone 10 GX Device Family Pin Connection Guidelines
Provides more information about the pins that support internal weak pull-up and internal weak pull-down features.
I/O Standard Specifications
Tables in this section list the input voltage (VIH and VIL), output voltage (VOH and VOL), and current drive characteristics (IOH
and IOL) for various I/O standards supported by Intel Cyclone 10 GX devices.
For minimum voltage values, use the minimum VCCIO values. For maximum voltage values, use the maximum VCCIO values.
You must perform timing closure analysis to determine the maximum achievable frequency for general purpose I/O standards.
Related Information
Recommended Operating Conditions on page 7
Intel® Cyclone® 10 GX Device Datasheet
15
Intel® Cyclone® 10 GX Device Datasheet
C10GX51002 | 2018.06.15
Single-Ended I/O Standards Specifications
Table 12.
Single-Ended I/O Standards Specifications for Intel Cyclone 10 GX Devices
I/O Standard
VCCIO (V)
VIL (V)
VIH (V)
VOL (V)
VOH (V)
IOL (20)
(mA)
IOH (20)
(mA)
Min
Typ
Max
Min
Max
Min
Max
Max
Min
3.0-V LVTTL
2.85
3
3.15
–0.3
0.8
1.7
3.3
0.4
2.4
2
–2
3.0-V LVCMOS
2.85
3
3.15
–0.3
0.8
1.7
3.3
0.2
VCCIO – 0.2
0.1
–0.1
2.5 V
2.375
2.5
2.625
–0.3
0.7
1.7
3.3
0.4
2
1
–1
1.8 V
1.71
1.8
1.89
–0.3
0.35 × VCCIO
0.65 × VCCIO
VCCIO + 0.3
0.45
VCCIO – 0.45
2
–2
1.5 V
1.425
1.5
1.575
–0.3
0.35 × VCCIO
0.65 × VCCIO
VCCIO + 0.3
0.25 × VCCIO
0.75 × VCCIO
2
–2
1.2 V
1.14
1.2
1.26
–0.3
0.35 × VCCIO
0.65 × VCCIO
VCCIO + 0.3
0.25 × VCCIO
0.75 × VCCIO
2
–2
Single-Ended SSTL, HSTL, and HSUL I/O Reference Voltage Specifications
Table 13.
Single-Ended SSTL, HSTL, and HSUL I/O Reference Voltage Specifications for Intel Cyclone 10 GX Devices
I/O Standard
VCCIO (V)
VREF (V)
VTT (V)
Min
Typ
Max
Min
Typ
Max
Min
Typ
Max
SSTL-18
Class I, II
1.71
1.8
1.89
0.833
0.9
0.969
VREF – 0.04
VREF
VREF + 0.04
SSTL-15
Class I, II
1.425
1.5
1.575
0.49 × VCCIO
0.5 × VCCIO
0.51 × VCCIO
0.49 × VCCIO
0.5 × VCCIO
0.51 × VCCIO
SSTL-135/ SSTL-135
Class I, II
1.283
1.35
1.418
0.49 × VCCIO
0.5 × VCCIO
0.51 × VCCIO
0.49 × VCCIO
0.5 × VCCIO
0.51 × VCCIO
SSTL-125/ SSTL-125
Class I, II
1.19
1.25
1.31
0.49 × VCCIO
0.5 × VCCIO
0.51 × VCCIO
0.49 × VCCIO
0.5 × VCCIO
0.51 × VCCIO
SSTL-12/ SSTL-12
Class I, II
1.14
1.2
1.26
0.49 × VCCIO
0.5 × VCCIO
0.51 × VCCIO
0.49 × VCCIO
0.5 × VCCIO
0.51 × VCCIO
continued...
(20)
To meet the IOL and IOH specifications, you must set the current strength settings accordingly. For example, to meet the 3.0-V LVTTL
specification (2 mA), you should set the current strength settings to 2 mA. Setting at lower current strength may not meet the IOL and
IOH specifications in the datasheet.
Intel® Cyclone® 10 GX Device Datasheet
16
Intel® Cyclone® 10 GX Device Datasheet
C10GX51002 | 2018.06.15
I/O Standard
VCCIO (V)
VREF (V)
VTT (V)
Min
Typ
Max
Min
Typ
Max
Min
Typ
Max
HSTL-18
Class I, II
1.71
1.8
1.89
0.85
0.9
0.95
—
VCCIO/2
—
HSTL-15
Class I, II
1.425
1.5
1.575
0.68
0.75
0.9
—
VCCIO/2
—
HSTL-12
Class I, II
1.14
1.2
1.26
0.47 × VCCIO
0.5 × VCCIO
0.53 × VCCIO
—
VCCIO/2
—
HSUL-12
1.14
1.2
1.3
0.49 × VCCIO
0.5 × VCCIO
0.51 × VCCIO
—
—
—
POD12
1.16
1.2
1.24
0.69 × VCCIO
0.7 × VCCIO
0.71 × VCCIO
—
VCCIO
—
Single-Ended SSTL, HSTL, and HSUL I/O Standards Signal Specifications
Table 14.
Single-Ended SSTL, HSTL, and HSUL I/O Standards Signal Specifications for Intel Cyclone 10 GX Devices
I/O Standard
VIL(DC) (V)
VIH(DC) (V)
VIL(AC) (V)
VIH(AC) (V)
VOL (V)
VOH (V)
IOL (21) IOH (21)
(mA)
(mA)
Min
Max
Min
Max
Max
Min
Max
Min
SSTL-18 Class I
–0.3
VREF –0.125
VREF + 0.125
VCCIO + 0.3
VREF – 0.25
VREF + 0.25
VTT – 0.603
VTT + 0.603
6.7
–6.7
SSTL-18 Class
II
–0.3
VREF –0.125
VREF + 0.125
VCCIO + 0.3
VREF – 0.25
VREF + 0.25
0.28
VCCIO –0.28
13.4
–13.4
SSTL-15 Class I
—
VREF – 0.1
VREF + 0.1
—
VREF – 0.175
VREF + 0.175
0.2 × VCCIO
0.8 × VCCIO
8
–8
SSTL-15 Class
II
—
VREF – 0.1
VREF + 0.1
—
VREF – 0.175
VREF + 0.175
0.2 × VCCIO
0.8 × VCCIO
16
–16
SSTL-135/
SSTL-135
Class I, II
—
VREF – 0.09
VREF + 0.09
—
VREF – 0.16
VREF + 0.16
0.2 × VCCIO
0.8 × VCCIO
—
—
SSTL-125/
SSTL-125
Class I, II
—
VREF – 0.09
VREF + 0.09
—
VREF – 0.15
VREF + 0.15
0.2 × VCCIO
0.8 × VCCIO
—
—
continued...
(21)
To meet the IOL and IOH specifications, you must set the current strength settings accordingly. For example, to meet the SSTL15CI
specification (8 mA), you should set the current strength settings to 8 mA. Setting at lower current strength may not meet the IOL and
IOH specifications in the datasheet.
Intel® Cyclone® 10 GX Device Datasheet
17
Intel® Cyclone® 10 GX Device Datasheet
C10GX51002 | 2018.06.15
I/O Standard
VIL(DC) (V)
VIH(DC) (V)
VIL(AC) (V)
VIH(AC) (V)
VOL (V)
VOH (V)
IOL (21) IOH (21)
(mA)
(mA)
Min
Max
Min
Max
Max
Min
Max
Min
SSTL-12/
SSTL-12
Class I, II
—
VREF – 0.10
VREF + 0.10
—
VREF – 0.15
VREF + 0.15
0.2 × VCCIO
0.8 × VCCIO
—
—
HSTL-18 Class I
—
VREF –0.1
VREF + 0.1
—
VREF – 0.2
VREF + 0.2
0.4
VCCIO – 0.4
8
–8
HSTL-18 Class
II
—
VREF – 0.1
VREF + 0.1
—
VREF – 0.2
VREF + 0.2
0.4
VCCIO – 0.4
16
–16
HSTL-15 Class I
—
VREF – 0.1
VREF + 0.1
—
VREF – 0.2
VREF + 0.2
0.4
VCCIO – 0.4
8
–8
HSTL-15 Class
II
—
VREF – 0.1
VREF + 0.1
—
VREF – 0.2
VREF + 0.2
0.4
VCCIO –0.4
16
–16
HSTL-12 Class I
–0.15
VREF – 0.08
VREF + 0.08
VCCIO + 0.15
VREF – 0.15
VREF + 0.15
0.25 × VCCIO
0.75 × VCCIO
8
–8
HSTL-12 Class
II
–0.15
VREF – 0.08
VREF + 0.08
VCCIO + 0.15
VREF – 0.15
VREF + 0.15
0.25 × VCCIO
0.75 × VCCIO
16
–16
—
VREF – 0.13
VREF + 0.13
—
VREF – 0.22
VREF + 0.22
0.1 × VCCIO
0.9 × VCCIO
—
—
–0.15
VREF – 0.08
VREF + 0.08
VCCIO + 0.15
VREF – 0.15
VREF + 0.15
(0.7 – 0.15) ×
VCCIO
(0.7 + 0.15) ×
VCCIO
—
—
HSUL-12
POD12
Differential SSTL I/O Standards Specifications
Table 15.
Differential SSTL I/O Standards Specifications for Intel Cyclone 10 GX Devices
I/O Standard
VCCIO (V)
VSWING(DC) (V)
VSWING(AC) (V)
VIX(AC) (V)
Min
Typ
Max
Min
Max
Min
Max
Min
Typ
Max
SSTL-18 Class
I, II
1.71
1.8
1.89
0.25
VCCIO + 0.6
0.5
VCCIO + 0.6
VCCIO/2 – 0.175
—
VCCIO/2
+ 0.175
SSTL-15 Class
I, II
1.425
1.5
1.575
0.2
(22)
2(VIH(AC) –
VREF)
2(VREF –
VIL(AC))
VCCIO/2 – 0.15
—
VCCIO/2 + 0.15
continued...
(21)
To meet the IOL and IOH specifications, you must set the current strength settings accordingly. For example, to meet the SSTL15CI
specification (8 mA), you should set the current strength settings to 8 mA. Setting at lower current strength may not meet the IOL and
IOH specifications in the datasheet.
Intel® Cyclone® 10 GX Device Datasheet
18
Intel® Cyclone® 10 GX Device Datasheet
C10GX51002 | 2018.06.15
I/O Standard
VCCIO (V)
Min
Typ
VSWING(DC) (V)
Max
VSWING(AC) (V)
VIX(AC) (V)
Min
Max
Min
Max
Min
Typ
Max
2(VIH(AC) –
VREF)
2(VIL(AC) –
VREF)
VCCIO/2 – 0.15
VCCIO/2
VCCIO/2 + 0.15
SSTL-135/
SSTL-135
Class I, II
1.283
1.35
1.45
0.18
(22)
SSTL-125/
SSTL-125
Class I, II
1.19
1.25
1.31
0.18
(22)
2(VIH(AC) –
VREF)
2(VIL(AC) –
VREF)
VCCIO/2 – 0.15
VCCIO/2
VCCIO/2 + 0.15
SSTL-12/
SSTL-12
Class I, II
1.14
1.2
1.26
0.16
(22)
2(VIH(AC) –
VREF)
2(VIL(AC) –
VREF)
VREF – 0.15
VCCIO/2
VREF + 0.15
POD12
1.16
1.2
1.24
0.16
—
0.3
—
VREF – 0.08
—
VREF + 0.08
Differential HSTL and HSUL I/O Standards Specifications
Table 16.
Differential HSTL and HSUL I/O Standards Specifications for Intel Cyclone 10 GX Devices
I/O Standard
(22)
VCCIO (V)
VDIF(DC) (V)
VDIF(AC) (V)
VIX(AC) (V)
VCM(DC) (V)
Min
Typ
Max
Min
Max
Min
Max
Min
Typ
Max
Min
Typ
Max
HSTL-18 Class
I, II
1.71
1.8
1.89
0.2
—
0.4
—
0.78
—
1.12
0.78
—
1.12
HSTL-15 Class
I, II
1.425
1.5
1.575
0.2
—
0.4
—
0.68
—
0.9
0.68
—
0.9
HSTL-12 Class
I, II
1.14
1.2
1.26
0.16
VCCIO
+ 0.3
0.3
VCCIO
+ 0.48
—
0.5 ×
VCCIO
—
0.4 ×
VCCIO
0.5 ×
VCCIO
0.6 ×
VCCIO
HSUL-12
1.14
1.2
1.3
2(VIH(DC) –
VREF)
2(VREF –
VIH(DC))
2(VIH(AC) –
VREF)
2(VREF –
VIH(AC))
0.5 ×
VCCIO –
0.12
0.5 ×
VCCIO
0.5 ×
VCCIO
+0.12
0.4 ×
VCCIO
0.5 ×
VCCIO
0.6 ×
VCCIO
The maximum value for VSWING(DC) is not defined. However, each single-ended signal needs to be within the respective single-ended
limits (VIH(DC) and VIL(DC)).
Intel® Cyclone® 10 GX Device Datasheet
19
Intel® Cyclone® 10 GX Device Datasheet
C10GX51002 | 2018.06.15
Differential I/O Standards Specifications
Table 17.
Differential I/O Standards Specifications for Intel Cyclone 10 GX Devices
Differential inputs are powered by VCCPT which requires 1.8 V.
I/O Standard
LVDS
(25)
RSDS (HIO)
Mini-LVDS
(HIO) (27)
LVPECL
(28)
(26)
VCCIO (V)
VID (mV)
(23)
VICM(DC) (V)
VOD (V)
(24)
VOCM (V)
(24)
Min
Typ
Max
Min
Condition
Max
Min
Condition
Max
Min
Typ
Max
Min
Typ
Max
1.71
1.8
1.89
100
VCM =
1.25 V
—
0
DMAX
≤700 Mbps
1.85
0.247
—
0.6
1.125
1.25
1.375
1
DMAX
>700 Mbps
1.6
1.71
1.8
1.89
100
VCM =
1.25 V
—
0.3
—
1.4
0.1
0.2
0.6
0.5
1.2
1.4
1.71
1.8
1.89
200
—
600
0.4
—
1.325
0.25
—
0.6
1
1.2
1.4
1.71
1.8
1.89
300
—
—
0.6
DMAX
≤700 Mbps
1.7
—
—
—
—
—
—
1
DMAX
>700 Mbps
1.6
Related Information
Transceiver Specifications for Intel Cyclone 10 GX Devices on page 22
Provides the specifications for transmitter, receiver, and reference clock I/O pin.
(23)
The minimum VID value is applicable over the entire common mode range, VCM.
(24)
RL range: 90 ≤ RL ≤ 110 Ω.
(25)
For optimized LVDS receiver performance, the receiver voltage input range must be within 1.0 V to 1.6 V for data rates above 700
Mbps and 0 V to 1.85 V for data rates below 700 Mbps.
(26)
For optimized RSDS receiver performance, the receiver voltage input range must be within 0.25 V to 1.45 V.
(27)
For optimized Mini-LVDS receiver performance, the receiver voltage input range must be within 0.3 V to 1.425 V.
(28)
For optimized LVPECL receiver performance, the receiver voltage input range must be within 0.85 V to 1.75 V for data rates above
700 Mbps and 0.45 V to 1.95 V for data rates below 700 Mbps.
Intel® Cyclone® 10 GX Device Datasheet
20
Intel® Cyclone® 10 GX Device Datasheet
C10GX51002 | 2018.06.15
Switching Characteristics
This section provides the performance characteristics of Intel Cyclone 10 GX core and periphery blocks for extended grade
devices.
Transceiver Performance Specifications
Transceiver Performance for Intel Cyclone 10 GX Devices
Table 18.
Transmitter and Receiver Data Rate Performance
Symbol/Description
Chip-to-Chip
(29)
Condition
Datarate
Unit
Maximum data rate
VCCR_GXB = VCCT_GXB = 1.03 V
12.5
Gbps
Maximum data rate
VCCR_GXB = VCCT_GXB = 0.95 V
11.3
Gbps
Minimum Data Rate
1.0
Maximum data rate
VCCR_GXB = VCCT_GXB = 1.03 V
Backplane
6.6
Minimum Data Rate
Table 19.
(30)
1.0
(30)
Gbps
Gbps
Gbps
ATX PLL and Fractional PLL (fPLL) Performance
Symbol/Description
Supported Output Frequency
Condition
Frequency
Unit
Maximum Frequency
6.25
GHz
Minimum Frequency
500
MHz
(29)
Chip-to-chip links are applications with short reach channels.
(30)
Intel Cyclone 10 GX transceivers can support data rates down to 125 Mbps with over sampling. You must create your own over
sampling logic.
Intel® Cyclone® 10 GX Device Datasheet
21
Intel® Cyclone® 10 GX Device Datasheet
C10GX51002 | 2018.06.15
Table 20.
CMU PLL Performance
Symbol/Description
Supported Output Frequency
Condition
Frequency
Unit
Maximum Frequency
5.15625
GHz
Minimum Frequency
2450
MHz
Related Information
Transceiver Power Supply Operating Conditions on page 9
High-Speed Serial Transceiver-Fabric Interface Performance for Intel Cyclone 10 GX Devices
Table 21.
High-Speed Serial Transceiver-Fabric Interface Performance for Intel Cyclone 10 GX Devices
The frequencies listed are the maximum frequencies.
Symbol/Description
Condition (V)
Core Speed Grade
Unit
-5
-6
20-bit interface - FIFO
VCC = 0.9
400
400
MHz
20-bit interface - Registered
VCC = 0.9
400
400
MHz
32-bit interface - FIFO
VCC = 0.9
404
335
MHz
32-bit interface - Registered
VCC = 0.9
404
335
MHz
64-bit interface - FIFO
VCC = 0.9
234
222
MHz
64-bit interface - Registered
VCC = 0.9
234
222
MHz
Transceiver Specifications for Intel Cyclone 10 GX Devices
Table 22.
Reference Clock Specifications
Symbol/Description
Supported I/O Standards
Condition
Dedicated reference clock pin
RX pin as a reference clock
Min
Typ
Max
CML, Differential LVPECL, LVDS, and HCSL
Unit
(31)
CML, Differential LVPECL, and LVDS
continued...
(31)
HCSL is only supported for PCIe.
Intel® Cyclone® 10 GX Device Datasheet
22
Intel® Cyclone® 10 GX Device Datasheet
C10GX51002 | 2018.06.15
Symbol/Description
Condition
Min
Typ
Max
Unit
Input Reference Clock Frequency
(CMU PLL)
61
—
800
MHz
Input Reference Clock Frequency
(ATX PLL)
100
—
800
MHz
—
800
MHz
Input Reference Clock Frequency
(fPLL PLL)
25
(32)
/ 50
Rise time
20% to 80%
—
—
400
ps
Fall time
80% to 20%
—
—
400
ps
Duty cycle
—
45
—
55
%
Spread-spectrum modulating clock frequency
PCIe
30
—
33
kHz
Spread-spectrum downspread
PCIe
—
0 to –0.5
—
%
On-chip termination resistors
—
—
100
—
Ω
Absolute VMAX
Dedicated reference clock pin
—
—
1.6
V
RX pin as a reference clock
—
—
1.2
V
Absolute VMIN
—
–0.4
—
—
V
Peak-to-peak differential input voltage
—
200
—
1600
mV
VICM (AC coupled)
VCCR_GXB = 0.95 V
—
0.95
—
V
VCCR_GXB = 1.03 V
—
1.03
—
V
250
—
550
mV
100 Hz
—
—
–70
dBc/Hz
1 kHz
—
—
–90
VICM (DC coupled)
Transmitter REFCLK Phase Noise (622 MHz)
HCSL I/O standard for PCIe
reference clock
(33)
dBc/Hz
continued...
(32)
25 MHz is for HDMI applications only.
(33)
To calculate the REFCLK phase noise requirement at frequencies other than 622 MHz, use the following formula: REFCLK phase noise
at f (MHz) = REFCLK phase noise at 622 MHz + 20*log(f/622).
Intel® Cyclone® 10 GX Device Datasheet
23
Intel® Cyclone® 10 GX Device Datasheet
C10GX51002 | 2018.06.15
Symbol/Description
Min
Typ
Max
Unit
10 kHz
—
—
–100
dBc/Hz
100 kHz
—
—
–110
dBc/Hz
≥ 1 MHz
—
—
–120
dBc/Hz
Transmitter REFCLK Phase Jitter (100 MHz)
1.5 MHz to 100 MHz (PCIe)
—
—
4.2
ps (rms)
RREF
—
—
2.0 k ±1%
—
Ω
Maximum rate of change of the reference clock
frequency
TSSC-MAX-PERIOD-SLEW (34)
0.75
ps/UI
Max SSC df/dt
Table 23.
Transceiver Clocks Specifications
Symbol/Description
CLKUSR pin for transceiver
calibration
reconfig_clk
Table 24.
Condition
Condition
Min
Typ
Max
Unit
Transceiver Calibration
100
—
125
MHz
Reconfiguration interface
100
—
125
MHz
Channel Span
Unit
Transceiver Clock Network Maximum Data Rate Specifications
Clock Network
(34)
Maximum Performance
ATX
fPLL
CMU
x1
12.5
12.5
10.3125
6 channels in a single
bank
Gbps
x6
12.5
12.5
N/A
6 channels in a single
bank
Gbps
PLL feedback
compensation mode
12.5
12.5
N/A
Side-wide
Gbps
xN at 1.03 V VCCR_GXB/
VCCT_GXB
12.5
12.5
N/A
Side-wide
Gbps
xN at 0.95 V VCCR_GXB/
VCCT_GXB
10.5
10.5
N/A
Side-wide
Gbps
Defined for worst case spread spectrum clock (SSC) modulation profile, such as Lexmark.
Intel® Cyclone® 10 GX Device Datasheet
24
Intel® Cyclone® 10 GX Device Datasheet
C10GX51002 | 2018.06.15
Table 25.
Receiver Specifications
Symbol/Description
Condition
Min
Typ
Max
Unit
High Speed Differential I/O, CML , Differential LVPECL , and LVDS(35)
Supported I/O Standards
—
Absolute VMAX for a
receiver pin (36)
—
—
—
1.2
V
Absolute VMIN for a
receiver pin (37)
—
-0.4
—
—
V
Maximum peak-to-peak
differential input voltage
VID (diff p-p) before device
configuration
—
—
—
1.6
V
VCCR_GXB = 0.95 V
—
—
2.4
V
VCCR_GXB = 1.03 V
—
—
2.0
V
—
50
—
—
mV
85-Ω setting
—
85 ± 30%
—
Ω
100-Ω setting
—
100 ± 30%
—
Ω
VCCR_GXB = 0.95 V
—
600
—
mV
VCCR_GXB = 1.03 V
—
700
—
mV
Maximum peak-to-peak
differential input voltage
VID (diff p-p) after device
configuration
Minimum differential eye
opening at receiver serial
input pins (38)
Differential on-chip
termination resistors
VICM (AC and DC coupled)
(39)
continued...
(35)
CML, Differential LVPECL, and LVDS are only used on AC coupled links.
(36)
The device cannot tolerate prolonged operation at this absolute maximum.
(37)
The device cannot tolerate prolonged operation at this absolute minimum.
(38)
The differential eye opening specification at the receiver input pins assumes that Receiver Equalization is disabled. If you enable
Receiver Equalization, the receiver circuitry can tolerate a lower minimum eye opening, depending on the equalization level.
(39)
Intel Cyclone 10 GX devices support DC coupling to other Intel Cyclone 10 GX devices and other devices with a transmitter that has
matching common mode voltage.
Intel® Cyclone® 10 GX Device Datasheet
25
Intel® Cyclone® 10 GX Device Datasheet
C10GX51002 | 2018.06.15
Symbol/Description
tLTR
(40)
tLTD(41)
tLTD_manual(42)
tLTR_LTD_manual(43)
Run Length
CDR PPM tolerance
Programmable DC Gain
Programmable AC Gain at
High Gain mode and Data
Rate ≤ 6 Gbps
Table 26.
Condition
Min
Typ
Max
Unit
—
—
—
10
µs
—
4
—
—
µs
—
4
—
—
µs
—
15
—
—
µs
—
—
—
200
UI
-300
—
300
PPM
-1000
—
1000
PPM
Setting = 0-4
0
—
10
dB
Setting = 0-28
VCCR_GXB = 0.95 V
0
—
19
dB
Setting = 0-28
VCCR_GXB = 1.03 V
0
—
21
dB
Min
Typ
Max
Unit
PCIe-only
All other protocols
Transmitter Specifications
Symbol/Description
Condition
Supported I/O Standards
—
Differential on-chip
termination resistors
85-Ω setting
High Speed Differential I/O
—
85 ± 20%
(44)
—
—
Ω
continued...
(40)
tLTR is the time required for the receive CDR to lock to the input reference clock frequency after coming out of reset.
(41)
tLTD is time required for the receiver CDR to start recovering valid data after the rx_is_lockedtodata signal goes high.
(42)
tLTD_manual is the time required for the receiver CDR to start recovering valid data after the rx_is_lockedtodata signal goes high
when the CDR is functioning in the manual mode.
(43)
tLTR_LTD_manual is the time the receiver CDR must be kept in lock to reference (LTR) mode after the rx_is_lockedtoref signal goes
high when the CDR is functioning in the manual mode.
(44)
High Speed Differential I/O is the dedicated I/O standard for the transmitter in Intel Cyclone 10 GX transceivers.
Intel® Cyclone® 10 GX Device Datasheet
26
Intel® Cyclone® 10 GX Device Datasheet
C10GX51002 | 2018.06.15
Symbol/Description
VOCM (AC coupled)
VOCM (DC coupled)
Rise time
Fall time
(45)
(45)
Intra-differential pair skew
Table 27.
Condition
Min
Typ
Max
Unit
100-Ω setting
—
100 ± 20%
—
Ω
VCCT_GXB = 0.95 V
—
450
—
mV
VCCT_GXB = 1.03 V
—
500
—
mV
VCCT_GXB = 0.95 V
—
450
—
mV
VCCT_GXB = 1.03 V
—
500
—
mV
20% to 80%
20
—
130
ps
80% to 20%
20
—
130
ps
TX VCM = 0.5 V and slew
rate setting of
SLEW_R5 (46)
—
—
15
ps
Typical Transmitter VOD Settings
Symbol
VOD differential value = VOD-to-VCCT_GXB ratio x VCCT_GXB
VOD Setting
VOD-to-VCCT_GXB Ratio
31
1.00
30
0.97
29
0.93
28
0.90
27
0.87
26
0.83
25
0.80
24
0.77
23
0.73
22
0.70
continued...
(45)
The Intel Quartus Prime software automatically selects the appropriate slew rate depending on the design configurations.
(46)
SLEW_R1 is the slowest and SLEW_R5 is the fastest. SLEW_R6 and SLEW_R7 are not used.
Intel® Cyclone® 10 GX Device Datasheet
27
Intel® Cyclone® 10 GX Device Datasheet
C10GX51002 | 2018.06.15
Symbol
Table 28.
VOD Setting
VOD-to-VCCT_GXB Ratio
21
0.67
20
0.63
19
0.60
18
0.57
17
0.53
16
0.50
15
0.47
14
0.43
13
0.40
12
0.37
Transmitter Channel-to-channel Skew Specifications
Mode
Channel Span
x6 Clock
Up to 6 channels in one bank
xN Clock
Within 2 banks
PLL Feedback Compensation
(47), (48)
Side-wide
Maximum Skew
Unit
61
ps
230
ps
1600
ps
Related Information
PLLs and Clock Networks
(47)
refclk is set to 125 MHz during the test.
(48)
You can reduce the lane-to-lane skew by increasing the reference clock frequency.
Intel® Cyclone® 10 GX Device Datasheet
28
Intel® Cyclone® 10 GX Device Datasheet
C10GX51002 | 2018.06.15
Core Performance Specifications
Clock Tree Specifications
Table 29.
Clock Tree Performance for Intel Cyclone 10 GX Devices
Parameter
Performance (All Speed Grades)
Unit
Global clock, regional clock, and small periphery clock
644
MHz
Large periphery clock
525
MHz
PLL Specifications
Fractional PLL Specifications
Table 30.
Fractional PLL Specifications for Intel Cyclone 10 GX Devices
Symbol
Parameter
Condition
Min
Typ
Max
800
(49)
Unit
fIN
Input clock frequency
—
30
—
MHz
fINPFD
Input clock frequency to the phase
frequency detector (PFD)
—
30
—
700
MHz
fCASC_INPFD
Input clock frequency to the PFD of
destination cascade PLL
—
30
—
60
MHz
fVCO
PLL voltage-controlled oscillator (VCO)
operating range
—
6
—
12.5
GHz
tEINDUTY
Input clock duty cycle
—
45
—
55
%
fOUT
Output frequency for internal global or
regional clock
—
—
—
644
MHz
fDYCONFIGCLK
Dynamic configuration clock for
—
—
—
100
MHz
reconfig_clk
continued...
(49)
This specification is limited by the I/O maximum frequency. The maximum achievable I/O frequency is different for each I/O standard
and is depends on design and system specific factors. Ensure proper timing closure in your design and perform HSPICE/IBIS
simulations based on your specific design and system setup to determine the maximum achievable frequency in your system.
Intel® Cyclone® 10 GX Device Datasheet
29
Intel® Cyclone® 10 GX Device Datasheet
C10GX51002 | 2018.06.15
Symbol
tLOCK
Parameter
Time required to lock from end-of-device
configuration or deassertion of
Condition
Min
Typ
Max
Unit
—
—
—
1
ms
pll_powerdown
tDLOCK
Time required to lock dynamically (after
switchover or reconfiguring any non-postscale counters/delays)
—
—
—
1
ms
fCLBW
PLL closed-loop bandwidth
—
0.3
—
4
MHz
tPLL_PSERR
Accuracy of PLL phase shift
—
—
—
50
ps
tARESET
Minimum pulse width on the
pll_powerdown signal
—
10
—
—
ns
FREF ≥ 100 MHz
—
—
0.13
UI (p-p)
FREF < 100 MHz
—
—
650
ps (p-p)
FOUT ≥ 100 MHz
—
—
600
ps (p-p)
FOUT < 100 MHz
—
—
60
mUI (p-p)
FOUT ≥ 100 MHz
—
—
600
ps (p-p)
FOUT < 100 MHz
—
—
60
mUI (p-p)
—
—
32
—
bit
tINCCJ
tOUTPJ
(50)(51)
(52)
tOUTCCJ
dKBIT
(52)
Input clock cycle-to-cycle jitter
Period jitter for clock output
Cycle-to-cycle jitter for clock output
Bit number of Delta Sigma Modulator (DSM)
Related Information
Memory Output Clock Jitter Specifications on page 43
Provides more information about the external memory interface clock output jitter specifications.
(50)
A high input jitter directly affects the PLL output jitter. To have low PLL output clock jitter, you must provide a clean clock source with
jitter < 120 ps.
(51)
FREF is fIN/N, specification applies when N = 1.
(52)
External memory interface clock output jitter specifications use a different measurement method, which are available in Memory
Output Clock Jitter Specification for Intel Cyclone 10 GX Devices table.
Intel® Cyclone® 10 GX Device Datasheet
30
Intel® Cyclone® 10 GX Device Datasheet
C10GX51002 | 2018.06.15
I/O PLL Specifications
Table 31.
I/O PLL Specifications for Intel Cyclone 10 GX Devices
Symbol
fIN
Parameter
Input clock frequency
Condition
Min
Typ
–5 speed grade
10
—
700
Max
(53)
Unit
MHz
–6 speed grade
10
—
650
(53)
MHz
fINPFD
Input clock frequency to the PFD
—
10
—
325
MHz
fCASC_INPFD
Input clock frequency to the PFD of destination
cascade PLL
—
10
—
60
MHz
fVCO
PLL VCO operating range
–5 speed grade
600
—
1434
MHz
–6 speed grade
600
—
1250
MHz
fCLBW
PLL closed-loop bandwidth
—
0.1
—
8
MHz
tEINDUTY
Input clock or external feedback clock input
duty cycle
—
40
—
60
%
fOUT
Output frequency for internal global or regional
clock (C counter)
–5, –6 speed grade
—
—
644
MHz
fOUT_EXT
Output frequency for external clock output
–5 speed grade
—
—
720
MHz
–6 speed grade
—
—
650
MHz
tOUTDUTY
Duty cycle for dedicated external clock output
(when set to 50%)
—
45
50
55
%
tFCOMP
External feedback clock compensation time
—
—
—
10
ns
Dynamic configuration clock for mgmt_clk and
—
—
—
100
MHz
—
—
—
1
ms
fDYCONFIGCLK
scanclk
tLOCK
Time required to lock from end-of-device
configuration or deassertion of areset
continued...
(53)
This specification is limited by the I/O maximum frequency. The maximum achievable I/O frequency is different for each I/O standard
and is depends on design and system specific factors. Ensure proper timing closure in your design and perform HSPICE/IBIS
simulations based on your specific design and system setup to determine the maximum achievable frequency in your system.
Intel® Cyclone® 10 GX Device Datasheet
31
Intel® Cyclone® 10 GX Device Datasheet
C10GX51002 | 2018.06.15
Symbol
Parameter
Condition
Min
Typ
Max
Unit
tDLOCK
Time required to lock dynamically (after
switchover or reconfiguring any non-post-scale
counters/delays)
—
—
—
1
ms
tPLL_PSERR
Accuracy of PLL phase shift
—
—
—
±50
ps
tARESET
Minimum pulse width on the areset signal
—
10
—
—
ns
FREF ≥ 100 MHz
—
—
0.15
UI (p-p)
FREF < 100 MHz
—
—
750
ps (p-p)
FOUT ≥ 100 MHz
—
—
175
ps (p-p)
FOUT < 100 MHz
—
—
17.5
mUI (p-p)
FOUT ≥ 100 MHz
—
—
175
ps (p-p)
FOUT < 100 MHz
—
—
17.5
mUI (p-p)
FOUT ≥ 100 MHz
—
—
600
ps (p-p)
FOUT < 100 MHz
—
—
60
mUI (p-p)
Cycle-to-cycle jitter for clock output on the
regular I/O
FOUT ≥ 100 MHz
—
—
600
ps (p-p)
FOUT < 100 MHz
—
—
60
mUI (p-p)
Period jitter for dedicated clock output in
cascaded PLLs
FOUT ≥ 100 MHz
—
—
175
ps (p-p)
FOUT < 100 MHz
—
—
17.5
mUI (p-p)
tINCCJ
(54)(55)
Input clock cycle-to-cycle jitter
tOUTPJ_DC
Period jitter for dedicated clock output
tOUTCCJ_DC
tOUTPJ_IO
Cycle-to-cycle jitter for dedicated clock output
(56)
tOUTCCJ_IO
Period jitter for clock output on the regular I/O
(56)
tCASC_OUTPJ_DC
Related Information
Memory Output Clock Jitter Specifications on page 43
Provides more information about the external memory interface clock output jitter specifications.
(54)
A high input jitter directly affects the PLL output jitter. To have low PLL output clock jitter, you must provide a clean clock source with
jitter < 120 ps.
(55)
FREF is fIN/N, specification applies when N = 1.
(56)
External memory interface clock output jitter specifications use a different measurement method, which are available in Memory
Output Clock Jitter Specification for Intel Cyclone 10 GX Devices table.
Intel® Cyclone® 10 GX Device Datasheet
32
Intel® Cyclone® 10 GX Device Datasheet
C10GX51002 | 2018.06.15
DSP Block Specifications
Table 32.
DSP Block Performance Specifications for Intel Cyclone 10 GX Devices
Mode
Performance
Unit
–E5
–I5
–E6
–I6
Fixed-point 18 × 19 multiplication mode
456
438
364
346
MHz
Fixed-point 27 × 27 multiplication mode
450
434
358
344
MHz
Fixed-point 18 × 18 multiplier adder mode
459
440
370
351
MHz
Fixed-point 18 × 18 multiplier adder summed with 36-bit input
mode
444
422
349
326
MHz
Fixed-point 18 × 19 systolic mode
459
440
370
351
MHz
Complex 18 × 19 multiplication mode
456
438
364
346
MHz
Floating point multiplication mode
447
427
347
326
MHz
Floating point adder or subtract mode
388
369
288
266
MHz
Floating point multiplier adder or subtract mode
386
368
290
270
MHz
Floating point multiplier accumulate mode
418
393
326
294
MHz
Floating point vector one mode
404
382
306
282
MHz
Floating point vector two mode
383
367
293
278
MHz
Memory Block Specifications
To achieve the maximum memory block performance, use a memory block clock that comes through global clock routing from
an on-chip PLL and set to 50% output duty cycle. Use the Intel Quartus Prime software to report timing for the memory block
clocking schemes.
When you use the error detection cyclical redundancy check (CRC) feature, there is no degradation in fMAX.
Intel® Cyclone® 10 GX Device Datasheet
33
Intel® Cyclone® 10 GX Device Datasheet
C10GX51002 | 2018.06.15
Table 33.
Memory Block Performance Specifications for Intel Cyclone 10 GX Devices
Memory
MLAB
M20K Block
Mode
Performance
–E5, –I5
–E6
–I6
Unit
Single port, all supported widths (×16/×32)
570
490
490
MHz
Simple dual-port, all supported widths (×16/×32)
570
490
490
MHz
Simple dual-port with the read-during-write option set to
Old Data, all supported widths
400
330
330
MHz
ROM, all supported width (×16/×32)
570
490
490
MHz
Single-port, all supported widths
625
530
510
MHz
Simple dual-port, all supported widths
625
530
510
MHz
Simple dual-port with the read-during-write option set to
Old Data, all supported widths
470
410
410
MHz
Simple dual-port with ECC enabled, 512 × 32
410
360
360
MHz
Simple dual-port with ECC and optional pipeline registers
enabled, 512 × 32
520
470
470
MHz
True dual port, all supported widths
600
480
480
MHz
ROM, all supported widths
625
530
510
MHz
Temperature Sensing Diode Specifications
Internal Temperature Sensing Diode Specifications
Table 34.
Internal Temperature Sensing Diode Specifications for Intel Cyclone 10 GX Devices
Temperature Range
Accuracy
Offset Calibrated Option
Sampling Rate
Conversion Time
Resolution
–40 to 100°C
±5°C
No
1 MHz
< 5 ms
10 bits
Related Information
Transfer Function for Internal TSD
Provides the transfer function for the internal TSD.
Intel® Cyclone® 10 GX Device Datasheet
34
Intel® Cyclone® 10 GX Device Datasheet
C10GX51002 | 2018.06.15
External Temperature Sensing Diode Specifications
Table 35.
External Temperature Sensing Diode Specifications for Intel Cyclone 10 GX Devices
•
The typical value is at 25°C.
•
Diode accuracy improves with lower injection current.
•
Absolute accuracy is dependent on third party external diode ADC and integration specifics.
Description
Min
Typ
Max
Unit
Ibias, diode source current
10
—
100
μA
Vbias, voltage across diode
0.3
—
0.9
V
Series resistance
—
—
2000
—
—
Cycles
OCTUSRCLK
Clock required by OCT calibration blocks
TOCTCAL
Number of OCTUSRCLK clock cycles required for
RS OCT /RT OCT calibration
TOCTSHIFT
Number of OCTUSRCLK clock cycles required for OCT code to shift out
—
32
—
Cycles
TRS_RT
Time required between the dyn_term_ctrl and oe signal transitions
in a bidirectional I/O buffer to dynamically switch between RS OCT and
RT OCT
—
2.5
—
ns
Intel® Cyclone® 10 GX Device Datasheet
43
Intel® Cyclone® 10 GX Device Datasheet
C10GX51002 | 2018.06.15
Figure 5.
Timing Diagram for on oe and dyn_term_ctrl Signals
RX
Tristate
Tristate
TX
RX
oe
dyn_term_ctrl
TRS_RT
TRS_RT
Configuration Specifications
This section provides configuration specifications and timing for Intel Cyclone 10 GX devices.
POR Specifications
Power-on reset (POR) delay is defined as the delay between the time when all the power supplies monitored by the POR
circuitry reach the minimum recommended operating voltage to the time when the nSTATUS is released high and your device
is ready to begin configuration.
Table 45.
Fast and Standard POR Delay Specification for Intel Cyclone 10 GX Devices
POR Delay
Fast
Minimum
4
Standard
100
Maximum
12
(68)
300
Unit
ms
ms
Related Information
MSEL Pin Settings
Provides more information about POR delay based on MSEL pin settings for each configuration scheme.
(68)
The maximum pulse width of the fast POR delay is 12 ms, providing enough time for the PCIe hard IP to initialize after the POR trip.
Intel® Cyclone® 10 GX Device Datasheet
44
Intel® Cyclone® 10 GX Device Datasheet
C10GX51002 | 2018.06.15
JTAG Configuration Timing
Table 46.
JTAG Timing Parameters and Values for Intel Cyclone 10 GX Devices
Symbol
Description
Min
30, 167
(69)
Max
Unit
—
ns
tJCP
TCK clock period
tJCH
TCK clock high time
14
—
ns
tJCL
TCK clock low time
14
—
ns
tJPSU (TDI)
TDI JTAG port setup time
2
—
ns
tJPSU (TMS)
TMS JTAG port setup time
3
—
ns
tJPH
JTAG port hold time
5
—
ns
tJPCO
JTAG port clock to output
—
11
ns
tJPZX
JTAG port high impedance to valid output
—
14
ns
tJPXZ
JTAG port valid output to high impedance
—
14
ns
FPP Configuration Timing
DCLK-to-DATA[] Ratio (r) for FPP Configuration
Fast passive parallel (FPP) configuration requires a different DCLK-to-DATA[] ratio when you turn on encryption or the
compression feature.
Depending on the DCLK-to-DATA[] ratio, the host must send a DCLK frequency that is r times the DATA[] rate in byte per
second (Bps) or word per second (Wps). For example, in FPP ×16 where the r is 2, the DCLK frequency must be 2 times the
DATA[] rate in Wps.
(69)
The minimum TCK clock period is 167 ns if VCCBAT is within the range 1.2 V – 1.5 V when you perform the volatile key programming.
Intel® Cyclone® 10 GX Device Datasheet
45
Intel® Cyclone® 10 GX Device Datasheet
C10GX51002 | 2018.06.15
Table 47.
DCLK-to-DATA[] Ratio for Intel Cyclone 10 GX Devices
You cannot turn on encryption and compression at the same time for Intel Cyclone 10 GX devices.
Configuration Scheme
FPP (8-bit wide)
FPP (16-bit wide)
FPP (32-bit wide)
Encryption
Compression
DCLK-to-DATA[] Ratio (r)
Off
Off
1
On
Off
1
Off
On
2
Off
Off
1
On
Off
2
Off
On
4
Off
Off
1
On
Off
4
Off
On
8
FPP Configuration Timing when DCLK-to-DATA[] = 1
Note:
When you enable decompression or the design security feature, the DCLK-to-DATA[] ratio varies for FPP ×8, FPP ×16, and
FPP ×32. For the respective DCLK-to-DATA[] ratio, refer to the DCLK-to-DATA[] Ratio for Intel Cyclone 10 GX Devices table.
Table 48.
FPP Timing Parameters When the DCLK-to-DATA[] Ratio is 1 for Intel Cyclone 10 GX Devices
Use these timing parameters when the decompression and design security features are disabled.
Parameter
Symbol
Minimum
Maximum
Unit
tCF2CD
nCONFIG low to CONF_DONE low
480
1,440
ns
tCF2ST0
nCONFIG low to nSTATUS low
320
960
ns
tCFG
nCONFIG low pulse width
2
—
μs
tSTATUS
tCF2ST1
nSTATUS low pulse width
nCONFIG high to nSTATUS high
268
—
3,000
(70)
3,000
(71)
μs
μs
continued...
(70)
This value is applicable if you do not delay configuration by extending the nCONFIG or nSTATUS low pulse width.
Intel® Cyclone® 10 GX Device Datasheet
46
Intel® Cyclone® 10 GX Device Datasheet
C10GX51002 | 2018.06.15
Symbol
Minimum
Maximum
Unit
nCONFIG high to first rising edge on DCLK
3,010
—
μs
nSTATUS high to first rising edge of DCLK
10
—
μs
tDSU
DATA[] setup time before rising edge on DCLK
5.5
—
ns
tDH
DATA[] hold time after rising edge on DCLK
0
—
ns
tCH
DCLK high time
0.45 × 1/fMAX
—
s
tCL
DCLK low time
0.45 × 1/fMAX
—
s
tCLK
DCLK period
1/fMAX
—
s
fMAX
DCLK frequency (FPP ×8/×16/×32)
—
100
MHz
175
830
μs
4 × maximum DCLK
period
—
—
tCD2CU +
(600 × CLKUSR period)
—
—
tCF2CK
(72)
tST2CK
(72)
Parameter
(73)
tCD2UM
CONF_DONE high to user mode
tCD2CU
CONF_DONE high to CLKUSR enabled
tCD2UMC
CONF_DONE high to user mode with CLKUSR option on
Related Information
FPP Configuration Timing
Provides the FPP configuration timing waveforms.
(71)
This value is applicable if you do not delay configuration by externally holding the nSTATUS low.
(72)
If nSTATUS is monitored, follow the tST2CK specification. If nSTATUS is not monitored, follow the tCF2CK specification.
(73)
The minimum and maximum numbers apply only if you chose the internal oscillator as the clock source for initializing the device.
Intel® Cyclone® 10 GX Device Datasheet
47
Intel® Cyclone® 10 GX Device Datasheet
C10GX51002 | 2018.06.15
FPP Configuration Timing when DCLK-to-DATA[] >1
Table 49.
FPP Timing Parameters When the DCLK-to-DATA[] Ratio is >1 for Intel Cyclone 10 GX Devices
Use these timing parameters when you use the decompression and design security features.
Symbol
Parameter
Minimum
Maximum
Unit
tCF2CD
nCONFIG low to CONF_DONE low
480
1,440
ns
tCF2ST0
nCONFIG low to nSTATUS low
320
960
ns
tCFG
nCONFIG low pulse width
2
—
μs
tSTATUS
nSTATUS low pulse width
268
3,000
(74)
μs
tCF2ST1
nCONFIG high to nSTATUS high
—
3,000
(74)
μs
tCF2CK
(75)
nCONFIG high to first rising edge on DCLK
3,010
—
μs
tST2CK
(75)
nSTATUS high to first rising edge of DCLK
10
—
μs
tDSU
DATA[] setup time before rising edge on DCLK
5.5
—
ns
tDH
DATA[] hold time after rising edge on DCLK
N–1/fDCLK
(76)
—
s
tCH
DCLK high time
0.45 × 1/fMAX
—
s
tCL
DCLK low time
0.45 × 1/fMAX
—
s
tCLK
DCLK period
1/fMAX
—
s
fMAX
DCLK frequency (FPP ×8/×16/×32)
—
100
MHz
tR
Input rise time
—
40
ns
tF
Input fall time
—
40
ns
continued...
(74)
You can obtain this value if you do not delay configuration by extending the nCONFIG or nSTATUS low pulse width.
(75)
If nSTATUS is monitored, follow the tST2CK specification. If nSTATUS is not monitored, follow the tCF2CK specification.
(76)
N is the DCLK-to-DATA ratio and fDCLK is the DCLK frequency the system is operating.
Intel® Cyclone® 10 GX Device Datasheet
48
Intel® Cyclone® 10 GX Device Datasheet
C10GX51002 | 2018.06.15
Symbol
Parameter
Minimum
Maximum
Unit
(77)
175
830
μs
4 × maximum DCLK
period
—
—
tCD2CU +
(600 × CLKUSR period)
—
—
tCD2UM
CONF_DONE high to user mode
tCD2CU
CONF_DONE high to CLKUSR enabled
tCD2UMC
CONF_DONE high to user mode with CLKUSR option on
Related Information
FPP Configuration Timing
Provides the FPP configuration timing waveforms.
AS Configuration Timing
Table 50.
AS Timing Parameters for AS ×1 and AS ×4 Configurations in Intel Cyclone 10 GX Devices
The minimum and maximum numbers apply only if you choose the internal oscillator as the clock source for initializing the device.
The tCF2CD, tCF2ST0, tCFG, tSTATUS, and tCF2ST1 timing parameters are identical to the timing parameters for passive serial (PS) mode listed in PS Timing Parameters
for Intel Cyclone 10 GX Devices table.
Symbol
(77)
Parameter
Minimum
Maximum
Unit
tCO
DCLK falling edge to AS_DATA0/ASDO output
—
2
ns
tSU
Data setup time before falling edge on DCLK
1
—
ns
tDH
Data hold time after falling edge on DCLK
1.5
—
ns
tCD2UM
CONF_DONE high to user mode
175
830
μs
tCD2CU
CONF_DONE high to CLKUSR enabled
4 × maximum DCLK
period
—
—
tCD2UMC
CONF_DONE high to user mode with CLKUSR option on
tCD2CU + (600 × CLKUSR
period)
—
—
The minimum and maximum numbers apply only if you use the internal oscillator as the clock source for initializing the device.
Intel® Cyclone® 10 GX Device Datasheet
49
Intel® Cyclone® 10 GX Device Datasheet
C10GX51002 | 2018.06.15
Related Information
•
PS Configuration Timing on page 50
•
AS Configuration Timing
Provides the AS configuration timing waveform.
DCLK Frequency Specification in the AS Configuration Scheme
Table 51.
DCLK Frequency Specification in the AS Configuration Scheme
This table lists the internal clock frequency specification for the AS configuration scheme.
The DCLK frequency specification applies when you use the internal oscillator as the configuration clock source.
The AS multi-device configuration scheme does not support DCLK frequency of 100 MHz.
You can only set 12.5, 25, 50, and 100 MHz in the Intel Quartus Prime software.
Parameter
Minimum
Typical
Maximum
Intel Quartus Prime
Software Settings
Unit
5.3
7.5
9.7
12.5
MHz
10.5
15.0
19.3
25.0
MHz
21.0
30.0
38.5
50.0
MHz
42.0
60.0
77.0
100.0
MHz
DCLK frequency in AS configuration
scheme
PS Configuration Timing
Table 52.
PS Timing Parameters for Intel Cyclone 10 GX Devices
Symbol
Parameter
Minimum
Maximum
Unit
tCF2CD
nCONFIG low to CONF_DONE low
480
1,440
ns
tCF2ST0
nCONFIG low to nSTATUS low
320
960
ns
tCFG
nCONFIG low pulse width
2
—
μs
tSTATUS
nSTATUS low pulse width
268
tCF2ST1
nCONFIG high to nSTATUS high
—
3,000
(78)
3,000
(79)
μs
μs
continued...
Intel® Cyclone® 10 GX Device Datasheet
50
Intel® Cyclone® 10 GX Device Datasheet
C10GX51002 | 2018.06.15
Symbol
Minimum
Maximum
Unit
nCONFIG high to first rising edge on DCLK
3,010
—
μs
nSTATUS high to first rising edge of DCLK
10
—
μs
tDSU
DATA[] setup time before rising edge on DCLK
5.5
—
ns
tDH
DATA[] hold time after rising edge on DCLK
0
—
ns
tCH
DCLK high time
0.45 × 1/fMAX
—
s
tCL
DCLK low time
0.45 × 1/fMAX
—
s
tCLK
DCLK period
1/fMAX
—
s
fMAX
DCLK frequency
—
125
MHz
175
830
μs
4 × maximum DCLK
period
—
—
tCD2CU + (600 × CLKUSR
period)
—
—
tCF2CK
(80)
tST2CK
(80)
Parameter
(81)
tCD2UM
CONF_DONE high to user mode
tCD2CU
CONF_DONE high to CLKUSR enabled
tCD2UMC
CONF_DONE high to user mode with CLKUSR option on
Related Information
PS Configuration Timing
Provides the PS configuration timing waveform.
(78)
This value is applicable if you do not delay configuration by extending the nCONFIG or nSTATUS low pulse width.
(79)
This value is applicable if you do not delay configuration by externally holding the nSTATUS low.
(80)
If nSTATUS is monitored, follow the tST2CK specification. If nSTATUS is not monitored, follow the tCF2CK specification.
(81)
The minimum and maximum numbers apply only if you choose the internal oscillator as the clock source for initializing the device.
Intel® Cyclone® 10 GX Device Datasheet
51
Intel® Cyclone® 10 GX Device Datasheet
C10GX51002 | 2018.06.15
Initialization
Table 53.
Initialization Clock Source Option and the Maximum Frequency for Intel Cyclone 10 GX Devices
Initialization Clock Source
Internal Oscillator
CLKUSR
(82)(83)
Configuration Scheme
Maximum Frequency (MHz)
Minimum Number of Clock Cycles
AS, PS, and FPP
12.5
600
AS, PS, and FPP
100
Configuration Files
There are two types of configuration bit stream formats for different configuration schemes:
•
PS and FPP—Raw Binary File (.rbf)
•
AS—Raw Programming Data File (.rpd)
The .rpd file size follows the Intel configuration devices capacity. However, the actual configuration bit stream size for .rpd
file is the same as .rbf file.
(82)
To enable CLKUSR as the initialization clock source, in the Intel Quartus Prime software, select Device and Pin Options ➤ General
➤ Device initialization clock source ➤ CLKUSR pin.
(83)
If you use the CLKUSR pin for AS and transceiver calibration simultaneously, the only allowed frequency is 100 MHz.
Intel® Cyclone® 10 GX Device Datasheet
52
Intel® Cyclone® 10 GX Device Datasheet
C10GX51002 | 2018.06.15
Table 54.
Configuration Bit Stream Sizes for Intel Cyclone 10 GX Devices
Use this table to estimate the file size before design compilation. Different configuration file formats, such as a hexadecimal file (.hex) or tabular text file (.ttf)
format, have different file sizes.
For the different types of configuration file and file sizes, refer to the Intel Quartus Prime software. However, for a specific version of the Intel Quartus Prime
software, any design targeted for the same device has the same uncompressed configuration file size.
I/O configuration shift register (IOCSR) is a long shift register that facilitates the device I/O peripheral settings. The IOCSR bit stream is part of the uncompressed
configuration bit stream, and it is specifically for the Configuration via Protocol (CvP) feature.
Uncompressed configuration bit stream sizes are subject to change for improvements and optimizations in the configuration algorithm.
Variant
Product Line
Uncompressed Configuration Bit
Stream Size (bits)
IOCSR Bit Stream Size (bits)
Recommended EPCQ-L Serial Configuration
Device
Intel Cyclone 10 GX
GX 085
81,923,582
2,507,264
EPCQ-L256 or higher density
GX 105
81,923,582
2,507,264
EPCQ-L256 or higher density
GX 150
81,923,582
2,507,264
EPCQ-L256 or higher density
GX 220
81,923,582
2,507,264
EPCQ-L256 or higher density
Intel® Cyclone® 10 GX Device Datasheet
53
Intel® Cyclone® 10 GX Device Datasheet
C10GX51002 | 2018.06.15
Minimum Configuration Time Estimation
Table 55.
Minimum Configuration Time Estimation for Intel Cyclone 10 GX Devices
The estimated values are based on the uncompressed configuration bit stream sizes in the Configuration Bit Stream Sizes for Intel Cyclone 10 GX Devices table.
Variant
Product Line
Intel Cyclone 10 GX
Active Serial
(84)
Fast Passive Parallel
(85)
Width
DCLK (MHz)
Minimum Configuration
Time (ms)
Width
DCLK (MHz)
Minimum
Configuration Time
(ms)
GX 085
4
100
204.81
32
100
25.60
GX 105
4
100
204.81
32
100
25.60
GX 150
4
100
204.81
32
100
25.60
GX 220
4
100
204.81
32
100
25.60
Related Information
•
Configuration Files on page 52
•
DCLK Frequency Specification in the AS Configuration Scheme on page 50
Provides the DCLK frequency using internal oscillator.
(84)
The minimum configuration time is calculated based on DCLK frequency of 100 MHz. Only external CLKUSR may guarantee the
frequency accuracy of 100 MHz. If you use internal oscillator of 100 MHz, you may not get the actual frequency of 100 MHz. For the
DCLK frequency using internal oscillator, refer to the DCLK Frequency Specification in the AS Configuration Scheme table.
(85)
Maximum FPGA FPP bandwidth may exceed bandwidth available from some external storage or control logic.
Intel® Cyclone® 10 GX Device Datasheet
54
Intel® Cyclone® 10 GX Device Datasheet
C10GX51002 | 2018.06.15
Remote System Upgrades
Table 56.
Remote System Upgrade Circuitry Timing Specifications for Intel Cyclone 10 GX Devices
Parameter
Minimum
Maximum
Unit
fMAX_RU_CLK
(86)
—
40
MHz
tRU_nCONFIG
(87)
250
—
ns
250
—
ns
tRU_nRSTIMER
(88)
Related Information
•
Remote System Upgrade State Machine
Provides more information about configuration reset (RU_CONFIG) signal.
•
User Watchdog Timer
Provides more information about reset_timer (RU_nRSTIMER) signal.
User Watchdog Internal Circuitry Timing Specifications
Table 57.
User Watchdog Internal Oscillator Frequency Specifications for Intel Cyclone 10 GX Devices
Parameter
User watchdog internal oscillator frequency
Minimum
Typical
Maximum
Unit
5.3
7.9
12.5
MHz
I/O Timing
I/O timing data is typically used prior to designing the FPGA to get an estimate of the timing budget as part of the timing
analysis. You may generate the I/O timing report manually using the Timing Analyzer or using the automated script.
(86)
This clock is user-supplied to the remote system upgrade circuitry. If you are using the Remote Update Intel FPGA IP core, the clock
user-supplied to the Remote Update Intel FPGA IP core must meet this specification.
(87)
This is equivalent to strobing the reconfiguration input of the Remote Update Intel FPGA IP core high for the minimum timing
specification.
(88)
This is equivalent to strobing the reset_timer input of the Remote Update Intel FPGA IP core high for the minimum timing
specification.
Intel® Cyclone® 10 GX Device Datasheet
55
Intel® Cyclone® 10 GX Device Datasheet
C10GX51002 | 2018.06.15
The Intel Quartus Prime Timing Analyzer provides a more accurate and precise I/O timing data based on the specifics of the
design after you complete place-and-route.
Related Information
AN775: I/O Timing Information Generation Guidelines
Provides the techniques to generate I/O timing information using the Intel Quartus Prime software.
Programmable IOE Delay
Table 58.
IOE Programmable Delay for Intel Cyclone 10 GX Devices
For the exact values for each setting, use the latest version of the Intel Quartus Prime software. The values in the table show the delay of programmable IOE
delay chain with maximum offset settings after excluding the intrinsic delay (delay at minimum offset settings).
Programmable IOE delay settings are only applicable for I/O buffers and do not apply for any other delay elements in the PHYLite for Parallel Interfaces Intel
Cyclone 10 FPGA IP core.
Parameter
(89)
Maximum Offset
Minimum
Offset (90)
Fast Model
Slow Model
Unit
Extended
Industrial
–E5, –I5
–E6, –I6
Input Delay Chain Setting
(IO_IN_DLY_CHN)
63
0
2.012
2.003
5.241
6.035
ns
Output Delay Chain Setting
(IO_OUT_DLY_CHN)
15
0
0.478
0.475
1.263
1.462
ns
Glossary
Table 59.
Glossary
Term
Differential I/O Standards
Definition
Receiver Input Waveforms
continued...
(89)
You can set this value in the Intel Quartus Prime software by selecting Input Delay Chain Setting or Output Delay Chain Setting
in the Assignment Name column.
(90)
Minimum offset does not include the intrinsic delay.
Intel® Cyclone® 10 GX Device Datasheet
56
Intel® Cyclone® 10 GX Device Datasheet
C10GX51002 | 2018.06.15
Term
Definition
Single-Ended Waveform
Positive Channel (p) = VIH
VID
Negative Channel (n) = VIL
VCM
Ground
Differential Waveform
VID
p-n=0V
VID
Transmitter Output Waveforms
Single-Ended Waveform
Positive Channel (p) = VOH
VOD
Negative Channel (n) = VOL
VCM
Ground
Differential Waveform
VOD
p-n=0V
VOD
fHSCLK
I/O PLL input clock frequency.
fHSDR
High-speed I/O block—Maximum/minimum LVDS data transfer rate
(fHSDR = 1/TUI), non-DPA.
fHSDRDPA
High-speed I/O block—Maximum/minimum LVDS data transfer rate
(fHSDRDPA = 1/TUI), DPA.
J
High-speed I/O block—Deserialization factor (width of parallel data bus).
JTAG Timing Specifications
JTAG Timing Specifications:
continued...
Intel® Cyclone® 10 GX Device Datasheet
57
Intel® Cyclone® 10 GX Device Datasheet
C10GX51002 | 2018.06.15
Term
Definition
TMS
TDI
t JCH
t JCP
t JCL
tJPH
t JPSU
TCK
tJPZX
t JPXZ
tJPCO
TDO
RL
Receiver differential input discrete resistor (external to the Intel Cyclone 10 GX device).
Sampling window (SW)
Timing Diagram—the period of time during which the data must be valid in order to capture it correctly. The setup and hold
times determine the ideal strobe position in the sampling window, as shown:
Bit Time
0.5 x TCCS
Single-ended voltage referenced I/O standard
RSKM
Sampling Window
(SW)
RSKM
0.5 x TCCS
The JEDEC standard for the SSTL and HSTL I/O defines both the AC and DC input signal values. The AC values indicate the
voltage levels at which the receiver must meet its timing specifications. The DC values indicate the voltage levels at which
the final logic state of the receiver is unambiguously defined. After the receiver input has crossed the AC value, the
receiver changes to the new logic state.
The new logic state is then maintained as long as the input stays beyond the DC threshold. This approach is intended to
provide predictable receiver timing in the presence of input waveform ringing.
Single-Ended Voltage Referenced I/O Standard
continued...
Intel® Cyclone® 10 GX Device Datasheet
58
Intel® Cyclone® 10 GX Device Datasheet
C10GX51002 | 2018.06.15
Term
Definition
V CCIO
V OH
V IH(AC)
V REF
V IH(DC)
V IL(DC)
V IL(AC)
V OL
V SS
tC
High-speed receiver/transmitter input and output clock period.
TCCS (channel-to-channel-skew)
The timing difference between the fastest and slowest output edges, including the tCO variation and clock skew, across
channels driven by the same PLL. The clock is included in the TCCS measurement (refer to the Timing Diagram figure
under SW in this table).
tDUTY
High-speed I/O block—Duty cycle on high-speed transmitter output clock.
tFALL
Signal high-to-low transition time (80–20%)
tINCCJ
Cycle-to-cycle jitter tolerance on the PLL clock input
tOUTPJ_IO
Period jitter on the GPIO driven by a PLL
tOUTPJ_DC
Period jitter on the dedicated clock output driven by a PLL
tRISE
Signal low-to-high transition time (20–80%)
Timing Unit Interval (TUI)
The timing budget allowed for skew, propagation delays, and the data sampling window.
(TUI = 1/(Receiver Input Clock Frequency Multiplication Factor) = tC/w).
VCM(DC)
DC Common mode input voltage.
VICM
Input Common mode voltage—The common mode of the differential signal at the receiver.
VID
Input differential voltage swing—The difference in voltage between the positive and complementary conductors of a
differential transmission at the receiver.
VDIF(AC)
AC differential input voltage—Minimum AC input differential voltage required for switching.
VDIF(DC)
DC differential input voltage— Minimum DC input differential voltage required for switching.
VIH
Voltage input high—The minimum positive voltage applied to the input which is accepted by the device as a logic high.
continued...
Intel® Cyclone® 10 GX Device Datasheet
59
Intel® Cyclone® 10 GX Device Datasheet
C10GX51002 | 2018.06.15
Term
Definition
VIH(AC)
High-level AC input voltage
VIH(DC)
High-level DC input voltage
VIL
Voltage input low—The maximum positive voltage applied to the input which is accepted by the device as a logic low.
VIL(AC)
Low-level AC input voltage
VIL(DC)
Low-level DC input voltage
VOCM
Output Common mode voltage—The common mode of the differential signal at the transmitter.
VOD
Output differential voltage swing—The difference in voltage between the positive and complementary conductors of a
differential transmission line at the transmitter.
VSWING
Differential input voltage
VIX
Input differential cross point voltage
VOX
Output differential cross point voltage
W
High-speed I/O block—Clock Boost Factor
Document Revision History for the Intel Cyclone 10 GX Device Datasheet
Document
Version
2018.06.15
2018.04.06
Changes
•
•
•
•
Added Intel Cyclone 10 GX Devices Overshoot Duration figure and description.
Added a link in the OCT Calibration Accuracy Specifications section.
Removed Equation for OCT Variation Without Recalibration.
•
•
Updated the I/O Timing section on the I/O timing information generation guidelines.
Updated the description and maximum offset values in the IOE Programmable Delay for Intel Cyclone 10 GX Devices table.
Updated the note to CLKUSR in the Initialization Clock Source Option and the Maximum Frequency for Intel Cyclone 10 GX Devices table.
Added notes to IOUT specification in the Absolute Maximum Ratings for Intel Cyclone 10 GX Devices table.
Intel® Cyclone® 10 GX Device Datasheet
60
Intel® Cyclone® 10 GX Device Datasheet
C10GX51002 | 2018.06.15
Date
November 2017
Version
2017.11.10
Changes
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
May 2017
2017.05.08
Changed the full symbol names for VCCR_GXB and VCCT_GXB, and changed the description for VCCH_GXB in the Transceiver
Power Supply Operating Conditions for Intel Cyclone 10 GX Devices table.
Removed note from the Transceiver Power Supply Operating Conditions section.
Added a footnote in the Reference Clock Specifications table.
Removed the "Programmable AC Gain at High Gain mode and Data Rate ≤ 12.5 Gbps" parameter from the Receiver
Specifications table.
Changed the channel span descriptions for the x1 and x6 clock networks in the Transceiver Clock Network Maximum Data
Rate Specifications table.
Changed the description of the VOD ratio in the Typical Transmitter VOD Settings table.
Changed the specifications for CDR PPM deviation limit in the Receiver Specifications table.
Updated the description for VCCT_GXB, VCCR_GXB, and VCCH_GXB.
Added note to VI in the Recommended Operating Conditions for Intel Cyclone 10 GX Devices table.
Updated notes to RSDS and Mini-LVDS in the Differential I/O Standards Specifications for Intel Cyclone 10 GX Devices
table.
Updated fVCO specifications in the Fractional PLL Specifications for Intel Cyclone 10 GX Devices table.
Updated temperature range from "–40 to 125°C" to "–40 to 100°C" in the Internal Temperature Sensing Diode
Specifications for Intel Cyclone 10 GX Devices table.
Updated the description for the Memory Output Clock Jitter Specifications for Intel Cyclone 10 GX Devices table.
Updated the following IP cores name:
— Remote Update Intel FPGA
— PHYLite for Parallel Interfaces Intel Cyclone 10 FPGA
Removed automotive-grade information.
Removed Preliminary tags.
Initial release.
Intel® Cyclone® 10 GX Device Datasheet
61
Mouser Electronics
Authorized Distributor
Click to View Pricing, Inventory, Delivery & Lifecycle Information:
Intel:
10CX105YF672I6G 10CX150YF672E5G 10CX220YF672I5G 10CX105YF672E5G 10CX150YU484E5G
10CX220YU484I6G 10CX105YF780E6G 10CX220YU484I5G 10CX150YF672I5G 10CX150YF780E5G
10CX220YF672E6G 10CX220YF780I6G 10CX220YF780I5G 10CX105YU484E6G 10CX220YF672I6G
10CX105YU484I6G 10CX220YF780E5G 10CX150YF672I6G 10CX150YU484E6G 10CX105YF780I6G
10CX105YF672E6G 10CX105YF672I5G 10CX220YU484E6G 10CX150YF672E6G 10CX150YU484I6G
10CX105YF780I5G 10CX105YU484I5G 10CX105YU484E5G 10CX150YF780E6G 10CX220YU484E5G
10CX220YF780E6G 10CX105YF780E5G 10CX220YF672E5G 10CX150YU484I5G 10CX150YF780I5G
10CX150YF780I6G 10CX085YU484I5G 10CX085YU484I6G 10CX085YF672E5G 10CX085YU484E5G
10CX085YF672I5G 10CX085YF672I6G 10CX085YU484E6G 10CX085YF672E6G
工商网监
湘ICP备2023018690号
