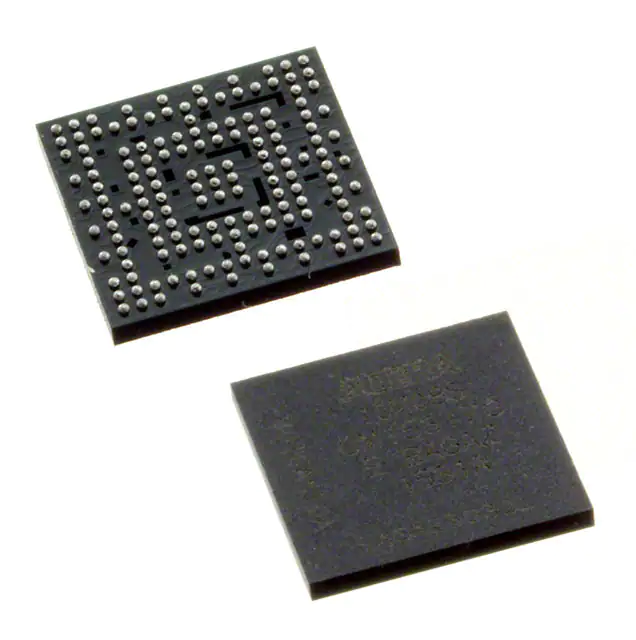

10M02SCM153C8G

10M02SCM153C8G

  • 厂商:

    ENPIRION(英特尔)

  • 封装:

    MBGA-153

  • 描述:

    10M02SCM153C8G

  • 数据手册
  • 价格&库存
10M02SCM153C8G 数据手册
Intel® MAX® 10 FPGA Device Overview ID: 683658 Online Version Send Feedback M10-OVERVIEW Version: 2022.06.14 Contents Contents Intel® MAX® 10 FPGA Device Overview...............................................................................3 Key Advantages of Intel MAX 10 Devices......................................................................... 3 Summary of Intel MAX 10 Device Features ..................................................................... 4 Intel MAX 10 Device Ordering Information.......................................................................5 Intel MAX 10 Device Feature Options..................................................................... 6 Intel MAX 10 Device Maximum Resources .......................................................................6 Intel MAX 10 Devices I/O Resources Per Package .............................................................7 Intel MAX 10 Vertical Migration Support.......................................................................... 7 Intel MAX 10 I/O Vertical Migration Support............................................................8 Intel MAX 10 ADC Vertical Migration Support.......................................................... 8 Logic Elements and Logic Array Blocks............................................................................ 9 Analog-to-Digital Converter........................................................................................... 9 User Flash Memory..................................................................................................... 10 Embedded Multipliers and Digital Signal Processing Support............................................. 10 Embedded Memory Blocks........................................................................................... 11 Clocking and PLL........................................................................................................ 11 FPGA General Purpose I/O........................................................................................... 12 External Memory Interface.......................................................................................... 12 Configuration.............................................................................................................13 Power Management.................................................................................................... 13 Document Revision History for Intel MAX 10 FPGA Device Overview.................................. 13 Intel® MAX® 10 FPGA Device Overview 2 Send Feedback 683658 | 2022.06.14 Send Feedback Intel® MAX® 10 FPGA Device Overview Intel® MAX® 10 devices are single-chip, non-volatile low-cost programmable logic devices (PLDs) to integrate the optimal set of system components. The highlights of the Intel MAX 10 devices include: • Internally stored dual configuration flash • User flash memory • Instant on support • Integrated analog-to-digital converters (ADCs) • Single-chip Nios II soft core processor support Intel MAX 10 devices are the ideal solution for system management, I/O expansion, communication control planes, industrial, automotive, and consumer applications. Related Information Intel MAX 10 FPGA Device Datasheet Key Advantages of Intel MAX 10 Devices Table 1. Key Advantages of Intel MAX 10 Devices Advantage Supporting Feature Simple and fast configuration Secure on-die flash memory enables device configuration in less than 10 ms Flexibility and integration • • Low power • • Single device integrating PLD logic, RAM, flash memory, digital signal processing (DSP), ADC, phase-locked loop (PLL), and I/Os Small packages available from 3 mm × 3 mm Sleep mode—significant standby power reduction and resumption in less than 1 ms Longer battery life—resumption from full power-off in less than 10 ms 20-year-estimated life cycle Built on TSMC's 55 nm embedded flash process technology High productivity design tools • • • • Intel Quartus® Prime Lite edition (no cost license) Platform Designer (Standard) system integration tool DSP Builder for Intel FPGAs Nios® II Embedded Design Suite (EDS) Intel Corporation. All rights reserved. Intel, the Intel logo, and other Intel marks are trademarks of Intel Corporation or its subsidiaries. Intel warrants performance of its FPGA and semiconductor products to current specifications in accordance with Intel's standard warranty, but reserves the right to make changes to any products and services at any time without notice. Intel assumes no responsibility or liability arising out of the application or use of any information, product, or service described herein except as expressly agreed to in writing by Intel. Intel customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for products or services. *Other names and brands may be claimed as the property of others. ISO 9001:2015 Registered Intel® MAX® 10 FPGA Device Overview 683658 | 2022.06.14 Summary of Intel MAX 10 Device Features Table 2. Summary of Features for Intel MAX 10 Devices Feature Description Technology 55 nm TSMC Embedded Flash (Flash + SRAM) process technology Packaging • • Low cost, small form factor packages—support multiple packaging technologies and pin pitches Multiple device densities with compatible package footprints for seamless migration between different device densities RoHS6-compliant Core architecture • • • • • • 4-input look-up table (LUT) and single register logic element (LE) LEs arranged in logic array block (LAB) Embedded RAM and user flash memory Clocks and PLLs Embedded multiplier blocks General purpose I/Os Internal memory blocks • • M9K—9 kilobits (Kb) memory blocks Cascadable blocks to create RAM, dual port, and FIFO functions User flash memory (UFM) • • • • • User accessible non-volatile storage High speed operating frequency Large memory size High data retention Multiple interface option Embedded multiplier blocks • • One 18 × 18 or two 9 × 9 multiplier modes Cascadable blocks enabling creation of filters, arithmetic functions, and image processing pipelines ADC • • • • 12-bit successive approximation register (SAR) type Up to 17 analog inputs Cumulative speed up to 1 million samples per second ( MSPS) Integrated temperature sensing capability Clock networks • • Global clocks support High speed frequency in clock network Internal oscillator Built-in internal ring oscillator PLLs • • • • • • Analog-based Low jitter High precision clock synthesis Clock delay compensation Zero delay buffering Multiple output taps General-purpose I/Os (GPIOs) • • • Multiple I/O standards support On-chip termination (OCT) Up to 720 megabits per second (Mbps) LVDS receiver and transmitter • External memory interface (EMIF) (1) Supports up to 600 Mbps external memory interfaces: • DDR3, DDR3L, DDR2, LPDDR2 (on 10M16, 10M25, 10M40, and 10M50.) • SRAM (Hardware support only) continued... (1) EMIF is only supported in selected Intel MAX 10 device density and package combinations. Refer to the External Memory Interface User Guide for more information. Intel® MAX® 10 FPGA Device Overview 4 Send Feedback Intel® MAX® 10 FPGA Device Overview 683658 | 2022.06.14 Feature Description Note: For 600 Mbps performance, –6 device speed grade is required. Performance varies according to device grade (commercial, industrial, or automotive) and device speed grade (–6 or –7). Refer to the Intel MAX 10 FPGA Device Datasheet or External Memory Interface Spec Estimator for more details. Configuration • • • Flexible power supply schemes • Internal configuration JTAG Advanced Encryption Standard (AES) 128-bit encryption and compression options Flash memory data retention of 20 years at 85 °C • • • Single- and dual-supply device options Dynamically controlled input buffer power down Sleep mode for dynamic power reduction Intel MAX 10 Device Ordering Information Figure 1. Sample Ordering Code and Available Options for Intel MAX 10 Devices Member Code 02 04 08 16 25 40 50 : : : : : : : Package Type 2K logic elements 4K logic elements 8K logic elements 16K logic elements 25K logic elements 40K logic elements 50K logic elements Family Signature 10M : Intel® MAX® 10 10M 16 V, Y E M U F : : : : : Wafer-Level Chip Scale (WLCSP) Plastic Enhanced Quad Flat Pack (EQFP) Micro FineLine BGA (MBGA) Ultra FineLine BGA (UBGA) FineLine BGA (FBGA) Operating Temperature DA U 484 Feature Options SC : Single supply - compact features SA : Single supply - analog and flash features with RSU option SL : Single supply - flash features with RSU option DC : Dual supply - compact features DF : Dual supply - flash features with RSU option DA : Dual supply - analog and flash features with RSU option DD : Dual supply - analog and flash features with RSU option and flash access control (1) I 7 G FPGA Fabric Speed Grade 6 (fastest) 7 8 C I A : Commercial (TJ = 0° C to 85° C) : Industrial (TJ = - 40° C to 100° C) : Automotive (TJ = - 40° C to 125° C) Optional Suffix Indicates specific device options or shipment method G : RoHS6 ES : Engineering sample P : Leaded package Package Code WLCSP Package Type 36 : 36 pins, 3 mm x 3 mm 81 : 81 pins, 4 mm x 4 mm 180 : 180 pins, 6 mm x 5 mm UBGA Package Type 169 : 169 pins, 11 mm x 11 mm 324 : 324 pins, 15 mm x 15 mm FBGA Package Type 256 : 256 pins, 17 mm x 17 mm EQFP Package Type 144 : 144 pins, 22 mm x 22 mm 484 : 484 pins, 23 mm x 23 mm 672 : 672 pins, 27 mm x 27 mm MBGA Package Type 153 : 153 pins, 8 mm x 8 mm Note: (1) DD OPN available only on 10M40 and 10M50 devices with F256, F484, and F762 packages. Note: The –A6 speed grade of the Intel MAX 10 FPGA devices is not available by default in the Intel Quartus Prime software. Contact your local Intel sales representatives for support. Related Information Intel FPGA Product Selector Provides the latest information about Intel MAX 10 FPGAs. Send Feedback Intel® MAX® 10 FPGA Device Overview 5 Intel® MAX® 10 FPGA Device Overview 683658 | 2022.06.14 Intel MAX 10 Device Feature Options Table 3. Feature Options for Intel MAX 10 Devices Option Feature Compact Devices with core architecture featuring single configuration image with self-configuration capability Flash Devices with core architecture featuring: • Dual configuration image with self-configuration capability • Remote system upgrade capability • Memory initialization Analog Devices with core architecture featuring: • Dual configuration image with self-configuration capability • Remote system upgrade capability • Memory initialization • Integrated ADC Intel MAX 10 Device Maximum Resources Table 4. Maximum Resource Counts for Intel MAX 10 Devices Resource Device 10M02 10M04 10M08 10M16 10M25 10M40 10M50 2 4 8 16 25 40 50 108 189 378 549 675 1,260 1,638 96 1,248 1,376 2,368 3,200 5,888 5,888 16 20 24 45 55 125 144 2 2 2 4 4 4 4 246 246 250 320 360 500 500 Dedicated Transmitter 15 15 15 22 24 30 30 Emulated Transmitter 114 114 116 151 171 241 241 Dedicated Receiver 114 114 116 151 171 241 241 Internal Configuration Image 1 2 2 2 2 2 2 ADC — 1 1 1 2 2 2 Logic Elements (LE) (K) M9K Memory (Kb) User Flash Memory (Kb) (2) 18 × 18 Multiplier PLL GPIO LVDS (2) The maximum possible value including user flash memory and configuration flash memory. For more information, refer to Intel MAX 10 User Flash Memory User Guide. Intel® MAX® 10 FPGA Device Overview 6 Send Feedback Intel® MAX® 10 FPGA Device Overview 683658 | 2022.06.14 Intel MAX 10 Devices I/O Resources Per Package Table 5. Package Plan for Intel MAX 10 Single Power Supply Devices Device Package Type V81 81-pin WLCSP Y180 180-pin WLCSP M153 153-pin MBGA U169 169-pin UBGA U324 324-pin UBGA E144 144-pin EQFP Size 4 mm × 4 mm 6 mm × 5 mm 8 mm × 8 mm 11 mm × 11 mm 15 mm × 15 mm 22 mm × 22 mm Ball Pitch 0.4 mm 0.35 mm 0.5 mm 0.8 mm 0.8 mm 0.5 mm 10M02 — — 112 130 246 101 10M04 — — 112 130 246 101 10M08 58 — 112 130 246 101 10M16 — 125 — 130 246 101 10M25 — — — — — 101 10M40 — — — — — 101 10M50 — — — — — 101 Table 6. Package Plan for Intel MAX 10 Dual Power Supply Devices Device Package Type V36 V81 U324 F256 F484 F672 36-pin WLCSP 81-pin WLCSP 324-pin UBGA 256-pin FBGA 484-pin FBGA 672-pin FBGA Size 3 mm × 3 mm 4 mm × 4 mm Ball Pitch 15 mm × 15 mm 17 mm × 17 mm 23 mm × 23 mm 27 mm × 27 mm 0.4 mm 0.4 mm 0.8 mm 1.0 mm 1.0 mm 1.0 mm 10M02 27 — 160 — — — 10M04 — — 246 178 — — 10M08 — 56 246 178 250 — 10M16 — — 246 178 320 — 10M25 — — — 178 360 — 10M40 — — — 178 360 500 10M50 — — — 178 360 500 Related Information • Intel MAX 10 General Purpose I/O User Guide • Intel MAX 10 High-Speed LVDS I/O User Guide Intel MAX 10 Vertical Migration Support Vertical migration supports the migration of your design to other Intel MAX 10 devices of different densities in the same package with similar I/O and ADC resources. Send Feedback Intel® MAX® 10 FPGA Device Overview 7 Intel® MAX® 10 FPGA Device Overview 683658 | 2022.06.14 Intel MAX 10 I/O Vertical Migration Support Figure 2. Migration Capability Across Intel MAX 10 Devices • The arrows indicate the migration paths. The devices included in each vertical migration path are shaded. Non-migratable devices are omitted. Some packages have several migration paths. Devices with lesser I/O resources in the same path have lighter shades. • To achieve the full I/O migration across product lines in the same migration path, restrict I/Os usage to match the product line with the lowest I/O count. Device Package V36 V81 Y180 M153 U169 U324 F256 E144 F484 F672 10M02 10M04 10M08 10M16 10M25 10M40 10M50 Dual Power Supply Devices Note: Single Power Supply Devices Before starting migration work, Intel recommends that you verify the pin migration compatibility through the Pin Migration View window in the Intel Quartus Prime software Pin Planner. For example, not all Intel MAX 10 devices support 1.0 V I/O. Intel MAX 10 ADC Vertical Migration Support Figure 3. ADC Vertical Migration Across Intel MAX 10 Devices The arrows indicate the ADC migration paths. The devices included in each vertical migration path are shaded. Package Device M153 U169 U324 F256 E144 F484 F672 10M04 10M08 10M16 10M25 10M40 10M50 Dual ADC Device: Each ADC (ADC1 and ADC2) supports 1 dedicated analog input pin and 8 dual function pins. Single ADC Device: Single ADC that supports 1 dedicated analog input pin and 16 dual function pins. Single ADC Device: Single ADC that supports 1 dedicated analog input pin and 8 dual function pins. Intel® MAX® 10 FPGA Device Overview 8 Send Feedback Intel® MAX® 10 FPGA Device Overview 683658 | 2022.06.14 Table 7. Pin Migration Conditions for ADC Migration Source Target Single ADC device Single ADC device Dual ADC device Dual ADC device Single ADC device Dual ADC device Dual ADC device Single ADC device Migratable Pins You can migrate all ADC input pins • • One dedicated analog input pin. Eight dual function pins from the ADC1 block of the source device to the ADC1 block of the target device. Logic Elements and Logic Array Blocks The LAB consists of 16 logic elements (LE) and a LAB-wide control block. An LE is the smallest unit of logic in the Intel MAX 10 device architecture. Each LE has four inputs, a four-input look-up table (LUT), a register, and output logic. The four-input LUT is a function generator that can implement any function with four variables. Figure 4. Intel MAX 10 Device Family LEs Register chain routing LAB-Wide LAB-wide from previous LE synchronous load synchronous clear LE carry-in data 1 data 2 data 3 Synchronous Load and Clear Logic Look-Up Table Carry Chain (LUT) data 4 labclr1 labclr2 Chip-wide reset (DEV_CLRn) Register feedback LE Carry-Out labclk1 D Register bypass Programmable register Q ENA CLRN Asynchronous Clear Logic Row, column, and direct link routing Row, column, and direct link routing Local routing Clock and Clock Enable Select Register chain output labclk2 labclkena1 labclkena2 Analog-to-Digital Converter Intel MAX 10 devices feature up to two ADCs. You can use the ADCs to monitor many different signals, including on-chip temperature. Table 8. ADC Features Feature 12-bit resolution Description • • Up to 1 MSPS sampling rate Translates analog signal to digital data for information processing, computing, data transmission, and control systems Provides a 12-bit digital representation of the observed analog signal Monitors single-ended external inputs with a cumulative sampling rate of 25 kilosamples per second to 1 MSPS in normal mode continued... Send Feedback Intel® MAX® 10 FPGA Device Overview 9 Intel® MAX® 10 FPGA Device Overview 683658 | 2022.06.14 Feature Description Up to 17 single-ended external inputs for single ADC devices One dedicated analog and 16 dual function input pins Up to 18 single-ended external inputs for dual ADC devices • • On-chip temperature sensor Monitors external temperature data input with a sampling rate of up to 50 kilosamples per second One dedicated analog and eight dual-function input pins in each ADC block Simultaneous measurement capability for dual ADC devices User Flash Memory The user flash memory (UFM) block in Intel MAX 10 devices stores non-volatile information. UFM provides an ideal storage solution that you can access using Avalon MemoryMapped (Avalon-MM) slave interface protocol. Table 9. UFM Features Features Capacity Endurance Counts to at least 10,000 program/erase cycles Data retention • • Operating frequency Maximum 116 MHz for parallel interface and 7.25 MHz for serial interface Data length Stores data up to 32 bits length in parallel 20 years at 85 ºC 10 years at 100 ºC Embedded Multipliers and Digital Signal Processing Support Intel MAX 10 devices support up to 144 embedded multiplier blocks. Each block supports one individual 18 × 18-bit multiplier or two individual 9 × 9-bit multipliers. With the combination of on-chip resources and external interfaces in Intel MAX 10 devices, you can build DSP systems with high performance, low system cost, and low power consumption. You can use the Intel MAX 10 device on its own or as a DSP device co-processor to improve price-to-performance ratios of DSP systems. You can control the operation of the embedded multiplier blocks using the following options: • Parameterize the relevant IP cores with the Intel Quartus Prime parameter editor • Infer the multipliers directly with VHDL or Verilog HDL System design features provided for Intel MAX 10 devices: Intel® MAX® 10 FPGA Device Overview 10 Send Feedback Intel® MAX® 10 FPGA Device Overview 683658 | 2022.06.14 • DSP IP cores: — Common DSP processing functions such as finite impulse response (FIR), fast Fourier transform (FFT), and numerically controlled oscillator (NCO) functions — Suites of common video and image processing functions • Complete reference designs for end-market applications • DSP Builder for Intel FPGAs interface tool between the Intel Quartus Prime software and the MathWorks Simulink and MATLAB design environments • DSP development kits Embedded Memory Blocks The embedded memory structure consists of M9K memory blocks columns. Each M9K memory block of a Intel MAX 10 device provides 9 Kb of on-chip memory capable of operating at up to 284 MHz. The embedded memory structure consists of M9K memory blocks columns. Each M9K memory block of a Intel MAX 10 device provides 9 Kb of on-chip memory. You can cascade the memory blocks to form wider or deeper logic structures. You can configure the M9K memory blocks as RAM, FIFO buffers, or ROM. The Intel MAX 10 device memory blocks are optimized for applications such as high throughput packet processing, embedded processor program, and embedded data storage. Table 10. M9K Operation Modes and Port Widths Operation Modes Port Widths Single port ×1, ×2, ×4, ×8, ×9, ×16, ×18, ×32, and ×36 Simple dual port ×1, ×2, ×4, ×8, ×9, ×16, ×18, ×32, and ×36 True dual port ×1, ×2, ×4, ×8, ×9, ×16, and ×18 Clocking and PLL Intel MAX 10 devices offer the following resources: global clock (GCLK) networks and phase-locked loops (PLLs) with a 116-MHz built-in oscillator. Intel MAX 10 devices support up to 20 global clock (GCLK) networks with operating frequency up to 450 MHz. The GCLK networks have high drive strength and low skew. The PLLs provide robust clock management and synthesis for device clock management, external system clock management, and I/O interface clocking. The high precision and low jitter PLLs offers the following features: • Reduction in the number of oscillators required on the board • Reduction in the device clock pins through multiple clock frequency synthesis from a single reference clock source • Frequency synthesis • On-chip clock de-skew • Jitter attenuation • Dynamic phase-shift Send Feedback Intel® MAX® 10 FPGA Device Overview 11 Intel® MAX® 10 FPGA Device Overview 683658 | 2022.06.14 • Zero delay buffer • Counter reconfiguration • Bandwidth reconfiguration • Programmable output duty cycle • PLL cascading • Reference clock switchover • Driving of the ADC block FPGA General Purpose I/O The Intel MAX 10 I/O buffers support a range of programmable features. These features increase the flexibility of I/O utilization and provide an alternative to reduce the usage of external discrete components such as a pull-up resistor and a PCI clamp diode. External Memory Interface Dual-supply Intel MAX 10 devices feature external memory interfaces solution that uses the I/O elements on the right side of the devices together with the UniPHY IP. With this solution, you can create external memory interfaces to 16-bit SDRAM components with error correction coding (ECC). Note: The external memory interface feature is available only for dual-supply Intel MAX 10 devices. Table 11. External Memory Interface Performance External Memory Interface(3) I/O Standard Maximum Width Maximum Frequency (MHz) DDR3 SDRAM SSTL-15 16 bit + 8 bit ECC 303 DDR3L SDRAM SSTL-135 16 bit + 8 bit ECC 303 DDR2 SDRAM SSTL-18 16 bit + 8 bit ECC 200 LPDDR2 SDRAM HSUL-12 16 bit without ECC 200(4) Related Information External Memory Interface Spec Estimator Provides a parametric tool that allows you to find and compare the performance of the supported external memory interfaces in Intel FPGAs. (3) The device hardware supports SRAM. Use your own design to interface with SRAM devices. (4) To achieve the specified performance, constrain the memory device I/O and core power supply variation to within ±3%. By default, the frequency is 167 MHz. Intel® MAX® 10 FPGA Device Overview 12 Send Feedback Intel® MAX® 10 FPGA Device Overview 683658 | 2022.06.14 Configuration Table 12. Configuration Features Feature Description Dual configuration • • Stores two configuration images in the configuration flash memory (CFM) Design security • • • Supports 128-bit key with non-volatile key programming Limits access of the JTAG instruction during power-up in the JTAG secure mode Unique device ID for each Intel MAX 10 device SEU Mitigation • • Auto-detects cyclic redundancy check (CRC) errors during configuration Provides optional CRC error detection and identification in user mode Dual-purpose configuration pin • • Functions as configuration pins prior to user mode Provides options to be used as configuration pin or user I/O pin in user mode Configuration data compression • Decompresses the compressed configuration bitstream data in real-time during configuration Reduces the size of configuration image stored in the CFM • Instant-on Table 13. Selects the first configuration image to load using the CONFIG_SEL pin Provides the fastest power-up mode for Intel MAX 10 devices. Configuration Schemes for Intel MAX 10 Devices Configuration Scheme Internal Configuration JTAG Compression Encryption Dual Image Configuration Data Width Yes Yes Yes — — — — 1 Power Management Table 14. Power Options Power Options Advantage Single-supply device Saves board space and costs. Dual-supply device • • Consumes less power Offers higher performance Power management controller scheme • • Reduces dynamic power consumption when certain applications are in standby mode Provides a fast wake-up time of less than 1 ms. Document Revision History for Intel MAX 10 FPGA Device Overview Changes Document Version 2022.06.14 Updated the LVDS receiver and transmitter speeds from 830 Mbps and 800 Mbps, respectively, to 720 Mbps. 2021.11.01 • • • Send Feedback Updated the Sample Ordering Code and Available Options for Intel MAX 10 Devices diagram. — Added SL and DD feature options, Y package type, and 180 package code. — Removed –I6 speed grade from contact information. All OPNs for –I6 speed grade are available in the Intel Quartus Prime Standard Edition software version 21.1 onwards. Added V81 and Y180 packages in the Package Plan for Intel MAX 10 Single Power Supply Devices table. Added Y180 package in the Migration Capability Across Intel MAX 10 Devices diagram. Intel® MAX® 10 FPGA Device Overview 13 Intel® MAX® 10 FPGA Device Overview 683658 | 2022.06.14 Date December 2017 Version 2017.12.15 Changes • • Added the U324 package for the Intel MAX 10 single power supply devices. Updated the 10M02 GPIO and LVDS count in the Maximum Resource Counts for Intel MAX 10 Devices table. Updated the I/O vertical migration figure. • February 2017 2017.02.21 • Rebranded as Intel. December 2016 2016.12.20 • Updated EMIF information in the Summary of Features for Intel MAX 10 Devices table. EMIF is only supported in selected Intel MAX 10 device density and package combinations, and for 600 Mbps performance, –6 device speed grade is required. Updated the device ordering information to include P for leaded package. • May 2016 2016.05.02 • • Removed all preliminary marks. Update the ADC sampling rate description. The ADC feature monitors single-ended external inputs with a cumulative sampling rate of 25 kilosamples per second to 1 MSPS in normal mode. November 2015 2015.11.02 • • Removed SF feature from the device ordering information figure. Changed instances of Quartus II to Intel Quartus Prime. May 2015 2015.05.04 • Added clearer descriptions for the feature options listed in the device ordering information figure. Updated the maximum dedicated LVDS transmitter count of 10M02 device from 10 to 9. Removed the F672 package of the Intel MAX 10 10M25 device : — Updated the devices I/O resources per package. — Updated the I/O vertical migration support. — Updated the ADC vertical migration support. Updated the maximum resources for 10M25 device: — Maximum GPIO from 380 to 360. — Maximum dedicated LVDS transmitter from 26 to 24. — Maximum emulated LVDS transmitter from 181 to 171. — Maximum dedicated LVDS receiver from 181 to 171. Added ADC information for the E144 package of the 10M04 device. Updated the ADC vertical migration diagram to clarify that there are single ADC devices with eight and 16 dual function pins. Removed the note about contacting Altera for DDR3, DDR3L, DDR2, and LPDDR2 external memory interface support. The Intel Quartus Prime software supports these external memory interfaces from version 15.0. • • • • • • December 2014 2014.12.15 • • • • September 2014 2014.09.22 Intel® MAX® 10 FPGA Device Overview 14 Changed terms: — "dual image" to "dual configuration image" — "dual-image configuration" to dual configuration" Added memory initialization feature for Flash and Analog devices. Added maximum data retention capacity of up to 20 years for UFM feature. Added maximum operating frequency of 7.25 MHz for serial interface for UFM feature. Initial release. Send Feedback
10M02SCM153C8G 价格&库存

很抱歉,暂时无法提供与“10M02SCM153C8G”相匹配的价格&库存,您可以联系我们找货

免费人工找货
10M02SCM153C8G
  •  国内价格
  • 1+62.93510
  • 10+58.09390
  • 100+53.25280
  • 1000+48.41160

库存:8

10M02SCM153C8G
    •  国内价格
    • 1+52.69320
    • 10+44.51760
    • 30+40.71600

    库存:3

    10M02SCM153C8G
      •  国内价格
      • 1+55.66000
      • 10+53.57000
      • 50+51.48000
      • 100+49.50000
      • 250+48.51000
      • 348+47.52000

      库存:348

      10M02SCM153C8G
        •  国内价格
        • 20+35.87976
        • 200+34.17120
        • 1000+33.48756

        库存:100
