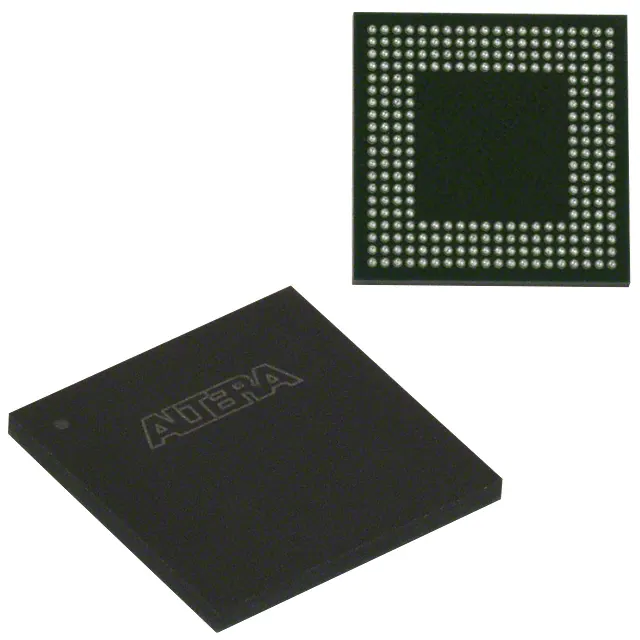

EPM1270M256I5N

6. Reference and Ordering Information MII51006-1.6 Software MAX ® II devices are supported by the Altera® Quartus® II design software with new, optional MAX+PLUS® II look and feel, which provides HDL and schematic design entry, compilation and logic synthesis, full simulation and advanced timing analysis, and device programming. Refer to the Design Software Selector Guide for more details about the Quartus II software features. The Quartus II software supports the Windows XP/2000/NT, Sun Solaris, Linux Red Hat v8.0, and HP-UX operating systems. It also supports seamless integration with industry-leading EDA tools through the NativeLink interface. Device Pin-Outs Printed device pin-outs for MAX II devices are available on the Altera website (www.altera.com). Ordering Information Figure 6–1 describes the ordering codes for MAX II devices. For more information about a specific package, refer to the Package Information chapter in the MAX II Device Handbook. Figure 6–1. MAX II Device Packaging Ordering Information EPM 240 G T 100 C 3 ES Family Signature EPM: Optional Suffix MAX II Indicates specific device options or shipment method ES: Engineering sample N: Lead-free packaging Device Type 240: 570: 1270: 2210: 240 Logic Elements 570 Logic Elements 1,270 Logic Elements 2,210 Logic Elements Speed Grade 3, 4, 5, 6, 7, or 8, with 3 being the fastest Product-Line Suffix Operating Temperature Indicates device type G: 1.8-V VCCINT low-power device Z: 1.8-V VCCINT zero-power device 2.5-V or 3.3-V VCCINT device Blank (no identifier): C: I: A: Commercial temperature (TJ = 0° C to 85° C) Industrial temperature (TJ = -40° C to 100° C) Automotive temperature (TJ = -40° C to 125° C) Package Type T: Thin quad flat pack (TQFP) F: FineLine BGA M: Micro FineLine BGA Pin Count Number of pins for a particular package © August 2009 Altera Corporation MAX II Device Handbook 6–2 Chapter 6: Reference and Ordering Information Referenced Documents Referenced Documents This chapter references the following document: ■ Package Information chapter in the MAX II Device Handbook Document Revision History Table 6–1 shows the revision history for this chapter. Table 6–1. Document Revision History Date and Revision Changes Made Summary of Changes August 2009, version 1.6 ■ Updated Figure 6–1. October 2008, version 1.5 ■ Updated New Document Format. December 2007, version 1.4 ■ Added “Referenced Documents” section. ■ Updated Figure 6–1. December 2006, version 1.3 ■ Added document revision history. — October 2006, version 1.2 ■ Updated Figure 6-1. — June 2005, version 1.1 ■ Removed Dual Marking section. — MAX II Device Handbook Added information for speed grade –8 — Updated document with MAX IIZ information. © August 2009 Altera Corporation
