Section I. MAX II Device
Family Data Sheet
This section provides designers with the data sheet specifications for
MAX® II devices. The chapters contain feature definitions of the internal
architecture, Joint Test Action Group (JTAG) and in-system
programmability (ISP) information, DC operating conditions, AC timing
parameters, and ordering information for MAX II devices.
This section includes the following chapters:
Revision History
Altera Corporation
■
Chapter 1. Introduction
■
Chapter 2. MAX II Architecture
■
Chapter 3. JTAG & In-System Programmability
■
Chapter 4. Hot Socketing & Power-On Reset in MAX II Devices
■
Chapter 5. DC & Switching Characteristics
■
Chapter 6. Reference & Ordering Information
Refer to each chapter for its own specific revision history. For information
on when each chapter was updated, refer to the Chapter Revision Dates
section, which appears in the complete handbook.
Section I–1
Preliminary
Chapter 1. Introduction
MII51001-1.6
Introduction
The MAX® II family of instant-on, non-volatile CPLDs is based on a
0.18-µm, 6-layer-metal-flash process, with densities from 240 to 2,210
logic elements (LEs) (128 to 2,210 equivalent macrocells) and non-volatile
storage of 8 Kbits. MAX II devices offer high I/O counts, fast
performance, and reliable fitting versus other CPLD architectures.
Featuring MultiVolt™ core, a user flash memory (UFM) block, and
enhanced in-system programmability (ISP), MAX II devices are designed
to reduce cost and power while providing programmable solutions for
applications such as bus bridging, I/O expansion, power-on reset (POR)
and sequencing control, and device configuration control.
The following shows the main sections of the MAX II CPLD Family Data
Sheet:
Section
Page
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–2
Functional Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–1
Logic Array Blocks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–5
Logic Elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–8
MultiTrack Interconnect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–15
Global Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–20
User Flash Memory Block. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–23
MultiVolt Core . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–27
I/O Structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–28
IEEE Std. 1149.1 (JTAG) Boundary Scan Support . . . . . . . . . . 3–1
In System Programmability . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–4
Hot Socketing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–1
Power-On Reset Circuitry. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–6
Operating Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–1
Power Consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–9
Timing Model & Specifications . . . . . . . . . . . . . . . . . . . . . . . . 5–10
Device Pin-Outs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–1
Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–1
Altera Corporation
December 2006
Core Version a.b.c variable
1–1
Preliminary
Features
Features
■
■
■
■
■
■
■
■
■
■
■
■
■
■
Low-cost, low-power CPLD
Instant-on, non-volatile architecture
Standby current as low as 2 mA
Provides fast propagation delay and clock-to-output times
Provides four global clocks with two clocks available per logic array
block (LAB)
UFM block up to 8 Kbits for non-volatile storage
MultiVolt core enabling external supply voltages to the device of
either 3.3 V/2.5 V or 1.8 V
MultiVolt I/O interface supporting 3.3-V, 2.5-V, 1.8-V, and 1.5-V logic
levels
Bus-friendly architecture including programmable slew rate, drive
strength, bus-hold, and programmable pull-up resistors
Schmitt triggers enabling noise tolerant inputs (programmable per
pin)
Fully compliant with the Peripheral Component Interconnect Special
Interest Group (PCI SIG) PCI Local Bus Specification, Revision 2.2 for
3.3-V operation at 66 MHz
Supports hot-socketing
Built-in Joint Test Action Group (JTAG) boundary-scan test (BST)
circuitry compliant with IEEE Std. 1149.1-1990
ISP circuitry compliant with IEEE Std. 1532
Table 1–1 shows MAX II device features.
Table 1–1. MAX II Device Features
Feature
EPM240
EPM570
EPM1270
EPM2210
LEs
240
570
1,270
2,210
Typical Equivalent
Macrocells
192
440
980
1,700
128 to 240
240 to 570
570 to 1,270
1,270 to 2,210
8,192
8,192
8,192
8,192
Maximum User I/O pins
80
160
212
272
tPD1 (ns) (1)
4.7
5.4
6.2
7.0
fCNT (MHz) (2)
304
304
304
304
Equivalent Macrocell
Range
UFM Size (bits)
tSU (ns)
1.7
1.2
1.2
1.2
tCO (ns)
4.3
4.5
4.6
4.6
Notes to Table 1–1:
(1)
(2)
tPD1 represents a pin-to-pin delay for the worst case I/O placement with a full diagonal path across the device and
combinational logic implemented in a single LUT and LAB that is adjacent to the output pin.
The maximum frequency is limited by the I/O standard on the clock input pin. The 16-bit counter critical delay
will run faster than this number.
1–2
MAX II Device Handbook, Volume 1
Core Version a.b.c variable
Altera Corporation
December 2006
Introduction
1
For more information on equivalent macrocells, refer to the
MAX II Logic Element to Macrocell Conversion Methodology white
paper.
MAX II devices are available in three speed grades: -3, -4, -5 with -3 being
the fastest. These speed grades represent overall relative performance,
not any specific timing parameter. For propagation delay timing numbers
within each speed grade and density, see the chapter on DC & Switching
Characteristics. Table 1–2 shows MAX II device speed-grade offerings.
Table 1–2. MAX II Speed Grades
Speed Grade
Device
-3
-4
-5
EPM240
v
v
v
EPM570
v
v
v
EPM1270
v
v
v
EPM2210
v
v
v

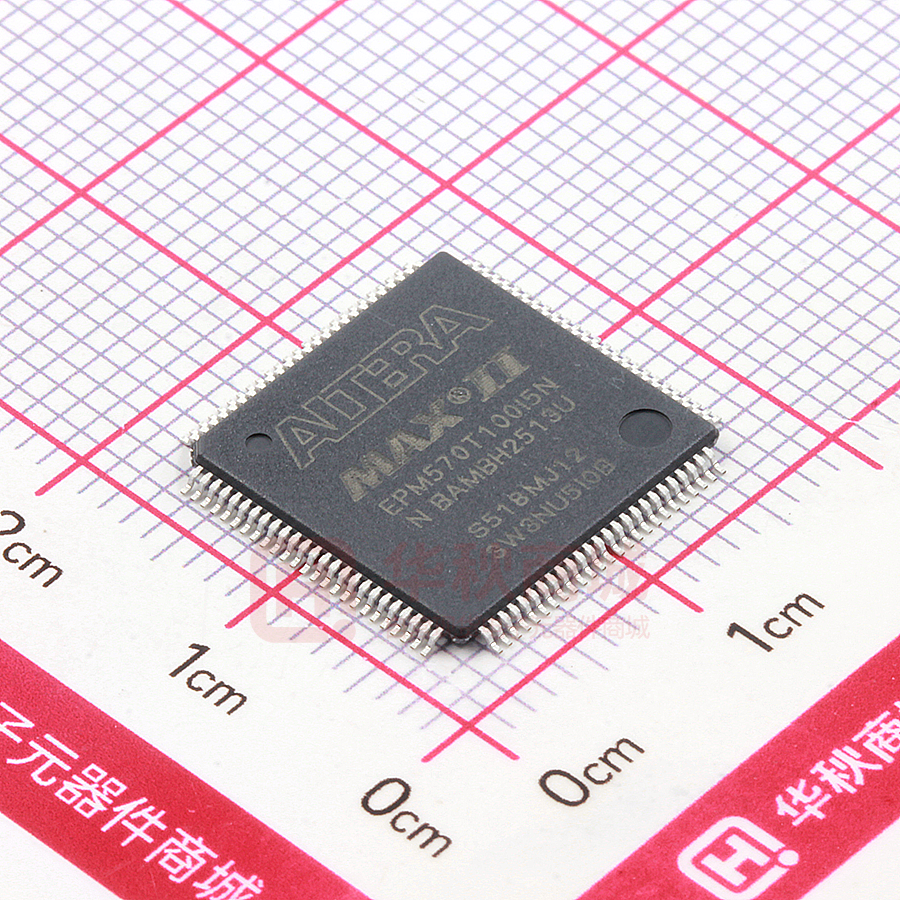

MAX II devices are available in space-saving FineLine BGA®, Micro
FineLine BGA, and thin quad flat pack (TQFP) packages (see Tables 1–3
and 1–4). MAX II devices support vertical migration within the same
package (e.g., you can migrate between the EPM570, EPM1270, and
EPM2210 devices in the
256-pin FineLine BGA package). Vertical migration means that you can
migrate to devices whose dedicated pins and JTAG pins are the same and
power pins are subsets or supersets for a given package across device
densities. The largest density in any package has the highest number of
power pins; you must layout for the largest planned density in a package
to provide the necessary power pins for migration. For I/O pin migration
across densities, cross reference the available I/O pins using the device
pin-outs for all planned densities of a given package type to identify
which I/O pins can be migrated. The Quartus® II software can
automatically cross reference and place all pins for you when given a
device migration list.
Altera Corporation
December 2006
Core Version a.b.c variable
1–3
MAX II Device Handbook, Volume 1
Features
Table 1–3. MAX II Packages & User I/O Pins
Device
100-Pin
Micro
FineLine
BGA (1)
100-Pin
FineLine
BGA (1)
100-Pin
TQFP
EPM240
80
80
80
EPM570
76
76
76
EPM1270
144-Pin
TQFP
256-Pin
Micro
FineLine
BGA (1)
256-Pin
FineLine
BGA
116
160
160
116
212
212
EPM2210
324-Pin
FineLine
BGA
204
272
Note to Table 1–3:
(1)
Packages available on 3.3 V/2.5 V devices in lead-free versions only.
Table 1–4. MAX II TQFP, FineLine BGA, & Micro FineLine BGA Package Sizes
Package
Pitch (mm)
Area (mm2)
Length x width
(mm x mm)
100-Pin
Micro
FineLine
BGA
100-Pin
FineLine
BGA
100-Pin
TQFP
144-Pin
TQFP
256-Pin
Micro
FineLine
BGA
256-Pin
FineLine
BGA
324-Pin
FineLine
BGA
0.5
1
0.5
0.5
0.5
1
1
36
121
256
484
121
289
361
6X6
11 X 11
16 × 16
22 × 22
11 X 11
17 × 17
19 × 19
1–4
MAX II Device Handbook, Volume 1
Core Version a.b.c variable
Altera Corporation
December 2006
Introduction
MAX II devices have an internal linear voltage regulator which supports
external supply voltages of 3.3 V or 2.5 V, regulating the supply down to
the internal operating voltage of 1.8 V. MAX IIG devices only accept 1.8 V
as an external supply voltage. Except for external supply voltage
requirements, MAX II and MAX II G devices have identical pin-outs and
timing specifications. Table 1–5 shows the external supply voltages
supported by the MAX II family.
Table 1–5. MAX II External Supply Voltages
Devices
MultiVolt core external
supply voltage (VCCINT)
(2)
MultiVolt I/O interface
voltage levels (VCCIO)
EPM240
EPM570
EPM1270
EPM2210
EPM240G
EPM570G
EPM1270G
EPM2210G
(1)
3.3 V, 2.5 V
1.8 V
1.5 V, 1.8 V, 2.5 V, 3.3 V
1.5 V, 1.8 V, 2.5 V, 3.3 V
Notes to Table 1–5:
(1)
(2)
Altera Corporation
December 2006
MAX IIG devices do not have an internal voltage regulator and only accept 1.8 V
on their VCCINT pins. Contact Altera for availability on these devices.
MAX II devices operate internally at 1.8 V.
Core Version a.b.c variable
1–5
MAX II Device Handbook, Volume 1
Document Revision History
Document
Revision History
Table 1–6 shows the revision history for this document.
Table 1–6. Document Revision History
Date &
Document
Version
Changes Made
Summary of Changes
December 2006 Added document revision history.
v1.6
August 2006
v1.5
Minor update to features list.
July 2006 v1.4
Minor updates to tables.
June 2005 v1.3
Updated timing numbers in Table 1-1.
December 2004 Updated timing numbers in Table 1-1.
v1.2
June 2004 v1.1
Updated timing numbers in Table 1-1.
1–6
MAX II Device Handbook, Volume 1
Core Version a.b.c variable
Altera Corporation
December 2006
Chapter 2. MAX II
Architecture
MII51002-1.7
Functional
Description
MAX® II devices contain a two-dimensional row- and column-based
architecture to implement custom logic. Column and row interconnect
provide signal interconnects between the logic array blocks (LABs).
The logic array consists of LABs, with 10 logic elements (LEs) in each
LAB. An LE is a small unit of logic providing efficient implementation of
user logic functions. LABs are grouped into rows and columns across the
device. The MultiTrack™ interconnect provides fast granular timing
delays between LABs. The fast routing between LEs provides minimum
timing delay for added levels of logic versus globally routed interconnect
structures.
The MAX II device I/O pins are fed by an I/O element (IOE) located at
the ends of LAB rows and columns around the periphery of the device.
Each IOE contains a bidirectional I/O buffer with several advanced
features. I/O pins support Schmitt trigger inputs and various
single-ended standards, such as 66-MHz, 32-bit PCI and LVTTL.
MAX II devices provide a global clock network. The global clock network
consists of four global clock lines that drive throughout the entire device,
providing clocks for all resources within the device. The global clock lines
can also be used for control signals such as clear, preset, or output enable.
Figure 2–1 shows a functional block diagram of the MAX II device.
Altera Corporation
December 2006
Core Version a.b.c variable
2–1
Preliminary
Functional Description
Figure 2–1. MAX II Device Block Diagram
IOE
IOE
IOE
IOE
IOE
IOE
IOE
Logic
Element
Logic
Element
Logic
Element
IOE
Logic
Element
Logic
Element
Logic
Element
IOE
Logic
Element
Logic
Element
Logic
Element
IOE
Logic
Element
Logic
Element
Logic
Element
Logic Array
BLock (LAB)
MultiTrack
Interconnect
MultiTrack
Interconnect
Each MAX II device contains a flash memory block within its floorplan.
On the EPM240 device, this block is located on the left side of the device.
For the EPM570, EPM1270, and EPM2210 devices, the flash memory
block is located on the bottom-left area of the device. The majority of this
flash memory storage is partitioned as the dedicated configuration flash
memory (CFM) block. The CFM block provides the non-volatile storage
for all of the SRAM configuration information. The CFM automatically
downloads and configures the logic and I/O at power-up providing
instant-on operation.
f
See Hot Socketing & Power-On Reset in MAX II Devices for more
information on configuration upon power-up.
A portion of the flash memory within the MAX II device is partitioned
into a small block for user data. This user flash memory (UFM) block
provides 8,192 bits of general-purpose user storage. The UFM provides
programmable port connections to the logic array for reading and for
writing. There are three LAB rows adjacent to this block, with column
numbers varying by device.
2–2
MAX II Device Handbook, Volume 1
Core Version a.b.c variable
Altera Corporation
December 2006
MAX II Architecture
Table 2–1 shows the number of LAB rows and columns in each device as
well as the number of LAB rows and columns adjacent to the flash
memory area in the EPM570, EPM1270, and EPM2210 devices. The long
LAB rows are full LAB rows that extend from one side of row I/O blocks
to the other. The short LAB rows are adjacent to the UFM block; their
length is shown as width in LAB columns.
Table 2–1. MAX II Device Resources
LAB Rows
Devices
UFM Blocks
LAB Columns
Long LAB Rows
Short LAB Rows
(Width) (1)
Total LABs
EPM240
1
6
4
-
24
EPM570
1
12
4
3 (3)
57
EPM1270
1
16
7
3 (5)
127
EPM2210
1
20
10
3 (7)
221
Note to Table 2–1:
(1)
The width is the number of LAB columns in length.
Altera Corporation
December 2006
Core Version a.b.c variable
2–3
MAX II Device Handbook, Volume 1
Functional Description
Figure 2–2 shows a floorplan of a MAX II device.
Figure 2–2. MAX II Device Floorplan
Note (1)
I/O Blocks
I/O Blocks
Logic Array
Blocks
Logic Array
Blocks
2 GCLK
Inputs
2 GCLK
Inputs
I/O Blocks
UFM Block
CFM Block
Note to Figure 2–2:
(1)
The device shown is an EPM570 device. EPM1270 and EPM2210 devices have a similar floorplan with more LABs.
For the EPM240 devices, the CFM and UFM block is rotated left 90 degrees covering the left side of the device.
2–4
MAX II Device Handbook, Volume 1
Core Version a.b.c variable
Altera Corporation
December 2006
MAX II Architecture
Logic Array
Blocks
Each LAB consists of 10 LEs, LE carry chains, LAB control signals, a local
interconnect, a look-up table (LUT) chain, and register chain connection
lines. There are 26 possible unique inputs into an LAB, with an additional
10 local feedback input lines fed by LE outputs in the same LAB. The local
interconnect transfers signals between LEs in the same LAB. LUT chain
connections transfer the output of one LE’s LUT to the adjacent LE for fast
sequential LUT connections within the same LAB. Register chain
connections transfer the output of one LE’s register to the adjacent LE’s
register within an LAB. The Quartus® II software places associated logic
within an LAB or adjacent LABs, allowing the use of local, LUT chain,
and register chain connections for performance and area efficiency.
Figure 2–3 shows the MAX II LAB.
Figure 2–3. MAX II LAB Structure
Row Interconnect
Column Interconnect
LE0
Fast I/O Connection
to IOE (1)
Fast I/O connection
to IOE (1)
LE1
DirectLink
interconnect from
adjacent LAB
or IOE
LE2
DirectLink
interconnect from
adjacent LAB
or IOE
LE3
LE4
LE5
LE6
DirectLink
interconnect to
adjacent LAB
or IOE
DirectLink
interconnect to
adjacent LAB
or IOE
LE7
LE8
LE9
Logic Element
LAB
Local Interconnect
Note to Figure 2–3:
(1)
Only from LABs adjacent to IOEs.
Altera Corporation
December 2006
Core Version a.b.c variable
2–5
MAX II Device Handbook, Volume 1
Logic Array Blocks
LAB Interconnects
The LAB local interconnect can drive LEs within the same LAB. The LAB
local interconnect is driven by column and row interconnects and LE
outputs within the same LAB. Neighboring LABs, from the left and right
can also drive an LAB’s local interconnect through the DirectLink
connection. The DirectLink connection feature minimizes the use of row
and column interconnects, providing higher performance and flexibility.
Each LE can drive 30 other LEs through fast local and DirectLink
interconnects. Figure 2–4 shows the DirectLink connection.
Figure 2–4. DirectLink Connection
DirectLink interconnect from
right LAB or IOE output
DirectLink interconnect from
left LAB or IOE output
LE0
LE1
LE2
LE3
LE4
LE5
DirectLink
interconnect
to left
LE6
DirectLink
interconnect
to right
LE7
Local
Interconnect
LE8
LE9
Logic Element
LAB
LAB Control Signals
Each LAB contains dedicated logic for driving control signals to its LEs.
The control signals include two clocks, two clock enables, two
asynchronous clears, a synchronous clear, an asynchronous preset/load,
a synchronous load, and add/subtract control signals, providing a
maximum of 10 control signals at a time. Although synchronous load and
clear signals are generally used when implementing counters, they can
also be used with other functions.
2–6
MAX II Device Handbook, Volume 1
Core Version a.b.c variable
Altera Corporation
December 2006
MAX II Architecture
Each LAB can use two clocks and two clock enable signals. Each LAB’s
clock and clock enable signals are linked. For example, any LE in a
particular LAB using the labclk1 signal also uses labclkena1. If the
LAB uses both the rising and falling edges of a clock, it also uses both
LAB-wide clock signals. De-asserting the clock enable signal turns off the
LAB-wide clock.
Each LAB can use two asynchronous clear signals and an asynchronous
load /preset signal. By default, the Quartus II software uses a NOT gate
push-back technique to achieve preset. If you disable the NOT gate
push-back option or assign a given register to power-up high using the
Quartus II software, the preset is then achieved using the asynchronous
load signal with asynchronous load data input tied high.
With the LAB-wide addnsub control signal, a single LE can implement a
one-bit adder and subtractor. This saves LE resources and improves
performance for logic functions such as correlators and signed
multipliers that alternate between addition and subtraction depending
on data.
The LAB column clocks [3..0], driven by the global clock network, and
LAB local interconnect generate the LAB-wide control signals. The
MultiTrackTM interconnect structure drives the LAB local interconnect for
non-global control signal generation. The MultiTrack interconnect’s
inherent low skew allows clock and control signal distribution in
addition to data. Figure 2–5 shows the LAB control signal generation
circuit.
Figure 2–5. LAB-Wide Control Signals
Dedicated
LAB Column
Clocks
4
Local
Interconnect
Local
Interconnect
Local
Interconnect
Local
Interconnect
Local
Interconnect
Local
Interconnect
Altera Corporation
December 2006
labclkena2
labclkena1
labclk1
labclk2
labclr2
syncload
asyncload
or labpre
Core Version a.b.c variable
labclr1
addnsub
synclr
2–7
MAX II Device Handbook, Volume 1
Logic Elements
Logic Elements
The smallest unit of logic in the MAX II architecture, the LE, is compact
and provides advanced features with efficient logic utilization. Each LE
contains a four-input LUT, which is a function generator that can
implement any function of four variables. In addition, each LE contains a
programmable register and carry chain with carry select capability. A
single LE also supports dynamic single bit addition or subtraction mode
selectable by an LAB-wide control signal. Each LE drives all types of
interconnects: local, row, column, LUT chain, register chain, and
DirectLink interconnects. See Figure 2–6.
Figure 2–6. MAX II LE
Register chain
routing from
previous LE
LAB-wide
Register Bypass
Synchronous
Load
LAB-wide
Packed
Synchronous
Register Select
Clear
LAB Carry-In
addnsub
Carry-In1
Carry-In0
Programmable
Register
LUT chain
routing to next LE
data1
data2
data3
Look-Up
Table
(LUT)
Carry
Chain
Synchronous
Load and
Clear Logic
PRN/ALD
D
Q
ADATA
Row, column,
and DirectLink
routing
data4
ENA
CLRN
labclr1
labclr2
labpre/aload
Chip-Wide
Reset (DEV_CLRn)
Asynchronous
Clear/Preset/
Load Logic
Row, column,
and DirectLink
routing
Local Routing
Register
Feedback
Clock &
Clock Enable
Select
Register chain
output
labclk1
labclk2
labclkena1
labclkena2
Carry-Out0
Carry-Out1
LAB Carry-Out
Each LE’s programmable register can be configured for D, T, JK, or SR
operation. Each register has data, true asynchronous load data, clock,
clock enable, clear, and asynchronous load/preset inputs. Global signals,
general-purpose I/O pins, or any LE can drive the register’s clock and
clear control signals. Either general-purpose I/O pins or LEs can drive the
clock enable, preset, asynchronous load, and asynchronous data. The
2–8
MAX II Device Handbook, Volume 1
Core Version a.b.c variable
Altera Corporation
December 2006
MAX II Architecture
asynchronous load data input comes from the data3 input of the LE. For
combinational functions, the LUT output bypasses the register and drives
directly to the LE outputs.
Each LE has three outputs that drive the local, row, and column routing
resources. The LUT or register output can drive these three outputs
independently. Two LE outputs drive column or row and DirectLink
routing connections and one drives local interconnect resources. This
allows the LUT to drive one output while the register drives another
output. This register packing feature improves device utilization because
the device can use the register and the LUT for unrelated functions.
Another special packing mode allows the register output to feed back into
the LUT of the same LE so that the register is packed with its own fan-out
LUT. This provides another mechanism for improved fitting. The LE can
also drive out registered and unregistered versions of the LUT output.
LUT Chain & Register Chain
In addition to the three general routing outputs, the LEs within an LAB
have LUT chain and register chain outputs. LUT chain connections allow
LUTs within the same LAB to cascade together for wide input functions.
Register chain outputs allow registers within the same LAB to cascade
together. The register chain output allows an LAB to use LUTs for a single
combinational function and the registers to be used for an unrelated shift
register implementation. These resources speed up connections between
LABs while saving local interconnect resources. See “MultiTrack
Interconnect” on page 2–15 for more information on LUT chain and
register chain connections.
addnsub Signal
The LE’s dynamic adder/subtractor feature saves logic resources by
using one set of LEs to implement both an adder and a subtractor. This
feature is controlled by the LAB-wide control signal addnsub. The
addnsub signal sets the LAB to perform either A + B or A – B. The LUT
computes addition; subtraction is computed by adding the two’s
complement of the intended subtractor. The LAB-wide signal converts to
two’s complement by inverting the B bits within the LAB and setting
carry-in to 1, which adds one to the least significant bit (LSB). The LSB of
an adder/subtractor must be placed in the first LE of the LAB, where the
LAB-wide addnsub signal automatically sets the carry-in to 1. The
Quartus II Compiler automatically places and uses the adder/subtractor
feature when using adder/subtractor parameterized functions.
Altera Corporation
December 2006
Core Version a.b.c variable
2–9
MAX II Device Handbook, Volume 1
Logic Elements
LE Operating Modes
The MAX II LE can operate in one of the following modes:
■
■
Normal mode
Dynamic arithmetic mode
Each mode uses LE resources differently. In each mode, eight available
inputs to the LE, the four data inputs from the LAB local interconnect,
carry-in0 and carry-in1 from the previous LE, the LAB carry-in
from the previous carry-chain LAB, and the register chain connection are
directed to different destinations to implement the desired logic function.
LAB-wide signals provide clock, asynchronous clear, asynchronous
preset/load, synchronous clear, synchronous load, and clock enable
control for the register. These LAB-wide signals are available in all LE
modes. The addnsub control signal is allowed in arithmetic mode.
The Quartus II software, in conjunction with parameterized functions
such as library of parameterized modules (LPM) functions, automatically
chooses the appropriate mode for common functions such as counters,
adders, subtractors, and arithmetic functions.
Normal Mode
The normal mode is suitable for general logic applications and
combinational functions. In normal mode, four data inputs from the LAB
local interconnect are inputs to a four-input LUT (see Figure 2–7). The
Quartus II Compiler automatically selects the carry-in or the data3
signal as one of the inputs to the LUT. Each LE can use LUT chain
connections to drive its combinational output directly to the next LE in
the LAB. Asynchronous load data for the register comes from the data3
input of the LE. LEs in normal mode support packed registers.
2–10
MAX II Device Handbook, Volume 1
Core Version a.b.c variable
Altera Corporation
December 2006
MAX II Architecture
Figure 2–7. LE in Normal Mode
sload
sclear
(LAB Wide) (LAB Wide)
aload
(LAB Wide)
Register chain
connection
addnsub (LAB Wide)
(1)
data1
data2
data3
cin (from cout
of previous LE)
4-Input
LUT
ALD/PRE
ADATA Q
D
Row, column, and
DirectLink routing
ENA
CLRN
Row, column, and
DirectLink routing
clock (LAB Wide)
ena (LAB Wide)
data4
Local routing
aclr (LAB Wide)
LUT chain
connection
Register
chain output
Register Feedback
Note to Figure 2–7:
(1)
This signal is only allowed in normal mode if the LE is at the end of an adder/subtractor chain.
Dynamic Arithmetic Mode
The dynamic arithmetic mode is ideal for implementing adders, counters,
accumulators, wide parity functions, and comparators. An LE in dynamic
arithmetic mode uses four 2-input LUTs configurable as a dynamic
adder/subtractor. The first two 2-input LUTs compute two summations
based on a possible carry-in of 1 or 0; the other two LUTs generate carry
outputs for the two chains of the carry select circuitry. As shown in
Figure 2–8, the LAB carry-in signal selects either the carry-in0 or
carry-in1 chain. The selected chain’s logic level in turn determines
which parallel sum is generated as a combinational or registered output.
For example, when implementing an adder, the sum output is the
selection of two possible calculated sums:
data1 + data2 + carry in0
or
data1 + data2 + carry-in1
Altera Corporation
December 2006
Core Version a.b.c variable
2–11
MAX II Device Handbook, Volume 1
Logic Elements
The other two LUTs use the data1 and data2 signals to generate two
possible carry-out signals: one for a carry of 1 and the other for a carry of
0. The carry-in0 signal acts as the carry select for the carry-out0
output and carry-in1 acts as the carry select for the carry-out1
output. LEs in arithmetic mode can drive out registered and unregistered
versions of the LUT output.
The dynamic arithmetic mode also offers clock enable, counter enable,
synchronous up/down control, synchronous clear, synchronous load,
and dynamic adder/subtractor options. The LAB local interconnect data
inputs generate the counter enable and synchronous up/down control
signals. The synchronous clear and synchronous load options are
LAB-wide signals that affect all registers in the LAB. The Quartus II
software automatically places any registers that are not used by the
counter into other LABs. The addnsub LAB-wide signal controls
whether the LE acts as an adder or subtractor.
Figure 2–8. LE in Dynamic Arithmetic Mode
LAB Carry-In
sload
sclear
(LAB Wide) (LAB Wide)
Register chain
connection
Carry-In0
Carry-In1
addnsub
(LAB Wide)
(1)
data1
data2
data3
LUT
LUT
aload
(LAB Wide)
ALD/PRE
ADATA Q
D
Row, column, and
direct link routing
ENA
CLRN
Row, column, and
direct link routing
clock (LAB Wide)
ena (LAB Wide)
LUT
Local routing
aclr (LAB Wide)
LUT chain
connection
LUT
Register
chain output
Register Feedback
Carry-Out0 Carry-Out1
Note to Figure 2–8:
(1)
The addnsub signal is tied to the carry input for the first LE of a carry chain only.
2–12
MAX II Device Handbook, Volume 1
Core Version a.b.c variable
Altera Corporation
December 2006
MAX II Architecture
Carry-Select Chain
The carry-select chain provides a very fast carry-select function between
LEs in dynamic arithmetic mode. The carry-select chain uses the
redundant carry calculation to increase the speed of carry functions. The
LE is configured to calculate outputs for a possible carry-in of 0 and
carry-in of 1 in parallel. The carry-in0 and carry-in1 signals from a
lower-order bit feed forward into the higher-order bit via the parallel
carry chain and feed into both the LUT and the next portion of the carry
chain. Carry-select chains can begin in any LE within an LAB.
The speed advantage of the carry-select chain is in the parallel
pre-computation of carry chains. Since the LAB carry-in selects the
precomputed carry chain, not every LE is in the critical path. Only the
propagation delays between LAB carry-in generation (LE 5 and LE 10) are
now part of the critical path. This feature allows the MAX II architecture
to implement high-speed counters, adders, multipliers, parity functions,
and comparators of arbitrary width.
Figure 2–9 shows the carry-select circuitry in an LAB for a 10-bit full
adder. One portion of the LUT generates the sum of two bits using the
input signals and the appropriate carry-in bit; the sum is routed to the
output of the LE. The register can be bypassed for simple adders or used
for accumulator functions. Another portion of the LUT generates
carry-out bits. An LAB-wide carry-in bit selects which chain is used for
the addition of given inputs. The carry-in signal for each chain,
carry-in0 or carry-in1, selects the carry-out to carry forward to the
carry-in signal of the next-higher-order bit. The final carry-out signal is
routed to an LE, where it is fed to local, row, or column interconnects.
Altera Corporation
December 2006
Core Version a.b.c variable
2–13
MAX II Device Handbook, Volume 1
Logic Elements
Figure 2–9. Carry Select Chain
LAB Carry-In
0
1
A1
B1
LE0
A2
B2
LE1
LAB Carry-In
Sum1
Carry-In0
Carry-In1
A3
B3
LE2
A4
B4
LE3
A5
B5
LE4
0
Sum2
LUT
data1
data2
Sum3
Sum
LUT
Sum4
LUT
Sum5
LUT
1
A6
B6
LE5
A7
B7
LE6
A8
B8
LE7
A9
B9
LE8
A10
B10
LE9
Carry-Out0
Sum6
Carry-Out1
Sum7
Sum8
Sum9
Sum10
To top of adjacent LAB
LAB Carry-Out
The Quartus II software automatically creates carry chain logic during
design processing, or the designer can create it manually during design
entry. Parameterized functions such as LPM functions automatically take
advantage of carry chains for the appropriate functions. The Quartus II
software creates carry chains longer than 10 LEs by linking adjacent LABs
within the same row together automatically. A carry chain can extend
horizontally up to one full LAB row, but they do not extend between LAB
rows.
2–14
MAX II Device Handbook, Volume 1
Core Version a.b.c variable
Altera Corporation
December 2006
MAX II Architecture
Clear & Preset Logic Control
LAB-wide signals control the logic for the register’s clear and preset
signals. The LE directly supports an asynchronous clear and preset
function. The register preset is achieved through the asynchronous load
of a logic high. The direct asynchronous preset does not require a
NOT-gate push-back technique. MAX II devices support simultaneous
preset/asynchronous load and clear signals. An asynchronous clear
signal takes precedence if both signals are asserted simultaneously. Each
LAB supports up to two clears and one preset signal.
In addition to the clear and preset ports, MAX II devices provide a
chip-wide reset pin (DEV_CLRn) that resets all registers in the device. An
option set before compilation in the Quartus II software controls this pin.
This chip-wide reset overrides all other control signals and uses its own
dedicated routing resources (i.e., it does not use any of the four global
resources). Driving this signal low before or during power-up prevents
user mode from releasing clears within the design. This allows you to
control when clear is released on a device that has just been powered-up.
If not set for its chip-wide reset function, the DEV_CLRn pin is a regular
I/O pin.
By default, all registers in MAX II devices are set to power-up low.
However, this power-up state can be set to high on individual registers
during design entry using the Quartus II software.
MultiTrack
Interconnect
In the MAX II architecture, connections between LEs, the UFM, and
device I/O pins are provided by the MultiTrack interconnect structure.
The MultiTrack interconnect consists of continuous, performanceoptimized routing lines used for inter- and intra-design block
connectivity. The Quartus II Compiler automatically places critical
design paths on faster interconnects to improve design performance.
The MultiTrack interconnect consists of row and column interconnects
that span fixed distances. A routing structure with fixed length resources
for all devices allows predictable and short delays between logic levels
instead of large delays associated with global or long routing lines.
Dedicated row interconnects route signals to and from LABs within the
same row. These row resources include:
■
■
DirectLink interconnects between LABs
R4 interconnects traversing four LABs to the right or left
The DirectLink interconnect allows an LAB to drive into the local
interconnect of its left and right neighbors. The DirectLink interconnect
provides fast communication between adjacent LABs and/or blocks
without using row interconnect resources.
Altera Corporation
December 2006
Core Version a.b.c variable
2–15
MAX II Device Handbook, Volume 1
MultiTrack Interconnect
The R4 interconnects span four LABs and are used for fast row
connections in a four-LAB region. Every LAB has its own set of R4
interconnects to drive either left or right. Figure 2–10 shows R4
interconnect connections from an LAB. R4 interconnects can drive and be
driven by row IOEs. For LAB interfacing, a primary LAB or horizontal
LAB neighbor can drive a given R4 interconnect. For R4 interconnects
that drive to the right, the primary LAB and right neighbor can drive on
to the interconnect. For R4 interconnects that drive to the left, the primary
LAB and its left neighbor can drive on to the interconnect. R4
interconnects can drive other R4 interconnects to extend the range of
LABs they can drive. R4 interconnects can also drive C4 interconnects for
connections from one row to another.
Figure 2–10. R4 Interconnect Connections
Adjacent LAB can
Drive onto Another
LAB's R4 Interconnect
C4 Column Interconnects (1)
R4 Interconnect
Driving Right
R4 Interconnect
Driving Left
LAB
Neighbor
Primary
LAB (2)
LAB
Neighbor
Notes to Figure 2–10:
(1)
(2)
C4 interconnects can drive R4 interconnects.
This pattern is repeated for every LAB in the LAB row.
2–16
MAX II Device Handbook, Volume 1
Core Version a.b.c variable
Altera Corporation
December 2006
MAX II Architecture
The column interconnect operates similarly to the row interconnect. Each
column of LABs is served by a dedicated column interconnect, which
vertically routes signals to and from LABs and row and column IOEs.
These column resources include:
■
■
■
LUT chain interconnects within an LAB
Register chain interconnects within an LAB
C4 interconnects traversing a distance of four LABs in an up and
down direction
MAX II devices include an enhanced interconnect structure within LABs
for routing LE output to LE input connections faster using LUT chain
connections and register chain connections. The LUT chain connection
allows the combinational output of an LE to directly drive the fast input
of the LE right below it, bypassing the local interconnect. These resources
can be used as a high-speed connection for wide fan-in functions from
LE 1 to LE 10 in the same LAB. The register chain connection allows the
register output of one LE to connect directly to the register input of the
next LE in the LAB for fast shift registers. The Quartus II Compiler
automatically takes advantage of these resources to improve utilization
and performance. Figure 2–11 shows the LUT chain and register chain
interconnects.
Altera Corporation
December 2006
Core Version a.b.c variable
2–17
MAX II Device Handbook, Volume 1
MultiTrack Interconnect
Figure 2–11. LUT Chain & Register Chain Interconnects
Local Interconnect
Routing Among LEs
in the LAB
LUT Chain
Routing to
Adjacent LE
LE0
Register Chain
Routing to Adjacent
LE's Register Input
LE1
Local
Interconnect
LE2
LE3
LE4
LE5
LE6
LE7
LE8
LE9
The C4 interconnects span four LABs up or down from a source LAB.
Every LAB has its own set of C4 interconnects to drive either up or down.
Figure 2–12 shows the C4 interconnect connections from an LAB in a
column. The C4 interconnects can drive and be driven by column and row
IOEs. For LAB interconnection, a primary LAB or its vertical LAB
neighbor can drive a given C4 interconnect. C4 interconnects can drive
each other to extend their range as well as drive row interconnects for
column-to-column connections.
2–18
MAX II Device Handbook, Volume 1
Core Version a.b.c variable
Altera Corporation
December 2006
MAX II Architecture
Figure 2–12. C4 Interconnect Connections
Note (1)
C4 Interconnect
Drives Local and R4
Interconnects
Up to Four Rows
C4 Interconnect
Driving Up
LAB
Row
Interconnect
Adjacent LAB can
drive onto neighboring
LAB's C4 interconnect
Local
Interconnect
C4 Interconnect
Driving Down
Note to Figure 2–12:
(1)
Each C4 interconnect can drive either up or down four rows.
Altera Corporation
December 2006
Core Version a.b.c variable
2–19
MAX II Device Handbook, Volume 1
Global Signals
The UFM block communicates with the logic array similar to LAB-to-LAB
interfaces. The UFM block connects to row and column interconnects and
has local interconnect regions driven by row and column interconnects.
This block also has DirectLink interconnects for fast connections to and
from a neighboring LAB. For more information on the UFM interface to
the logic array, see “User Flash Memory Block” on page 2–23.
Table 2–2 shows the MAX II device's routing scheme.
Table 2–2. MAX II Device Routing Scheme
Source
Destination
LUT Register Local DirectLink
R4 (1)
Chain Chain
(1)
(1)
C4 (1)
LE
LUT Chain
v
Register
Chain
v
Local
Interconnect
v
DirectLink
Interconnect
v
R4
Interconnect
v
v
v
C4
Interconnect
v
v
v
v
LE
UFM Block
v
v
v
v
v
v
v
v
v
v
v
v
UFM Column Row Fast I/O
Block
IOE
IOE
(1)
v
v
v
v
v
v
v
Column IOE
Row IOE
Note to Table 2–2:
(1)
These categories are interconnects.
Global Signals
Each MAX II device has four dual-purpose dedicated clock pins
(GCLK[3..0], two pins on the left side and two pins on the right side)
that drive the global clock network for clocking, as shown in Figure 2–13.
These four pins can also be used as general-purpose I/O if they are not
used to drive the global clock network.
The four global clock lines in the global clock network drive throughout
the entire device. The global clock network can provide clocks for all
resources within the device including LEs, LAB local interconnect, IOEs,
and the UFM block. The global clock lines can also be used for global
2–20
MAX II Device Handbook, Volume 1
Core Version a.b.c variable
Altera Corporation
December 2006
MAX II Architecture
control signals, such as clock enables, synchronous or asynchronous
clears, presets, output enables, or protocol control signals such as TRDY
and IRDY for PCI. Internal logic can drive the global clock network for
internally- generated global clocks and control signals. Figure 2–13 shows
the various sources that drive the global clock network.
Figure 2–13. Global Clock Generation
GCLK0
GCLK1
GCLK2
GCLK3
Logic Array(1)
4
4
Global Clock
Network
Note to Figure 2–13:
(1)
Any I/O pin can use a MultiTrack interconnect to route as a logic array-generated
global clock signal.
The global clock network drives to individual LAB column signals, LAB
column clocks [3..0], that span an entire LAB column from the top to
bottom of the device. Unused global clocks or control signals in a LAB
column are turned off at the LAB column clock buffers shown in
Figure 2–14. The LAB column clocks [3..0] are multiplexed down to two
LAB clock signals and one LAB clear signal. Other control signal types
route from the global clock network into the LAB local interconnect. See
“LAB Control Signals” on page 2–6 for more information.
Altera Corporation
December 2006
Core Version a.b.c variable
2–21
MAX II Device Handbook, Volume 1
Global Signals
Figure 2–14. Global Clock Network
Note (1)
LAB Column
clock[3..0]
I/O Block Region
4
4
4
4
4
4
4
4
LAB Column
clock[3..0]
I/O Block Region
UFM Block (2)
I/O Block Region
CFM Block
Notes to Figure 2–14:
(1)
(2)
LAB column clocks in I/O block regions provide high fan-out output enable signals.
LAB column clocks drive to the UFM block.
2–22
MAX II Device Handbook, Volume 1
Core Version a.b.c variable
Altera Corporation
December 2006
MAX II Architecture
User Flash
Memory Block
MAX II devices feature a single UFM block, which can be used like a
serial EEPROM for storing non-volatile information up to 8,192 bits. The
UFM block connects to the logic array through the MultiTrack
interconnect, allowing any LE to interface to the UFM block. Figure 2–15
shows the UFM block and interface signals. The logic array is used to
create customer interface or protocol logic to interface the UFM block
data outside of the device. The UFM block offers the following features:
■
■
■
■
■
■
Non-volatile storage up to 16-bit wide and 8,192 total bits
Two sectors for partitioned sector erase
Built-in internal oscillator that optionally drives logic array
Program, erase, and busy signals
Auto-increment addressing
Serial interface to logic array with programmable interface
Figure 2–15. UFM Block & Interface Signals
UFM Block
PROGRAM
Program
Erase
Control
ERASE
_: 4
OSC
OSC_ENA
9
RTP_BUSY
BUSY
OSC
UFM Sector 1
ARCLK
UFM Sector 0
Address
Register
16
16
ARSHFT
ARDin
DRDin
Data Register
DRDout
DRCLK
DRSHFT
Altera Corporation
December 2006
Core Version a.b.c variable
2–23
MAX II Device Handbook, Volume 1
User Flash Memory Block
UFM Storage
Each device stores up to 8,192 bits of data in the UFM block. Table 2–3
shows the data size, sector, and address sizes for the UFM block.
Table 2–3. UFM Array Size
Device
EPM240
EPM570
EPM1270
EPM2210
Total Bits
Sectors
Address Bits
Data Width
8,192
2
(4,096 bits/sector)
9
16
There are 512 locations with 9-bit addressing ranging from 000h to 1FFh.
Sector 0 address space is 000h to 0FFh and Sector 1 address space is from
100h to 1FFh. The data width is up to 16 bits of data. The Quartus II
software automatically creates logic to accommodate smaller read or
program data widths. Erasure of the UFM involves individual sector
erasing (i.e., one erase of sector 0 and one erase of sector 1 is required to
erase the entire UFM block). Since sector erase is required before a
program or write, having two sectors enables a sector size of data to be
left untouched while the other sector is erased and programmed with
new data.
Internal Oscillator
As shown in Figure 2–15, the dedicated circuitry within the UFM block
contains an oscillator. The dedicated circuitry uses this internally for its
read and program operations. This oscillator's divide by 4 output can
drive out of the UFM block as a logic interface clock source or for
general-purpose logic clocking. The typical OSC output signal frequency
ranges from 3.3 to 5.5 MHz, and its exact frequency of operation is not
programmable.
Program, Erase & Busy Signals
The UFM block’s dedicated circuitry automatically generates the
necessary internal program and erase algorithm once the PROGRAM or
ERASE input signals have been asserted. The PROGRAM or ERASE signal
must be asserted until the busy signal deasserts, indicating the UFM
internal program or erase operation has completed. The UFM block also
supports JTAG as the interface for programming and/or reading.
f
For more information on programming and erasing the UFM block, see
the chapter on Using User Flash Memory in MAX II Devices.
2–24
MAX II Device Handbook, Volume 1
Core Version a.b.c variable
Altera Corporation
December 2006
MAX II Architecture
Auto-Increment Addressing
The UFM block supports standard read or stream read operations. The
stream read is supported with a auto-increment address feature.
De-asserting the ARSHIFT signal while clocking the ARCLK signal
increments the address register value to read consecutive locations from
the UFM array.
Serial Interface
The UFM block supports a serial interface with serial address and data
signals. The internal shift registers within the UFM block for address and
data are 9 bits and 16 bits wide, respectively. The Quartus II software
automatically generates interface logic in LEs for a parallel address and
data interface to the UFM block. Other standard protocol interfaces such
as SPI are also automatically generated in LE logic by the Quartus II
software.
f
For more information on the UFM interface signals and the Quartus II
LE-based alternate interfaces, see Using User Flash Memory in MAX II
Devices.
UFM Block to Logic Array Interface
The UFM block is a small partition of the flash memory which contains
the CFM block as shown in Figures 2–1 and 2–2. The UFM block for the
EPM240 device is located on the left side of the device adjacent to the left
most LAB column. The UFM block for the EPM570, EPM1270, and
EPM2210 devices is located on the bottom left portion of the device. The
UFM input and output signals interface to all types of interconnects (R4
interconnect, C4 interconnect, and DirectLink interconnect to/from
adjacent LAB rows). The UFM signals can also be driven from global
clocks, GCLK[3..0]. The interface region for the EPM240 device is
shown in Figure 2–16. The interface regions for EPM570, EPM1270, and
EPM2210 devices are shown in Figure 2–17.
Altera Corporation
December 2006
Core Version a.b.c variable
2–25
MAX II Device Handbook, Volume 1
User Flash Memory Block
Figure 2–16. EPM240 UFM Block LAB Row Interface
Note (1)
CFM Block
UFM Block
LAB
PROGRAM
ERASE
OSC_ENA
LAB
RTP_BUSY
DRDin
DRCLK
DRSHFT
ARin
ARCLK
ARSHFT
DRDout
OSC
BUSY
LAB
Note to Figure 2–16:
(1)
The UFM block inputs and outputs can drive to/from all types of interconnects, not only DirectLink interconnects
from adjacent row LABs.
2–26
MAX II Device Handbook, Volume 1
Core Version a.b.c variable
Altera Corporation
December 2006
MAX II Architecture
Figure 2–17. EPM570, EPM1270 & EPM2210 UFM Block LAB Row Interface
CFM Block
RTP_BUSY
BUSY
OSC
DRDout
DRDin
DRDCLK
DRDSHFT
ARDin
PROGRAM
ERASE
OSC_ENA
ARCLK
ARSHFT
LAB
LAB
UFM Block
LAB
MultiVolt Core
The MAX II architecture supports the MultiVoltTM core feature, which
allows MAX II devices to support multiple VCC levels on the VCCINT
supply. An internal linear voltage regulator provides the necessary 1.8-V
internal voltage supply to the device. The voltage regulator supports
3.3-V or 2.5-V supplies on its inputs to supply the 1.8-V internal voltage
to the device, as shown in Figure 2–18. The voltage regulator is not
guaranteed for voltages that are between the maximum recommended
2.5-V operating voltage and the minimum recommended 3.3-V operating
voltage.
For external 1.8-V supplies, MAX IIG devices are required. The voltage
regulator on these devices is bypassed to support the 1.8-V VCC external
supply path to the 1.8-V internal supply.
Altera Corporation
December 2006
Core Version a.b.c variable
2–27
MAX II Device Handbook, Volume 1
I/O Structure
Figure 2–18. MultiVolt Core Feature in MAX II Devices
3.3-V or 2.5-V on
VCCINT Pins
Voltage
Regulator
1.8-V on
VCCINT Pins
1.8-V Core
Voltage
1.8-V Core
Voltage
MAX II Device
I/O Structure
MAX II Device With "G"
Ordering Code
IOEs support many features, including:
■
■
■
■
■
■
■
■
■
■
■
■
■
■
LVTTL and LVCMOS I/O standards
3.3-V, 32-bit, 66-MHz PCI compliance
Joint Test Action Group (JTAG) boundary-scan test (BST) support
Programmable drive strength control
Weak pull-up resistors during power-up and in system
programming
Slew-rate control
Tri-state buffers with individual output enable control
Bus-hold circuitry
Programmable pull-up resistors in user mode
Unique output enable per pin
Open-drain outputs
Schmitt trigger inputs
Fast I/O connection
Programmable input delay
MAX II device IOEs contain a bidirectional I/O buffer. Figure 2–19 shows
the MAX II IOE structure. Registers from adjacent LABs can drive to or be
driven from the IOE’s bidirectional I/O buffers. The Quartus II software
automatically attempts to place registers in the adjacent LAB with fast
I/O connection to achieve the fastest possible clock-to-output and
registered output enable timing. For input registers, the Quartus II
software automatically routes the register to guarantee zero hold time.
You can set timing assignments in the Quartus II software to achieve
desired I/O timing.
2–28
MAX II Device Handbook, Volume 1
Core Version a.b.c variable
Altera Corporation
December 2006
MAX II Architecture
Fast I/O Connection
A dedicated fast I/O connection from the adjacent LAB to the IOEs
within an I/O block provides faster output delays for clock-to-output and
tPD propagation delays. This connection exists for data output signals, not
output enable signals or input signals. Figures 2–20, 2–21, and 2–22
illustrate the fast I/O connection.
Figure 2–19. MAX II IOE Structure
Data_in Fast_out
Data_out
OE
DEV_OE
Optional
PCI Clamp (1)
VCCIO
VCCIO
Programmable
Pull-Up
I/O Pin
Optional Bus-Hold
Circuit
Drive Strength Control
Open-Drain Output
Slew Control
Programmable
Input Delay
Optional Schmitt
Trigger Input
Note to Figure 2–19:
(1)
Available in EPM1270 and EPM2210 devices only.
Altera Corporation
December 2006
Core Version a.b.c variable
2–29
MAX II Device Handbook, Volume 1
I/O Structure
I/O Blocks
The IOEs are located in I/O blocks around the periphery of the MAX II
device. There are up to seven IOEs per row I/O block (5 maximum in the
EPM240 device) and up to four IOEs per column I/O block. Each column
or row I/O block interfaces with its adjacent LAB and MultiTrack
interconnect to distribute signals throughout the device. The row I/O
blocks drive row, column, or DirectLink interconnects. The column I/O
blocks drive column interconnects.
Figure 2–20 shows how a row I/O block connects to the logic array.
2–30
MAX II Device Handbook, Volume 1
Core Version a.b.c variable
Altera Corporation
December 2006
MAX II Architecture
Figure 2–20. Row I/O Block Connection to the Interconnect
R4 Interconnects
Note (1)
C4 Interconnects
I/O Block Local
Interconnect
data_out
[6..0]
7
7
OE
[6..0]
LAB
fast_out
[6..0]
7
7
data_in[6..0]
Direct Link
Interconnect
to Adjacent LAB
LAB Local
Interconnect
Row
I/O Block
Direct Link
Interconnect
from Adjacent LAB
LAB Column
clock [3..0]
Row I/O Block
Contains up to
Seven IOEs
Note to Figure 2–20:
(1)
Each of the seven IOEs in the row I/O block can have one data_out or fast_out output, one OE output, and one
data_in input.
Altera Corporation
December 2006
Core Version a.b.c variable
2–31
MAX II Device Handbook, Volume 1
I/O Structure
Figure 2–21 shows how a column I/O block connects to the logic array.
Figure 2–21. Column I/O Block Connection to the Interconnect
Note (1)
Column I/O
Block Contains
Up To 4 IOEs
Column I/O Block
data_out
[3..0]
OE
[3..0]
4
data_in
[3..0]
fast_out
[3..0]
4
4
4
I/O Block
Local Interconnect
Fast I/O
Interconnect LAB Column
Path Clock [3..0]
R4 Interconnects
LAB
LAB Local
Interconnect
LAB
LAB Local
Interconnect
C4 Interconnects
LAB
LAB Local
Interconnect
C4 Interconnects
Note to Figure 2–21:
(1)
Each of the four IOEs in the column I/O block can have one data_out or fast_out output, one OE output, and
one data_in input.
2–32
MAX II Device Handbook, Volume 1
Core Version a.b.c variable
Altera Corporation
December 2006
MAX II Architecture
I/O Standards & Banks
MAX II device IOEs support the following I/O standards:
■
■
■
■
■
3.3-V LVTTL/LVCMOS
2.5-V LVTTL/LVCMOS
1.8-V LVTTL/LVCMOS
1.5-V LVCMOS
3.3-V PCI
Table 2–4 describes the I/O standards supported by MAX II devices.
Table 2–4. MAX II I/O Standards
Type
Output Supply Voltage
(VCCIO) (V)
3.3-V LVTTL/LVCMOS
Single-ended
3.3
2.5-V LVTTL/LVCMOS
Single-ended
2.5
1.8-V LVTTL/LVCMOS
Single-ended
1.8
I/O Standard
1.5-V LVCMOS
Single-ended
1.5
3.3-V PCI (1)
Single-ended
3.3
Note to Table 2–4:
(1)
3.3-V PCI is supported in Bank 3 of the EPM1270 and EPM2210 devices.
The EPM240 and EPM570 devices support two I/O banks, as shown in
Figure 2–22. Each of these banks support all the LVTTL and LVCMOS
standards shown in Table 2–4. PCI I/O is not supported in these devices
and banks.
Altera Corporation
December 2006
Core Version a.b.c variable
2–33
MAX II Device Handbook, Volume 1
I/O Structure
Figure 2–22. MAX II I/O Banks for EPM240 & EPM570
Notes (1), (2)
I/O Bank 1
I/O Bank 2
All I/O Banks Support
■ 3.3-V LVTTL/LVCMOS
■ 2.5-V LVTTL/LVCMOS
■ 1.8-V LVTTL/LVCMOS
■ 1.5-V LVCMOS
Notes to Figure 2–22:
(1)
(2)
Figure 2–22 is a top view of the silicon die.
Figure 2–22 is a graphic representation only. Refer to the pin list and the Quartus II software for exact pin locations.
The EPM1270 and EPM2210 devices support four I/O banks, as shown in
Figure 2–23. Each of these banks support all of the LVTTL and LVCMOS
standards shown in Table 2–4. PCI I/O is supported in Bank 3. Bank 3
supports the PCI clamping diode on inputs and PCI drive compliance on
outputs. You must use Bank 3 for designs requiring PCI compliant I/O
pins. The Quartus II software automatically places I/O pins in this bank
if assigned with the PCI I/O standard.
2–34
MAX II Device Handbook, Volume 1
Core Version a.b.c variable
Altera Corporation
December 2006
MAX II Architecture
Figure 2–23. MAX II I/O Banks for EPM1270 & EPM2210
Notes (1), (2)
I/O Bank 2
All I/O Banks Support
■ 3.3-V LVTTL/LVCMOS
■ 2.5-V LVTTL/LVCMOS
■ 1.8-V LVTTL/LVCMOS
■ 1.5-V LVCMOS
I/O Bank 1
Also Supports
the 3.3-V PCI
I/O Standard
I/O Bank 3
I/O Bank 4
Notes to Figure 2–23:
(1)
(2)
Figure 2–23 is a top view of the silicon die.
Figure 2–23 is a graphic representation only. Refer to the pin list and the Quartus II software for exact pin locations.
Each I/O bank has dedicated VCCIO pins which determine the voltage
standard support in that bank. A single device can support 1.5-V, 1.8-V,
2.5-V, and 3.3-V interfaces; each individual bank can support a different
standard. Each I/O bank can support multiple standards with the same
VCCIO for input and output pins. For example, when VCCIO is 3.3 V, Bank 3
can support LVTTL, LVCMOS, and 3.3-V PCI. VCCIO powers both the
input and output buffers in MAX II devices.
The JTAG pins for MAX II devices are dedicated pins that cannot be used
as regular I/O pins. The pins TMS, TDI, TDO, and TCK support all the I/O
standards shown in Table 2–4 on page 2–33 except for PCI. These pins
reside in Bank 1 for all MAX II devices and their I/O standard support is
controlled by the VCCIO setting for Bank 1.
Altera Corporation
December 2006
Core Version a.b.c variable
2–35
MAX II Device Handbook, Volume 1
I/O Structure
PCI Compliance
MAX II EPM1270 and EPM2210 devices are compliant with PCI
applications as well as all 3.3-V electrical specifications in the PCI Local
Bus Specification Revision 2.2. These devices are also large enough to
support PCI intellectual property (IP) cores. Table 2–5 shows the MAX II
device speed grades that meet the PCI timing specifications.
Table 2–5. MAX II Devices & Speed Grades that Support 3.3-V PCI Electrical Specifications
& Meet PCI Timing
Device
33-MHz PCI
66-MHz PCI
EPM1270
All Speed Grades
-3 Speed Grade
EPM2210
All Speed Grades
-3 Speed Grade
Schmitt Trigger
The input buffer for each MAX II device I/O pin has an optional Schmitt
trigger setting for the 3.3-V and 2.5-V standards. The Schmitt trigger
allows input buffers to respond to slow input edge rates with a fast
output edge rate. Most importantly, Schmitt triggers provide hysteresis
on the input buffer, preventing slow rising noisy input signals from
ringing or oscillating on the input signal driven into the logic array. This
provides system noise tolerance on MAX II inputs, but adds a small,
nominal input delay.
The JTAG input pins (TMS, TCK, and TDI) have Schmitt trigger buffers
which are always enabled.
Output Enable Signals
Each MAX II IOE output buffer supports output enable signals for
tri-state control. The output enable signal can originate from the
GCLK[3..0] global signals or from the MultiTrack interconnect. The
MultiTrack interconnect routes output enable signals and allows for a
unique output enable for each output or bidirectional pin.
2–36
MAX II Device Handbook, Volume 1
Core Version a.b.c variable
Altera Corporation
December 2006
MAX II Architecture
MAX II devices also provide a chip-wide output enable pin (DEV_OE) to
control the output enable for every output pin in the design. An option
set before compilation in the Quartus II software controls this pin. This
chip-wide output enable uses its own routing resources and does not use
any of the four global resources. If this option is turned on, all outputs on
the chip operate normally when DEV_OE is asserted. When the pin is
de-asserted, all outputs are tri-stated. If this option is turned off, the
DEV_OE pin is disabled when the device operates in user mode and is
available as a user I/O pin.
Programmable Drive Strength
The output buffer for each MAX II device I/O pin has two levels of
programmable drive strength control for each of the LVTTL and
LVCMOS I/O standards. Programmable drive strength provides system
noise reduction control for high performance I/O designs. Although a
separate slew-rate control feature exists, using the lower drive strength
setting provides signal slew rate control to reduce system noise and
signal overshoot without the large delay adder associated with the slewrate control feature. Table 2–6 shows the possible settings for the I/O
standards with drive strength control. The PCI I/O standard is always set
at 20 mA with no alternate setting.
Table 2–6. Programmable Drive Strength
I/O Standard
Note (1)
IOH/IOL Current Strength Setting (mA)
3.3-V LVTTL
16
3.3-V LVCMOS
8
2.5-V LVTTL/LVCMOS
14
1.8-V LVTTL/LVCMOS
6
1.5-V LVCMOS
4
8
4
7
3
2
Note to Table 2–6:
(1)
Altera Corporation
December 2006
The IOH current strength numbers shown are for a condition of a VOUT = VOH
minimum, where the VOH minimum is specified by the I/O standard. The IOL
current strength numbers shown are for a condition of a VOUT = VOL maximum,
where the VOL maximum is specified by the I/O standard. For 2.5-V
LVTTL/LVCMOS, the IOH condition is VOUT = 1.7 V and the IOL condition is
VOUT = 0.7 V.
Core Version a.b.c variable
2–37
MAX II Device Handbook, Volume 1
I/O Structure
Slew-Rate Control
The output buffer for each MAX II device I/O pin has a programmable
output slew-rate control that can be configured for low noise or
high-speed performance. A faster slew rate provides high-speed
transitions for high-performance systems. However, these fast transitions
may introduce noise transients into the system. A slow slew rate reduces
system noise, but adds a nominal output delay to rising and falling edges.
The lower the voltage standard (e.g., 1.8-V LVTTL) the larger the output
delay when slow slew is enabled. Each I/O pin has an individual
slew-rate control, allowing the designer to specify the slew rate on a
pin-by-pin basis. The slew-rate control affects both the rising and falling
edges.
Open-Drain Output
MAX II devices provide an optional open-drain (equivalent to
open-collector) output for each I/O pin. This open-drain output enables
the device to provide system-level control signals (e.g., interrupt and
write enable signals) that can be asserted by any of several devices. This
output can also provide an additional wired-OR plane.
Programmable Ground Pins
Each unused I/O pin on MAX II devices can be used as an additional
ground pin. This programmable ground feature does not require the use
of the associated LEs in the device. In the Quartus II software, unused
pins can be set as programmable GND on a global default basis or they
can be individually assigned. Unused pins also have the option of being
set as tri-stated input pins.
Bus Hold
Each MAX II device I/O pin provides an optional bus-hold feature. The
bus-hold circuitry can hold the signal on an I/O pin at its last-driven
state. Since the bus-hold feature holds the last-driven state of the pin until
the next input signal is present, an external pull-up or pull-down resistor
is not necessary to hold a signal level when the bus is tri-stated.
The bus-hold circuitry also pulls undriven pins away from the input
threshold voltage where noise can cause unintended high-frequency
switching. The designer can select this feature individually for each I/O
pin. The bus-hold output will drive no higher than VCCIO to prevent
overdriving signals. If the bus-hold feature is enabled, the device cannot
use the programmable pull-up option.
2–38
MAX II Device Handbook, Volume 1
Core Version a.b.c variable
Altera Corporation
December 2006
MAX II Architecture
The bus-hold circuitry uses a resistor to pull the signal level to the last
driven state. The chapter on DC & Switching Characteristics gives the
specific sustaining current for each VCCIO voltage level driven through
this resistor and overdrive current used to identify the next-driven input
level.
The bus-hold circuitry is only active after the device has fully initialized.
The bus-hold circuit captures the value on the pin present at the moment
user mode is entered.
Programmable Pull-Up Resistor
Each MAX II device I/O pin provides an optional programmable pull-up
resistor during user mode. If the designer enables this feature for an I/O
pin, the pull-up resistor holds the output to the VCCIO level of the output
pin’s bank.
1
The programmable pull-up resistor feature should not be used
at the same time as the bus-hold feature on a given I/O pin.
Programmable Input Delay
The MAX II IOE includes a programmable input delay that is activated to
ensure zero hold times. A path where a pin directly drives a register, with
minimal routing between the two, may require the delay to ensure zero
hold time. However, a path where a pin drives a register through long
routing or through combinational logic may not require the delay to
achieve a zero hold time. The Quartus II software uses this delay to
ensure zero hold times when needed.
MultiVolt I/O Interface
The MAX II architecture supports the MultiVolt I/O interface feature,
which allows MAX II devices in all packages to interface with systems of
different supply voltages. The devices have one set of VCC pins for
internal operation (VCCINT), and four sets for input buffers and I/O
output driver buffers (VCCIO).
Altera Corporation
December 2006
Core Version a.b.c variable
2–39
MAX II Device Handbook, Volume 1
I/O Structure
Connect VCCIO pins to either a 1.5-V, 1.8 V, 2.5-V, or 3.3-V power supply,
depending on the output requirements. The output levels are compatible
with systems of the same voltage as the power supply (i.e., when VCCIO
pins are connected to a 1.5-V power supply, the output levels are
compatible with 1.5-V systems). When VCCIO pins are connected to a
3.3-V power supply, the output high is 3.3 V and is compatible with 3.3V or 5.0-V systems. Table 2–7 summarizes MAX II MultiVolt I/O support.
Table 2–7. MAX II MultiVolt I/O Support
VCCIO (V)
Note (1)
Input Signal
Output Signal
1.5 V
1.8 V
2.5 V
3.3 V
v
v
v
v
v
v
v
v
v (2)
v
2.5
v
v
v (3)
v (3)
v
3.3
v (4)
v
v (6)
v (6)
v (6)
1.5
1.8
5.0 V
v (5)
1.5 V
1.8 V
2.5 V
3.3 V
5.0 V
v
v (7)
Notes to Table 2–7:
(1)
(2)
(3)
(4)
(5)
(6)
(7)
To drive inputs higher than VCCIO but less than 4.0 V including the overshoot, disable the PCI clamping diode.
However, to drive 5.0-V inputs to the device, enable the PCI clamping diode to prevent VI from rising above 4.0 V.
When VCCIO = 1.8-V, a MAX II device can drive a 1.5-V device with 1.8-V tolerant inputs.
When VCCIO = 2.5-V, a MAX II device can drive a 1.5-V or 1.8-V device with 2.5-V tolerant inputs.
When VCCIO = 3.3-V and a 2.5-V input signal feeds an input pin, the VCCIO supply current will be slightly larger
than expected.
MAX II devices can be 5.0-V tolerant with the use of an external resistor and the internal PCI clamp diode on the
EPM1270 and EPM2210 devices.
When VCCIO = 3.3-V, a MAX II device can drive a 1.5-V, 1.8-V, or 2.5-V device with 3.3-V tolerant inputs.
When VCCIO = 3.3-V, a MAX II device can drive a device with 5.0-V TTL inputs but not 5.0-V CMOS inputs. In the
case of 5.0-V CMOS, open-drain setting with internal PCI clamp diode (available only on EPM1270 and EPM2210
devices) and external resistor is required.
2–40
MAX II Device Handbook, Volume 1
Core Version a.b.c variable
Altera Corporation
December 2006
MAX II Architecture
Document
Revision History
Table 2–8 shows the revision history for this document.
Table 2–8. Document Revision History
Date &
Document
Version
Changes Made
Summary of Changes
December 2006 Minor update in “Internal Oscillator” section.
v1.7
August 2006
v1.6
Updated functional description and I/O structure sections.
July 2006 v1.5
Minor content and table updates.
February 2006
v1.4
●
●
●
●
August 2005
v1.3
Updated “LAB Control Signals” section.
Updated “Clear & Preset Logic Control” section.
Updated “Internal Oscillator” section.
Updated Table 2–5.
Removed Note 2 from Table 2-7.
December 2004 Added a paragraph to page 2-15.
v1.2
June 2004 v1.1
Added CFM acronym. Corrected Figure 2-19.
Altera Corporation
December 2006
Core Version a.b.c variable
2–41
MAX II Device Handbook, Volume 1
Chapter 3. JTAG & In-System
Programmability
MII51003-1.4
IEEE Std. 1149.1
(JTAG) Boundary
Scan Support
All MAX® II devices provide Joint Test Action Group (JTAG) boundaryscan test (BST) circuitry that complies with the IEEE Std. 1149.1-2001
specification. JTAG boundary-scan testing can only be performed at any
time after VCCINT and all VCCIO banks have been fully powered and a
tCONFIG amount of time has passed. MAX II devices can also use the JTAG
port for in-system programming together with either the Quartus® II
software or hardware using Programming Object Files (.pof), JamTM
Standard Test and Programming Language (STAPL) Files (.jam) or Jam
Byte-Code Files (.jbc).
The JTAG pins support 1.5-V, 1.8-V, 2.5-V, or 3.3-V I/O standards. The
supported voltage level and standard is determined by the VCCIO of the
bank where it resides. The dedicated JTAG pins reside in Bank 1 of all
MAX II devices.
MAX II devices support the JTAG instructions shown in Table 3–1.
Table 3–1. MAX II JTAG Instructions (Part 1 of 2)
JTAG Instruction
Instruction Code
Description
SAMPLE/PRELOAD
00 0000 0101
Allows a snapshot of signals at the device pins to be captured
and examined during normal device operation, and permits an
initial data pattern to be output at the device pins.
EXTEST (1)
00 0000 1111
Allows the external circuitry and board-level interconnects to
be tested by forcing a test pattern at the output pins and
capturing test results at the input pins.
BYPASS
11 1111 1111
Places the 1-bit bypass register between the TDI and TDO
pins, which allows the boundary scan test data to pass
synchronously through selected devices to adjacent devices
during normal device operation.
USERCODE
00 0000 0111
Selects the 32-bit USERCODE register and places it between
the TDI and TDO pins, allowing the USERCODE to be serially
shifted out of TDO. This register defaults to all 1’s if not
specified in the Quartus II software.
IDCODE
00 0000 0110
Selects the IDCODE register and places it between TDI and
TDO, allowing the IDCODE to be serially shifted out of TDO.
Altera Corporation
December 2006
Core Version a.b.c variable
3–1
Preliminary
IEEE Std. 1149.1 (JTAG) Boundary Scan Support
Table 3–1. MAX II JTAG Instructions (Part 2 of 2)
JTAG Instruction
Instruction Code
Description
HIGHZ (1)
00 0000 1011
Places the 1-bit bypass register between the TDI and TDO
pins, which allows the boundary scan test data to pass
synchronously through selected devices to adjacent devices
during normal device operation, while tri-stating all of the I/O
pins.
CLAMP (1)
00 0000 1010
Places the 1-bit bypass register between the TDI and TDO
pins, which allows the boundary scan test data to pass
synchronously through selected devices to adjacent devices
during normal device operation, while holding I/O pins to a
state defined by the data in the boundary-scan register.
USER0
00 0000 1100
This instruction allows the user to define their own scan chain
between TDI and TDO in the MAX II logic array. This
instruction is also used for custom logic and JTAG interfaces.
USER1
00 0000 1110
This instruction allows the user to define their own scan chain
between TDI and TDO in the MAX II logic array. This
instruction is also used for custom logic and JTAG interfaces.
(2)
IEEE 1532 ISC instructions used when programming a MAX II
device via the JTAG port.
IEEE 1532 instructions
Notes to Table 3–1:
(1)
(2)
HIGHZ, CLAMP, and EXTEST instructions do not disable weak pull-up resistors or bus hold features.
These instructions are shown in the 1532 BSDL files, which will be posted on the Altera® web site at
www.altera.com when they are available.
3–2
MAX II Device Handbook, Volume 1
Core Version a.b.c variable
Altera Corporation
December 2006
JTAG & In-System Programmability
The MAX II device instruction register length is 10 bits and the USERCODE
register length is 32 bits. Tables 3–2 and 3–3 show the boundary-scan
register length and device IDCODE information for MAX II devices.
Table 3–2. MAX II Boundary-Scan Register Length
Device
Boundary-Scan Register Length
EPM240
240
EPM570
480
EPM1270
636
EPM2210
816
Table 3–3. 32-Bit MAX II Device IDCODE
Binary IDCODE (32 Bits) (1)
Device
Version
(4 Bits)
Manufacturer
Identity (11 Bits)
LSB
(1 Bit) (2)
HEX IDCODE
Part Number
EPM240
0000
0010 0000 1010 0001
000 0110 1110
1
0x020A10DD
EPM570
0000
0010 0000 1010 0010
000 0110 1110
1
0x020A20DD
EPM1270
0000
0010 0000 1010 0011
000 0110 1110
1
0x020A30DD
EPM2210
0000
0010 0000 1010 0100
000 0110 1110
1
0x020A40DD
Notes to Table 3–2:
(1)
(2)
The most significant bit (MSB) is on the left.
The IDCODE's least significant bit (LSB) is always 1.
f
For JTAG AC characteristics, refer to the chapter on DC & Switching
Characteristics. For more information on JTAG BST, see the chapter on
IEEE 1149.1 (JTAG) Boundary-Scan Testing for MAX II Devices.
JTAG Block
The MAX II JTAG block feature allows you to access the JTAG TAP and
state signals when either the USER0 or USER1 instruction is issued to the
JTAG TAP. The USER0 and USER1 instructions bring the JTAG boundary
scan chain (TDI) through the user logic instead of the MAX II device’s
boundary scan cells. Each USER instruction allows for one unique userdefined JTAG chain into the logic array.
Altera Corporation
December 2006
Core Version a.b.c variable
3–3
MAX II Device Handbook, Volume 1
In System Programmability
Parallel Flash Loader
The JTAG block ability to interface JTAG to non-JTAG devices is ideal for
general-purpose flash memory devices (such as Intel or Fujitsu based
devices) that require programming during in-circuit test. The flash
memory devices can be used for FPGA configuration or be part of system
memory. In many cases, the MAX II device is already connected to these
devices as the configuration control logic between the FPGA and the flash
device. Unlike ISP-capable CPLD devices, bulk flash devices do not have
JTAG TAP pins or connections. For small flash devices, it is common to
use the serial JTAG scan chain of a connected device to program the nonJTAG flash device. This is slow and inefficient in most cases and
impractical for large parallel flash devices. Using the MAX II device’s
JTAG block as a parallel flash loader, with the Quartus II software, to
program and verify flash contents provides a fast and cost-effective
means of in-circuit programming during test. Figure 3–1 shows MAX II
being used as a parallel flash loader.
Figure 3–1. MAX II Parallel Flash Loader
MAX II Device
Flash
Memory Device
Altera FPGA
DQ[7..0]
A[20..0]
OE
WE
CE
RY/BY
DQ[7..0]
A[20..0]
OE
WE
CE
RY/BY
TDI
TMS
TCK
TDO
TDO_U
TDI_U
TMS_U
TCK_U
SHIFT_U
CLKDR_U
UPDATE_U
RUNIDLE_U
USER1_U
Parallel
Flash Loader
Configuration
Logic
CONF_DONE
nSTATUS
nCE
DATA0
nCONFIG
DCLK
(1), (2)
Notes to Figure 3–1:
(1)
(2)
This block is implemented in LEs.
This function is supported in the Quartus II software.
In System
Programmability
MAX II devices can be programmed in-system via the industry standard
4-pin IEEE Std. 1149.1 (JTAG) interface. In system programmability (ISP)
offers quick, efficient iterations during design development and
3–4
MAX II Device Handbook, Volume 1
Core Version a.b.c variable
Altera Corporation
December 2006
JTAG & In-System Programmability
debugging cycles. The logic, circuitry, and interconnects in the MAX II
architecture are configured with flash-based SRAM configuration
elements. These SRAM elements require configuration data to be loaded
each time the device is powered. The process of loading the SRAM data
is called configuration. The on-chip configuration flash memory (CFM)
block stores the SRAM element’s configuration data. The CFM block
stores the design’s configuration pattern in a reprogrammable flash array.
During ISP, the MAX II JTAG and ISP circuitry programs the design
pattern into the CFM block’s non-volatile flash array.
The MAX II JTAG and ISP controller internally generate the high
programming voltages required to program the CFM cells, allowing insystem programming with any of the recommended operating external
voltage supplies (i.e., 3.3 V/2.5 V or 1.8 V for the MAX IIG devices). ISP
can be performed anytime after VCCINT and all VCCIO banks have been
fully powered and the device has completed the configuration power-up
time. By default, during in-system programming, the I/O pins are tristated and weakly pulled-up to VCCIO to eliminate board conflicts. The insystem programming clamp and real-time ISP feature allows user control
of I/O state or behavior during ISP.
f
For more information, refer to “In-System Programming Clamp” on
page 3–7 and “Real-Time ISP” on page 3–8.
These devices also offer an ISP_DONE bit that provides safe operation
when in-system programming is interrupted. This ISP_DONE bit, which
is the last bit programmed, prevents all I/O pins from driving until the
bit is programmed.
IEEE 1532 Support
The JTAG circuitry and ISP instruction set in MAX II devices is compliant
to the IEEE 1532-2002 programming specification. This provides
industry-standard hardware and software for in-system programming
among multiple vendor programmable logic devices (PLDs) in a JTAG
chain.
The MAX II 1532 BSDL files will be released on the Altera web site when
available.
Jam Standard Test & Programming Language (STAPL)
The Jam STAPL JEDEC standard, JESD71, can be used to program MAX II
devices with in-circuit testers, PCs, or embedded processors. The Jam
byte code is also supported for MAX II devices. These software
programming protocols provide a compact embedded solution for
programming MAX II devices.
Altera Corporation
December 2006
Core Version a.b.c variable
3–5
MAX II Device Handbook, Volume 1
In System Programmability
f
For more information, see the chapter on Using Jam STAPL for ISP via an
Embedded Processor.
Programming Sequence
During in-system programming, 1532 instructions, addresses, and data
are shifted into the MAX II device through the TDI input pin. Data is
shifted out through the TDO output pin and compared against the
expected data. Programming a pattern into the device requires the
following six ISP steps. A stand-alone verification of a programmed
pattern involves only stages 1, 2, 5, and 6. These steps are automatically
executed by third-party programmers, the Quartus® II software, or the
Jam STAPL and Jam Byte-Code Players.
1.
Enter ISP – The enter ISP stage ensures that the I/O pins transition
smoothly from user mode to ISP mode.
2.
Check ID – Before any program or verify process, the silicon ID is
checked. The time required to read this silicon ID is relatively small
compared to the overall programming time.
3.
Sector Erase – Erasing the device in-system involves shifting in the
instruction to erase the device and applying an erase pulse(s). The
erase pulse is automatically generated internally by waiting in the
run/test/idle state for the specified erase pulse time of 500 ms for
the CFM block and 500 ms for each sector of the UFM block.
4.
Program – Programming the device in-system involves shifting in
the address, data, and program instruction and generating the
program pulse to program the flash cells. The program pulse is
automatically generated internally by waiting in the run/test/idle
state for the specified program pulse time of 75 µs. This process is
repeated for each address in the CFM and UFM block.
5.
Verify – Verifying a MAX II device in-system involves shifting in
addresses, applying the verify instruction to generate the read
pulse, and shifting out the data for comparison. This process is
repeated for each CFM and UFM address.
6.
Exit ISP – An exit ISP stage ensures that the I/O pins transition
smoothly from ISP mode to user mode.
3–6
MAX II Device Handbook, Volume 1
Core Version a.b.c variable
Altera Corporation
December 2006
JTAG & In-System Programmability
Table 3–4 shows the programming times for MAX II devices using incircuit testers to execute the algorithm vectors in hardware. Softwarebased programming tools used with download cables are slightly slower
because of data processing and transfer limitations.
Table 3–4. MAX II Device Family Programming Times
EPM240
EPM240G
EPM570
EPM570G
EPM1270
EPM1270G
EPM2210
EPM2210G
Units
Erase + Program (1 MHz)
1.72
2.16
2.90
3.92
sec
Erase + Program (10 MHz)
1.65
1.99
2.58
3.40
sec
Description
Verify (1 MHz)
0.09
0.17
0.30
0.49
sec
Verify (10 MHz)
0.01
0.02
0.03
0.05
sec
Complete Program Cycle (1 MHz)
1.81
2.33
3.20
4.41
sec
Complete Program Cycle (10 MHz)
1.66
2.01
2.61
3.45
sec
UFM Programming
The Quartus II software, with the use of POF, Jam, or JBC files, supports
programming of the user flash memory (UFM) block independent from
the logic array design pattern stored in the CFM block. This allows
updating or reading UFM contents through ISP without altering the
current logic array design, or vice versa. By default, these programming
files and methods will program both the entire flash memory contents,
which includes the CFM block and UFM contents. The stand-alone
embedded Jam STAPL player and Jam Byte-Code Player provides action
commands for programming or reading the entire flash memory (UFM
and CFM together) or each independently.
f
For more information, see the chapter on Using Jam STAPL for ISP via an
Embedded Processor.
In-System Programming Clamp
By default, the IEEE 1532 instruction used for entering ISP automatically
tri-states all I/O pins with weak pull-up resistors for the duration of the
ISP sequence. However, some systems may require certain pins on
MAX II devices to maintain a specific DC logic level during an in-field
update. For these systems, an optional in-system programming clamp
instruction exists in MAX II circuitry to control I/O behavior during the
ISP sequence. The in-system programming clamp instruction enables the
device to sample and sustain the value on an output pin (an input pin
Altera Corporation
December 2006
Core Version a.b.c variable
3–7
MAX II Device Handbook, Volume 1
In System Programmability
would remain tri-stated if sampled) or to explicitly set a logic high, logic
low, or tri-state value on any pin. Setting these options is controlled on an
individual pin basis using the Quartus II software.
f
For more information, see the chapter on Real-Time ISP & ISP Clamp for
MAX II Devices.
Real-Time ISP
For systems that require more than DC logic level control of I/O pins, the
real-time ISP feature allows you to update the CFM block with a new
design image while the current design continues to operate in the SRAM
logic array and I/O pins. A new programming file is updated into the
MAX II device without halting the original design’s operation, saving
down-time costs for remote or field upgrades. The updated CFM block
configures the new design into the SRAM upon the next power cycle. It is
also possible to execute an immediate configuration of the SRAM without
a power cycle by using a specific sequence of ISP commands. The
configuration of SRAM without a power cycle takes a specific amount of
time (tCONFIG). During this time, the I/O pins are tri-stated and weakly
pulled-up to VCCIO.
Design Security
All MAX II devices contain a programmable security bit that controls
access to the data programmed into the CFM block. When this bit is
programmed, design programming information, stored in the CFM
block, cannot be copied or retrieved. This feature provides a high level of
design security because programmed data within flash memory cells is
invisible. The security bit that controls this function, as well as all other
programmed data, is reset only when the device is erased. The SRAM is
also invisible and cannot be accessed regardless of the security bit setting.
The UFM block data is not protected by the security bit and is accessible
through JTAG or logic array connections.
Programming with External Hardware
MAX II devices can be programmed by downloading the information via
in-circuit testers, embedded processors, the Altera® ByteblasterMV™,
MasterBlaster™, ByteBlaster™ II, and USB-Blaster cables.
BP Microsystems, System General, and other programming hardware
manufacturers provide programming support for Altera devices. Check
their web sites for device support information.
3–8
MAX II Device Handbook, Volume 1
Core Version a.b.c variable
Altera Corporation
December 2006
JTAG & In-System Programmability
Document
Revision History
Table 3–5 shows the revision history for this document.
Table 3–5. Document Revision History
Date &
Document
Version
Changes Made
Summary of Changes
December 2006 Added document revision history.
v1.4
June 2005 v1.3
Added text and Table 3-4.
June 2005 v1.3
Updated text on pages 3-5 to 3-8.
June 2004 v1.1
Corrected Figure 3-1. Added CFM acronym.
Altera Corporation
December 2006
Core Version a.b.c variable
3–9
MAX II Device Handbook, Volume 1
Chapter 4. Hot Socketing &
Power-On Reset in MAX II
Devices
MII51004-1.5
Hot Socketing
MAX® II devices offer hot socketing, also known as hot plug-in or hot
swap, and power sequencing support. Designers can insert or remove a
MAX II board in a system during operation without undesirable effects to
the system bus. The hot socketing feature removes some of the difficulty
designers face when using components on printed circuit boards (PCBs)
that contain a mixture of 3.3-, 2.5-, 1.8-, and 1.5-V devices.
The MAX II device hot socketing feature provides:
■
■
■
Board or device insertion and removal
Support for any power-up sequence
Non-intrusive I/O buffers to system buses during hot insertion
MAX II Hot-Socketing Specifications
MAX II devices offer all three of the features required for hot socketing
capability listed above without any external components or special
design requirements. The following are hot-socketing specifications:
■
■
■
The device can be driven before and during power-up or powerdown without any damage to the device itself.
I/O pins remain tri-stated during power-up. The device does not
drive out before or during power-up, thereby affecting other buses in
operation.
Signal pins do not drive the VCCIO or VCCINT power supplies. External
input signals to device I/O pins do not power the device VCCIO or
VCCINT power supplies via internal paths. This is true for all device
I/O pins only if VCCINT is held at GND. This is true for a particular I/O
bank if the VCCIO supply for that bank is held at GND.
Devices Can Be Driven before Power-Up
Signals can be driven into the MAX II device I/O pins and GCLK[3..0]
pins before or during power-up or power-down without damaging the
device. MAX II devices support any power-up or power-down sequence
(VCCIO1, VCCIO2, VCCIO3, VCCIO4, VCCINT), simplifying system-level design.
Altera Corporation
December 2006
Core Version a.b.c variable
4–1
Preliminary
Hot Socketing
I/O Pins Remain Tri-Stated during Power-Up
A device that does not support hot-socketing may interrupt system
operation or cause contention by driving out before or during power-up.
In a hot socketing situation, the MAX II device’s output buffers are turned
off during system power-up. MAX II devices do not drive out until the
device attains proper operating conditions and is fully configured. See
“Power-On Reset Circuitry” on page 4–6 for information about turn-on
voltages.
Signal Pins Do Not Drive the VCCIO or VCCINT Power Supplies
MAX II devices do not have a current path from I/O pins or GCLK[3..0]
pins to the VCCIO or VCCINT pins before or during power-up. A MAX II
device may be inserted into (or removed from) a system board that was
powered up without damaging or interfering with system-board
operation. When hot socketing, MAX II devices may have a minimal
effect on the signal integrity of the backplane.
AC & DC Specifications
You can power up or power down the VCCIO and VCCINT pins in any
sequence. During hot socketing, the I/O pin capacitance is less than 8 pF.
MAX II devices meet the following hot socketing specifications:
■
■
The hot socketing DC specification is: | IIOPIN | < 300 μA.
The hot socketing AC specification is: | IIOPIN | < 8 mA for 10 ns or
less.
1
MAX II devices are immune to latch-up when hot socketing. If
the TCK JTAG input pin is driven high during hot-socketing, the
current on that pin might exceed the specifications above.
IIOPIN is the current at any user I/O pin on the device. The AC
specification applies when the device is being powered up or powered
down. This specification takes into account the pin capacitance but not
board trace and external loading capacitance. Additional capacitance for
trace, connector, and loading must be taken into consideration separately.
The peak current duration due to power-up transients is 10 ns or less.
The DC specification applies when all VCC supplies to the device are
stable in the powered-up or powered-down conditions.
4–2
MAX II Device Handbook, Volume 1
Core Version a.b.c variable
Altera Corporation
December 2006
Hot Socketing & Power-On Reset in MAX II Devices
Hot Socketing Feature Implementation in MAX II Devices
The hot socketing feature turns off (tri-states) the output buffer during the
power-up event (either VCCINT or VCCIO supplies) or power down. The
hot-socket circuit generates an internal HOTSCKT signal when either
VCCINT or VCCIO is below the threshold voltage. The HOTSCKT signal cuts
off the output buffer to make sure that no DC current (except for weak
pull-up leaking) leaks through the pin. When VCC ramps up very slowly,
VCC may still be relatively low even after the power-on reset (POR) signal
is released and device configuration is complete.
Each I/O and clock pin has the following circuitry, as shown in
Figure 4–1.
Figure 4–1. Hot Socketing Circuit Block Diagram for MAX II Devices
Power On
Reset
Monitor
VCCIO
Weak
Pull-Up
Resistor
PAD
Output Enable
Voltage
Tolerance
Control
Hot Socket
Input Buffer
to Logic Array
The POR circuit monitors VCCINT and VCCIO voltage levels and keeps I/O
pins tri-stated until the device has completed its flash memory
configuration of the SRAM logic. The weak pull-up resistor (R) from the
I/O pin to VCCIO is enabled during download to keep the I/O pins from
floating. The 3.3-V tolerance control circuit permits the I/O pins to be
driven by 3.3 V before VCCIO and/or VCCINT are powered, and it prevents
the I/O pins from driving out when the device is not fully powered or
Altera Corporation
December 2006
Core Version a.b.c variable
4–3
MAX II Device Handbook, Volume 1
Hot Socketing
operational. The hot- socket circuit prevents I/O pins from internally
powering VCCIO and VCCINT when driven by external signals before the
device is powered.
f
For information on 5.0-V tolerance, See the chapter on Using MAX II
Devices in Multi-Voltage Systems.
Figure 4–2 shows a transistor level cross section of the MAX II device I/O
buffers. This design ensures that the output buffers do not drive when
VCCIO is powered before VCCINT or if the I/O pad voltage is higher than
VCCIO. This also applies for sudden voltage spikes during hot insertion.
The VPAD leakage current charges the 3.3-V tolerant circuit capacitance.
Figure 4–2. Transistor-Level Diagram of MAX II Device I/O Buffers
VPAD
IOE Signal or the
Larger of VCCIO or VPAD
IOE Signal
The Larger of
VCCIO or VPAD
Ensures 3.3-V
Tolerance &
Hot-Socket
Protection
VCCIO
n+
n+
p+
p+
n+
n - well
p - well
p - substrate
The CMOS output drivers in the I/O pins intrinsically provide
electrostatic discharge (ESD) protection. There are two cases to consider
for ESD voltage strikes: positive voltage zap and negative voltage zap.
A positive ESD voltage zap occurs when a positive voltage is present on
an I/O pin due to an ESD charge event. This can cause the N+ (Drain)/PSubstrate junction of the N-channel drain to break down and the N+
(Drain)/P-Substrate/N+ (Source) intrinsic bipolar transistor turns on to
discharge ESD current from I/O pin to GND. The dashed line (see
Figure 4–3) shows the ESD current discharge path during a positive ESD
zap.
4–4
MAX II Device Handbook, Volume 1
Core Version a.b.c variable
Altera Corporation
December 2006
Hot Socketing & Power-On Reset in MAX II Devices
Figure 4–3. ESD Protection During Positive Voltage Zap
I/O
Source
PMOS
Gate
N+
D
Drain
G
P-Substrate
I/O
Drain
NMOS
Gate
N+
S
Source
GND
GND
When the I/O pin receives a negative ESD zap at the pin that is less than
-0.7 V (0.7 V is the voltage drop across a diode), the intrinsic
P-Substrate/N+ drain diode is forward biased. Hence, the discharge ESD
current path is from GND to the I/O pin, as shown in Figure 4–4.
Altera Corporation
December 2006
Core Version a.b.c variable
4–5
MAX II Device Handbook, Volume 1
Power-On Reset Circuitry
Figure 4–4. ESD Protection During Negative Voltage Zap
I/O
Source
PMOS
Gate
N+
D
Drain
G
P-Substrate
I/O
Drain
NMOS
Gate
N+
S
Source
GND
Power-On Reset
Circuitry
GND
MAX II devices have POR circuits to VCCINT and VCCIO voltage levels
during power-up. The POR circuit monitors these voltages, triggering
download from the non-volatile configuration flash memory (CFM) block
to the SRAM logic, maintaining tri-state of the I/O pins (with weak pullup resistors enabled) before and during this process. When the MAX II
device enters user mode, the POR circuit releases the I/O pins to user
functionality and continues to monitor the VCCINT voltage level to detect
a brown-out condition.
Power-Up Characteristics
When power is applied to a MAX II device, the POR circuit monitors
VCCINT and begins SRAM download at an approximate voltage of 1.7 V,
or 1.55 V for MAX II G devices. From this voltage reference, SRAM
download and entry into user mode takes 200 to 450 µs maximum
depending on device density. This period of time is specified as tCONFIG in
the power-up timing section of Chapter 5. DC & Switching Characteristics.
Entry into user mode is gated by whether all VCCIO banks are powered
with sufficient operating voltage. If VCCINT and VCCIO are powered
simultaneously, the device enters user mode within the tCONFIG
4–6
MAX II Device Handbook, Volume 1
Core Version a.b.c variable
Altera Corporation
December 2006
Hot Socketing & Power-On Reset in MAX II Devices
specifications. If VCCIO is powered more than tCONFIG after VCCINT, the
device does not enter user mode until 2 µs after all VCCIO banks are
powered.
In user mode, the POR circuitry continues to monitor the VCCINT (but not
VCCIO) voltage level to detect a brown-out condition. If there is a VCCINT
voltage sag at or below 1.4 V during user mode, the POR circuit resets the
SRAM and tri-states the I/O pins. Once VCCINT rises back to
approximately 1.7 V (or 1.55 V for MAX II G devices), the SRAM
download restarts and the device begins to operate after tCONFIG time has
passed.
Figure 4–5 shows the voltages for MAX II and MAX II G device POR
during power-up into user mode and from user mode to power-down or
brown-out.
Altera Corporation
December 2006
Core Version a.b.c variable
4–7
MAX II Device Handbook, Volume 1
Power-On Reset Circuitry
Figure 4–5. Power-Up Characteristics for MAX II & MAX II G Devices
VCCINT
Notes (1), (2)
MAX II Device
Approximate Voltage
for SRAM Download Start
3.3 V
2.5 V
Device Resets
the SRAM and
Tri-States I/O Pins
1.7 V
1.4 V
t CONFIG
0V
Tri-State
User Mode
Operation
Tri-State
MAX II G Device
VCCINT
3.3 V
Approximate Voltage
for SRAM Download Start
Device Resets
the SRAM and
Tri-States I/O Pins
1.8 V
1.55 V
1.4 V
t CONFIG
0V
Tri-State
User Mode
Operation
Tri-State
Notes to Figure 4–5:
(1)
(2)
Time scale is relative.
Figure 4–5 assumes all VCCIO banks power simultaneously with the VCCINT profile shown. If not, tCONFIG stretches
out until all VCCIO banks are powered.
1
4–8
MAX II Device Handbook, Volume 1
After SRAM configuration, all registers in the device are cleared
and released into user function before I/O tri-states are released.
To release clears after tri-states are released, use the DEV_CLRn
pin option. To hold the tri-states beyond the power-up
configuration time, use the DEV_OE pin option.
Core Version a.b.c variable
Altera Corporation
December 2006
Hot Socketing & Power-On Reset in MAX II Devices
Document
Revision History
Table 4–1 shows the revision history for this document.
Table 4–1. Document Revision History
Date &
Document
Version
Changes Made
Summary of Changes
December 2006 Added document revision history.
v1.5
February 2006
v1.4
●
June 2005 v1.3
Updated AC and DC specifications on page 4-2.
●
●
Updated “MAX II Hot-Socketing Specifications” section.
Updated “AC & DC Specifications” section.
Updated “Power-On Reset Circuitry” section.
December 2004 Added content to Power-Up Characteristics section.
v1.2
Updated Figure 4-5.
June 2004 v1.1
Corrected Figure 4-2.
Altera Corporation
December 2006
Core Version a.b.c variable
4–9
MAX II Device Handbook, Volume 1
Chapter 5. DC & Switching
Characteristics
MII51005-1.8
Operating
Conditions
Tables 5–1 through 5–12 provide information on absolute maximum
ratings, recommended operating conditions, DC electrical characteristics,
and other specifications for MAX® II devices.
Absolute Maximum Ratings
Table 5–1 shows the absolute maximum ratings for the MAX II device
family.
Table 5–1. MAX II Device Absolute Maximum Ratings
Symbol
Parameter
Notes (1), (2)
Conditions
Minimum
Maximum
Unit
VCCINT
Internal Supply voltage (3) With respect to ground
–0.5
4.6
V
VCCIO
I/O Supply Voltage
–0.5
4.6
V
VI
DC input voltage
–0.5
4.6
V
IOUT
DC output current, per pin
–25
25
mA
TSTG
Storage temperature
No bias
–65
150
°C
TAMB
Ambient temperature
Under bias (4)
–65
135
°C
TJ
Junction temperature
TQFP and BGA packages
under bias
135
°C
Notes to Table 5–1:
(1)
(2)
(3)
See the Operating Requirements for Altera Devices Data Sheet.
Conditions beyond those listed in Table 5–1 may cause permanent damage to a device. Additionally, device
operation at the absolute maximum ratings for extended periods of time may have adverse affects on the device.
Maximum VCCINT for MAX II devices is 4.6 V. For MAX IIG devices, it is 2.4 V.
(4)
See Table 5–2 for information on “under bias” conditions.
Altera Corporation
December 2006
Core Version a.b.c variable
5–1
Preliminary
Operating Conditions
Recommended Operating Conditions
Table 5–2 shows the MAX II device family recommended operating
conditions.
Table 5–2. MAX II Device Recommended Operating Conditions (Part 1 of 2)
Symbol
VCCINT (1)
VCCIO (1)
Parameter
Minimum
Maximum
Unit
3.3-V supply
voltage for
internal logic
and ISP
3.00
3.60
V
2.5-V supply
voltage for
internal logic
and ISP
2.375
2.625
V
1.8-V supply
voltage for
internal logic
and ISP (MAX
IIG devices)
1.71
1.89
V
Supply voltage
for I/O buffers,
3.3-V operation
3.00
3.60
V
Supply voltage
for I/O buffers,
2.5-V operation
2.375
2.625
V
Supply voltage
for I/O buffers,
1.8-V operation
1.71
1.89
V
Supply voltage
for I/O buffers,
1.5-V operation
1.425
1.575
V
–0.5
4.0
V
0
VCCIO
V
VI
Input voltage
VO
Output voltage
5–2
MAX II Device Handbook, Volume 1
Conditions
(2), (3), (4)
Core Version a.b.c variable
Altera Corporation
December 2006
DC & Switching Characteristics
Table 5–2. MAX II Device Recommended Operating Conditions (Part 2 of 2)
Symbol
TJ
Parameter
Operating
junction
temperature
Conditions
Minimum
Maximum
Unit
Commercial range
0
85
°C
Industrial range
–40
100
°C
Extended range (5)
–40
125
°C
Notes to Table 5–2:
(1)
(2)
(3)
(4)
(5)
MAX II device in-system programming and/or UFM programming via JTAG or logic array is not guaranteed
outside the recommended operating conditions (i.e., if brown-out occurs in the system during a potential
write/program sequence to the UFM, users are recommended to read back UFM contents and verify against the
intended write data).
Minimum DC input is –0.5 V. During transitions, the inputs may undershoot to –2.0 V for input currents less than
100 mA and periods shorter than 20 ns.
During transitions, the inputs may overshoot to the voltages shown in the following table based upon input duty
cycle. The DC case is equivalent to 100% duty cycle. For more information on 5.0-V tolerance refer to the chapter
on Using MAX II Devices in Multi-Voltage Systems.
VIN
Max. Duty Cycle
4.0 V 100% (DC)
4.1
90%
4.2
50%
4.3
30%
4.4
17%
4.5
10%
All pins, including clock, I/O, and JTAG pins, may be driven before VCCINT and VCCIO are powered.
For the extended temperature range of 100 to 125º C, MAX II UFM programming (erase/write) is only supported
via the JTAG interface. UFM programming via the logic array interface is not guaranteed in this range.
Programming/Erasure Specifications
Table 5–3 shows the MAX II device family programming/erasure
specifications.
Table 5–3. MAX II Device Programming/Erasure Specifications
Parameter
Minimum
Typical
Erase and reprogram cycles
Maximum
Unit
100 (1)
Cycles
Note to Table 5–3:
(1)
This specification applies to the user flash memory (UFM) and CFM blocks.
Altera Corporation
December 2006
Core Version a.b.c variable
5–3
MAX II Device Handbook, Volume 1
Operating Conditions
DC Electrical Characteristics
Table 5–4 shows the MAX II device family DC electrical characteristics.
Table 5–4. MAX II Device DC Electrical Characteristics
Symbol
Parameter
Conditions
Note (1)
Minimum
Typical
Maximum
Unit
II
Input pin leakage VI = VCCIOmax to 0 V (2)
current
–10
10
µA
IOZ
Tri-stated I/O pin
leakage current
–10
10
µA
ICCSTANDBY
VCCINT supply
MAX II devices
current (standby) MAX IIG devices
(3)
VSCHMITT (4)
ICCPOWERUP
RPULLUP
Hysteresis for
Schmitt trigger
input
VCCINT supply
current during
power-up (5)
VO = VCCIOmax to 0 V (2)
12
mA
2
mA
VCCIO = 3.3 V
400
mV
VCCIO = 2.5 V
190
mV
MAX II devices
55
mA
MAX IIG devices
40
mA
Value of I/O pin
VCCIO = 3.3 V (6)
pull-up resistor
during user mode VCCIO = 2.5 V (6)
and in-system
VCCIO = 1.8 V (6)
programming
VCCIO = 1.5 V (6)
5
25
kΩ
10
40
kΩ
25
60
kΩ
45
95
kΩ
CIO
Input
capacitance for
user I/O pin
8
pF
CGCLK
Input
capacitance for
dual-purpose
GCLK/user I/O
pin
8
pF
Notes to Table 5–4:
(1)
(2)
(3)
(4)
(5)
(6)
Typical values are for TA = 25 ° C, VCCINT = 3.3 or 2.5 V, and VCCIO = 1.5 V, 1.8 V, 2.5 V, or 3.3 V.
This value is specified for normal device operation. The value may vary during power-up. This applies for all VCCIO
settings (3.3, 2.5, 1.8, and 1.5 V).
VI = ground, no load, no toggling inputs.
This value applies to commercial and industrial range devices. For extended temperature range devices, the
VSCHMITT typical value is 300 mV for VCCIO = 3.3 V and 120 mV for VCCIO = 2.5 V.
This is a peak current value with a maximum duration of tCONFIG time.
Pin pull-up resistance values will lower if an external source drives the pin higher than VCCIO.
5–4
MAX II Device Handbook, Volume 1
Core Version a.b.c variable
Altera Corporation
December 2006
DC & Switching Characteristics
Output Drive Characteristics
Figure 5–1 shows the typical drive strength characteristics of MAX II
devices.
Figure 5–1. Output Drive Characteristics of MAX II Devices
MAX II Output Drive IOH Characteristics
(Maximum Drive Strength)
MAX II Output Drive IOL Characteristics
(Maximum Drive Strength)
60
70
3.3-V VCCIO
3.3-V VCCIO
Typical IO Output Current (mA)
Typical I O Output Current (mA)
60
50
2.5-V VCCIO
40
30
1.8-V VCCIO
20
1.5-V VCCIO
10
50
40
2.5-V VCCIO
30
1.8-V VCCIO
20
1.5-V VCCIO
10
0
0
0.0
0.5
1.0
1.5
2.0
2.5
3.0
0.0
3.5
0.5
1.0
1.5
2.0
2.5
30
3.3-V VCCIO
Typical IO Output Current (mA)
Typical IO Output Current (mA)
3.3-V VCCIO
30
25
2.5-V VCCIO
15
1.8-V VCCIO
10
1.5-V VCCIO
5
3.5
MAX II Output Drive IOL Characteristics
(Minimum Drive Strength)
MAX II Output Drive IOH Characteristics
(Minimum Drive Strength)
35
20
3.0
Voltage (V)
Voltage (V)
0
25
20
2.5-V VCCIO
15
1.8-V VCCIO
10
1.5-V VCCIO
5
0
0.0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
0.0
Voltage (V)
Altera Corporation
December 2006
0.5
1.0
1.5
2.0
2.5
3.0
3.5
Voltage (V)
Core Version a.b.c variable
5–5
MAX II Device Handbook, Volume 1
Operating Conditions
I/O Standard Specifications
Tables 5–5 through 5–10 show the MAX II device family I/O standard
specifications.
Table 5–5. 3.3-V LVTTL Specifications
Symbol
Parameter
Conditions
Minimum
Maximum
Unit
VCCIO
I/O supply
voltage
3.0
3.6
V
VIH
High-level input
voltage
1.7
4.0
V
VIL
Low-level input
voltage
–0.5
0.8
V
VOH
High-level output IOH = –4 mA (1)
voltage
2.4
VOL
Low-level output
voltage
V
0.45
V
Minimum
Maximum
Unit
IOL = 4 mA (1)
Table 5–6. 3.3-V LVCMOS Specifications
Symbol
Parameter
Conditions
VCCIO
I/O supply
voltage
3.0
3.6
V
VIH
High-level input
voltage
1.7
4.0
V
VIL
Low-level input
voltage
–0.5
0.8
V
VOH
High-level output VCCIO = 3.0,
voltage
IOH = -0.1 mA (1)
VOL
Low-level output
voltage
VCCIO – 0.2
V
0.2
V
Minimum
Maximum
Unit
2.375
2.625
V
VCCIO = 3.0,
IOL = 0.1 mA (1)
Table 5–7. 2.5-V I/O Specifications (Part 1 of 2)
Symbol
Parameter
Conditions
VCCIO
I/O supply
voltage
VIH
High-level input
voltage
1.7
4.0
V
VIL
Low-level input
voltage
–0.5
0.7
V
5–6
MAX II Device Handbook, Volume 1
Core Version a.b.c variable
Altera Corporation
December 2006
DC & Switching Characteristics
Table 5–7. 2.5-V I/O Specifications (Part 2 of 2)
Symbol
VOH
Parameter
Conditions
High-level output IOH = –0.1 mA (1)
voltage
IOH = –1 mA (1)
IOH = –2 mA (1)
VOL
Low-level output
voltage
Minimum
Maximum
Unit
2.1
V
2.0
V
1.7
V
IOL = 0.1 mA (1)
0.2
V
IOL = 1 mA (1)
0.4
V
IOL = 2 mA (1)
0.7
V
Minimum
Maximum
Unit
1.71
1.89
V
Table 5–8. 1.8-V I/O Specifications
Symbol
Parameter
Conditions
VCCIO
I/O supply
voltage
VIH
High-level input
voltage
0.65 × VCCIO
2.25 (2)
V
VIL
Low-level input
voltage
–0.3
0.35 × VCCIO
V
VOH
High-level output IOH = –2 mA (1)
voltage
VOL
Low-level output
voltage
VCCIO – 0.45
V
0.45
V
Minimum
Maximum
Unit
1.425
1.575
V
IOL = 2 mA (1)
Table 5–9. 1.5-V I/O Specifications
Symbol
Parameter
Conditions
VCCIO
I/O supply
voltage
VIH
High-level input
voltage
0.65 × VCCIO
VCCIO + 0.3 (2)
V
VIL
Low-level input
voltage
–0.3
0.35 × VCCIO
V
VOH
High-level output IOH = –2 mA (1)
voltage
Altera Corporation
December 2006
0.75 × VCCIO
Core Version a.b.c variable
V
5–7
MAX II Device Handbook, Volume 1
Operating Conditions
Table 5–9. 1.5-V I/O Specifications
Symbol
VOL
Parameter
Conditions
Low-level output
voltage
Minimum
IOL = 2 mA (1)
Maximum
Unit
0.25 × VCCIO
V
Notes to Tables 5–5 through 5–9:
(1)
This specification is supported across all the programmable drive strength settings available for this I/O standard,
as shown in the MAX II Architecture chapter (I/O Structure section) of the MAX II Device Handbook.
This maximum VIH reflects the JEDEC specification. The MAX II input buffer can tolerate a VIH maximum of 4.0 as
specified by the VI parameter in Table 5–2.
(2)
Table 5–10. 3.3-V PCI Specifications
Symbol
Parameter
Conditions
Minimum
Typical
Maximum
Unit
3.0
3.3
3.6
V
VCCIO
I/O supply
voltage
VIH
High-level
input voltage
0.5 × VCCIO
VCCIO + 0.5
V
VIL
Low-level
input voltage
–0.5
0.3 × VCCIO
V
VOH
High-level
IOH = –500 µA
output voltage
VOL
Low-level
IOL = 1.5 mA
output voltage
0.9 × VCCIO
V
0.1 × VCCIO
V
Bus Hold Specifications
Table 5–11 shows the MAX II device family bus hold specifications.
Table 5–11. Bus Hold Specifications (Part 1 of 2)
VCCIO Level
Parameter
Conditions
1.5 V
Min
Max
1.8 V
Min
Max
2.5 V
Min
Max
3.3 V
Min
Unit
Max
Low sustaining
current
VIN > VIL (maximum)
20
30
50
70
µA
High sustaining
current
VIN < VIH (minimum)
–20
–30
-50
–70
µA
5–8
MAX II Device Handbook, Volume 1
Core Version a.b.c variable
Altera Corporation
December 2006
DC & Switching Characteristics
Table 5–11. Bus Hold Specifications (Part 2 of 2)
VCCIO Level
Parameter
Conditions
1.5 V
Min
Max
1.8 V
Min
Max
2.5 V
Min
Max
Unit
3.3 V
Min
Max
Low overdrive
current
0 V < VIN < VCCIO
160
200
300
500
µA
High overdrive
current
0 V < VIN < VCCIO
–160
–200
–300
–500
µA
Power-Up Timing
Table 5–12 shows the power-up timing characteristics for MAX II devices.
Table 5–12. MAX II Power-Up Timing
Symbol
tCONFIG (1)
Parameter
The amount of time
from when minimum
VCCINT is reached until
the device enters user
mode (2)
Device
Min
Typ
Max
Unit
EPM240
200
µs
EPM570
300
µs
EPM1270
300
µs
EPM2210
450
µs
Notes to Table 5–12:
(1)
(2)
Table 5–12 values apply to commercial and industrial range devices. For extended temperature range devices, the
tCONFIG maximum values are as follows:
Device
Maximum
EPM240
300 µs
EPM570
400 µs
EPM1270
400 µs
EPM2210
500 µs
For more information on POR trigger voltage, refer to the chapter on Hot Socketing & Power-On Reset in MAX II
Devices.
Power
Consumption
Altera Corporation
December 2006
Designers can use the Altera® web power calculator to estimate the device
power. See the chapter on Understanding & Evaluating Power in MAX II
Devices for more information.
Core Version a.b.c variable
5–9
MAX II Device Handbook, Volume 1
Timing Model & Specifications
Timing Model &
Specifications
MAX II devices timing can be analyzed with the Altera Quartus II
software, a variety of popular industry-standard EDA simulators and
timing analyzers, or with the timing model shown in Figure 5–2.
MAX II devices have predictable internal delays that enable the designer
to determine the worst-case timing of any design. The software provides
timing simulation, point-to-point delay prediction, and detailed timing
analysis for device-wide performance evaluation.
Figure 5–2. MAX II Device Timing Model
Output & Output Enable
Data Delay
t R4
tIODR
tIOE
Data-In/LUT Chain
User
Flash
Memory
I/O Pin
INPUT
Input Routing
Delay
tDL
t LOCAL
I/O Input Delay
t IN
Logic Element
t LUT
Register Control
Delay
tC
Output Routing
Delay
t C4
LUT Delay
t FASTIO
tCO
tSU
tH
tPRE
tCLR
I/O Pin
From Adjacent LE
t GLOB
Global Input Delay
Output
Delay
t OD
t XZ
t ZX
To Adjacent LE
Register Delays
Data-Out
The timing characteristics of any signal path can be derived from the
timing model and parameters of a particular device. External timing
parameters, which represent pin-to-pin timing delays, can be calculated
as the sum of internal parameters. Refer to the chapter on Understanding
Timing in MAX II Devices for more information.
This section describes and specifies the performance, internal, external,
and UFM timing specifications. All specifications are representative of
worst-case supply voltage and junction temperature conditions.
Preliminary & Final Timing
Timing models can have either preliminary or final status. The
Quartus® II software issues an informational message during the design
compilation if the timing models are preliminary. Table 5–13 shows the
status of the MAX II device timing models.
5–10
MAX II Device Handbook, Volume 1
Core Version a.b.c variable
Altera Corporation
December 2006
DC & Switching Characteristics
Preliminary status means the timing model is subject to change. Initially,
timing numbers are created using simulation results, process data, and
other known parameters. These tests are used to make the preliminary
numbers as close to the actual timing parameters as possible.
Final timing numbers are based on actual device operation and testing.
These numbers reflect the actual performance of the device under worstcase voltage and junction temperature conditions.
Table 5–13. MAX II Device Timing Model Status
Device
Altera Corporation
December 2006
Preliminary
Final
EPM240
v
EPM570
v
EPM1270
v
EPM2210
v
Core Version a.b.c variable
5–11
MAX II Device Handbook, Volume 1
Timing Model & Specifications
Performance
Table 5–14 shows the MAX II device performance for some common
designs. All performance values were obtained with the Quartus II
software compilation of megafunctions. These performance values are
based on an EPM1270 device target.
Table 5–14. MAX II Device Performance
Resource
Used
LE
UFM
Design
Size &
Function
Resources Used
Mode
Performance
UFM
Blocks
-3 Speed
Grade
-4 Speed
Grade
-5 Speed
Grade
Unit
LEs
16-bit
counter (1)
-
16
0
304.0
247.5
201.1
MHz
64-bit
counter (1)
-
64
0
201.5
154.8
125.8
MHz
16-to-1
multiplexer
-
11
0
6.0
8.0
9.3
ns
32-to-1
multiplexer
-
24
0
7.1
9.0
11.4
ns
16-bit XOR
function
-
5
0
5.1
6.6
8.2
ns
16-bit
decoder
with single
address
line
-
5
0
5.2
6.6
8.2
ns
None
3
1
10.0
10.0
10.0
MHz
512 x 16
512 x 16
SPI (2)
37
1
8.0
8.0
8.0
MHz
512 x 8
Parallel (3)
73
1
(4)
(4)
(4)
MHz
512 x 16
I2C (3)
142
1
100 (5)
100 (5)
100 (5)
kHz
Notes to Table 5–14:
(1)
(2)
(3)
(4)
(5)
This design is a binary loadable up counter.
This design is configured for read only operation in Extended mode. Read and write ability increases the number
of LEs used.
This design is configured for read-only operation. Read and write ability increases the number of LEs used.
This design is asynchronous.
The I2C megafunction is verified in hardware up to 100-kHz serial clock line (SCL) rate.
5–12
MAX II Device Handbook, Volume 1
Core Version a.b.c variable
Altera Corporation
December 2006
DC & Switching Characteristics
Internal Timing Parameters
Internal timing parameters are specified on a speed grade basis
independent of device density. Tables 5–15 through 5–22 describe the
MAX II device internal timing microparameters for logic elements (LEs),
input/output elements (IOEs), UFM structures, and MultiTrackTM
interconnects.
f
For more explanations and descriptions on each internal timing
microparameters symbol, refer to the chapter on Understanding Timing in
MAX II Devices.
Table 5–15. LE Internal Timing Microparameters
Symbol
-3 Speed Grade
-4 Speed Grade
-5 Speed Grade
Min
Min
Min
Parameter
Unit
Max
571
Max
742
Max
tLUT
LE combinational
LUT delay
tCLR
LE register clear
delay
238
309
381
ps
tPRE
LE register preset
delay
238
309
381
ps
tSU
LE register setup
time before clock
208
271
333
ps
tH
LE register hold time
after clock
0
0
0
ps
tCO
LE register clock-tooutput delay
tCLKHL
Minimum clock high
or low time
tC
Register control
delay
235
166
914
305
216
857
376
266
ps
ps
ps
1,114
1,372
-3 Speed Grade
-4 Speed Grade
-5 Speed Grade
Min
Min
Min
ps
Table 5–16. IOE Internal Timing Microparameters (Part 1 of 2)
Symbol
Parameter
Unit
Max
Max
Max
tFASTIO
Data output delay
from adjacent LE to
I/O block
159
207
254
ps
tIN
I/O input pad and
buffer delay
708
920
1,132
ps
Altera Corporation
December 2006
Core Version a.b.c variable
5–13
MAX II Device Handbook, Volume 1
Timing Model & Specifications
Table 5–16. IOE Internal Timing Microparameters (Part 2 of 2)
Symbol
-3 Speed Grade
-4 Speed Grade
-5 Speed Grade
Min
Min
Min
Parameter
Unit
Max
Max
Max
tGLOB (1)
I/O input pad and
buffer delay use as
global signal pin
1,519
1,974
2,430
ps
tIOE
Internally generated
output enable delay
354
374
460
ps
tDL
Input routing delay
224
291
358
ps
tOD (2)
Output delay buffer
and pad delay
1,064
1,383
1,702
ps
tXZ (3)
Output buffer disable
delay
756
982
1,209
ps
tZX (4)
Output buffer enable
delay
1,003
1,303
1,604
ps
Notes to Table 5–16:
(1)
(2)
(3)
(4)
Delay numbers for tGLOB differ for each device density and speed grade. The delay numbers shown in Table 5–16
are based on an EPM240 device target.
Refer to Table 5–29 and Table 5–31 for delay adders associated with different I/O Standards, drive strengths, and
slew rates.
Refer to Table 5–19 and Table 5–20 for tXZ delay adders associated with different I/O Standards, drive strengths,
and slew rates.
Refer to Table 5–17 and Table 5–18 for tZX delay adders associated with different I/O Standards, drive strengths,
and slew rates.
Tables 5–17 and 5–18 show the adder delays for tOD and tZX
microparameters when using an I/O standard other than 3.3-V LVTTL
with 16 mA drive strength.
Table 5–17. tZX IOE Microparameter Adders for Fast Slew Rate (Part 1 of 2)
-3 Speed Grade
-4 Speed Grade
-5 Speed Grade
Min
Min
Min
Standard
Unit
Max
Max
Max
3.3-V LVCMOS
8 mA
0
0
0
ps
4 mA
28
37
45
ps
3.3-V LVTTL
16 mA
0
0
0
ps
8 mA
28
37
45
ps
2.5-V LVTTL
14 mA
14
19
23
ps
7 mA
314
409
503
ps
5–14
MAX II Device Handbook, Volume 1
Core Version a.b.c variable
Altera Corporation
December 2006
DC & Switching Characteristics
Table 5–17. tZX IOE Microparameter Adders for Fast Slew Rate (Part 2 of 2)
-3 Speed Grade
-4 Speed Grade
-5 Speed Grade
Min
Min
Min
Standard
1.8-V LVTTL
Unit
Max
Max
Max
6 mA
450
585
720
ps
3 mA
1,443
1,876
2,309
ps
1.5-V LVTTL
4 mA
1,118
1,454
1,789
ps
2 mA
2,410
3,133
3,856
ps
3.3-V PCI
20 mA
19
25
31
ps
Table 5–18. tZX IOE MIcroparameter Adders for Slow Slew Rate
-3 Speed Grade
-4 Speed Grade
-5 Speed Grade
Min
Min
Min
Standard
3.3-V LVCMOS
3.3-V LVTTL
2.5-V LVTTL
3.3-V PCI
Unit
Max
Max
Max
8 mA
6,350
6,050
5,749
ps
4 mA
9,383
9,083
8,782
ps
16 mA
6,350
6,050
5,749
ps
8 mA
9,383
9,083
8,782
ps
14 mA
10,412
10,112
9,811
ps
7 mA
13,613
13,313
13,012
ps
20 mA
–75
–97
–120
ps
Table 5–19. tXZ IOE Microparameter Adders for Fast Slew Rate (Part 1 of 2)
-3 Speed Grade
-4 Speed Grade
-5 Speed Grade
Min
Min
Min
Standard
3.3-V LVCMOS
3.3-V LVTTL
2.5-V LVTTL
1.8-V LVTTL
Altera Corporation
December 2006
Unit
Max
Max
Max
8 mA
0
0
0
ps
4 mA
–56
–72
–89
ps
16 mA
0
0
0
ps
8 mA
–56
–72
–89
ps
14 mA
–3
–4
–5
ps
7 mA
–47
–61
–75
ps
6 mA
119
155
191
ps
3 mA
207
269
331
ps
Core Version a.b.c variable
5–15
MAX II Device Handbook, Volume 1
Timing Model & Specifications
Table 5–19. tXZ IOE Microparameter Adders for Fast Slew Rate (Part 2 of 2)
-3 Speed Grade
-4 Speed Grade
-5 Speed Grade
Min
Min
Min
Standard
Unit
Max
Max
Max
1.5-V LVTTL
4 mA
606
788
970
ps
2 mA
673
875
1,077
ps
3.3-V PCI
20 mA
71
93
114
ps
Table 5–20. tXZ IOE MIcroparameter Adders for Slow Slew Rate
-3 Speed Grade
-4 Speed Grade
-5 Speed Grade
Min
Min
Min
Standard
3.3-V LVCMOS
3.3-V LVTTL
2.5-V LVTTL
3.3-V PCI
Unit
Max
Max
Max
8 mA
206
–20
–247
ps
4 mA
891
665
438
ps
16 mA
206
–20
–247
ps
8 mA
891
665
438
ps
14 mA
222
–4
–231
ps
7 mA
943
717
490
ps
20 mA
161
210
258
ps
Table 5–21. UFM Block Internal Timing Microparameters (Part 1 of 3)
Symbol
-3 Speed Grade
-4 Speed Grade
-5 Speed Grade
Min
Min
Min
Parameter
Unit
Max
Max
Max
tACLK
Address register
clock period
100
100
100
ns
tASU
Address register
shift signal setup to
address register
clock
20
20
20
ns
tAH
Address register
shift signal hold to
address register
clock
20
20
20
ns
tADS
Address register
data in setup to
address register
clock
20
20
20
ns
5–16
MAX II Device Handbook, Volume 1
Core Version a.b.c variable
Altera Corporation
December 2006
DC & Switching Characteristics
Table 5–21. UFM Block Internal Timing Microparameters (Part 2 of 3)
Symbol
-3 Speed Grade
-4 Speed Grade
-5 Speed Grade
Min
Min
Min
Parameter
Unit
Max
Max
Max
tADH
Address register
data in hold from
address register
clock
20
20
20
ns
tDCLK
Data register clock
period
100
100
100
ns
tDSS
Data register shift
signal setup to data
register clock
60
60
60
ns
tDSH
Data register shift
signal hold from data
register clock
20
20
20
ns
tDDS
Data register data in
setup to data register
clock
20
20
20
ns
tDDH
Data register data in
hold from data
register clock
20
20
20
ns
tDP
Program signal to
data clock hold time
0
0
0
ns
tPB
Maximum delay
between program
rising edge to UFM
busy signal rising
edge
tBP
Minimum delay
allowed from UFM
busy signal going
low to program
signal going low
tPPMX
Maximum length of
busy pulse during a
program
tAE
Minimum erase
signal to address
clock hold time
tEB
Maximum delay
between the erase
rising edge to the
UFM busy signal
rising edge
Altera Corporation
December 2006
960
20
960
20
100
0
960
20
100
0
960
Core Version a.b.c variable
ns
100
0
960
ns
µs
ns
960
ns
5–17
MAX II Device Handbook, Volume 1
Timing Model & Specifications
Table 5–21. UFM Block Internal Timing Microparameters (Part 3 of 3)
Symbol
-3 Speed Grade
-4 Speed Grade
-5 Speed Grade
Min
Min
Min
Parameter
Unit
Max
20
Max
20
Max
20
ns
tBE
Minimum delay
allowed from the
UFM busy signal
going low to erase
signal going low
tEPMX
Maximum length of
busy pulse during an
erase
500
500
500
ms
tDCO
Delay from data
register clock to data
register output
5
5
5
ns
tOE
Delay from data
register clock to data
register output
tRA
Maximum read
access time
tOSCS
Maximum delay
between the
OSC_ENA rising
edge to the
erase/program
signal rising edge
250
250
250
ns
tOSCH
Minimum delay
allowed from the
erase/program
signal going low to
OSC_ENA signal
going low
250
250
250
ns
5–18
MAX II Device Handbook, Volume 1
180
180
65
180
65
Core Version a.b.c variable
ns
65
ns
Altera Corporation
December 2006
DC & Switching Characteristics
Figures 5–3 through 5–5 show the read, program, and erase waveforms
for UFM block timing parameters shown in Table 5–21.
Figure 5–3. UFM Read Waveforms
ARShft
tASU
tACLK
9 Address Bits tAH
ARClk
tADH
ARDin
DRShft
tADS
tDSS
DRClk
tDCLK 16 Data Bits
tDSH
tDCO
DRDin
DRDout
OSC_ENA
Program
Erase
Busy
Figure 5–4. UFM Program Waveforms
ARShft
tASU
ARClk
9 Address Bits
tACLK
tAH
tADH
ARDin
DRShft
tADS
tDSS
16 Data Bits
tDCLK
tDSH
DRClk
DRDin
DRDout
tDDS
tDDH
tOSCS
tOSCH
OSC_ENA
Program
tPB
Erase
tBP
Busy
tPPMX
Altera Corporation
December 2006
Core Version a.b.c variable
5–19
MAX II Device Handbook, Volume 1
Timing Model & Specifications
Figure 5–5. UFM Erase Waveforms
ARShft
tASU
tACLK
9 Address Bits
ARClk
tAH
tADH
ARDin
DRShft
tADS
DRClk
DRDin
DRDout
OSC_ENA
tOSCS
Program
tOSCH
Erase
tEB
Busy
tBE
tEPMX
Table 5–22. Routing Delay Internal Timing Microparameters
-3 Speed Grade
-4 Speed Grade
-5 Speed Grade
Min
Min
Min
Routing
Unit
Max
Max
Max
tC4
429
556
687
ps
tR4
326
423
521
ps
tLOCAL
330
429
529
ps
External Timing Parameters
External timing parameters are specified by device density and speed
grade. All external I/O timing parameters shown are for the 3.3-V LVTTL
I/O standard with the maximum drive strength and fast slew rate. For
external I/O timing using standards other than LVTTL or for different
drive strengths, use the I/O standard input and output delay adders in
Tables 5–27 through 5–31.
f
For more information on each external timing parameters symbol, refer
to the chapter on Understanding Timing in MAX II Devices.
5–20
MAX II Device Handbook, Volume 1
Core Version a.b.c variable
Altera Corporation
December 2006
DC & Switching Characteristics
Table 5–23 shows the external I/O timing parameters for EPM240
devices.
Table 5–23. EPM240 Global Clock External I/O Timing Parameters
-3 Speed Grade
Symbol
Parameter
-4 Speed Grade
-5 Speed Grade
Condition
Unit
Min
Max
Min
Max
Min
Max
tPD1
Worst case
pin to pin
delay through
1 look-up
table (LUT)
10 pF
4.7
6.1
7.5
ns
tPD2
Best case pin
to pin delay
through
1 LUT
10 pF
3.7
4.8
5.9
ns
tSU
Global clock
setup time
1.7
2.2
2.7
ns
tH
Global clock
hold time
0.0
0.0
0.0
ns
tCO
Global clock
to output
delay
tCH
Global clock
high time
166
216
266
ps
tCL
Global clock
low time
166
216
266
ps
tCNT
Minimum
global clock
period for
16-bit
counter
3.3
4.0
5.0
ns
fCNT
Maximum
global clock
frequency for
16-bit
counter
10 pF
2.0
4.3
2.0
304.0
(1)
5.6
247.5
2.0
6.9
201.1
ns
MHz
Note to Table 5–23:
(1)
The maximum frequency is limited by the I/O standard on the clock input pin. The 16-bit counter critical delay
performs faster than this global clock input pin maximum frequency.
Altera Corporation
December 2006
Core Version a.b.c variable
5–21
MAX II Device Handbook, Volume 1
Timing Model & Specifications
Table 5–24 shows the external I/O timing parameters for EPM570
devices.
Table 5–24. EPM570 Global Clock External I/O Timing Parameters
-3 Speed Grade
Symbol
Parameter
-4 Speed Grade
-5 Speed Grade
Condition
Unit
Min
Max
Min
Max
Min
Max
tPD1
Worst case
pin to pin
delay through
1 look-up
table (LUT)
10 pF
5.4
7.0
8.7
ns
tPD2
Best case pin
to pin delay
through 1
LUT
10 pF
3.7
4.8
5.9
ns
tSU
Global clock
setup time
1.2
1.5
1.9
ns
tH
Global clock
hold time
0.0
0.0
0.0
ns
tCO
Global clock
to output
delay
tCH
Global clock
high time
166
216
266
ps
tCL
Global clock
low time
166
216
266
ps
tCNT
Minimum
global clock
period for
16-bit
counter
3.3
4.0
5.0
ns
fCNT
Maximum
global clock
frequency for
16-bit
counter
10 pF
2.0
4.5
2.0
304.0
(1)
5.8
247.5
2.0
7.1
201.1
ns
MHz
Note to Table 5–24:
(1)
The maximum frequency is limited by the I/O standard on the clock input pin. The 16-bit counter critical delay
performs faster than this global clock input pin maximum frequency.
5–22
MAX II Device Handbook, Volume 1
Core Version a.b.c variable
Altera Corporation
December 2006
DC & Switching Characteristics
Table 5–25 shows the external I/O timing parameters for EPM1270
devices
Table 5–25. EPM1270 Global Clock External I/O Timing Parameters
-3 Speed Grade
Symbol
Parameter
-4 Speed Grade
-5 Speed Grade
Condition
Unit
Min
Max
Min
Max
Min
Max
tPD1
Worst case
pin to pin
delay through
1 look-up
table (LUT)
10 pF
6.2
8.1
10.0
ns
tPD2
Best case pin
to pin delay
through 1
LUT
10 pF
3.7
4.8
5.9
ns
tSU
Global clock
setup time
1.2
1.5
1.9
ns
tH
Global clock
hold time
0.0
0.0
0.0
ns
tCO
Global clock
to output
delay
tCH
Global clock
high time
166
216
266
ps
tCL
Global clock
low time
166
216
266
ps
tCNT
Minimum
global clock
period for
16-bit
counter
3.3
4.0
5.0
ns
fCNT
Maximum
global clock
frequency for
16-bit
counter
10 pF
2.0
4.6
2.0
304.0
(1)
5.9
247.5
2.0
7.3
201.1
ns
MHz
Note to Table 5–25:
(1)
The maximum frequency is limited by the I/O standard on the clock input pin. The 16-bit counter critical delay
performs faster than this global clock input pin maximum frequency.
Altera Corporation
December 2006
Core Version a.b.c variable
5–23
MAX II Device Handbook, Volume 1
Timing Model & Specifications
Table 5–26 shows the external I/O timing parameters for EPM2210
devices.
Table 5–26. EPM2210 Global Clock External I/O Timing Parameters
-3 Speed Grade
Symbol
Parameter
-4 Speed Grade
-5 Speed Grade
Condition
Unit
Min
Max
Min
Max
Min
Max
tPD1
Worst case
pin to pin
delay through
1 look-up
table (LUT)
10 pF
7.0
9.1
11.2
ns
tPD2
Best case pin
to pin delay
through 1
LUT
10 pF
3.7
4.8
5.9
ns
tSU
Global clock
setup time
1.2
1.5
1.9
ns
tH
Global clock
hold time
0.0
0.0
0.0
ns
tCO
Global clock
to output
delay
tCH
Global clock
high time
166
216
266
ps
tCL
Global clock
low time
166
216
266
ps
tCNT
Minimum
global clock
period for
16-bit
counter
3.3
4.0
5.0
ns
fCNT
Maximum
global clock
frequency for
16-bit
counter
10 pF
2.0
4.6
2.0
304.0
(1)
6.0
247.5
2.0
7.4
201.1
ns
MHz
Note to Table 5–26:
(1)
The maximum frequency is limited by the I/O standard on the clock input pin. The 16-bit counter critical delay
performs faster than this global clock input pin maximum frequency.
5–24
MAX II Device Handbook, Volume 1
Core Version a.b.c variable
Altera Corporation
December 2006
DC & Switching Characteristics
External Timing I/O Delay Adders
I/O delay timing parameters for I/O standard input and output adders
and input delays are specified by speed grade independent of device
density.
Tables 5–27 through 5–31 show the adder delays associated with I/O pins
for all packages. If an I/O standard other than 3.3-V LVTTL is selected,
add the input delay adder to the external tSU timing parameters shown in
Tables 5–23 through 5–26. If an I/O standard other than 3.3-V LVTTL
with 16 mA drive strength and fast slew rate is selected, add the output
delay adder to the external tCO and tPD shown in Tables 5–23 through
5–26.
Table 5–27. External Timing Input Delay Adders
-3 Speed Grade
-4 Speed Grade
-5 Speed Grade
Min
Min
Min
Standard
3.3-V LVTTL
Without Schmitt
Trigger
Unit
Max
Max
Max
0
0
0
ps
334
434
535
ps
0
0
0
ps
With Schmitt
Trigger
334
434
535
ps
Without Schmitt
Trigger
23
30
37
ps
With Schmitt
Trigger
339
441
543
ps
1.8-V LVTTL
Without Schmitt
Trigger
291
378
466
ps
1.5-V LVTTL
Without Schmitt
Trigger
681
885
1,090
ps
3.3-V PCI
Without Schmitt
Trigger
0
0
0
ps
With Schmitt
Trigger
3.3-V LVCMOS
2.5-V LVTTL
Without Schmitt
Trigger
Altera Corporation
December 2006
Core Version a.b.c variable
5–25
MAX II Device Handbook, Volume 1
Timing Model & Specifications
Table 5–28. External Timing Input Delay tGLOB Adders for GCLK Pins
-3 Speed Grade
-4 Speed Grade
-5 Speed Grade
Min
Min
Min
Standard
3.3-V LVTTL
Unit
Max
Without Schmitt
Trigger
Max
Max
0
0
0
ps
308
400
493
ps
0
0
0
ps
With Schmitt
Trigger
308
400
493
ps
Without Schmitt
Trigger
21
27
33
ps
With Schmitt
Trigger
423
550
677
ps
1.8-V LVTTL
Without Schmitt
Trigger
353
459
565
ps
1.5-V LVTTL
Without Schmitt
Trigger
855
1,111
1,368
ps
3.3-V PCI
Without Schmitt
Trigger
6
7
9
ps
With Schmitt
Trigger
3.3-V LVCMOS
2.5-V LVTTL
Without Schmitt
Trigger
Table 5–29. External Timing Output Delay & tOD Adders for Fast Slew Rate
-3 Speed Grade
-4 Speed Grade
-5 Speed Grade
Min
Min
Min
Standard
3.3-V LVTTL
Unit
Max
Max
Max
16 mA
0
0
0
ps
8 mA
65
84
104
ps
3.3-V LVCMOS
8 mA
0
0
0
ps
4 mA
65
84
104
ps
2.5-V LVTTL
14 mA
122
158
195
ps
7 mA
193
251
309
ps
6 mA
568
738
909
ps
1.8-V LVTTL
3 mA
654
850
1,046
ps
1.5-V LVTTL
4 mA
1,059
1,376
1,694
ps
2 mA
1,167
1,517
1,867
ps
3.3-V PCI
20 mA
3
4
5
ps
5–26
MAX II Device Handbook, Volume 1
Core Version a.b.c variable
Altera Corporation
December 2006
DC & Switching Characteristics
Table 5–30. External Timing Output Delay & tOD Adders for Slow Slew Rate
-3 Speed Grade
-4 Speed Grade
-5 Speed Grade
Min
Min
Min
Standard
3.3-V LVTTL
Unit
Max
Max
Max
16 mA
7,064
6,745
6,426
ps
8 mA
7,946
7,627
7,308
ps
3.3-V LVCMOS
8 mA
7,064
6,745
6,426
ps
4 mA
7,946
7,627
7,308
ps
2.5-V LVTTL
14 mA
10,434
10,115
9,796
ps
7 mA
11,548
11,229
10,910
ps
1.8-V LVTTL /
LVCMOS
6 mA
22,927
22,608
22,289
ps
3 mA
24,731
24,412
24,093
ps
1.5-V LVCMOS
4 mA
38,723
38,404
38,085
ps
2 mA
41,330
41,011
40,692
ps
3.3-V PCI
20 mA
261
339
418
ps
Table 5–31. MAX II IOE Programmable Delays
-3 Speed Grade
-4 Speed Grade
-5 Speed Grade
Parameter
Unit
Min
Max
Min
Max
Min
Max
Increase_input_delay_to_internal_cells=ON
1,225
1,592
1,960
ps
Increase_input_delay_to_internal_cells=OFF
89
115
142
ps
Maximum Input & Output Clock Rates
Tables 5–32 and 5–33 show the maximum input and output clock rates for
standard I/O pins in MAX II devices.
Table 5–32. MAX II Maximum Input Clock Rate for I/O (Part 1 of 2)
Standard
3.3-V LVTTL
3.3-V LVCMOS
Altera Corporation
December 2006
-3 Speed Grade
-4 Speed Grade
-5 Speed Grade
Unit
Without Schmitt
Trigger
304
304
304
MHz
With Schmitt Trigger
250
250
250
MHz
Without Schmitt
Trigger
304
304
304
MHz
With Schmitt Trigger
250
250
250
MHz
Core Version a.b.c variable
5–27
MAX II Device Handbook, Volume 1
Timing Model & Specifications
Table 5–32. MAX II Maximum Input Clock Rate for I/O (Part 2 of 2)
Standard
-3 Speed Grade
-4 Speed Grade
-5 Speed Grade
Unit
Without Schmitt
Trigger
220
220
220
MHz
With Schmitt Trigger
188
188
188
MHz
2.5-V LVCMOS
Without Schmitt
Trigger
220
220
220
MHz
With Schmitt Trigger
188
188
188
MHz
1.8-V LVTTL
Without Schmitt
Trigger
200
200
200
MHz
1.8-V LVCMOS
Without Schmitt
Trigger
200
200
200
MHz
1.5-V LVCMOS
Without Schmitt
Trigger
150
150
150
MHz
3.3-V PCI
Without Schmitt
Trigger
304
304
304
MHz
2.5-V LVTTL
Table 5–33. MAX II Maximum Output Clock Rate for I/O
Standard
-3 Speed Grade
-4 Speed Grade
-5 Speed Grade
Unit
3.3-V LVTTL
304
304
304
MHz
3.3-V LVCMOS
304
304
304
MHz
2.5-V LVTTL
220
220
220
MHz
2.5-V LVCMOS
220
220
220
MHz
1.8-V LVTTL
200
200
200
MHz
1.8-V LVCMOS
200
200
200
MHz
1.5-V LVCMOS
150
150
150
MHz
3.3-V PCI
304
304
304
MHz
5–28
MAX II Device Handbook, Volume 1
Core Version a.b.c variable
Altera Corporation
December 2006
DC & Switching Characteristics
JTAG Timing Specifications
Figure 5–6 shows the timing waveforms for the JTAG signals.
Figure 5–6. MAX II JTAG Timing Waveforms
TMS
TDI
t JCP
t JCH
t JCL
t JPH
t JPSU
TCK
tJPZX
t JPXZ
t JPCO
TDO
tJSSU
Signal
to Be
Captured
tJSCO
tJSZX
Signal
to Be
Driven
tJSH
tJSXZ
Table 5–34 shows the JTAG Timing parameters and values for MAX II
devices.
Table 5–34. MAX II JTAG Timing Parameters (Part 1 of 2)
Symbol
Parameter
Min
TCK clock period for
VCCIO1 = 3.3 V
55.5
ns
TCK clock period for
VCCIO1 = 2.5 V
62.5
ns
TCK clock period for
VCCIO1 = 1.8 V
100
ns
TCK clock period for
VCCIO1 = 1.5 V
143
ns
tJCH
TCK clock high time
20
ns
tJCL
TCK clock low time
20
ns
tJPSU
JTAG port setup time
(2)
8
ns
tJPH
JTAG port hold time
10
ns
tJCP (1)
Altera Corporation
December 2006
Core Version a.b.c variable
Max
Unit
5–29
MAX II Device Handbook, Volume 1
Timing Model & Specifications
Table 5–34. MAX II JTAG Timing Parameters (Part 2 of 2)
Symbol
Parameter
Min
Max
Unit
tJPCO
JTAG port clock to
output (2)
15
ns
tJPZX
JTAG port high
impedance to valid
output (2)
15
ns
tJPXZ
JTAG port valid
output to high
impedance (2)
15
ns
tJSSU
Capture register
setup time
8
ns
tJSH
Capture register hold
time
10
ns
tJSCO
Update register clock
to output
25
ns
tJSZX
Update register high
impedance to valid
output
25
ns
tJSXZ
Update register valid
output to high
impedance
25
ns
Notes to Table 5–34:
(1)
(2)
Minimum clock period specified for 10 pF load on the TDO pin. Larger loads on TDO will degrade the maximum
TCK frequency.
This specification is shown for 3.3-V LVTTL/LVCMOS and 2.5-V LVTTL/LVCMOS operation of the JTAG pins. For
1.8-V LVTTL/LVCMOS and 1.5-V LVCMOS, the tJPSU minimum is 6 ns and tJPCO, tJPZX, and tJPXZ are maximum
values at 35 ns.
5–30
MAX II Device Handbook, Volume 1
Core Version a.b.c variable
Altera Corporation
December 2006
DC & Switching Characteristics
Document
Revision History
Table 5–35 shows the revision history for this document.
Table 5–35. Document Revision History
Date &
Document
Version
Changes Made
Summary of Changes
December 2006 Added note to Table 5–1.
v1.8
July 2006 v1.7
Minor content and table updates.
February 2006
v1.6
●
●
●
Updated “External Timing I/O Delay Adders” section.
Updated Table 5–29.
Updated Table 5–30.
November 2005 Updated Tables 5-2, 5-4, and 5-12.
v1.5
August 2005
v1.4
Updated Figure 5-1.
Updated Tables 5-13, 5-16, and 5-26.
Removed Note 1 from Table 5-12.
June 2005 v1.3
Updated the RPULLUP parameter in Table 5-4.
Added Note 2 to Tables 5-8 and 5-9.
Updated Table 5-13.
Added Output Drive Characteristics section.
Added I2C mode and Notes 5 and 6 to Table 5-14.
Updated timing values to Tables 5-14 through 5-33.
December 2004 Updated timing Tables 5-2, 5-4, 5-12, and Tables 15-14 through
v1.2
5-34.
Table 5-31 is new.
June 2004 v1.1
Updated timing Tables 5-15 through 5-32.
Altera Corporation
December 2006
Core Version a.b.c variable
5–31
MAX II Device Handbook, Volume 1
Chapter 6. Reference &
Ordering Information
MII51006-1.3
Software
MAX® II devices are supported by the Altera® Quartus® II design software
with new, optional MAX+PLUS® II look and feel, which provides HDL
and schematic design entry, compilation and logic synthesis, full
simulation and advanced timing analysis, and device programming. See
the Design Software Selector Guide for more details on the Quartus II
software features.
The Quartus II software supports the Windows XP/2000/NT, Sun
Solaris, Linux Red Hat v8.0, and HP-UX operating systems. It also
supports seamless integration with industry-leading EDA tools through
the NativeLink® interface.
Device Pin-Outs
Printed device pin-outs for MAX II devices will be released on the Altera
web site (www.altera.com) and in the MAX II Device Handbook when
they are available.
Ordering
Information
Figure 6–1 describes the ordering codes for MAX II devices. For more
information on a specific package, refer to the chapter on Package
Information.
Altera Corporation
December 2006
Core Version a.b.c variable
6–1
Preliminary
Ordering Information
Figure 6–1. MAX II Device Packaging Ordering Information
EPM
240
G
T
100
C
3
ES
Family Signature
EPM:
Optional Suffix
MAX II
Indicates specific device
options or shipment method
ES: Engineering sample
N: Lead-free packaging
Device Type
240:
570:
1270:
2210:
240 Logic Elements
570 Logic Elements
1,270 Logic Elements
2,210 Logic Elements
Speed Grade
3, 4, or 5 with 3 being the fastest
Product-Line Suffix
Operating Temperature
Indicates device core voltage
G:
1.8-V VCCINT device
Blank:
2.5-V or 3.3-V VCCINT device
C:
I:
Commercial temperature (TJ = 0˚ C to 85˚ C)
Industrial temperature (TJ = -40˚ C to 100˚ C)
Package Type
T: Thin quad flat pack (TQFP)
F: FineLine BGA®
M: Micro FineLine BGA
Pin Count
Number of pins for a particular package
6–2
MAX II Device Handbook, Volume 1
Core Version a.b.c variable
Altera Corporation
December 2006
Reference & Ordering Information
Document
Revision History
Table 6–1 shows the revision history for this document.
Table 6–1. Document Revision History
Date &
Document
Version
Changes Made
Summary of Changes
December 2006 Added document revision history.
v1.3
October 2006
v1.2
Updated Figure 6-1.
June 2005 v1.1
Removed Dual Marking section.
Altera Corporation
December 2006
Core Version a.b.c variable
6–3
MAX II Device Handbook, Volume 1
Document Revision History
6–4
MAX II Device Handbook, Volume 1
Core Version a.b.c variable
Altera Corporation
December 2006
工商网监
湘ICP备2023018690号
