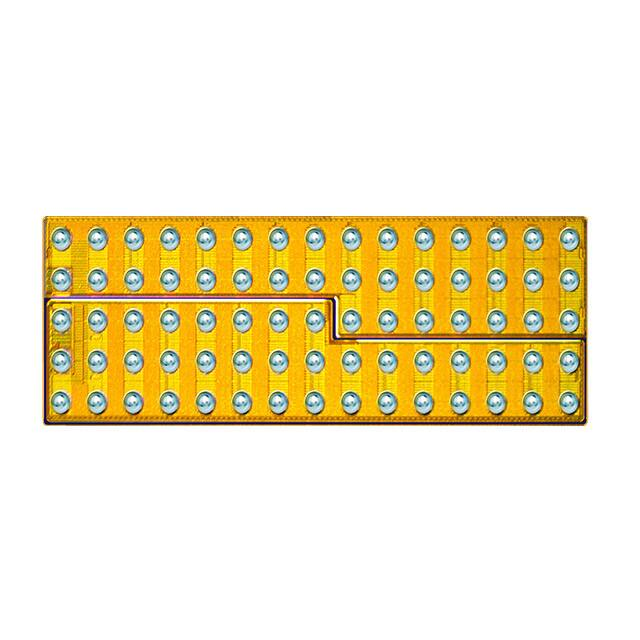

eGaN® FET DATASHEET EPC2102 EPC2102 – Enhancement-Mode GaN Power Transistor Half-Bridge VDS , 60 V RDS(on) , 4.9 mΩ ID , 30 A EFFICIENT POWER CONVERSION HAL Gallium Nitride’s exceptionally high electron mobility and low temperature coefficient allows very low RDS(on), while its lateral device structure and majority carrier diode provide exceptionally low QG and zero QRR. The end result is a device that can handle tasks where very high switching frequency, and low on-time are beneficial as well as those where on-state losses dominate. Maximum Ratings DEVICE PARAMETER VDS Q1 & Q2 ID VGS VALUE Drain-to-Source Voltage (Continuous) 60 Drain-to-Source Voltage (up to 10,000 5 ms pulses at 150°C) 72 Continuous (TA = 25°C, RθJA = 15°C/W) 30 Pulsed (25°C, TPULSE = 300 µs) 220 Gate-to-Source Voltage UNIT V A 6 V Gate-to-Source Voltage -4 TJ Operating Temperature –40 to 150 TSTG Storage Temperature –40 to 150 °C Q1 & Q2 Applications • High Frequency DC-DC Benefits • High Frequency Operation • Ultra High Efficiency Thermal Characteristics PARAMETER EPC2102 eGaN® ICs are supplied only in passivated die form with solder bumps Die Size: 6.05 mm x 2.3 mm TYP RθJC Thermal Resistance, Junction-to-Case 0.3 RθJB Thermal Resistance, Junction-to-Board 2.2 RθJA Thermal Resistance, Junction-to-Ambient (Note 1) 42 UNIT • High Density Footprint °C/W Note 1: RθJA is determined with the device mounted on one square inch of copper pad, single layer 2 oz copper on FR4 board. See https://epc-co.com/epc/documents/product-training/Appnote_Thermal_Performance_of_eGaN_FETs.pdf for details Static Characteristics (TJ = 25°C unless otherwise stated) DEVICE Q1 & Q2 TEST CONDITIONS MIN BVDSS Drain-to-Source Voltage PARAMETER VGS = 0 V, ID = 0.6 mA 60 IDSS Drain-Source Leakage VDS = 48 V, VGS = 0 V 0.008 Gate-to-Source Forward Leakage VGS = 5 V Gate-to-Source Reverse Leakage VGS = -4 V IGSS TYP 0.4 mA 0.015 7 mA 0.008 0.4 mA 1.3 2.5 V 4.9 mΩ Gate Threshold Voltage VDS = VGS, ID = 7 mA RDS(on) Drain-Source On Resistance VGS = 5 V, ID = 20 A 3.6 VSD Source-Drain Forward Voltage IS = 0.5 A, VGS = 0 V 1.7 EPC – POWER CONVERSION TECHNOLOGY LEADER | EPC-CO.COM | ©2020 | UNIT V VGS(TH) 0.8 MAX V | 1 eGaN® FET DATASHEET EPC2102 Dynamic Characteristics (TJ = 25°C unless otherwise stated) DEVICE PARAMETER Q1 Q2 TEST CONDITIONS CISS Input Capacitance CRSS Reverse Transfer Capacitance COSS Output Capacitance COSS(ER) Effective Output Capacitance, Energy Related (Note 2) COSS(TR) Effective Output Capacitance, Time Related (Note 3) QG Total Gate Charge QGS Gate-to-Source Charge QGD Gate-to-Drain Charge QG(TH) Gate Charge at Threshold QOSS Output Charge QRR Source-Drain Recovery Charge CISS Input Capacitance CRSS Reverse Transfer Capacitance COSS Output Capacitance COSS(ER) Effective Output Capacitance, Energy Related (Note 2) COSS(TR) Effective Output Capacitance, Time Related (Note 3) QG Total Gate Charge QGS Gate-to-Source Charge QGD Gate-to-Drain Charge QG(TH) Gate Charge at Threshold QOSS Output Charge QRR Source-Drain Recovery Charge MIN VDS = 30 V, VGS = 0 V TYP MAX UNIT 850 1020 11 500 pF 750 695 VDS = 0 to 30 V, VGS = 0 V 863 VDS = 30 V, VGS = 5 V, ID = 20 A 8 11 2.5 VDS = 30 V, ID = 20 A 1.5 nC 1.7 VDS = 30 V, VGS = 0 V 26 39 0 850 VDS = 30 V, VGS = 0 V 1020 11 610 pF 915 830 VDS = 0 to 30 V, VGS = 0 V 1030 VDS = 30 V, VGS = 5 V, ID = 20 A 8 11 2.5 VDS = 30 V, ID = 20 A 1.5 nC 1.7 VDS = 30 V, VGS = 0 V 31 47 0 Note 2: COSS(ER) is a fixed capacitance that gives the same stored energy as COSS while VDS is rising from 0 to 50% BVDSS. Note 3: COSS(TR) is a fixed capacitance that gives the same charging time as COSS while VDS is rising from 0 to 50% BVDSS. Figure 1 (Q1 & Q2): Typical Output Characteristics at 25°C Figure 2 (Q1 & Q2): Transfer Characteristics 200 200 VGS = 5 V 25˚C 125˚C VGS = 3 V 150 ID – Drain Current (A) ID – Drain Current (A) VGS = 4 V VGS = 2 V 100 VDS = 3 V 100 50 50 0 150 0 0.5 1.0 1.5 2.0 VDS – Drain-to-Source Voltage (V) 2.5 3.0 EPC – POWER CONVERSION TECHNOLOGY LEADER | EPC-CO.COM | ©2020 | 0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 VGS – Gate-to-Source Voltage (V) 4.0 4.5 5.0 | 2 eGaN® FET DATASHEET EPC2102 Figure 4 (Q1 & Q2): RDS(on) vs. VGS for Various Temperatures RDS(on) – Drain-to-Source Resistance (mΩ) RDS(on) – Drain-to-Source Resistance (mΩ) Figure 3 (Q1 & Q2): RDS(on) vs. VGS for Various Drain Currents 12 ID = 10 A ID = 20 A ID = 30 A ID = 40 A 8 4 0 2.5 3.0 3.5 4.0 4.5 12 ID = 20 A 8 4 0 5.0 25˚C 125˚C 2.5 VGS – Gate-to-Source Voltage (V) Figure 5a (Q1): Capacitance (Linear Scale) 3.0 3.5 4.0 VGS – Gate-to-Source Voltage (V) 4.5 5.0 Figure 5b (Q1): Capacitance (Log Scale) 2000 1000 Capacitance (pF) 1500 Capacitance (pF) COSS = CGD + CSD CISS = CGD + CGS CRSS = CGD 1000 COSS = CGD + CSD CISS = CGD + CGS CRSS = CGD 10 500 0 100 0 20 40 1 60 VDS – Drain-to-Source Voltage (V) 0 20 40 60 VDS – Drain-to-Source Voltage (V) Figure 5c (Q2): Capacitance (Linear Scale) Figure 5d (Q2): Capacitance (Log Scale) 2000 1000 Capacitance (pF) Capacitance (pF) COSS = CGD + CSD CISS = CGD + CGS CRSS = CGD 1500 1000 COSS = CGD + CSD CISS = CGD + CGS CRSS = CGD 10 500 0 100 0 20 40 60 VDS – Drain-to-Source Voltage (V) EPC – POWER CONVERSION TECHNOLOGY LEADER | EPC-CO.COM | ©2020 | 1 0 20 40 60 VDS – Drain-to-Source Voltage (V) | 3 eGaN® FET DATASHEET EPC2102 Figure 6b (Q2): Output Charge and COSS Stored Energy 0.9 0.6 20 0.3 10 0 0 20 40 60 0.0 50 1.5 40 1.2 30 0.9 20 0.6 10 0.3 0 VDS – Drain-to-Source Voltage (V) EOSS – COSS Stored Energy (μJ) 30 QOSS – Output Charge (nC) 1.2 EOSS – COSS Stored Energy (μJ) QOSS – Output Charge (nC) Figure 6a (Q1): Output Charge and COSS Stored Energy 40 0 20 40 0.0 60 VDS – Drain-to-Source Voltage (V) Figure 7 (Q1 & Q2): Gate Charge Figure 8 (Q1 & Q2): Reverse Drain-Source Characteristics 5 4 ISD – Source-to-Drain Current (A) VGS – Gate-to-Source Voltage (V) 200 ID = 20 A VDS = 30 V 3 2 1 0 0 2 4 QG – Gate Charge (nC) 6 VGSDS = 03 V 100 50 0 8 Figure 9 (Q1 & Q2): Normalized On-State Resistance vs. Temperature 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 VSD – Source-to-Drain Voltage (V) 4.5 5.0 1.4 1.3 1.8 Normalized Threshold Voltage Normalized On-State Resistance RDS(on) 0 Figure 10 (Q1 & Q2): Normalized Threshold Voltage vs. Temperature 2.0 ID = 20 A VGS = 5 V 1.6 1.4 1.2 1.0 0.8 25˚C 125˚C 150 1.2 ID = 7 mA 1.1 1.0 0.9 0.8 0.7 0 25 50 75 100 TJ – Junction Temperature (°C) 125 150 EPC – POWER CONVERSION TECHNOLOGY LEADER | EPC-CO.COM | ©2020 | 0.6 0 25 50 75 100 TJ – Junction Temperature (°C) 125 150 | 4 eGaN® FET DATASHEET Transient Thermal Response Curves (Junction-to-Board) ZθJB, Normalized Thermal Impedance Figure 11a Transient Thermal Response Curves EPC2102 1 Duty Cycle: 0.5 0.2 0.1 0.1 0.05 PDM 0.02 t1 0.01 0.01 Single Pulse 0.001 10-5 10-4 t2 Notes: Duty Factor: D = t1/t2 Peak TJ = PDM x ZθJB x RθJB + TB 10-3 10-2 10-1 1 101 tp, Rectangular Pulse Duration, seconds Transient Thermal Response Curves (Junction-to-Case) ZθJC, Normalized Thermal Impedance Figure 11b Transient Thermal Response Curves 1 Duty Cycle: 0.5 0.2 0.1 0.1 0.05 0.01 PDM 0.02 0.01 0.001 10-6 t1 Notes: Duty Factor: D = t1/t2 Peak TJ = PDM x ZθJC x RθJC + TC Single Pulse 10-5 10-4 10-3 10-2 10-1 1 tp, Rectangular Pulse Duration, seconds Figure 12 (Q1 & Q2): Safe Operating Area Figure 13: Typical Application Circuit 1000 I D – Drain Current (A) 10 VB Limited by RDS(on) HO VS Pulse Width 1 ms 250 µs 100 µs 1 0.1 0.1 eGaNIC Gate driver/ controller 100 1 VCC GND 10 100 VIN + LO VIN Gate 1 GR1 Gate 2 _ Q1 VSW Q2 VOUT + RLoad PGND _ VDS – Drain-Source Voltage (V) TJ = Max Rated, TC = +25°C, Single Pulse EPC – POWER CONVERSION TECHNOLOGY LEADER | EPC-CO.COM | ©2020 | | 5 eGaN® FET DATASHEET EPC2102 TAPE AND REEL CONFIGURATION e 8 mm pitch, 12 mm wide tape on 7” reel d 7” inch reel g f Loaded Tape Feed Direction Gate solder bump is under this corner a b c Die orientation dot YYYY ZZZZ 2102 h DIM EPC2102 (Note 1) a b c (Note 2) d e f (Note 2) g h Dimension (mm) Target MIN MAX 12.00 11.90 12.30 1.75 1.65 1.85 5.50 5.45 5.55 4.00 3.90 4.10 8.00 7.90 8.10 2.00 1.95 2.05 1.50 1.50 1.60 1.50 1.50 1.75 Die is placed into pocket solder bump side down (face side down) Note 1: MSL 1 (moisture sensitivity level 1) classified according to IPC/ JEDEC industry standard. Note 2: Pocket position is relative to the sprocket hole measured as true position of the pocket, not the pocket hole. DIE MARKINGS 2102 YYYY ZZZZ Die orientation dot Part Number EPC2102 Laser Markings Part # Marking Line 1 Lot_Date Code Marking Line 2 Lot_Date Code Marking Line 3 2102 YYYY ZZZZ Gate bumps are along this edge of the die EPC – POWER CONVERSION TECHNOLOGY LEADER | EPC-CO.COM | ©2020 | | 6 eGaN® FET DATASHEET EPC2102 DIE OUTLINE Solder Bump View A 10 15 20 25 30 35 40 45 50 55 60 65 70 75 4 9 14 19 24 29 34 39 44 49 54 59 64 69 74 3 8 13 18 23 28 33 38 43 48 53 58 63 68 73 2 7 12 17 22 27 32 37 42 47 52 57 62 67 72 1 6 11 16 21 26 31 36 41 46 51 56 61 66 71 e A B c d e f 6020 2270 400 450 210 187 6050 2300 400 450 225 208 6080 2330 400 450 240 229 B MAX (625) Pads 5, 14, 15, 24, 25, 34, 35, 43, 44, 45, 53, 54, 55, 63, 64, 65, 73, 74, 75 Ground; Pads 6, 7, 8, 9, 10, 16, 17, 18, 19, 20, 26, 27, 28, 29, 30, 36, 37, 38, 39, 40, 46, 47, 48, 49, 50, 56, 57, 58, 59, 60, 66, 67, 68, 69, 70 are Switch Node 160+/−16 Side View Nominal Pads 1, 11, 12, 13, 21, 22, 23, 31, 32, 33, 41, 42, 51, 52, 61, 62, 71, 72 are VIN; f c MIN Pad 2 is G1; Pad 3 is Q1 Gate Return; Pad 4 is G2; (785) e d 5 DIM Seating plane RECOMMENDED LAND PATTERN (measurements in µm) 6050 6 11 16 21 26 31 36 41 46 51 56 61 66 71 2 7 12 17 22 27 32 37 42 47 52 57 62 67 72 3 8 13 18 23 28 33 38 43 48 53 58 63 68 73 4 9 14 19 24 29 34 39 44 49 54 59 64 69 74 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 The land pattern is solder mask defined. Suggest SMD Pads at 200 +20/–10 µm. 190 µm minimum. 2300 450 1 400 RECOMMENDED STENCIL DRAWING (measurements in µm) 6050 Recommended stencil should be 4 mil (100 µm) thick, must be laser cut, openings per drawing. Intended for use with SAC305 Type 4 solder, reference 88.5% metals content. 2300 275 450 225 Additional assembly resources available at: https://epc-co.com/epc/DesignSupport/ AssemblyBasics.aspx 400 Efficient Power Conversion Corporation (EPC) reserves the right to make changes without further notice to any products herein to improve reliability, function or design. EPC does not assume any liability arising out of the application or use of any product or circuit described herein; neither does it convey any license under its patent rights, nor the rights of others. eGaN® is a registered trademark of Efficient Power Conversion Corporation. EPC Patent Listing: epc-co.com/epc/AboutEPC/Patents.aspx EPC – POWER CONVERSION TECHNOLOGY LEADER | EPC-CO.COM | ©2020 | Information subject to change without notice. Revised June, 2020 | 7
