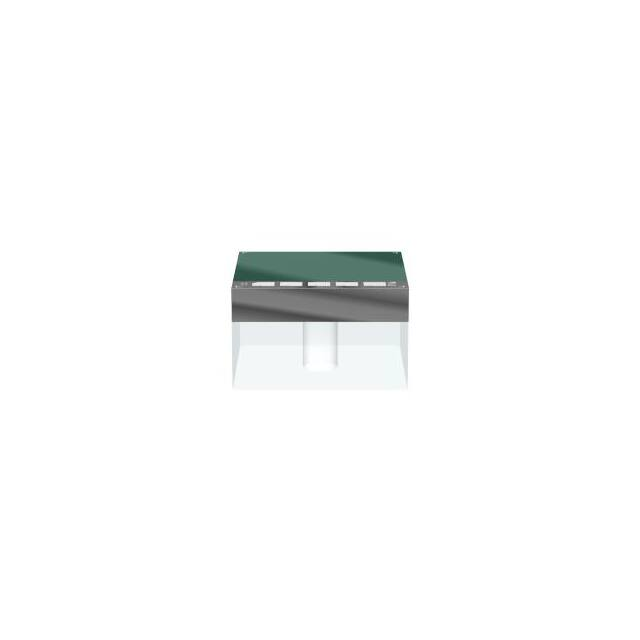

B58601E3815B650

Pressure sensors C38 series Series/Type: Ordering code: Gauge pressure sensor die B58601E38**B650 Date: Version: 2016-09-02 2 Content of header bars 1 and 2 of data sheet will be automatically entered in headers and footers! Please fill in the table and then change the color to "white". This ensures that the table disappears (invisible) for the customer PDF. Don't change formatting when entering or pasting text in the table and don't add any cell or line in and to it! Identification/Classification 1 Pressure sensors (header 1 + top left bar): Identification/Classification 2 C38 series (header 2 + bottom left header bar): Ordering code: (top right header bar) B58601E38**B650 Series/Type: (bottom right header bar) Gauge pressure sensor die Preliminary data (optional): Department: BL SEN PS PD SD Date: 2016-09-02 Version: 2  EPCOS AG 2015. Reproduction, publication and dissemination of this publication, enclosures hereto and the information contained therein without EPCOS' prior express consent is prohibited. EPCOS AG is a TDK Group Company. Pressure sensors C38 series B58601E38**B650 Gauge pressure sensor die Applications  Industrial  Automotive  Medical Features Piezoresistive MEMS technology Small dimensions: 1.65 × 1.65 mm Square diaphragm Measured media (back side): Non-aggressive gases and fluids. Unsuitable for substances which react with glass or silicon.  Wheatstone bridge with mV output, ratiometric to supply voltage  Rated pressure ranges 1.6 up to 40 bar  Outstanding long-term stability     Delivery mode  Tape Dimensional drawings BL SEN PS PD SD Please read Cautions and warnings and Important notes at the end of this document. 2016-09-02 Page 2 of 9 Pressure sensors C38 series B58601E38**B650 Gauge pressure sensor die Technical data Absolute maximum ratings Parameter Symbol Conditions VDD Without damage Min. Typ. Max. Unit Supply voltage Maximum supply soltage 1) 10 V Temperature ranges Operating temperature range Storage temperature range 2) –40 135 °C For t
