EN25QH64A
EN25QH64A
preliminary
64 Megabit 3V Serial Flash Memory with 4Kbyte Uniform Sector
FEATURES
-
-
Single power supply operation
Full voltage range: 2.7-3.6 volt
Serial Interface Architecture
SPI Compatible: Mode 0 and Mode 3
64 M-bit Serial Flash
64 M-bit / 8,192 KByte /32,768 pages
256 bytes per programmable page
Standard, Dual or Quad SPI
Standard SPI: CLK, CS#, DI, DO, WP#,
HOLD#/RESET#
Dual SPI: CLK, CS#, DQ0, DQ1, WP#,
HOLD#/RESET#
Quad SPI: CLK, CS#, DQ0, DQ1, DQ2, DQ3
Configurable dummy cycle number
High performance
Normal read
- 83MHz
Fast read
- Standard SPI: 104MHz with 1 dummy bytes
- Dual SPI: 104MHz with 1 dummy bytes
- Quad SPI: 104MHz with 3 dummy bytes
Low power consumption
5 mA typical active current
1A typical power down current
Uniform Sector Architecture:
2048 sectors of 4-Kbyte
256 blocks of 32-Kbyte
128 blocks of 64-Kbyte
Any sector or block can be erased individually
Software and Hardware Write Protection:
-
- Write Protect all or portion of memory via
software
- Enable/Disable protection with WP# pin
Software and Hardware Reset
High performance program/erase speed
- Page program time: 0.5ms typical
- Sector erase time: 40ms typical
- Half Block erase time 200ms typical
- Block erase time 300ms typical
- Chip erase time: 30 Seconds typical
Volatile Status Register Bits.
Lockable 512 byte OTP security sector
Read Unique ID Number
Minimum 100K endurance cycle
Data retention time 20 years
Package Options

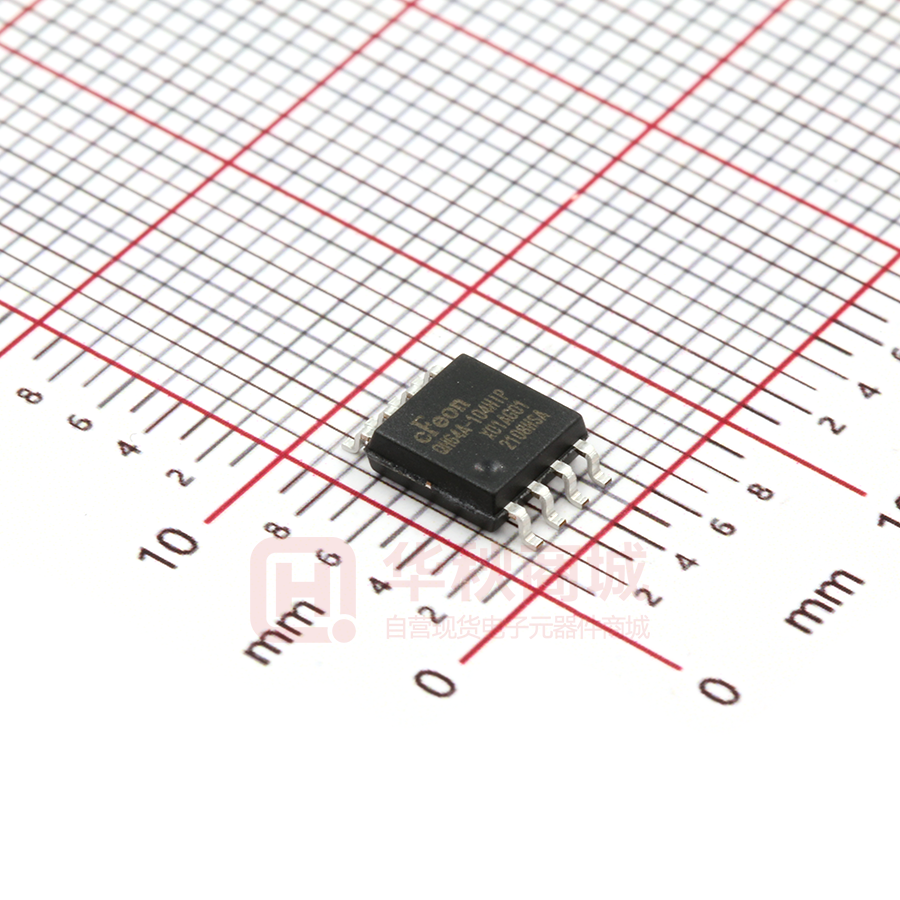

- 8 pins SOP 200mil body width
- 8 contact VDFN(5x6mm)
- 8 pins PDIP
- 16 pins SOP 300mil body width
- 24 balls TFBGA (6x8mm)
- 8 contact VDFN (6x8mm)
- 8 contact USON (4x3x0.55mm)
- All Pb-free packages are compliant RoHS,
Halogen-Free and REACH.
Industrial temperature Range
GENERAL DESCRIPTION
The EN25QH64A is a 64 Megabit (8,192K-byte) Serial Flash memory, with advanced write protection
mechanisms. The EN25QH64A supports the single bit and four bits serial input and output commands
via standard Serial Peripheral Interface (SPI) pins: Serial Clock, Chip Select, Serial DQ 0 (DI) and
DQ1(DO), DQ2(WP#) and DQ3(HOLD#/RESET#). SPI clock frequencies of up to 104MHz are supported
allowing equivalent clock rates of 416MHz (104Mhz x 4) for Quad Output while using the Quad Output
Read instructions. The memory can be programmed 1 to 256 bytes at a time, using the Page Program
instruction.
The EN25QH64A also offers a sophisticated method for protecting individual blocks against erroneous
or malicious program and erase operations. By providing the ability to individually protect and unprotect
blocks, a system can unprotect a specific block to modify its contents while keeping the remaining
blocks of the memory array securely protected. This is useful in applications where program code is
patched or updated on a subroutine or module basis or in applications where data storage segments
need to be modified without running the risk of errant modifications to the program code segments.
The EN25QH64A is designed to allow either single Sector/Block at a time or full chip erase operation.
The EN25QH64A can be configured to protect part of the memory as the software protected mode. The
device can sustain a minimum of 100K program/erase cycles on each sector or block.
This Data Sheet may be revised by subsequent versions
or modifications due to changes in technical specifications.
1
Elite Semiconductor Memory Technology Inc.
Rev. H, Issue Date: 2018/08/23
EN25QH64A
preliminary
Figure.1 CONNECTION DIAGRAMS
CS#
1
8
VCC
DO (DQ1)
2
7
HOLD#/RESET# (DQ3)
WP# (DQ2)
3
6
CLK
4
5
DI (DQ0)
VSS
8 - LEAD SOP / PDIP
CS#
1
8
VCC
DO (DQ1)
2
7
HOLD#/RESET# (DQ3)
WP# (DQ2)
3
6
CLK
4
5
DI (DQ0)
VSS
8 - LEAD VDFN
16 - LEAD SOP
This Data Sheet may be revised by subsequent versions
or modifications due to changes in technical specifications.
2
Elite Semiconductor Memory Technology Inc.
Rev. H, Issue Date: 2018/08/23
EN25QH64A
Top View, Balls Facing Down
preliminary
24 - Ball TFBGA
Table 1. Pin Names
Symbol
Pin Name
CLK
Serial Clock Input
DI (DQ0)
Serial Data Input (Data Input Output 0)
DO (DQ1)
Serial Data Output (Data Input Output 1)
CS#
Chip Enable
WP# (DQ2)
Write Protect (Data Input Output 2)
HOLD#/RESET# (DQ3)
*1
*1
*2
HOLD# or RESET# pin
(Data Input Output 3)
*2
Vcc
Supply Voltage (2.7-3.6V)
Vss
Ground
NC
No Connect
Note:
1. DQ0 and DQ1 are used for Dual and Quad instructions.
2. DQ0 ~ DQ3 are used for Quad instructions,
WP# & HOLD# (or RESET#) functions are only available for Standard/Dual SPI.
This Data Sheet may be revised by subsequent versions
or modifications due to changes in technical specifications.
3
Elite Semiconductor Memory Technology Inc.
Rev. H, Issue Date: 2018/08/23
EN25QH64A
preliminary
Figure 2. BLOCK DIAGRAM
Flash
Memory
X-Decoder
Address
Buffer
And
Latches
Y-Decoder
I/O Buffers
and
Data Latches
Control Logic
Serial Interface
CS#
CLK
DI (DQ0)
DO (DQ1)
WP# (DQ2)
HOLD# / RESET#
(DQ3)
Note:
1. DQ0 and DQ1 are used for Dual instructions.
2. DQ0 ~ DQ3 are used for Quad instructions.
This Data Sheet may be revised by subsequent versions
or modifications due to changes in technical specifications.
4
Elite Semiconductor Memory Technology Inc.
Rev. H, Issue Date: 2018/08/23
EN25QH64A
preliminary
SIGNAL DESCRIPTION
Serial Data Input, Output and IOs (DI, DO and DQ0, DQ1, DQ2, DQ3)
The EN25QH64A support standard SPI, Dual SPI and Quad SPI operation. Standard SPI instructions
use the unidirectional DI (input) pin to serially write instructions, addresses or data to the device on the
rising edge of the Serial Clock (CLK) input pin. Standard SPI also uses the unidirectional DO (output) to
read data or status from the device on the falling edge CLK.
Dual and Quad SPI instruction use the bidirectional IO pins to serially write instruction, addresses or
data to the device on the rising edge of CLK and read data or status from the device on the falling edge
of CLK.
Serial Clock (CLK)
The SPI Serial Clock Input (CLK) pin provides the timing for serial input and output operations. ("See
SPI Mode")
Chip Select (CS#)
The SPI Chip Select (CS#) pin enables and disables device operation. When CS# is high the device is
deselected and the Serial Data Output (DO, or DQ0, DQ1, DQ2 and DQ3) pins are at high impedance.
When deselected, the devices power consumption will be at standby levels unless an internal erase,
program or status register cycle is in progress. When CS# is brought low the device will be selected,
power consumption will increase to active levels and instructions can be written to and data read from
the device. After power-up, CS# must transition from high to low before a new instruction will be
accepted.
Write Protect (WP#)
The Write Protect (WP#) pin can be used to prevent the Status Register from being written. Used in
conjunction with the Status Register’s Block Protect (SR.5, SR.4, SR.3, SR.2) bits and Status Register
Protect (SRP) bits, a portion or the entire memory array can be hardware protected. The WP# function
is only available for standard SPI and Dual SPI operation, when during Quad SPI, this pin is the Serial
Data IO (DQ2) for Quad I/O operation.
HOLD (HOLD#)
The HOLD# pin allows the device to be paused while it is actively selected. When WXDIS bit is “0”
(factory default) and HRSW bit is ‘0’ (factory default is ‘0’), the HOLD# pin is enabled. When HOLD# is
brought low, while CS# is low, the DO pin will be at high impedance and signals on the DI and CLK pins
will be ignored (don’t care). The hold function can be useful when multiple devices are sharing the same
SPI signals. The HOLD# function is only available for standard SPI and Dual SPI operation, when during
Quad SPI, this pin is the Serial Data IO (DQ3) for Quad I/O operation.
RESET (RESET#)
The RESET# pin allows the device to be reset by the controller. When WXDIS bit is “0” (factory default)
and HRSW bit is ‘1’ (factory default is ‘0’), the RESET# pin is enabled. The Hardware Reset function is
only available for standard SPI and Dual SPI operation, when during Quad SPI, this pin is the Serial
Data IO (DQ3) for Quad I/O operation. Set RESET# to low for a minimum period 1us (tHRST) will
interrupt any on-going instructions to have the device to initial state. The device can accept new
instructions again in 28us (tHRSL) after RESET# back to high.
This Data Sheet may be revised by subsequent versions
or modifications due to changes in technical specifications.
5
Elite Semiconductor Memory Technology Inc.
Rev. H, Issue Date: 2018/08/23
EN25QH64A
preliminary
MEMORY ORGANIZATION
The memory is organized as:
8,388,608 bytes
Uniform Sector Architecture
128 blocks of 64-Kbyte
256 blocks of 32-Kbyte
2,048 sectors of 4-Kbyte
32,768 pages (256 bytes each)
Each page can be individually programmed (bits are programmed from 1 to 0). The device is Sector,
Block or Chip Erasable but not Page Erasable.
This Data Sheet may be revised by subsequent versions
or modifications due to changes in technical specifications.
6
Elite Semiconductor Memory Technology Inc.
Rev. H, Issue Date: 2018/08/23
EN25QH64A
preliminary
511
01FF000h
01FFFFFh
….
….
….
….
….
….
….
….
62FFFFh
….
….
196
1568
1567
620000h
61F000h
620FFFh
61FFFFh
195
193
1552
1551
610000h
60F000h
610FFFh
60FFFFh
192
1536
600000h
600FFFh
32K
Block
Sector
31
255
30
240
239
00F0000h
00EF000h
00F0FFFh
00EFFFFh
97
194
96
256
0100000h
0100FFFh
This Data Sheet may be revised by subsequent versions
or modifications due to changes in technical specifications.
….
….
….
27
224
223
00E0000h
00DF000h
00E0FFFh
00DFFFFh
….
….
….
26
208
00D0000h
00D0FFFh
14
28
….
….
….
5
47
002F000h
002FFFFh
….
….
….
13
4
32
31
0020000h
001F000h
0020FFFh
001FFFFh
2
3
1
2
1
0
0
7
00FFFFFh
….
0110FFFh
010FFFFh
29
00FF000h
16
15
0010000h
000F000h
0010FFFh
000FFFFh
….
0110000h
010F000h
15
Address range
….
64K
Block
….
….
272
271
….
….
….
32
0120FFFh
011FFFFh
….
33
16
0120000h
011F000h
….
34
288
287
….
35
….
012FFFFh
….
012F000h
17
62F000h
….
303
36
1583
….
01D0FFFh
37
18
197
….
….
01D0000h
….
….
….
464
….
01E0FFFh
01DFFFFh
….
….
01E0000h
01DF000h
….
480
479
….
….
58
01F0FFFh
01EFFFFh
….
59
29
01F0000h
01EF000h
….
60
496
495
….
61
30
6D0FFFh
98
Address range
….
62
6D0000h
….
63
31
1744
….
Sector
218
109
….
32K
Block
…......
64K
Block
6E0FFFh
6DFFFFh
….
700FFFh
6E0000h
6DF000h
….
700000h
219
1760
1759
220
…......
1972
221
…......
224
112
6F0FFFh
6EFFFFh
6FFFFFh
….
1F10FFFh
1F0FFFFh
….
1F10000h
1F0F000h
….
7952
7951
….
225
720FFFh
71FFFFh
6F0000h
6EF000h
110
….
226
720000h
71F000h
….
227
113
1824
1823
….
228
….
72FFFFh
….
72F000h
….
1839
1776
1775
….
229
114
222
6FF000h
….
7D0FFFh
1791
….
….
7D0000h
….
….
….
2000
….
7E0FFFh
7DFFFFh
….
….
7E0000h
7DF000h
….
2016
2015
….
….
250
….
251
125
7F0FFFh
7EFFFFh
….
252
7F0000h
7EF000h
….
253
126
2032
2031
….
254
223
111
….
7FFFFFh
Address range
….
7FF000h
Sector
….
2047
32K
Block
….
255
127
64K
Block
Address range
….
Sector
….
32K
Block
….
64K
Block
….
Table 2. Uniform Block Sector Architecture
0
0000000h
0000FFFh
Elite Semiconductor Memory Technology Inc.
Rev. H, Issue Date: 2018/08/23
EN25QH64A
preliminary
OPERATING FEATURES
Standard SPI Modes
The EN25QH64A is accessed through an SPI compatible bus consisting of four signals: Serial Clock
(CLK), Chip Select (CS#), Serial Data Input (DI) and Serial Data Output (DO). Both SPI bus operation
Modes 0 (0,0) and 3 (1,1) are supported. The primary difference between Mode 0 and Mode 3, as
shown in Figure 3, concerns the normal state of the CLK signal when the SPI bus master is in standby
and data is not being transferred to the Serial Flash. For Mode 0 the CLK signal is normally low. For
Mode 3 the CLK signal is normally high. In either case data input on the DI pin is sampled on the rising
edge of the CLK. Data output on the DO pin is clocked out on the falling edge of CLK.
Figure 3. SPI Modes
Dual SPI Instruction
The EN25QH64A supports Dual SPI operation when using the “ Dual Output Fast Read and Dual I/ O
FAST_READ “ (3Bh and BBh) instructions. These instructions allow data to be transferred to or from
the Serial Flash memory at two to three times the rate possible with the standard SPI. The Dual Read
instructions are ideal for quickly downloading code from Flash to RAM upon power-up (code-shadowing)
or for application that cache code-segments to RAM for execution. The Dual output feature simply
allows the SPI input pin to also serve as an output during this instruction. When using Dual SPI
instructions the DI and DO pins become bidirectional I/O pins; DQ 0 and DQ1. All other operations use
the standard SPI interface with single output signal.
Quad I/O SPI Modes
The EN25QH64A supports Quad output operation when using the Quad I/O Fast Read (EBh).This
instruction allows data to be transferred to or from the Serial Flash memory at four to six times the rate
possible with the standard SPI. The Quad Read instruction offer a significant improvement in continuous
and random access transfer rates allowing fast code-shadowing to RAM or for application that cache
code-segments to RAM for execution. When using Quad I/O SPI instructions, the DI and DO pins
become bidirectional I/O pins; DQ0 and DQ1, and the WP# and HOLD#/RESET# pins become DQ2 and
DQ3 respectively.
This Data Sheet may be revised by subsequent versions
or modifications due to changes in technical specifications.
8
Elite Semiconductor Memory Technology Inc.
Rev. H, Issue Date: 2018/08/23
EN25QH64A
preliminary
Figure 4. Quad SPI Modes
Full Quad SPI Modes (QPI)
The EN25QH64A also supports Full Quad SPI Mode (QPI) function while using the Enable Quad
Peripheral Interface mode (EQPI) (38h). When using Quad SPI instruction the DI and DO pins become
bidirectional I/O pins; DQ0 and DQ1, and the WP# and HOLD#/RESET# pins become DQ2 and DQ3
respectively.
Figure 5. Full Quad SPI Modes
This Data Sheet may be revised by subsequent versions
or modifications due to changes in technical specifications.
9
Elite Semiconductor Memory Technology Inc.
Rev. H, Issue Date: 2018/08/23
EN25QH64A
preliminary
Page Programming
To program one data byte, two instructions are required: Write Enable (WREN), which is one byte, and
a Page Program (PP) or Quad Input Page Program (QPP) sequence, which consists of four bytes plus
data. This is followed by the internal Program cycle (of duration tPP).
To spread this overhead, the Page Program (PP) or Quad Input Page Program (QPP) instruction allows
up to 256 bytes to be programmed at a time (changing bits from 1 to 0) provided that they lie in
consecutive addresses on the same page of memory.
Sector Erase, Half Block Erase, Block Erase and Chip Erase
The Page Program (PP) or Quad Input Page Program (QPP) instruction allows bits to be reset from 1 to
0. Before this can be applied, the bytes of memory need to have been erased to all 1s (FFh). This can
be achieved a sector at a time, using the Sector Erase (SE) instruction, half a block at a time using the
Half Block Erase (HBE) instruction, a block at a time using the Block Erase (BE) instruction or
throughout the entire memory, using the Chip Erase (CE) instruction. This starts an internal Erase cycle
(of duration tSE, tHBE, tBE or tCE). The Erase instruction must be preceded by a Write Enable (WREN)
instruction.
Polling During a Write, Program or Erase Cycle
A further improvement in the time to Write Status Register (WRSR), Program (PP, QPP) or Erase (SE,
HBE, BE or CE) can be achieved by not waiting for the worst case delay (tW , tPP, tSE, tHBE, tBE or tCE). The
Write In Progress (WIP) bit is provided in the Status Register so that the application program can
monitor its value, polling it to establish when the previous Write cycle, Program cycle or Erase cycle is
complete.
Active Power, Stand-by Power and Deep Power-Down Modes
When Chip Select (CS#) is Low, the device is enabled, and in the Active Power mode. When Chip
Select (CS#) is High, the device is disabled, but could remain in the Active Power mode until all internal
cycles have completed (Program, Erase, Write Status Register). The device then goes into the Stand-by
Power mode. The device consumption drops to ICC1.
The Deep Power-down mode is entered when the specific instruction (the Enter Deep Power-down
Mode (DP) instruction) is executed. The device consumption drops further to ICC2. The device remains in
this mode until another specific instruction (the Release from Deep Power-down Mode and Read Device
ID (RDI) instruction) is executed.
All other instructions are ignored while the device is in the Deep Power-down mode. This can be used
as an extra software protection mechanism, when the device is not in active use, to protect the device
from inadvertent Write, Program or Erase instructions.
Write Protection
Applications that use non-volatile memory must take into consideration the possibility of noise and other
adverse system conditions that may compromise data integrity. To address this concern the
EN25QH64A provides the following data protection mechanisms:
Power-On Reset and an internal timer (tPUW ) can provide protection against inadvertent changes
while the power supply is outside the operating specification.
Program, Erase and Write Status Register instructions are checked that they consist of a number
of clock pulses that is a multiple of eight, before they are accepted for execution.
All instructions that modify data must be preceded by a Write Enable (WREN) instruction to set the
Write Enable Latch (WEL) bit. This bit is returned to its reset state by the following events:
– Power-up
– Write Disable (WRDI) instruction completion or Write Status Register (WRSR) instruction
completion or Page Program (PP), Quad Input Page Program (QPP) instruction completion
or Sector Erase (SE) instruction completion or Half Block Erase (HBE) / Block Erase (BE)
instruction completion or Chip Erase (CE) instruction completion
– Software/Hardware Reset completion
The Block Protect (BP3, BP2, BP1, BP0) bits allow part of the memory to be configured as readonly. This is the Software Protected Mode (SPM).
The Write Protect (WP#) signal allows the Block Protect (BP3, BP2, BP1, BP0) bits and Status
Register Protect (SRP) bit to be protected. This is the Hardware Protected Mode (HPM).
In addition to the low power consumption feature, the Deep Power-down mode offers extra
software protection from inadvertent Write, Program and Erase instructions, as all instructions are
ignored except one particular instruction (the Release from Deep Power-down instruction).
This Data Sheet may be revised by subsequent versions
or modifications due to changes in technical specifications.
10
Elite Semiconductor Memory Technology Inc.
Rev. H, Issue Date: 2018/08/23
EN25QH64A
preliminary
Table 3. Protected Area Sizes Sector Organization
Status Register Content
T/B SR.5 SR.4 SR.3 SR.2
Bit Bit
Bit
Bit
Bit
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
Memory Content
Protect Areas
Addresses
None
Block 127
Block 126 to 127
Block 124 to 127
Block 120 to 127
Block 112 to 127
Block 96 to 127
Block 64 to 127
Block 32 to 127
Block 16 to 127
Block 8 to 127
Block 4 to 127
Block 2 to 127
Block 1 to 127
All
All
None
Block 0
Block 0 to 1
Block 0 to 3
Block 0 to 7
Block 0 to 15
Block 0 to 31
Block 0 to 63
Block 0 to 95
Block 0 to 111
Block 0 to 119
Block 0 to 123
Block 0 to 125
Block 0 to 126
All
All
This Data Sheet may be revised by subsequent versions
or modifications due to changes in technical specifications.
None
7F0000h-7FFFFFh
7E0000h-7FFFFFh
7C0000h-7FFFFFh
780000h-7FFFFFh
700000h-7FFFFFh
600000h-7FFFFFh
400000h-7FFFFFh
200000h-7FFFFFh
100000h-7FFFFFh
080000h-7FFFFFh
040000h-7FFFFFh
020000h-7FFFFFh
010000h-7FFFFFh
000000h-7FFFFFh
000000h-7FFFFFh
None
000000h-00FFFFh
000000h-01FFFFh
000000h-03FFFFh
000000h-07FFFFh
000000h-0FFFFFh
000000h-1FFFFFh
000000h-3FFFFFh
000000h-5FFFFFh
000000h-6FFFFFh
000000h-77FFFFh
000000h-7BFFFFh
000000h-7DFFFFh
000000h-7EFFFFh
000000h-7FFFFFh
000000h-7FFFFFh
11
Density(KB)
None
64KB
128KB
256KB
512KB
1024KB
2048KB
4096KB
6144KB
7168KB
7680KB
7936KB
8064KB
8128KB
8192KB
8192KB
None
64KB
128KB
256KB
512KB
1024KB
2048KB
4096KB
6144KB
7168KB
7680KB
7936KB
8064KB
8128KB
8192KB
8192KB
Portion
None
Upper 1/128
Upper 2/128
Upper 4/128
Upper 8/128
Upper 16/128
Upper 32/128
Upper 64/128
Upper 96/128
Upper 112/128
Upper 120/128
Upper 124/128
Upper 126/128
Upper 127/128
All
All
None
Lower 1/128
Lower 2/128
Lower 4/128
Lower 8/128
Lower 16/128
Lower 32/128
Lower 64/128
Lower 96/128
Lower 112/128
Lower 120/128
Lower 124/128
Lower 126/128
Lower 127/128
All
All
Elite Semiconductor Memory Technology Inc.
Rev. H, Issue Date: 2018/08/23
EN25QH64A
preliminary
Enable Boot Lock
The Enable Boot Lock feature enables user to lock the 64KB-block/sector on the top/bottom of the
device for protection. This feature is activated by configuring 64KB-Block/Sector switch, TB bits and
programming EBL bit to ‘1’. The TB bit and 64KB-Block/Sector switch bit can only be programmed once.
The bits’ definitions are described in the following table.
Table 4. The Enable Boot Lock feature
Type
Register
Description
Function
Non-volatile/
Volatile bit
SR.6
Enable 64KB-block/Sector Boot lock
SR.3
Top/Bottom Protect
SR.4
64KB-Block/Sector switch
0 (default)
1 : Bottom
OTP/Volatile
bit
This Data Sheet may be revised by subsequent versions
or modifications due to changes in technical specifications.
1 : Lock selected
64KB-Block/Sector
0 : Top (default)
12
0 : 64KB-Block (default)
1 : Sector
Elite Semiconductor Memory Technology Inc.
Rev. H, Issue Date: 2018/08/23
EN25QH64A
preliminary
INSTRUCTIONS
All instructions, addresses and data are shifted in and out of the device, most significant bit first. Serial
Data Input (DI) is sampled on the first rising edge of Serial Clock (CLK) after Chip Select (CS#) is driven
Low. Then, the one-byte instruction code must be shifted in to the device, most significant bit first, on
Serial Data Input (DI), each bit being latched on the rising edges of Serial Clock (CLK).
The instruction set is listed in Table 5. Every instruction sequence starts with a one-byte instruction code.
Depending on the instruction, it might be followed by address bytes, or data bytes, or both or none. Chip
Select (CS#) must be driven High after the last bit of the instruction sequence has been shifted in. In the
case of a Read Data Bytes (READ), Read Data Bytes at Higher Speed (Fast_Read), Dual Output Fast
Read (3Bh), Dual I/O Fast Read (BBh), Quad Output Fast Read (6Bh), Quad Input/Output FAST_READ
(EBh), Read Status Register (RDSR) or Release from Deep Power-down, and Read Device ID (RDI)
instruction, the shifted-in instruction sequence is followed by a data-out sequence. Chip Select (CS#)
can be driven High after any bit of the data-out sequence is being shifted out.
In the case of a write instruction, Chip Select (CS#) must be driven High exactly at a byte boundary,
otherwise the instruction is rejected, and is not executed. That is, Chip Select (CS#) must driven High
when the number of clock pulses after Chip Select (CS#) being driven Low is an exact multiple of eight.
For Page Program, if at any time the input byte is not a full byte, nothing will happen and WEL will not be
reset.
In the case of multi-byte commands of Page Program (PP), Quad Input Page Program (QPP), and
Release from Deep Power Down (RES ) minimum number of bytes specified has to be given,
without which, the command will be ignored.
In the case of Page Program, if the number of byte after the command is less than 4 (at least 1
data byte), it will be ignored too. In the case of SE and HBE / BE, exact 24-bit address is a must,
any less or more will cause the command to be ignored.
All attempts to access the memory array during a Write Status Register cycle, Program cycle or Erase
cycle are ignored, and the internal Write Status Register cycle, Program cycle or Erase cycle continues
unaffected.
This Data Sheet may be revised by subsequent versions
or modifications due to changes in technical specifications.
13
Elite Semiconductor Memory Technology Inc.
Rev. H, Issue Date: 2018/08/23
EN25QH64A
preliminary
Table 5A. Instruction Set
Instruction Name
Byte 1
Code
RSTEN
RST(1)
66h
EQPI
38h
RSTQPI(2)
Write Enable (WERN)
Volatile Status Register
Write Enable (3)
FFh
Write Disable (WRDI)/
Exit OTP mode
Read Status Register
(RDSR)
Write Status Register
(WRSR)
Read Status Register 3
(RDSR3)
Write Status Register 3
(WRSR3)
Deep Power-down
Release from Deep
Power-down, and read
Device ID (RES)
Release from Deep
Power-down (RDP)
Manufacturer/
Device ID
Read Identification
(RDID)
Enter OTP mode
Read SFDP mode and
Unique ID Number
Byte 2
Byte 3
Byte 4
Byte 5
Byte 6
n-Bytes
99h
06h
50h
04h
05h
(S7-S0)(4)
01h
S7-S0
95h
(S7-S0)(4)
C0h
S7-S0
continuous(5)
B9h
(6)
dummy
dummy
90h
dummy
dummy
9Fh
(M7-M0)
(ID15ID8)
A23-A16
A15-A8
dummy
(ID7-ID0)
00h
01h
(ID7-ID0)
(M7-M0)
(ID7-ID0)
(8)
(ID7-ID0)
(M7-M0)
A7-A0
dummy
(D7-D0)
ABh
(7)
3Ah
5Ah
(Next Byte)
continuous
Notes:
1. RST command only executed if RSTEN command is executed first. Any intervening command will disable Reset.
2. Release Full Quad SPI or Fast Read Enhanced mode. Device accepts eight-clocks command in Standard SPI mode, or twoclocks command in Full Quad SPI mode.
3. Volatile Status Register Write Enable command must precede WRSR command without any intervening commands to write
data to Volatile Status Register.
4. Data bytes are shifted with Most Significant Bit first. Byte fields with data in parenthesis “( )” indicate data being read from the
device on the DO pin.
5. The Status Register contents will repeat continuously until CS# terminate the instruction.
6. The Device ID will repeat continuously until CS# terminates the instruction.
7. The Manufacturer ID and Device ID bytes will repeat continuously until CS# terminates the instruction.
00h on Byte 4 starts with MID and alternate with DID, 01h on Byte 4 starts with DID and alternate with MID.
8. (M7-M0) : Manufacturer, (ID15-ID8) : Memory Type, (ID7-ID0) : Memory Capacity.
This Data Sheet may be revised by subsequent versions
or modifications due to changes in technical specifications.
14
Elite Semiconductor Memory Technology Inc.
Rev. H, Issue Date: 2018/08/23
EN25QH64A
preliminary
Table 5B. Instruction Set (Read Instruction)
Instruction Name
OP Code
Address
bits
Dummy bits / Clocks
(Default)
Data Out
Read Data
03h
24 bits
0
(D7-D0, …)
Fast Read
0Bh
24 bits
8 bits / 8 clocks
(D7-D0, …)
Dual Output Fast Read
3Bh
24 bits
8 bits / 8 clocks
(D7-D0, …)
Dual I/O Fast Read
BBh
24 bits
8 bits / 4 clocks
(D7-D0, …)
Quad I/O Fast Read
EBh
24 bits
24 bits / 6 clocks
(D7-D0, …)
Quad Output Fast Read
6Bh
24 bits
8 bits / 8 clocks
(D7-D0, …)
Remark
(Next Byte)
continuous
(Next Byte)
continuous
(one byte
Per 4 clocks,
continuous)
(one byte
Per 4 clocks,
continuous)
(one byte
per 2 clocks,
continuous)
(one byte
per 2 clocks,
continuous)
Table 5C. Instruction Set (Program Instruction)
Instruction Name
OP Code
Address
bits
Dummy bits Clocks
(Default)
Data In
Page Program (PP)
02h
24 bits
0
(D7-D0, …)
Quad Input Page Program
(QPP)
32h
24 bits
0
(D7-D0, …)
Remark
(Next Byte)
continuous
(one byte
per 2 clocks,
continuous)
Table 5D. Instruction Set (Erase Instruction)
Instruction Name
OP Code
Address
bits
Dummy bits Clocks
(Default)
Data In
Sector Erase (SE)
20h
24 bits
0
(D7-D0, …)
32K Half Block
Erase (HBE)
52h
24 bits
0
(D7-D0, …)
64K Block Erase (BE)
D8h
24 bits
0
(D7-D0, …)
Chip Erase (CE)
C7h/ 60h
24 bits
0
(D7-D0, …)
This Data Sheet may be revised by subsequent versions
or modifications due to changes in technical specifications.
15
Remark
Elite Semiconductor Memory Technology Inc.
Rev. H, Issue Date: 2018/08/23
EN25QH64A
preliminary
Table 5E. Instruction Set (Read Instruction support mode and apply dummy cycle setting)
Instruction Name
OP Code
Start From SPI/QPI
(1)
Dummy Byte
(2)
SPI
QPI
Start From SPI
Start From QPI
Read Data
03h
Yes
No
N/A
N/A
Fast Read
0Bh
Yes
Yes
8 clocks
By SR3.4~5
Dual Output Fast Read
3Bh
Yes
No
8 clocks
N/A
Dual I/O Fast Read
BBh
Yes
No
4 clocks
N/A
Quad Output Fast Read
6Bh
Yes
No
8 clocks
N/A
Quad I/O Fast Read
EBh
Yes
Yes
By SR3.4~5
By SR3.4~5
Note:
1. ‘Start From SPI/QPI' means if this command is initiated from SPI or QPI mode.
2. Note: The dummy byte settings please refer to table 9.
Table 6. Manufacturer and Device Identification
OP Code
(M7-M0)
(ID15-ID0)
ABh
(ID7-ID0)
16h
90h
1Ch
9Fh
1Ch
16h
7017h
Reset-Enable (RSTEN) (66h) and Reset (RST) (99h)
The Reset operation is used as a system (software) reset that puts the device in normal operating
Ready mode. This operation consists of two commands: Reset-Enable (RSTEN) and Reset (RST).
To reset the EN25QH64A the host drives CS# low, sends the Reset-Enable command (66h), and drives
CS# high. Next, the host drives CS# low again, sends the Reset command (99h), and drives CS# high.
The Reset operation requires the Reset-Enable command followed by the Reset command. Any
command other than the Reset command after the Reset-Enable command will disable the ResetEnable.
A successful command execution will reset the status registers, see Figure 6 for SPI Mode and Figure
6.1 for Quad Mode. A device reset during an active Program or Erase operation aborts the operation,
which can cause the data of the targeted address range to be corrupted or lost. Depending on the prior
operation, the reset timing may vary. Recovery from a Write operation requires more software latency
time ( tSR) than recovery from other operations.
This Data Sheet may be revised by subsequent versions
or modifications due to changes in technical specifications.
16
Elite Semiconductor Memory Technology Inc.
Rev. H, Issue Date: 2018/08/23
EN25QH64A
preliminary
Figure 6. Reset-Enable and Reset Sequence Diagram
Figure 6.1 . Reset-Enable and Reset Sequence Diagram in QPI Mode
This Data Sheet may be revised by subsequent versions
or modifications due to changes in technical specifications.
17
Elite Semiconductor Memory Technology Inc.
Rev. H, Issue Date: 2018/08/23
EN25QH64A
preliminary
Software Reset Flow
Initial
No
Command
= 66h ?
Yes
Reset enable
No
Command
= 99h ?
Yes
Reset start
No
WIP = 0 ?
Embedded
Reset Cycle
Yes
Reset done
Note:
1. Reset-Enable (RSTEN) (66h) and Reset (RST) (99h) commands need to match standard SPI or
EQPI (quad) mode.
2. Continue (Enhance) EB mode need to use quad Reset-Enable (RSTEN) (66h) and quad Reset (RST)
(99h) commands.
3. If user is not sure it is in SPI or Quad mode, we suggest to execute sequence as follows:
Quad Reset-Enable (RSTEN) (66h) -> Quad Reset (RST) (99h) -> SPI Reset-Enable (RSTEN) (66h)
-> SPI Reset (RST) (99h) to reset.
4. The reset command could be executed during embedded program and erase process, QPI mode,
Continue EB mode to back to SPI mode.
5. This flow can release the device from Deep power down mode.
6. The Status Register Bit will reset to default value after reset done.
7. If user reset device during erase, the embedded reset cycle software reset latency will take about
28us in worst case.
This Data Sheet may be revised by subsequent versions
or modifications due to changes in technical specifications.
18
Elite Semiconductor Memory Technology Inc.
Rev. H, Issue Date: 2018/08/23
EN25QH64A
Enable Quad Peripheral Interface mode (EQPI) (38h)
preliminary
The Enable Quad Peripheral Interface mode (EQPI) instruction will enable the flash device for Quad SPI
bus operation. Upon completion of the instruction, all instructions thereafter will be 4-bit multiplexed
input/output until a power cycle or “ Reset Quad I/O instruction “ instruction, as shown in Figure 7. The
device did not support the Read Data Bytes (READ) (03h), Dual Output Fast Read (3Bh), Dual
Input/Output FAST_READ (BBh) and Quad Input Page Program (32h) modes while the Enable Quad
Peripheral Interface mode (EQPI) (38h) turns on.
Figure 7. Enable Quad Peripheral Interface mode Sequence Diagram
Reset Quad I/O (RSTQIO) (FFh)
The Reset Quad I/O instruction resets the device to 1-bit Standard SPI operation. To execute a Reset
Quad I/O operation, the host drives CS# low, sends the Reset Quad I/O command cycle (FFh) then,
drives CS# high. This command can’t be used in Standard SPI mode.
User also can use the FFh command to release the Quad I/O Fast Read Enhancement Mode. The
detail description, please see the Quad I/O Fast Read Enhancement Mode section.
Note:
If the system is in the Quad I/O Fast Read Enhance Mode in QPI Mode, it is necessary to execute FFh
command by two times. The first FFh command is to release Quad I/O Fast Read Enhance Mode, and
the second FFh command is to release EQPI Mode.
Write Enable (WREN) (06h)
The Write Enable (WREN) instruction (Figure 8) sets the Write Enable Latch (WEL) bit. The Write
Enable Latch (WEL) bit must be set prior to every Page Program (PP), Quad Input Page Program (QPP),
Sector Erase (SE), Block Erase (BE), Chip Erase (CE) and Write Status Register (WRSR) instruction.
The Write Enable (WREN) instruction is entered by driving Chip Select (CS#) Low, sending the
instruction code, and then driving Chip Select (CS#) High.
The instruction sequence is shown in Figure 10.1 while using the Enable Quad Peripheral Interface mode
(EQPI) (38h) command.
This Data Sheet may be revised by subsequent versions
or modifications due to changes in technical specifications.
19
Elite Semiconductor Memory Technology Inc.
Rev. H, Issue Date: 2018/08/23
EN25QH64A
preliminary
Figure 8. Write Enable Instruction Sequence Diagram
Volatile Status Register Write Enable (50h)
This feature enable user to change memory protection schemes quickly without waiting for the typical
non-volatile bit write cycles or affecting the endurance of the Status Register non-volatile bits. The
Volatile Status Register Write Enable (50h) command won’t set the Write Enable Latch (WEL) bit, it is
only valid for ‘Write Status Register’ (01h) command to change the Volatile Status Register bit values.
To write to Volatile Status Register, issue the Volatile Status Register Write Enable (50h) command
prior issuing WRSR (01h). The Status Register bits will be refresh to Volatile Status Register (SR[7:2])
within tSHSL2 (50ns). Upon power off or the execution of a Software/Hardware Reset, the volatile
Status Register bit values will be lost, and the non-volatile Status Register bit values will be restored.
The instruction sequence is shown in Figure 9.
The instruction sequence is shown in Figure 10.1 while using the Enable Quad Peripheral Interface mode
(EQPI) (38h) command.
Figure 9. Volatile Status Register Write Enable Instruction Sequence Diagram
This Data Sheet may be revised by subsequent versions
or modifications due to changes in technical specifications.
20
Elite Semiconductor Memory Technology Inc.
Rev. H, Issue Date: 2018/08/23
EN25QH64A
Write Disable (WRDI) (04h)
preliminary
The Write Disable instruction (Figure 10) resets the Write Enable Latch (WEL) bit in the Status Register
to a 0 or exit from OTP mode to normal mode. The Write Disable instruction is entered by driving Chip
Select (CS#) low, shifting the instruction code “04h” into the DI pin and then driving Chip Select (CS#)
high. Note that the WEL bit is automatically reset after Power-up and upon completion of the Write
Status Register, Page Program, Sector Erase, Half Block Erase (HBE), Block Erase (BE) and Chip
Erase instructions.
The instruction sequence is shown in Figure 10.1 while using the Enable Quad Peripheral Interface mode
(EQPI) (38h) command.
Figure 10. Write Disable Instruction Sequence Diagram
Figure 10.1 Write Enable/Disable Instruction Sequence in QPI Mode
This Data Sheet may be revised by subsequent versions
or modifications due to changes in technical specifications.
21
Elite Semiconductor Memory Technology Inc.
Rev. H, Issue Date: 2018/08/23
EN25QH64A
preliminary
Read Status Register (RDSR) (05h)
The Read Status Register (RDSR) instruction allows the Status Register to be read. The Status
Register may be read at any time, even while a Program, Erase or Write Status Register cycle is in
progress. When one of these cycles is in progress, it is recommended to check the Write In Progress
(WIP) bit before sending a new instruction to the device. It is also possible to read the Status Register
continuously, as shown in Figure 11.
The instruction sequence is shown in Figure 11.1 while using the Enable Quad Peripheral Interface mode
(EQPI) (38h) command.
Figure 11. Read Status Register Instruction Sequence Diagram
Figure 11.1 Read Status Register Instruction Sequence in QPI Mode
This Data Sheet may be revised by subsequent versions
or modifications due to changes in technical specifications.
22
Elite Semiconductor Memory Technology Inc.
Rev. H, Issue Date: 2018/08/23
EN25QH64A
preliminary
Table 7. Status Register Bit Locations
SR.7
SRP bit
OTP_LOCK bit
SR.6
EBL bit
(Enable boot
lock)
WXDIS bit
SR.5
SR.4
SR.3
SR.2
BP3 bit
BP2 bit
BP1 bit
BP0 bit
HRSW bit
64KBBlock/Sector
switch bit
TB bit
(Top / Bottom Protect)
SR.1
SR.0
WEL bit
WIP bit
Reserved
Table 7.1 Status Register Bit Locations (In Normal mode)
SR.7
SR.6
SRP
Status Register
Protect
EBL bit
(Enable Boot
Lock)
SR.5
SR.4
BP3 bit
(Block Protect)
BP2 bit
(Block Protect)
1 = status register
write disable
1 = Lock selected
64KBBlock/Sector
(note 2)
Non-volatile/
Volatile bit
Non-volatile/
Volatile bit
Non-volatile/
Volatile bit
SR.3
SR.2
SR.1
SR.0
BP1 bit
(Block Protect)
BP0 bit
(Block Protect)
WEL bit
(Write Enable
Latch)
WIP bit
(Write In Progress
bit)
(note 2)
(note 2)
(note 2)
1 = write enable
0 = not write
enable
1 = write operation
0 = not in write
operation
Non-volatile/
Volatile bit
Non-volatile/
Volatile bit
Non-volatile/
Volatile bit
indicator bit
indicator bit
SR.1
SR.0
WEL bit
(Write Enable
Latch)
WIP bit
(Write In Progress
bit)
1 = write enable
0 = not write
enable
1 = write operation
0 = not in write
operation
indicator bit
indicator bit
Table 7.2 Status Register Bit Locations (In OTP mode)
SR.7
SR.6
OTP_LOCK bit
1 = OTP sector is
protected
OTP bit
SR.5
SR.4
SR.3
WXDIS bit
HRSW bit
(WP# and
64KB-Bloc/Sector
(HOLD#/RESET#
HOLD#/RESET#
switch bit
switch)
disabled)
1 = WP# and
HOLD#/RESET#
1 = RESET#
disable
enable
1 = Sector
0 = WP# and
0 = HOLD#
0 = 64KB-Block
HOLD#/RESET#
enable
(default 0)
enable
(default 0)
(default 0)
OTP / Volatile bit OTP / Volatile bit OTP / Volatile bit
SR.2
TB bit
(Top / Bottom
Protect)
1 = Bottom
0 = Top
(default 0)
OTP / Volatile bit
Reserved
bit
Note
1. In OTP mode, SR.7 bit is served as OTP_LOCK bit; SR.6 bit is served as WXDIS bit; SR.5 bit is served
as HRSW bit; SR.4 bit is served as 64KB-Block/Sector switch bit; SR.3 bit is served as TB bit; SR.1 bit
is served as WEL bit and SR.0 bit is served as WIP bit.
2. See the table 3 “Protected Area Sizes Sector Organization”.
3. When executed the (RDSR) (05h) command, the WIP (SR.0) value is the same as WIP (SR2.0) in
table 8.
This Data Sheet may be revised by subsequent versions
or modifications due to changes in technical specifications.
23
Elite Semiconductor Memory Technology Inc.
Rev. H, Issue Date: 2018/08/23
EN25QH64A
preliminary
The status and control bits of the Status Register are as follows:
WIP bit. The Write In Progress (WIP) bit indicates whether the memory is busy with a Write Status
Register, Program or Erase cycle. When set to 1, such a cycle is in progress, when reset to 0 no such
cycle is in progress.
WEL bit. The Write Enable Latch (WEL) bit indicates the status of the internal Write Enable Latch.
When set to 1 the internal Write Enable Latch is set, when set to 0 the internal Write Enable Latch is
reset and no Write Status Register, Program or Erase instruction is accepted.
BP3, BP2, BP1, BP0 bits. The Block Protect (BP3, BP2, BP1, BP0) bits are non-volatile. They define
the size of the area to be software protected against Program and Erase instructions. These bits are
written with the Write Status Register (WRSR) instruction. When one or both of the Block Protect (BP3,
BP2, BP1, BP0) bits is set to 1, the relevant memory area (as defined in Table 3.) becomes protected
against Page Program (PP), Quad Input Page Program (QPP), Sector Erase (SE) and , Half Block Erase
(HBE), Block Erase (BE) instructions. The Block Protect (BP3, BP2, BP1, BP0) bits can be written and
provided that the Hardware Protected mode has not been set. The Chip Erase (CE) instruction is
executed if and only if all Block Protect (BP3, BP2, BP1, BP0) bits are 0 and EBL bit is 0.
EBL bit. The Enable Boot Lock (EBL) bit is used to enable the Boot Lock feature. When this bit is
programmed to ‘1’, the sector/block selected by the TB bit and 64KB-Block/Sector switch bit will be
locked.
SRP bit. The Status Register Protect (SRP) bit is operated in conjunction with the Write Protect (WP#)
signal. The Status Register Write Protect (SRP) bit and Write Protect (WP#) signal allow the device to
be put in the Hardware Protected mode (when the Status Register Protect (SRP) bit is set to 1, and
Write Protect (WP#) is driven Low). In this mode, the non-volatile bits of the Status Register (SRP, SR.5,
SR.4, SR.3, SR.2) become read-only bits and the Write Status Register (WRSR) instruction is no longer
accepted for execution.
In OTP mode, SR.7, SR.6, SR.5, SR.4, SR.3, SR.1 and SR.0 are served as OTP_Lock bit, WXDIS bit,
HRSW bit, 64KB-Block/Sector switch bit, TB bit, WEL bit and WIP bit.
TB bit. The Top/Bottom Protect Bit (TB) controls if the Block Protect Bits (BP3, BP2, BP1, BP0) protect
from the Top (TB = 0) or the Bottom (TB = 1) of the array as shown in the Status Register Memory
Protection table. It also controls if the Top (TB=0) or the Bottom (TB=1) 64KB-block/sector is protected
when Boot Lock feature is enabled. The factory default setting is TB = 0. The TB bit can be set with the
Write Status Register instruction in OTP mode.
64KB-Block/Sector switch bit, The 64KB-Block/Sector switch bit is set by WRSR command in OTP
mode. It is used to set the protection area size as block (64KB) or sector (4KB).
WXDIS bit. The WP# and HOLD#/RESET# Disable bit (WXDIS bit), OTP / Volatile bit, it indicates the
WP# and HOLD#/RESET# are enabled or not. When it is “0” (factory default), the WP# and
HOLD#/RESET# are enabled. On the other hand, while WXDIS bit is “1”, the WP# and HOLD#/RESET#
are disabled. If the system executes Quad mode commands, this WXDIS bit becomes no affection
since WP# and HOLD#/RESET# function will be disabled by Quad mode commands.
HRSW bit. The HOLD#/RESET# switch bit (HRSW bit), OTP / Volatile bit, the HRSW bit is used to
determine whether HOLD# or RESET# function should be implemented on the hardware pin. When it is
“0” (factory default), the pin acts as HOLD#; when it is “1”, the pin acts as RESET#. However, HOLD# or
RESET# functions are only available when WXDIS bit is “0”. If WXDIS bit is set to “1”, the HOLD# and
RESET# functions are disabled, the pin acts as a dedicated data I/O pin.
OTP_LOCK bit. This bit is served as OTP_LOCK bit, user can read/program/erase OTP sector as normal sector
while OTP_LOCK value is equal 0, after OTP_LOCK is programmed with 1 by WRSR command, the OTP sector is
protected from program and erase operation. The OTP_LOCK bit can only be programmed once.
Reserved bit. Status Register bit locations SR.2 in OTP mode is reserved for future use.
This Data Sheet may be revised by subsequent versions
or modifications due to changes in technical specifications.
24
Elite Semiconductor Memory Technology Inc.
Rev. H, Issue Date: 2018/08/23
EN25QH64A
preliminary
Read Status Register 3 (RDSR 3) (95h)
The Read Status Register 3 (RDSR3) instruction allows the Status Register 3 to be read. The Status
Register 3 may be read at any time. When one of these bytes is in progress, it is recommended to
check the Write In Progress (WIP) bit before sending a new instruction to the device. It is also possible
to read the Read Status Register 3 continuously, as shown in Figure 12.
The instruction sequence is shown in Figure 12.1 while using the Enable Quad Peripheral Interface mode
(EQPI) (38h) command.
Figure 12. Read Status Register 3 Instruction Sequence Diagram
Figure 12.1 Read Status Register 3 Instruction Sequence in QPI Mode
This Data Sheet may be revised by subsequent versions
or modifications due to changes in technical specifications.
25
Elite Semiconductor Memory Technology Inc.
Rev. H, Issue Date: 2018/08/23
EN25QH64A
preliminary
The status and control bits of the Status Register 3 are as follows:
Output Drive Strength. The Output Drive Strength (SR3.3 and SR3.2) bits indicate the status of output
Drive Strength in I/O pins.
Dummy Byte. The Dummy Byte (SR3.5 and SR3.4) bits indicate the status of the number of dummy
byte in high performance read.
Reserved bit. SR3.7, SR3.6, SR3.1 and SR3.0 are reserved for future use.
Table 8. Status Register 3 Bit Locations
SR3.7
SR3.6
SR3.5
SR3.4
Dummy Byte
Default = 00
volatile bit
volatile bit
SR3.2
SR3.1
SR3.0
Reserved
Reserved
volatile bit
volatile bit
Output Drive
Strength
00 = 67% (2/3) Drive
(default)
01 = 100% (Full) Drive
10 = 50% (1/2) Drive
11 = 33% (1/3) Drive
00 = 3 Bytes
01 = 2 Bytes
10 = 4 Bytes
11 = 5 Bytes
Reserved Reserved
volatile bit
SR3.3
(1)
volatile bit
volatile bit
volatile bit
Note:
1. 2 Bytes (4 clocks in Quad mode), 3 Bytes (6 clocks in Quad mode),
4 Bytes (8 clocks in Quad mode), 5 Bytes (10 clocks in Quad mode)
Table 9. SR3.4 and SR3.5 Status (for Dummy Bytes)
Instruction Name
Op Code
Fast Read
0Bh
Quad IO Fast Read
EBh
Dummy Byte settings
sending Quad
Output Fast Read (6Bh) instruction -> 24-bit address on DQ0 -> 8 dummy clocks -> data out interleave
on DQ3, DQ2, DQ1 and DQ0 -> to end Quad Output Fast Read (6Bh) operation can use CS# to high at
any time during data out, as shown in Figure 18. The WP#(DQ2) and HOLD#/RESET#(DQ3) need to
drive high before address input if WXDIS bit in Status Register is 0.
This Data Sheet may be revised by subsequent versions
or modifications due to changes in technical specifications.
32
Elite Semiconductor Memory Technology Inc.
Rev. H, Issue Date: 2018/08/23
EN25QH64A
preliminary
CS#
0
1
2
3
4
5
6
7
8
9
10
28
29
30
31
CLK
Command
DQ0
3 Address bytes
(24 clocks)
6Bh
A23
A21
A3
A2
A1
A0
*
High Impedance
DQ1
A22
High Impedance
DQ2
High Impedance
DQ3
* = MSB
CS#
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
CLK
DQ0 switches from
Input to Output
Dummy Byte
DQ0
DQ1
High Impedance
A0
D4
D0
D4
D0
D4
D0
D4
D0
D4
D0
D4
D5
D1
D5
D1
D5
D1
D5
D1
D5
D1
D5
D6
D2
D6
D2
D6
D2
D6
D2
D6
D2
D6
D7
D3
D7
D3
D7
D3
D7
D3
D7
D3
D7
High Impedance
High Impedance
DQ2
High Impedance
DQ3
Data
Byte 1
Data
Byte 2
Data
Byte 3
Data
Byte 4
Data
Byte 5
Figure 18. Quad Output Fast Read Instruction Sequence Diagram
Quad Input / Output FAST_READ (EBh)
The Quad Input/Output FAST_READ (EBh) instruction is similar to the Dual I/O Fast Read (BBh)
instruction except that address and data bits are input and output through four pins, DQ0, DQ1, DQ2 and
DQ3 and six dummy clocks are required prior to the data output. The Quad I/O dramatically reduces
instruction overhead allowing faster random access for code execution (XIP) directly from the Quad SPI.
The Quad Input/Output FAST_READ (EBh) instruction enable quad throughput of Serial Flash in read
mode. The address is latching on rising edge of CLK, and data of every four bits (interleave on 4 I/O
pins) shift out on the falling edge of CLK at a maximum frequency F R. The first address can be any
location. The address is automatically increased to the next higher address after each byte data is
shifted out, so the whole memory can be read out at a single Quad Input/Output FAST_READ
instruction. The address counter rolls over to 0 when the highest address has been reached. Once
writing Quad Input/Output FAST_READ instruction, the following address/dummy/data out will perform
as 4-bit instead of previous 1-bit.
The sequence of issuing Quad Input/Output FAST_READ (EBh) instruction is: CS# goes low -> sending
Quad Input/Output FAST_READ (EBh) instruction -> 24-bit address interleave on DQ3, DQ2, DQ1 and
DQ0 -> 6 dummy clocks -> data out interleave on DQ3, DQ2, DQ1 and DQ0 -> to end Quad Input/Output
This Data Sheet may be revised by subsequent versions
or modifications due to changes in technical specifications.
33
Elite Semiconductor Memory Technology Inc.
Rev. H, Issue Date: 2018/08/23
EN25QH64A
FAST_READ (EBh) operation can use CS# to high at any time during data out, as shown
in Figure 19.
preliminary
The instruction sequence is shown in Figure 19.1 while using the Enable Quad Peripheral Interface mode
(EQPI) (38h) command.
Figure 19. Quad Input / Output Fast Read Instruction Sequence Diagram
Figure 19.1. Quad Input / Output Fast Read Instruction Sequence in QPI Mode
This Data Sheet may be revised by subsequent versions
or modifications due to changes in technical specifications.
34
Elite Semiconductor Memory Technology Inc.
Rev. H, Issue Date: 2018/08/23
EN25QH64A
preliminary
Another sequence of issuing Quad Input/Output FAST_READ (EBh) instruction especially useful in
random access is : CS# goes low -> sending Quad Input/Output FAST_READ (EBh) instruction -> 24-bit
address interleave on DQ3, DQ2, DQ1 and DQ0 -> performance enhance toggling bit P[7:0] -> 4 dummy
clocks -> data out interleave on DQ3, DQ2, DQ1 and DQ0 till CS# goes high -> CS# goes low (reduce
Quad Input/Output FAST_READ (EBh) instruction) -> 24-bit random access address, as shown in
Figure 20.
In the performance – enhancing mode, P[7:4] must be toggling with P[3:0] ; likewise P[7:0] = A5h, 5Ah,
F0h or 0Fh can make this mode continue and reduce the next Quad Input/Output FAST_READ (EBh)
instruction. Once P[7:4] is no longer toggling with P[3:0] ; likewise P[7:0] = FFh, 00h, AAh or 55h. These
commands will reset the performance enhance mode. And afterwards CS# is raised or issuing FFh
command (CS# goes high -> CS# goes low -> sending FFh -> CS# goes high) instead of no toggling,
the system then will escape from performance enhance mode and return to normal operation.
While Program/ Erase/ Write Status Register is in progress, Quad Input/Output FAST_READ (EBh)
instruction is rejected without impact on the Program/ Erase/ Write Status Register current cycle.
The instruction sequence is shown in Figure 20.1 while using the Enable Quad Peripheral Interface mode
(EQPI) (38h) command.
This Data Sheet may be revised by subsequent versions
or modifications due to changes in technical specifications.
35
Elite Semiconductor Memory Technology Inc.
Rev. H, Issue Date: 2018/08/23
EN25QH64A
preliminary
Figure 20. Quad Input/Output Fast Read Enhance Performance Mode Sequence Diagram
This Data Sheet may be revised by subsequent versions
or modifications due to changes in technical specifications.
36
Elite Semiconductor Memory Technology Inc.
Rev. H, Issue Date: 2018/08/23
EN25QH64A
preliminary
Figure 20.1 Quad Input/Output Fast Read Enhance Performance Mode Sequence in QPI Mode
This Data Sheet may be revised by subsequent versions
or modifications due to changes in technical specifications.
37
Elite Semiconductor Memory Technology Inc.
Rev. H, Issue Date: 2018/08/23
EN25QH64A
preliminary
Write Status Register 3 (C0h)
The Write Status Register 3 (C0h) command can be used to set output drive strength in I/O pins and the
number of dummy byte in high performance read. To set the output drive strength and the number of
dummy byte to host driver CS# low, sends the Write Status Register 3 (C0h) and one data byte, then
drivers CS# high, After power-up or reset, the output drive strength is set to full drive (00b) and the
dummy byte is set to 3 bytes (00b), please refer to Table 9 for Status Register 3 data and Figure 21 for
the sequence. In QPI mode, a cycle is two nibbles, or two clocks, long, most significant nibble first.
The instruction sequence is shown in Figure 21.1 while using the Enable Quad Peripheral Interface
mode (EQPI) (38h) command.
CS#
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
CLK
Command
DI
1 data byte
C0h
D7
D6
D5
D4
D3
D2
D1
D0
*
High Impedance
DO
* = MSB
Figure 21. Write Status Register 3 Instruction Sequence Diagram
Figure 21.1 Write Status Register 3 Instruction Sequence Diagram in QPI mode
This Data Sheet may be revised by subsequent versions
or modifications due to changes in technical specifications.
38
Elite Semiconductor Memory Technology Inc.
Rev. H, Issue Date: 2018/08/23
EN25QH64A
Page Program (PP) (02h)
preliminary
The Page Program (PP) instruction allows bytes to be programmed in the memory. Before it can be
accepted, a Write Enable (WREN) instruction must previously have been executed. After the Write
Enable (WREN) instruction has been decoded, the device sets the Write Enable Latch (WEL).
The Page Program (PP) instruction is entered by driving Chip Select (CS#) Low, followed by the instruction code, three address bytes and at least one data byte on Serial Data Input (DI). If the 8 least
significant address bits (A7-A0) are not all zero, all transmitted data that goes beyond the end of the
current page are programmed from the start address of the same page (from the address whose 8 least
significant bits (A7-A0) are all zero). Chip Select (CS#) must be driven Low for the entire duration of the
sequence.
The instruction sequence is shown in Figure 22. If more than 256 bytes are sent to the device, previously latched data are discarded and the last 256 data bytes are guaranteed to be programmed correctly within the same page. If less than 256 Data bytes are sent to device, they are correctly programmed at the requested addresses without having any effects on the other bytes of the same page.
Chip Select (CS#) must be driven High after the eighth bit of the last data byte has been latched in,
otherwise the Page Program (PP) instruction is not executed.
As soon as Chip Select (CS#) is driven high, the self-timed Page Program cycle (whose duration is tPP)
is initiated. While the Page Program cycle is in progress, the Status Register may be read to check the
value of the Write In Progress (WIP) bit. The Write In Progress (WIP) bit is 1 during the self-timed Page
Program cycle, and is 0 when it is completed. At some unspecified time before the cycle is completed,
the Write Enable Latch (WEL) bit is reset.
A Page Program (PP) instruction applied to a page which is protected by the Block Protect (BP3, BP2,
BP1, BP0) bits (see Table 3) is not executed.
The instruction sequence is shown in Figure 22.1 while using the Enable Quad Peripheral Interface mode
(EQPI) (38h) command.
Figure 22. Page Program Instruction Sequence Diagram
This Data Sheet may be revised by subsequent versions
or modifications due to changes in technical specifications.
39
Elite Semiconductor Memory Technology Inc.
Rev. H, Issue Date: 2018/08/23
EN25QH64A
preliminary
Figure 22.1 Program Instruction Sequence in QPI Mode
Quad Input Page Program (QPP) (32h)
The Quad Page Program (QPP) instruction allows up to 256 bytes of data to be programmed at
previously erased (FFh) memory locations using four pins: DQ0, DQ1, DQ2 and DQ3. The Quad Page
Program can improve performance for PROM Programmer and applications that have slow clock
speeds < 5MHz. Systems with faster clock speed will not realize much benefit for the Quad Page
Program instruction since the inherent page program time is much greater than the time it take to clockin the data.
To use Quad Page Program (QPP) the WP# and HOLD#/RESET# Disable (WXDIS) bit in Status
Register must be set to 1. A Write Enable instruction must be executed before the device will accept the
Quad Page Program (QPP) instruction (SR.1, WEL=1). The instruction is initiated by driving the CS# pin
low then shifting the instruction code “32h” followed by a 24-bit address (A23-A0) and at least one data
byte, into the IO pins. The CS# pin must be held low for the entire length of the instruction while data is
being sent to the device. All other functions of Quad Page Program (QPP) are identical to standard
Page Program. The Quad Page Program (QPP) instruction sequence is shown in Figure 23.
This Data Sheet may be revised by subsequent versions
or modifications due to changes in technical specifications.
40
Elite Semiconductor Memory Technology Inc.
Rev. H, Issue Date: 2018/08/23
EN25QH64A
preliminary
CS#
0
1
2
3
4
5
6
7
8
9
10
28
29
30
31
CLK
Command
DQ0
32h
3 Address bytes
(24 clocks)
A23
A22
A21
A3
A2
A1
A0
*
DQ1
DQ2
DQ3
* = MSB
CS#
31
32
33
34
35
36
37
534 535 536 537 538 539 540 541 542 543
CLK
Data
Byte
1
DQ0
A0
Data
Byte
2
Data
Byte
3
Data
Byte
252
Data
Byte
253
Data
Byte
254
Data
Byte
255
Data
Byte
256
D4
D0
D4
D0
D4
D0
D4
D0
D4
D0
D4
D0
D4
D0
D4
D0
DQ1
D5
D1
D5
D1
D5
D1
D5
D1
D5
D1
D5
D1
D5
D1
D5
D1
DQ2
D6
D2
D6
D2
D6
D2
D6
D2
D6
D2
D6
D2
D6
D2
D6
D2
DQ3
D7
D3
D7
D3
D7
D3
D7
D3
D7
D3
D7
D3
D7
D3
D7
D3
*
*
*
*
*
*
*
*
Figure 23. Quad Input Page Program Instruction Sequence Diagram (SPI Mode only)
This Data Sheet may be revised by subsequent versions
or modifications due to changes in technical specifications.
41
Elite Semiconductor Memory Technology Inc.
Rev. H, Issue Date: 2018/08/23
EN25QH64A
preliminary
Sector Erase (SE) (20h)
The Sector Erase (SE) instruction sets to 1 (FFh) all bits inside the chosen sector. Before it can be
accepted, a Write Enable (WREN) instruction must previously have been executed. After the Write
Enable (WREN) instruction has been decoded, the device sets the Write Enable Latch (WEL).
The Sector Erase (SE) instruction is entered by driving Chip Select (CS#) Low, followed by the instruction code, and three address bytes on Serial Data Input (DI). Any address inside the Sector (see
Table 2) is a valid address for the Sector Erase (SE) instruction. Chip Select (CS#) must be driven Low
for the entire duration of the sequence.
The instruction sequence is shown in Figure 24. Chip Select (CS#) must be driven High after the eighth
bit of the last address byte has been latched in, otherwise the Sector Erase (SE) instruction is not
executed. As soon as Chip Select (CS#) is driven High, the self-timed Sector Erase cycle (whose duration is tSE) is initiated. While the Sector Erase cycle is in progress, the Status Register may be read to
check the value of the Write In Progress (WIP) bit. The Write In Progress (WIP) bit is 1 during the selftimed Sector Erase cycle, and is 0 when it is completed. At some unspecified time before the cycle is
completed, the Write Enable Latch (WEL) bit is reset.
A Sector Erase (SE) instruction applied to a sector which is protected by the Block Protect (BP3, BP2,
BP1, BP0) bits (see Table 3) or Boot Lock feature will be ignored.
The instruction sequence is shown in Figure 26.1 while using the Enable Quad Peripheral Interface mode
(EQPI) (38h) command.
Figure 24. Sector Erase Instruction Sequence Diagram
32KB Half Block Erase (HBE) (52h)
The Half Block Erase (HBE) instruction sets to 1 (FFh) all bits inside the chosen block. Before it can be
accepted, a Write Enable (WREN) instruction must previously have been executed. After the Write
Enable (WREN) instruction has been decoded, the device sets the Write Enable Latch (WEL).
The Half Block Erase (HBE) instruction is entered by driving Chip Select (CS#) Low, followed by the instruction code, and three address bytes on Serial Data Input (DI). Any address inside the Block (see
Table 2) is a valid address for the Half Block Erase (HBE) instruction. Chip Select (CS#) must be driven
Low for the entire duration of the sequence.
The instruction sequence is shown in Figure 25. Chip Select (CS#) must be driven High after the eighth
bit of the last address byte has been latched in, otherwise the Half Block Erase (HBE) instruction is not
executed. As soon as Chip Select (CS#) is driven High, the self-timed Half Block Erase cycle (whose
duration is tHBE) is initiated. While the Half Block Erase cycle is in progress, the Status Register may be
read to check the value of the Write In Progress (WIP) bit. The Write In Progress (WIP) bit is 1 during
the self-timed Half Block Erase cycle, and is 0 when it is completed. At some unspecified time before
the cycle is completed, the Write Enable Latch (WEL) bit is reset.
A Half Block Erase (HBE) instruction applied to a block which is protected by the Block Protect (BP3,
BP2, BP1, BP0) bits (see Table 3) or Boot Lock feature will be ignored.
This Data Sheet may be revised by subsequent versions
or modifications due to changes in technical specifications.
42
Elite Semiconductor Memory Technology Inc.
Rev. H, Issue Date: 2018/08/23
EN25QH64A
The instruction sequence is shown in Figure 26.1 while using the Enable Quad preliminary
Peripheral Interface
mode (EQPI) (38h) command.
Figure 25. 32KB Half Block Erase Instruction Sequence Diagram
64K Block Erase (BE) (D8h)
The Block Erase (BE) instruction sets to 1 (FFh) all bits inside the chosen block. Before it can be
accepted, a Write Enable (WREN) instruction must previously have been executed. After the Write
Enable (WREN) instruction has been decoded, the device sets the Write Enable Latch (WEL).
The Block Erase (BE) instruction is entered by driving Chip Select (CS#) Low, followed by the instruction
code, and three address bytes on Serial Data Input (DI). Any address inside the Block (see Table 2) is a
valid address for the Block Erase (BE) instruction. Chip Select (CS#) must be driven Low for the entire
duration of the sequence.
The instruction sequence is shown in Figure 26. Chip Select (CS#) must be driven High after the eighth
bit of the last address byte has been latched in, otherwise the Block Erase (BE) instruction is not
executed. As soon as Chip Select (CS#) is driven High, the self-timed Block Erase cycle (whose duration is tBE) is initiated. While the Block Erase cycle is in progress, the Status Register may be read to
check the value of the Write In Progress (WIP) bit. The Write In Progress (WIP) bit is 1 during the selftimed Block Erase cycle, and is 0 when it is completed. At some unspecified time before the cycle is
completed, the Write Enable Latch (WEL) bit is reset.
A Block Erase (BE) instruction applied to a block which is protected by the Block Protect (BP3, BP2,
BP1, BP0) bits (see Table 3) or Boot Lock feature will be ignored.
The instruction sequence is shown in Figure 26.1 while using the Enable Quad Peripheral Interface mode
(EQPI) (38h) command.
This Data Sheet may be revised by subsequent versions
or modifications due to changes in technical specifications.
43
Elite Semiconductor Memory Technology Inc.
Rev. H, Issue Date: 2018/08/23
EN25QH64A
preliminary
Figure 26. 64K Block Erase Instruction Sequence Diagram
Figure 26.1 Block/Sector Erase Instruction Sequence in QPI Mode
This Data Sheet may be revised by subsequent versions
or modifications due to changes in technical specifications.
44
Elite Semiconductor Memory Technology Inc.
Rev. H, Issue Date: 2018/08/23
EN25QH64A
preliminary
Chip Erase (CE) (C7h/60h)
The Chip Erase (CE) instruction sets all bits to 1 (FFh). Before it can be accepted, a Write Enable
(WREN) instruction must previously have been executed. After the Write Enable (WREN) instruction
has been decoded, the device sets the Write Enable Latch (WEL).
The Chip Erase (CE) instruction is entered by driving Chip Select (CS#) Low, followed by the instruction
code on Serial Data Input (DI). Chip Select (CS#) must be driven Low for the entire duration of the
sequence.
The instruction sequence is shown in Figure 27. Chip Select (CS#) must be driven High after the eighth
bit of the instruction code has been latched in, otherwise the Chip Erase instruction is not executed. As
soon as Chip Select (CS#) is driven High, the self-timed Chip Erase cycle (whose duration is tCE) is
initiated. While the Chip Erase cycle is in progress, the Status Register may be read to check the value
of the Write In Progress (WIP) bit. The Write In Progress (WIP) bit is 1 during the self-timed Chip Erase
cycle, and is 0 when it is completed. At some unspecified time before the cycle is completed, the Write
Enable Latch (WEL) bit is reset.
The Chip Erase (CE) instruction is executed only if all Block Protect (BP3, BP2, BP1, BP0) bits are 0
and EBL bit is 0. The Chip Erase (CE) instruction is ignored if one or more blocks are protected.
The instruction sequence is shown in Figure 27.1 while using the Enable Quad Peripheral Interface mode
(EQPI) (38h) command.
Figure 27. Chip Erase Instruction Sequence Diagram
This Data Sheet may be revised by subsequent versions
or modifications due to changes in technical specifications.
45
Elite Semiconductor Memory Technology Inc.
Rev. H, Issue Date: 2018/08/23
EN25QH64A
preliminary
Figure 27.1 Chip Erase Sequence in QPI Mode
Deep Power-down (DP) (B9h)
Executing the Deep Power-down (DP) instruction is the only way to put the device in the lowest consumption mode (the Deep Power-down mode). It can also be used as an extra software protection
mechanism, while the device is not in active use, since in this mode, the device ignores all Write,
Program and Erase instructions.
Driving Chip Select (CS#) High deselects the device, and puts the device in the Standby mode (if there
is no internal cycle currently in progress). But this mode is not the Deep Power-down mode. The Deep
Power-down mode can only be entered by executing the Deep Power-down (DP) instruction, to reduce
the standby current (from ICC1 to ICC2, as specified in Table 17.)
Once the device has entered the Deep Power-down mode, all instructions are ignored except the
Release from Deep Power-down, Read Device ID (RDI) and Software Reset instruction which release
the device from this mode. The Release from Deep Power-down and Read Device ID (RDI) instruction
also allows the Device ID of the device to be output on Serial Data Output (DO).
The Deep Power-down mode automatically stops at Power-down, and the device always Powers-up in
the Standby mode. The Deep Power-down (DP) instruction is entered by driving Chip Select (CS#) Low,
followed by the instruction code on Serial Data Input (DI). Chip Select (CS#) must be driven Low for the
entire duration of the sequence.
The instruction sequence is shown in Figure 28. Chip Select (CS#) must be driven High after the eighth
bit of the instruction code has been latched in, otherwise the Deep Power-down (DP) instruction is not
executed. As soon as Chip Select (CS#) is driven High, it requires a delay of tDP before the supply
current is reduced to ICC2 and the Deep Power-down mode is entered.
Any Deep Power-down (DP) instruction, while an Erase, Program or Write cycle is in progress, is
rejected without having any effects on the cycle that is in progress.
This Data Sheet may be revised by subsequent versions
or modifications due to changes in technical specifications.
46
Elite Semiconductor Memory Technology Inc.
Rev. H, Issue Date: 2018/08/23
EN25QH64A
preliminary
Figure 28. Deep Power-down Instruction Sequence Diagram
Release from Deep Power-down and Read Device ID (RDI)
Once the device has entered the Deep Power-down mode, all instructions are ignored except the
Release from Deep Power-down and Read Device ID (RDI) instruction. Executing this instruction takes
the device out of the Deep Power-down mode.
Please note that this is not the same as, or even a subset of, the JEDEC 16-bit Electronic Signature that
is read by the Read Identifier (RDID) instruction. The old-style Electronic Signature is supported for
reasons of backward compatibility, only, and should not be used for new designs. New designs should,
instead, make use of the JEDEC 16-bit Electronic Signature, and the Read Identifier (RDID) instruction.
When used only to release the device from the power-down state, the instruction is issued by driving the
CS# pin low, shifting the instruction code “ABh” and driving CS# high as shown in Figure 29. After the
time duration of tRES1 (See AC Characteristics) the device will resume normal operation and other
instructions will be accepted. The CS# pin must remain high during the tRES1 time duration.
When used only to obtain the Device ID while not in the power-down state, the instruction is initiated by
driving the CS# pin low and shifting the instruction code “ABh” followed by 3-dummy bytes. The Device
ID bits are then shifted out on the falling edge of CLK with most significant bit (MSB) first as shown in
Figure 30. The Device ID value for the EN25QH64A are listed in Table 6. The Device ID can be read
continuously. The instruction is completed by driving CS# high.
When Chip Select (CS#) is driven High, the device is put in the Stand-by Power mode. If the device was
not previously in the Deep Power-down mode, the transition to the Stand-by Power mode is immediate.
If the device was previously in the Deep Power-down mode, though, the transition to the Standby Power
mode is delayed by tRES2, and Chip Select (CS#) must remain High for at least tRES2 (max), as
specified in Table 19. Once in the Stand-by Power mode, the device waits to be selected, so that it can
receive, decode and execute instructions.
Except while an Erase, Program or Write Status Register cycle is in progress, the Release from Deep
Power-down and Read Device ID (RDI) instruction always provides access to the 8bit Device ID of the
device, and can be applied even if the Deep Power-down mode has not been entered.
Any Release from Deep Power-down and Read Device ID (RDI) instruction while an Erase, Program or
Write Status Register cycle is in progress, is not decoded, and has no effect on the cycle that is in
progress.
This Data Sheet may be revised by subsequent versions
or modifications due to changes in technical specifications.
47
Elite Semiconductor Memory Technology Inc.
Rev. H, Issue Date: 2018/08/23
EN25QH64A
preliminary
Figure 29. Release Power-down Instruction Sequence Diagram
Figure 30. Release Power-down / Device ID Instruction Sequence Diagram
Read Manufacturer / Device ID (90h)
The Read Manufacturer/Device ID instruction is an alternative to the Release from Power-down / Device
ID instruction that provides both the JEDEC assigned manufacturer ID and the specific device ID.
The Read Manufacturer/Device ID instruction is very similar to the Release from Power-down / Device
ID instruction. The instruction is initiated by driving the CS# pin low and shifting the instruction code
“90h” followed by a 24-bit address (A23-A0) of 000000h. After which, the Manufacturer ID for Eon (1Ch)
and the Device ID are shifted out on the falling edge of CLK with most significant bit (MSB) first as
shown in Figure 31. The Device ID values for the EN25QH64A are listed in Table 6. If the 24-bit address
is initially set to 000001h the Device ID will be read first
The instruction sequence is shown in Figure 31.1 while using the Enable Quad Peripheral Interface mode
(EQPI) (38h) command.
This Data Sheet may be revised by subsequent versions
or modifications due to changes in technical specifications.
48
Elite Semiconductor Memory Technology Inc.
Rev. H, Issue Date: 2018/08/23
EN25QH64A
preliminary
Figure 31. Read Manufacturer / Device ID Diagram
Figure 31.1. Read Manufacturer / Device ID Diagram in QPI Mode
This Data Sheet may be revised by subsequent versions
or modifications due to changes in technical specifications.
49
Elite Semiconductor Memory Technology Inc.
Rev. H, Issue Date: 2018/08/23
EN25QH64A
Read Identification (RDID) (9Fh)
preliminary
The Read Identification (RDID) instruction allows the 8-bit manufacturer identification to be read,
followed by two bytes of device identification. The device identification indicates the memory type in the
first byte , and the memory capacity of the device in the second byte .
Any Read Identification (RDID) instruction while an Erase or Program cycle is in progress, is not
decoded, and has no effect on the cycle that is in progress. The Read Identification (RDID) instruction
should not be issued while the device is in Deep Power down mode.
The device is first selected by driving Chip Select Low. Then, the 8-bit instruction code for the instruction
is shifted in. This is followed by the 24-bit device identification, stored in the memory, being shifted out
on Serial Data Output , each bit being shifted out during the falling edge of Serial Clock . The instruction
sequence is shown in Figure 32. The Read Identification (RDID) instruction is terminated by driving Chip
Select High at any time during data output.
When Chip Select is driven High, the device is put in the Standby Power mode. Once in the Standby
Power mode, the device waits to be selected, so that it can receive, decode and execute instructions.
The instruction sequence is shown in Figure 32.1 while using the Enable Quad Peripheral Interface mode
(EQPI) (38h) command.
Figure 32. Read Identification (RDID)
This Data Sheet may be revised by subsequent versions
or modifications due to changes in technical specifications.
50
Elite Semiconductor Memory Technology Inc.
Rev. H, Issue Date: 2018/08/23
EN25QH64A
preliminary
Figure 32.1. Read Identification (RDID) in QPI Mode
Enter OTP Mode (3Ah)
This Flash support OTP mode to enhance the data protection, user can use the Enter OTP mode (3Ah)
command for entering this mode. In OTP mode, the Status Register S7 bit is served as OTP_LOCK bit,
S6 bit is served as WXDIS bit, S5 bit is served as HRSW bit, S4 bit is served as 64KB-Block/Sector
switch bit, S3 bit is served as TB bit, S1 bit is served as WEL bit and S0 bit is served as WIP bit. They
can be read by RDSR command.
This Flash has an extra 512 bytes OTP sector, user must issue ENTER OTP MODE command to read,
program or erase OTP sector. After entering OTP mode, the OTP sector is mapping to sector 2047,
SRP bit becomes OTP_LOCK bit. The Chip Erase, Block Erase and Half Block Erase commands are
also disabled.
In OTP mode, user can read other sectors, but program/erase other sectors only allowed when they are
not protected by Block Protect (BP3, BP2, BP1, BP0) bits and Block Lock feature. The OTP sector can
only be erased by Sector Erase (20h) command. The Chip Erase (C7h/ 60h), 64K Block Erase (D8h)
and 32K Half Block Erase (52h) commands are disable in OTP mode.
Table 10. OTP Sector Address
Sector
Sector Size
Address Range
2047
512 byte
7FF000h – 7FF1FFh
Note: The OTP sector is mapping to sector 2047
WRSR command is used to program OTP_LOCK bit, TB bit, 64KB-Block/Sector switch bit to ‘1‘, but
these bits only can be programmed once. User can use WRDI (04h) command to exit OTP mode.
This Data Sheet may be revised by subsequent versions
or modifications due to changes in technical specifications.
51
Elite Semiconductor Memory Technology Inc.
Rev. H, Issue Date: 2018/08/23
EN25QH64A
The instruction sequence is shown in Figure 33.1 while using the Enable Quad Peripheral
Interface mode
preliminary
(EQPI) (38h) command.
Figure 33. Enter OTP Mode
Figure 33.1 Enter OTP Mode Sequence in QPI Mode
This Data Sheet may be revised by subsequent versions
or modifications due to changes in technical specifications.
52
Elite Semiconductor Memory Technology Inc.
Rev. H, Issue Date: 2018/08/23
EN25QH64A
preliminary
Read SFDP Mode and Unique ID Number (5Ah)
Read SFDP Mode
EN25QH64A features Serial Flash Discoverable Parameters (SFDP) mode. Host system can retrieve
the operating characteristics, structure and vendor specified information such as identifying information,
memory size, operating voltage and timing information of this device by SFDP mode.
The device is first selected by driving Chip Select (CS#) Low. The instruction code for the Read SFDP
Mode is followed by a 3-byte address (A23-A0) and a dummy byte, each bit being latched-in during the
rising edge of Serial Clock (CLK). Then the memory contents, at that address, is shifted out on Serial
Data Output (DO), each bit being shifted out, at a maximum frequency FR, during the falling edge of
Serial Clock (CLK).
The instruction sequence is shown in Figure 34. The first byte addressed can be at any location. The
address is automatically incremented to the next higher address after each byte of data is shifted out.
The whole memory can, therefore, be read with a single Serial Flash Discoverable Parameters (SFDP)
instruction. When the highest address is reached, the address counter rolls over to 0x00h, allowing the
read sequence to be continued indefinitely. The Serial Flash Discoverable Parameters (SFDP)
instruction is terminated by driving Chip Select (CS#) High. Chip Select (CS#) can be driven High at any
time during data output. Any Read Data Bytes at Serial Flash Discoverable Parameters (SFDP)
instruction, while an Erase, Program or Write cycle is in progress, is rejected without having any effects
on the cycle that is in progress.
Figure 34. Read SFDP Mode Instruction Sequence Diagram
This Data Sheet may be revised by subsequent versions
or modifications due to changes in technical specifications.
53
Elite Semiconductor Memory Technology Inc.
Rev. H, Issue Date: 2018/08/23
EN25QH64A
preliminary
Table 11. Serial Flash Discoverable Parameters (SFDP) Signature and Parameter Identification
Data Value (Advanced Information)
Description
SFDP Signature
SFDP Minor Revision Number
SFDP Major Revision Number
Number of Parameter Headers (NPH)
Unused
ID Number
Parameter Table Minor Revision
Number
Parameter Table Major Revision
Number
Parameter Table Length (in DW)
Parameter Table Pointer (PTP)
Unused
Address (h)
(Byte Mode)
Address (Bit)
Data
00h
01h
02h
03h
04h
05h
06h
07h
08h
07 : 00
15 : 08
23 : 16
31 : 24
07 : 00
15 : 08
23 : 16
31 : 24
07 : 00
53h
46h
44h
50h
00h
01h
00h
FFh
00h
Star from 0x00
Star from 0x01
1 parameter header
Reserved
JEDEC ID
09h
15 : 08
00h
Star from 0x00
0Ah
23 : 16
01h
Star from 0x01
0Bh
0Ch
0Dh
0Eh
0Fh
31 : 24
07 : 00
15 : 08
23 : 16
31 : 24
09h
30h
00h
00h
FFh
9 DWORDs
This Data Sheet may be revised by subsequent versions
or modifications due to changes in technical specifications.
54
Comment
Signature [31:0]:
Hex: 50444653
000030h
Reserved
Elite Semiconductor Memory Technology Inc.
Rev. H, Issue Date: 2018/08/23
EN25QH64A
preliminary
Table 12. Parameter ID (0) (Advanced Information) 1/9
Description
Address (h)
(Byte Mode)
Address
(Bit)
Block / Sector Erase sizes
Identifies the erase granularity for all Flash
Components
00
Write Granularity
Write Enable Instruction Required for
Writing to Volatile Status Register
Write Enable Opcode Select for Writing to
Volatile Status Register
02
01b
1b
0 = No, 1 = Yes
01b
00 = N/A
01 = use 50h opcode
11 = use 06h opcode
03
30h
04
05
06
07
08
09
10
11
12
13
14
15
31h
Supports (1-1-2) Fast Read
Device supports single input opcode & address
and dual output data Fast Read
111b
4 KB Erase Support
(FFh = not supported)
1b
0 = not supported
1 = supported
00b
00 = 3-Byte
01 = 3- or 4-Byte (e.g.
defaults to 3-Byte
mode; enters 4-Byte
mode on command)
10 = 4-Byte
11 = reserved
19
0b
0 = not supported
1 = supported
20
1b
0 = not supported
1 = supported
21
1b
0 = not supported
1 = supported
22
0b
0 = not supported
1 = supported
23
24
1b
Reserved
FFh
Reserved
17
Supports Double Data Rate (DDR) Clocking
Indicates the device supports some type of
double transfer rate clocking.
Supports (1-2-2) Fast Read
Device supports single input opcode, dual input
address, and dual output data Fast Read
Supports (1-4-4) Fast Read
Device supports single input opcode, quad
input address, and quad output data Fast Read
Supports (1-1-4) Fast Read
Device supports single input opcode & address
and quad output data Fast Read
Unused
18
32h
Reserved
20h
16
Address Byte
Number of bytes used in addressing for flash
array read, write and erase.
Comment
00 = reserved
01 = 4KB erase
10 = reserved
11 = 64KB erase
01
Unused
4 Kilo-Byte Erase Opcode
Data
25
26
Unused
27
33h
28
29
30
31
This Data Sheet may be revised by subsequent versions
or modifications due to changes in technical specifications.
55
Elite Semiconductor Memory Technology Inc.
Rev. H, Issue Date: 2018/08/23
EN25QH64A
preliminary
Table 12. Parameter ID (0) (Advanced Information) 2/9
Description
Flash Memory Density
Address (h)
(Byte Mode)
37h : 34h
Address
(Bit)
31 : 00
Data
Comment
3FFFFFFh
64 Mbits
Data
Comment
1Fh
Configurable
010b
8 mode bits
Table 12. Parameter ID (0) (Advanced Information) 3/9
Description
(1-4-4) Fast Read Number of Wait states
(dummy clocks) needed before valid
output
Address (h)
(Byte Mode)
38h
Quad Input Address Quad Output (1-4-4)
Fast Read Number of Mode Bits
(1-4-4) Fast Read Opcode
Opcode for single input opcode, quad input
address, and quad output data Fast Read.
(1-1-4) Fast Read Number of Wait states
(dummy clocks) needed before valid
output
39h
3Ah
(1-1-4) Fast Read Number of Mode Bits
(1-1-4) Fast Read Opcode
Opcode for single input opcode & address
and quad output data Fast Read.
3Bh
This Data Sheet may be revised by subsequent versions
or modifications due to changes in technical specifications.
Address
(Bit)
00
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
31 : 24
56
EBh
00000b
Not supported
000b
Not supported
6Bh
Elite Semiconductor Memory Technology Inc.
Rev. H, Issue Date: 2018/08/23
EN25QH64A
preliminary
Table 12. Parameter ID (0) (Advanced Information) 4/9
Description
Address (h)
(Byte Mode)
Address
(Bit)
00
01
02
03
04
05
06
07
Data
Comment
01000b
8 dummy clocks
000b
Not supported
3Bh
Not supported
00100b
4 dummy clocks
000b
Not supported
31 : 24
BBh
Not supported
Address
(Bit)
Data
Comment
Supports (2-2-2) Fast Read
Device supports dual input opcode &
address and dual output data Fast Read.
00
0b
0 = not supported
1 = supported
Reserved. These bits default to all 1’s
01
02
03
111b
Reserved
04
1b
0 = not supported
1 = supported
(EQPI Mode)
111b
Reserved
FFh
Reserved
(1-1-2) Fast Read Number of Wait states
(dummy clocks) needed before valid
output
3Ch
(1-1-2) Fast Read Number of Mode Bits
(1-1-2) Fast Read Opcode
Opcode for single input opcode & address
and dual output data Fast Read.
(1-2-2) Fast Read Number of Wait states
(dummy clocks) needed before valid
output
3Dh
15 : 08
3Eh
16
17
18
19
20
21
22
23
(1-2-2) Fast Read Number of Mode Bits
(1-2-2) Fast Read Opcode
Opcode for single input opcode, dual input
address, and dual output data Fast Read.
3Fh
Table 12. Parameter ID (0) (Advanced Information) 5/9
Description
Supports (4-4-4) Fast Read
Device supports Quad input opcode &
address and quad output data Fast Read.
Address (h)
(Byte Mode)
40h
Reserved. These bits default to all 1’s
Reserved. These bits default to all 1’s
43h : 41h
This Data Sheet may be revised by subsequent versions
or modifications due to changes in technical specifications.
57
05
06
07
31 : 08
Elite Semiconductor Memory Technology Inc.
Rev. H, Issue Date: 2018/08/23
EN25QH64A
preliminary
Table 12. Parameter ID (0) (Advanced Information) 6/9
Description
Reserved. These bits default to all 1’s
Address (h)
(Byte Mode)
45h : 44h
(2-2-2) Fast Read Number of Wait states
(dummy clocks) needed before valid
output
46h
(2-2-2) Fast Read Number of Mode Bits
(2-2-2) Fast Read Opcode
Opcode for dual input opcode & address
and dual output data Fast Read.
47h
Address
(Bit)
15 : 00
16
17
18
19
20
21
22
23
31 : 24
Data
Comment
FFh
Reserved
00000b
Not supported
000b
Not supported
FFh
Not supported
Data
Comment
FFh
Reserved
1Fh
Configurable
010b
8 mode bits
EBh
Must Enter EQPI
Mode firstly
Table 12. Parameter ID (0) (Advanced Information) 7/9
Description
Reserved. These bits default to all 1’s
Address (h)
(Byte Mode)
49h : 48h
(4-4-4) Fast Read Number of Wait states
(dummy clocks) needed before valid
output
4Ah
(4-4-4) Fast Read Number of Mode Bits
(4-4-4) Fast Read Opcode
Opcode for quad input opcode/address,
quad output data Fast Read.
4Bh
Address
(Bit)
15 : 00
16
17
18
19
20
21
22
23
31 : 24
Table 12. Parameter ID (0) (Advanced Information) 8/9
Description
Sector Type 1 Size
Sector Type 1 Opcode
Sector Type 2 Size
Sector Type 2 Opcode
Address (h)
(Byte Mode)
4Ch
4Dh
4Eh
4Fh
Address
(Bit)
07 : 00
15 : 08
23 : 16
31 : 24
Data
Comment
0Ch
20h
0Fh
52h
4 KB
32 KB
Table 12. Parameter ID (0) (Advanced Information) 9/9
Description
Sector Type 3 Size
Sector Type 3 Opcode
Sector Type 4 Size
Sector Type 4 Opcode
Address (h)
(Byte Mode)
50h
51h
52h
53h
This Data Sheet may be revised by subsequent versions
or modifications due to changes in technical specifications.
58
Address
(Bit)
07 : 00
15 : 08
23 : 16
31 : 24
Data
Comment
10h
D8h
00h
FFh
64 KB
Not Supported
Not Supported
Elite Semiconductor Memory Technology Inc.
Rev. H, Issue Date: 2018/08/23
EN25QH64A
preliminary
Read Unique ID Number
The Read Unique ID Number instruction accesses a factory-set read-only 96-bit number that is unique
to each EN25QH64A device. The ID number can be used in conjunction with user software methods to
help prevent copying or cloning of a system. The Read Unique ID instruction is initiated by driving the
CS# pin low and shifting the instruction code “5Ah” followed by a three bytes of addresses, 0x80h, and
one byte of dummy clocks. After which, the 96-bit ID is shifted out on the falling edge of CLK.
Table 13. Unique ID Number
Description
Address (h)
(Byte Mode)
Address
(Bit)
Data
Unique ID Number
80h : 8Bh
95 : 00
By die
This Data Sheet may be revised by subsequent versions
or modifications due to changes in technical specifications.
59
Comment
Elite Semiconductor Memory Technology Inc.
Rev. H, Issue Date: 2018/08/23
EN25QH64A
preliminary
Power-up Timing
All functionalities and DC specifications are specified for a VCC ramp rate of greater than 1V per 100 ms
(0V to 2.7V in less than 270 ms). See Table 16 and Figure 35 for more information.
Figure 35. Power-up Timing
Table 14. Power-Up Timing
Symbol
TPU-READ
(1)
TPU-WRITE
(1)
Parameter
Min.
Unit
VCC Min to Read Operation
100
µs
VCC Min to Write Operation
100
µs
Note:
1. This parameter is measured only for initial qualification and after a design or process change that
could affect this parameter.
.
INITIAL DELIVERY STATE
The device is delivered with the memory array erased: all bits are set to 1 (each byte contains FFh). The
Status Register contains 00h (all Status Register bits are 0).
This Data Sheet may be revised by subsequent versions
or modifications due to changes in technical specifications.
60
Elite Semiconductor Memory Technology Inc.
Rev. H, Issue Date: 2018/08/23
EN25QH64A
preliminary
Table 15. DC Characteristics
(Ta = - 40°C to 85°C; VCC = 2.7-3.6V)
Symbol
Parameter
Test Conditions
Min.
Typ.
Max.
Unit
ILI
Input Leakage Current
1
±2
µA
ILO
Output Leakage Current
1
±2
µA
ICC1
Standby Current
CS# = VCC, VIN = VSS or
VCC
20
µA
ICC2
Deep Power-down
Current
CS# = VCC, VIN = VSS or
VCC
20
µA
10
25
mA
CLK = 0.1 VCC / 0.9 VCC at
104MHz, DQ = open
ICC3
Operating Current (READ)
CLK = 0.1 VCC / 0.9 VCC at
33MHz, DQ = open
CLK = 0.1 VCC / 0.9 VCC at
104MHz, Quad Output Read,
DQ = open
CLK = 0.1 VCC / 0.9 VCC at
33MHz, Quad Output Read,
DQ = open
5
12
mA
14
35
mA
7
17
mA
9
30
mA
25
mA
13
25
mA
15
mA
ICC4
Operating Current (PP)
CS# = VCC
ICC5
CS# = VCC
ICC6
Operating Current
(WRSR)
Operating Current (SE)
ICC7
Operating Current (BE)
VIL
Input Low Voltage
– 0.5
25
0.2 VCC
VIH
Input High Voltage
0.7VCC
VCC+0.4
V
VOL
Output Low Voltage
IOL = 100 µA, Vcc=Vcc Min.
0.3
V
VOH
Output High Voltage
IOH = –100 µA , Vcc=Vcc
Min.
CS# = VCC
CS# = VCC
VCC-0.2
V
Table 16. AC Measurement Conditions
Symbol
CL
Parameter
Min.
Max.
Load Capacitance
30
Input Rise and Fall Times
Unit
pF
5
ns
Input Pulse Voltages
0.2VCC to 0.8VCC
V
Input Timing Reference Voltages
0.3VCC to 0.7VCC
V
VCC / 2
V
Output Timing Reference Voltages
Figure 36. AC Measurement I/O Waveform
This Data Sheet may be revised by subsequent versions
or modifications due to changes in technical specifications.
61
Elite Semiconductor Memory Technology Inc.
Rev. H, Issue Date: 2018/08/23
V
EN25QH64A
preliminary
Table 17. AC Characteristics
(Ta = - 40°C to 85°C; VCC = 2.7-3.6V)
Symbol
Alt
Parameter
Serial SDR SPI Clock Frequency for:
PP, QPP, SE, HBE, BE, CE, DP, RES, RDP,
WREN, WRDI, WRSR, WRSR3, Fast Read
Serial SDR SPI Clock Frequency for:
RDSR, RDSR3, RDID
FR
fC
Serial SDR Dual/Quad Clock Frequency for:
PP, QPP, SE, HBE, BE, CE, DP, RES, RDP,
WREN, WRDI, WRSR, WRSR3, RDSR, RDSR3,
RDID, Fast Read, Dual Output Fast Read,
Dual I/O Fast Read, Quad I/O Fast Read
fR
Serial Clock Frequency for READ
tCH 1
Serial Clock High Time for SDR
3.5
ns
tCL1
Serial Clock Low Time for SDR
3.5
ns
tCLCH2
tCHCL 2
Serial Clock Rise Time (Slew Rate)
0.1
V / ns
Serial Clock Fall Time (Slew Rate)
0.1
V / ns
tSLCH
tCSS
Min
Typ
Max
Unit
D.C.
104
MHz
D.C.
104
MHz
D.C.
104
MHz
D.C.
83
MHz
CS# Active Setup Time
5
ns
tCHSH
CS# Active Hold Time
5
ns
tSHCH
CS# Not Active Setup Time
5
ns
tCHSL
CS# Not Active Hold Time
5
ns
ns
tSHSL
tCSH
CS# High Time
30
tSHSL2
tCSH
Volatile Register Write Time
50
tSHQZ 2
tDIS
Output Disable Time
tCLQX
tHO
Output Hold Time
0
ns
tDVCH
tDSU
Data In Setup Time
2
ns
tCHDX
tDH
ns
6
ns
Data In Hold Time
3
ns
tHLCH
HOLD# Low Setup Time ( relative to CLK )
5
ns
tHHCH
HOLD# High Setup Time ( relative to CLK )
5
ns
tCHHH
HOLD# Low Hold Time ( relative to CLK )
5
ns
HOLD# High Hold Time ( relative to CLK )
5
tCHHL
tCLQV
tV
ns
Output Valid from CLK for SDR
7
ns
tWHSL
3
Write Protect Setup Time before CS# Low
20
ns
tSHWL
3
Write Protect Hold Time after CS# High
100
ns
tDP
2
CS# High to Deep Power-down Mode
3
µs
3
µs
1.8
µs
50
ms
tW
CS# High to Standby Mode without Electronic
Signature read
CS# High to Standby Mode with Electronic
Signature read
Write Status Register Cycle Time
tPP
Page Programming Time
0.5
3
ms
tSE
Sector Erase Time
0.04
0.3
s
tHBE
Half Block Erase Time
0.2
1
s
tBE
Block Erase Time
0.3
2
s
tCE
Chip Erase Time
30
100
tHRST
RESET# low period to reset the device
1
µs
tHRSL
RESET# high to next instruction
28
µs
tSHRV
Deselect to RESET# valid in quad mode
8
ns
tRES1 2
tRES2 2
This Data Sheet may be revised by subsequent versions
or modifications due to changes in technical specifications.
62
10
s
Elite Semiconductor Memory Technology Inc.
Rev. H, Issue Date: 2018/08/23
EN25QH64A
tSR
Software Reset
Latency
preliminary
28
µs
WIP = write operation
WIP = not in write operation
0
µs
Note: 1. tCH + tCL must be greater than or equal to 1/ fC
2. Value guaranteed by characterization, not 100% tested in production.
3. Only applicable as a constraint for a Write status Register instruction when Status Register Protect Bit is set at 1.
Figure 37. Serial Output Timing
Figure 38. Input Timing
Figure 39. Hold Timing
This Data Sheet may be revised by subsequent versions
or modifications due to changes in technical specifications.
63
Elite Semiconductor Memory Technology Inc.
Rev. H, Issue Date: 2018/08/23
EN25QH64A
preliminary
CS#
CLK
tSHRV
RESET#
tHRST
tHRSL
Figure 40. Reset Timing
ABSOLUTE MAXIMUM RATINGS
Stresses above the values so mentioned above may cause permanent damage to the device. These
values are for a stress rating only and do not imply that the device should be operated at conditions up
to or above these values. Exposure of the device to the maximum rating values for extended periods of
time may adversely affect the device reliability.
Parameter
Value
Unit
Storage Temperature
-65 to +150
°C
Plastic Packages
-65 to +125
°C
200
mA
Input and Output Voltage
2
(with respect to ground)
-0.5 to Vcc+0.5
V
Vcc
-0.5 to Vcc+0.5
V
Output Short Circuit Current
1
Notes:
1.
No more than one output shorted at a time. Duration of the short circuit should not be greater than one second.
2.
Minimum DC voltage on input or I/O pins is –0.5 V. During voltage transitions, inputs may undershoot Vss to –1.0V for periods of
up to 50ns and to –2.0 V for periods of up to 20ns. See figure below. Maximum DC voltage on output and I/O pins is Vcc + 0.5 V.
During voltage transitions, outputs may overshoot to Vcc + 2.0 V for periods up to 20ns. See figure below.
RECOMMENDED OPERATING RANGES 1
Parameter
Ambient Operating Temperature
Industrial Devices
Operating Supply Voltage
Vcc
Value
Unit
-40 to 85
°C
Full: 2.7 to 3.6
V
Notes:
1. Recommended Operating Ranges define those limits between which the functionality of the device is guaranteed.
This Data Sheet may be revised by subsequent versions
or modifications due to changes in technical specifications.
64
Elite Semiconductor Memory Technology Inc.
Rev. H, Issue Date: 2018/08/23
EN25QH64A
preliminary
Vcc
+1.5V
V
Maximum Negative Overshoot Waveform
Maximum Positive Overshoot Waveform
Table 18. CAPACITANCE
( VCC = 2.7-3.6V)
Parameter Symbol
Parameter Description
Test Setup
CIN
Input Capacitance
COUT
Output Capacitance
Typ
Max
Unit
VIN = 0
6
pF
VOUT = 0
8
pF
Note : Sampled only, not 100% tested, at TA = 25°C and a frequency of 20MHz.
This Data Sheet may be revised by subsequent versions
or modifications due to changes in technical specifications.
65
Elite Semiconductor Memory Technology Inc.
Rev. H, Issue Date: 2018/08/23
EN25QH64A
preliminary
PACKAGE MECHANICAL
Figure 41. SOP 200 mil ( official name = 208 mil )
SYMBOL
DIMENSION IN MM
NOR
1.975
0.15
1.825
5.275
7.90
5.275
1.27
0.425
0.65
MIN.
MAX
A
1.75
2.20
A1
0.05
0.25
A2
1.70
1.95
D
5.15
5.40
E
7.70
8.10
E1
5.15
5.40
e
----b
0.35
0.50
L
0.5
0.80
0
0
θ
0
4
80
Note : 1. Coplanarity: 0.1 mm
2. Max. allowable mold flash is 0.15 mm
at the pkg ends, 0.25 mm between leads.
This Data Sheet may be revised by subsequent versions
or modifications due to changes in technical specifications.
66
Elite Semiconductor Memory Technology Inc.
Rev. H, Issue Date: 2018/08/23
EN25QH64A
preliminary
Figure 42. VDFN8 ( 5x6mm )
DIMENSION IN MM
MIN.
NOR
MAX
A
0.70
0.75
0.80
A1
0.00
0.02
0.04
A2
--0.20
--D
5.90
6.00
6.10
E
4.90
5.00
5.10
D2
3.30
3.40
3.50
E2
3.90
4.00
4.10
e
--1.27
--b
0.35
0.40
0.45
L
0.55
0.60
0.65
Note: 1. Coplanarity: 0.1 mm
SYMBOL
This Data Sheet may be revised by subsequent versions
or modifications due to changes in technical specifications.
67
Elite Semiconductor Memory Technology Inc.
Rev. H, Issue Date: 2018/08/23
EN25QH64A
preliminary
Figure 43. PDIP8
SYMBOL
A
A1
A2
D
E
E1
L
eB
Θ0
DIMENSION IN INCH
MIN.
NOR
MAX
----0.210
0.015
----0.125
0.130
0.135
0.355
0.365
0.400
0.300
0.310
0.320
0.245
0.250
0.255
0.115
0.130
0.150
0.310
0.350
0.375
0
7
15
This Data Sheet may be revised by subsequent versions
or modifications due to changes in technical specifications.
68
Elite Semiconductor Memory Technology Inc.
Rev. H, Issue Date: 2018/08/23
EN25QH64A
preliminary
Figure 44. 16 LEAD SOP 300 mil
SYMBOL
DIMENSION IN MM
NOR
MAX
--2.65
0.20
0.30
--2.40
0.25
0.30
10.30
10.50
--10.65
7.50
7.60
1.27
----0.51
--1.27
MIN.
A
--A1
0.10
A2
2.25
C
0.20
D
10.10
E
10.00
E1
7.40
e
--b
0.31
L
0.4
θ
00
50
Note : 1. Coplanarity: 0.1 mm
80
This Data Sheet may be revised by subsequent versions
or modifications due to changes in technical specifications.
69
Elite Semiconductor Memory Technology Inc.
Rev. H, Issue Date: 2018/08/23
EN25QH64A
preliminary
Figure 45. 24-ball Thin Profile Fine-Pitch Ball Grid Array (6 x 8 mm) Package
DIMENSION IN MM
MIN.
NOR
A
----A1
0.27
--0.21 REF
A2
0.54 REF
A3
6 BSC
D
8 BSC
E
D1
--3.00
E1
--5.00
e
--1.00
b
--0.40
Note : 1. Coplanarity: 0.1 mm
SYMBOL
MAX
1.20
0.37
---------
This Data Sheet may be revised by subsequent versions
or modifications due to changes in technical specifications.
70
Elite Semiconductor Memory Technology Inc.
Rev. H, Issue Date: 2018/08/23
EN25QH64A
preliminary
Figure 46. VDFN 8 ( 6x8 mm )
Notice:
This package can’t contact to metal
trace or pad on board due to expose
metal pad underneath the package.
DIMENSION IN MM
MIN.
NOR
A
0.70
0.75
A1
0.00
0.02
A2
--0.20
D
7.90
8.00
E
5.90
6.00
D1
3.35
3.40
E1
4.25
4.30
e
--1.27
b
0.35
0.40
L
0.4
0.50
Note : 1. Coplanarity: 0.1 mm
SYMBOL
MAX
0.80
0.05
--8.10
6.10
3.45
4.35
--0.48
0.60
This Data Sheet may be revised by subsequent versions
or modifications due to changes in technical specifications.
71
Elite Semiconductor Memory Technology Inc.
Rev. H, Issue Date: 2018/08/23
EN25QH64A
preliminary
Figure 47. USON (8L 4x3x0.55 mm )
Pin#1 index side
A1
A2
E
A
D
DETAIL A
L
"A"
D1
E1
D2
D3
D4
b
"B"
DETAIL B
e
Symbol
A
A1
A2
b
D
D1
D2
D3
D4
E
E1
e
L
Dimension in mm
Min
0.55
0.02
0.15
0.30
4.00
0.80
0.80
0.80
0.80
3.00
0.20
0.80 BSC
0.55
0.60
Min
0.50
0.00
-0.25
3.90
0.70
0.70
0.70
0.70
2.90
0.10
Min
0.60
0.05
-0.35
4.10
0.90
0.90
0.90
0.90
3.10
0.30
0.65
Dimension in inch
Norm
Max
0.022
0.024
0.001
0.002
0.006
-0.012
0.014
0.157
0.161
0.031
0.035
0.031
0.035
0.031
0.035
0.031
0.035
0.118
0.122
0.008
0.012
0.031 BSC
0.022
0.024
0.026
Min
0.020
0.000
-0.010
0.154
0.028
0.028
0.028
0.028
0.114
0.004
Controlling dimension : millimeter
(Revision date : Apr 25 2018)
This Data Sheet may be revised by subsequent versions
or modifications due to changes in technical specifications.
72
Elite Semiconductor Memory Technology Inc.
Rev. H, Issue Date: 2018/08/23
EN25QH64A
preliminary
ORDERING INFORMATION
EN25QH64A
-
104
H
I
P
PACKAGING CONTENT
P = RoHS, Halogen-Free and REACH compliant
TEMPERATURE RANGE
I = Industrial (-40°C to +85°C)
PACKAGE
H = 8-pin 200mil SOP
W = 8-pin VDFN (5x6mm)
Q = 8-pin PDIP
F = 16-pin 300mil SOP
BB = 24-ball TFBGA (6 x 8 x 1.2mm)
Y = 8-pin VDFN (6x8mm)
XB = 8 contact USON (4x3x0.55mm)
SPEED
104 = 104 MHz
BASE PART NUMBER
EN = Eon Silicon Solution Inc.
25QH = 3V Serial Flash with 4KB Uniform-Sector
64 = 64 Megabit (8192K x 8)
A = version identifier
This Data Sheet may be revised by subsequent versions
or modifications due to changes in technical specifications.
73
Elite Semiconductor Memory Technology Inc.
Rev. H, Issue Date: 2018/08/23
EN25QH64A
preliminary
Revisions List
Revision No Description
Date
A
2014/10/01
B
C
D
E
F
G
H
Initial Release
1. Add RESET# pin
2. Add Quad Output Fast Read (6Bh) command
3. Add write volatile register (50h) command
4. Remove burst read (0Ch) command
5. Remove write status register-2 (07h) command
6. Modify status register bit locations(SR6, SR5, SR4, SR3, SR2)
7. Add dummy setting for fast read (0Bh) command while in QPI mode
(Table 5E)
8. Remove DPB bits at SR2.1
9. Remove burst length bits at SR3.1, SR3.0
10. Modify dummy byte at SR3.4, SR3.5
11. Modify tPP, tSE, tBE typical time and tSE max time
12. Modify power up timing at Figure 28 and Table 15
13. Add read current(Icc3) for 133Mhz
14. Modify figure 29. AC measurement I/O waveform
1. Modify 133Mhz to 104Mhz
Add VDFN 6x8mm
Modify the tail
1. Delete "Write Suspend and Write Resume" and "Read Status
Register 2 (RDSR2)" function
2. Modify the specification output driving strength
3 Modify the specification of tSHSL
Modify VDFN 8 ( 6x8 mm) PACKING DIMENSIONS
Add 8-contact USON (8L 4x3x0.55 mm ) package
This Data Sheet may be revised by subsequent versions
or modifications due to changes in technical specifications.
74
2015/08/13
2015/10/26
2015/11/18
2016/03/24
2017/03/31
2018/01/24
2018/08/23
Elite Semiconductor Memory Technology Inc.
Rev. H, Issue Date: 2018/08/23
工商网监
湘ICP备2023018690号
