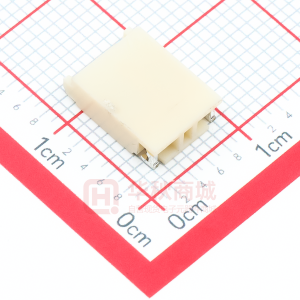

SM02B-BHSS-1-TB

BHS CONNECTOR 3.5mm (.138") pitch Emboss Tape Disconnectable Crimp style connectors Features –––––––––––––––––––––––– • Low profile Allows liquid crystal displays to be thinner, only 3.2mm (.126"). • SMT configuration Shrouded headers are SMT style, suited for high density mounting. The headers feature reinforcing solder tabs to prevent lifting of the header during mating and unmating. • Applicable to special wires Its crimp style contact can be inserted into the housing with little force, thus making them suitable for use with flexible wires such as those insulated with silicone rubber. • Housing lock also serves as polarizing device The housing lock, which is also designed to be a polarizing device, prevents both misinsertion and accidental disengagement due to vibration or shock. Low profile connectors with high withstanding voltage, designed for connecting liquid crystal display backlight lamps to their starters. • Two kinds of connections The BHS connectors can be used for wire-to-wire or wire-toboard connections. Specifications ––––––––––––––––––– • Current rating: 1.0A AC, DC (AWG #24) • Voltage rating: 1,400V AC, DC • Temperature range: -25˚C to +85˚C (including temperature rise in applying electrical current) • Contact resistance: Initial value/10m Ω max. After environmental testing/20m Ω max. • Insulation resistance: 1,000M Ω min. • Withstanding voltage: 3,800V AC/minute • Applicable wire: AWG #28 to #24 Insulation O.D/0.9 to 1.7mm (.035" to .067") * Contact JST for details. Standards––––––––––––––––––––––– 104 0 1 Recognized E60389 Certified LR20812 BHS CONNECTOR Contact–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– Model No. 8.05(.317) 0.9 1.3 (.035) (.051) 4.75(.187) 1.5(.059) 1.5(.059) mm2 0.08 to 0.22 Applicable wire Insulation O.D. mm(in.) AWG# 28 to 24 0.9 to 1.7(.035 to .067) Q'ty / reel 10,000 SBHS-002T-P0.5 Material and Finish Phosphor bronze, tin-plated Housing ––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– Circuits 7.5(.295) 2.0(.079) 2 H JST 2 3.2(.126) Model No. BHSR-02VS-1 Material Q'ty / bag 1,000 3.5(.138) 2.4(.094) Shrouded header ––––––––––––––––––––––––––––––––––––––––––––––––––––––––– Circuits 10.5(.413) 7.5(.295) 3.5(.138) H JST 10.6(.417) 3.2(.126) Taping specifications –––––––––––––––––––––––––––––––––––––––––––––––––––––– Feeding direction Carrier tape 100 (3.937)dia. 380±2.0(14.961±.079)dia. Feeding direction Cover tape leader area +2.5 [13.0(.512)dia.] 17.5-1.0 (.689+.098 ) -.004 4.0±0.1 1.55±0.05 (.061±.002)dia. (.157±.004) 2.0±0.1 (.079±.004) 1.75±0.1 (.069±.004) 16.0±0.1 (.630±.004) 7.5 0.1 6.75 [ (.226)] (.295±±.004) 0.3±0.05(.012±.002) 16.0±0.1(.630±.004) Note: 1. Specifications conform to JIS C 0806. The tape width, connector recess dimensions, etc. are determined by the number of circuits and external shape of the connector to be loaded. 2. Specifications are subject to change without prior notice. 1 Nyron 66, UL94V-0, natural (white) 2 Model No. SM02B-BHSS-1-TB Material and Finish Post: Brass, copper-undercoated, tin/lead-plated Wafer: Polyamide resin, UL-94V-0, natural (ivory) Solder tab: Brass, copper-undercoated, tin/lead-plated Q'ty / reel 1,000 8.7(.343) 1.5(.059) 1.5(.059) Note: The products listed above are supplied on embossed tape. Tail tape (Unloaded area) 40.0(1.575)min. Connector loaded area Lead tape (Unloaded area) 20 vacancies min. 400(15.748)min. 2.0±0.5(.079±.020) Cover tape Carrier tape 105 BHS CONNECTOR PC board layout (viewed from component side) and Assembly layout –––––––––––––––––– Solder tabs 1.9±0.1 (.075±.004) 0.2(.008) 1.0(.039)min. 6.5(.256)max. 13.9(.547) 3.2 (.126) Solder tails 0.85±0.1 (.033±.004) 0.35±0.1(.014±.004) 8.4±0.1 (.331±.004) 10.6(.417)min. Applicator for the semi-automatic press AP-K2N ––––––––––––––––––––––––––––––– Contact SBHS-002T-P0.5 Crimp applicator MKS-L with safety cover without safety cover APLMK SBH002-05 APLNC SBH002-05 Compact crimp applicator MKS-LS with safety cover without safety cover – – Strip-crimp applicator MKS-SC with safety cover – 106
