SMS-331-05DT

SMS-331-05DT

  • 厂商:

    ETC2

  • 封装:

  • 描述:

    SMS-331-05DT - PIN Diode Switches 0.5 to 18.0GHz Non-Reflective - List of Unclassifed Manufacturers

  • 详情介绍
  • 数据手册
  • 价格&库存
SMS-331-05DT 数据手册
SP3T PIN Diode Switches 0.5 to 18.0GHz Non-Reflective Features: • • • • • Removable SMA Connectors Integral TTL Compatible Drivers Internally Terminated Miniature Outline Very Fast Switching Low Loss and High Isolation • Description: The SMS-331-00DT range of SP3T PIN diode switches are packaged in miniature, silver plated housings with SMA connectors. The SMA connectors can be removed to allow direct integration into microstrip circuits if required and all units contain TTL compatible drivers. Ports J2, J3 and J4 are internally terminated to maintain VSWR when the switch is isolating. Optional surface finish is available, see note below for options. Specifications: Frequency Range (GHz) 0.5 – 2.0 0.5 – 6.0 6.0 – 12.0 12.0 – 18.0 6.0 – 18.0 0.5 – 18.0 N otes: 1. 2. 3. 4. 5. 6. 7. 8. (indicated values @ +25° C) Max Insertion Loss (dB) 1.6 2.1 2.8 3.4 3.4 3.4 Max VSWR (Ratio) 1.5:1 1.6:1 1.7:1 1.9:1 1.9:1 1.9:1 Min Isolation (dB) 50 50 60 55 55 55 Max Switching Speed (ns) 30 30 30 30 30 30 Max Power Peak/CW (mW) 100 100 100 100 100 100 Part Number SMS-331-01DT SMS-331-02DT SMS-331-03DT SMS-331-04DT SMS-331-05DT SMS-331-06DT Power supplies: +5V @ 100mA max, -5V @ 50mA max. Total switching time is defined as 50% TTL to 10/90% detected RF. 3 Individual TTL compatible control lines are provided. TTL ‘0’ = low loss, TTL’1’ = isolation. TTL Control Voltage should be = or < positive supply voltage at all times. Operating temperature range –40° to +85° C. Storage temperature range –55° to +125° C. Third angle projection, all dimensions in mm. Port J1 = RF common , Port J2 = RF input/output, Port J3 = RF input/output, Port J4 = RF input/output. Options: Add the following identifiers as suffixes to the part numbers above, i.e. SMS -331-01DTP. P = Finish Matt black paint to DTD5555A. The switch is available without integral drivers to allow users to externally optimise bias levels. Please consult the factory for detail information. Please contact the factory for any custom requirements or applications assistance. Cranfield Innovation Centre, University Way, Cranfield Technology Park, Cranfield, Bedfordshire, MK43 0BT, United Kingdom Telephone : #44 (0)1234 756034 Fax: #44 (0) 1234 756035 July 00/2 e-mail: enquiries@smslimited.co.uk Web page : www.smslimited.co.uk All specifications subject to change without notice
SMS-331-05DT
1. 物料型号: - SMS-331-01DT:0.5-2.0GHz,最大插入损耗1.6dB,最大VSWR 1.5:1,最小隔离度50dB,最大切换速度30ns,最大峰值/连续功率100mW。 - SMS-331-02DT:0.5-6.0GHz,最大插入损耗2.1dB,最大VSWR 1.6:1,最小隔离度50dB,最大切换速度30ns,最大峰值/连续功率100mW。 - SMS-331-03DT:6.0-12.0GHz,最大插入损耗2.8dB,最大VSWR 1.7:1,最小隔离度60dB,最大切换速度30ns,最大峰值/连续功率100mW。 - SMS-331-04DT:12.0-18.0GHz,最大插入损耗3.4dB,最大VSWR 1.9:1,最小隔离度55dB,最大切换速度30ns,最大峰值/连续功率100mW。 - SMS-331-05DT:6.0-18.0GHz,最大插入损耗3.4dB,最大VSWR 1.9:1,最小隔离度55dB,最大切换速度30ns,最大峰值/连续功率100mW。 - SMS-331-06DT:0.5-18.0GHz,最大插入损耗3.4dB,最大VSWR 1.9:1,最小隔离度55dB,最大切换速度30ns,最大峰值/连续功率100mW。

2. 器件简介: - SMS-331-00DT系列的SP3T PIN二极管开关采用小型化、镀银外壳和SMA连接器封装。SMA连接器可以移除,以便直接集成到微带线电路中,所有单元都包含TTL兼容驱动器。J2、J3和J4端口内部终止,以在开关隔离时保持VSWR。

3. 引脚分配: - Port J1 = RF公共端口 - Port J2 = RF输入/输出端口 - Port J3 = RF输入/输出端口 - Port J4 = RF输入/输出端口

4. 参数特性: - 频率范围:0.5-18.0GHz - 最大插入损耗:1.6-3.4dB - 最大VSWR:1.5-1.9 - 最小隔离度:50-60dB - 最大切换速度:30ns - 最大峰值/连续功率:100mW

5. 功能详解应用信息: - 这些开关具有可移除的SMA连接器和内部TTL兼容驱动器,适用于需要快速切换、低损耗和高隔离度的应用。它们可以用于微波和射频应用,特别是在需要精确控制信号路径的场合。

6. 封装信息: - 采用镀银的小型化外壳,SMA连接器可以移除以直接集成到微带线电路中。还提供了额外的表面处理选项。
SMS-331-05DT 价格&库存

很抱歉,暂时无法提供与“SMS-331-05DT”相匹配的价格&库存,您可以联系我们找货

免费人工找货

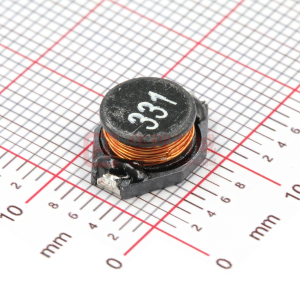

SMSD0804-331MT
