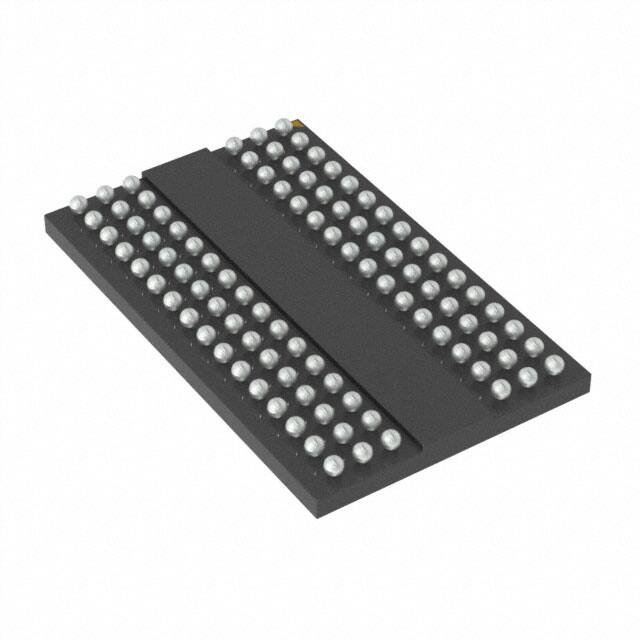

EM6HE16EWAKG-10IH

EtronTech EM6HE16EWAKG 256M x 16 bit DDR3L Synchronous DRAM (SDRAM) Advance (Rev. 1.2, May /2020) Features Overview  JEDEC The 4Gb Double-Data-Rate-3 (DDR3L) DRAMs is double data rate architecture to achieve high-speed operation. It is internally configured as an eight bank DRAM. The 4Gb chip is organized as 32Mbit x 16 I/Os x 8 bank devices. These synchronous devices achieve high speed double-data-rate transfer rates of up to 1866 Mb/sec/pin for general applications. The chip is designed to comply with all key DDR3L DRAM key features and all of the control and address inputs are synchronized with a pair of externally supplied differential clocks. Inputs are latched at the cross point of differential clocks (CK rising and CK# falling). All I/Os are synchronized with differential DQS pair in a source synchronous fashion. These devices operate with a single +1.35V -0.067V / +0.1V power supply and are available in BGA packages. Standard Compliant Power supplies: VDD & VDDQ = +1.35V   Backward compatible to VDD & VDDQ = +1.5V ±0.075V  Operating temperature: TC = -40~95°C (Industrial)  Supports JEDEC clock jitter specification  Fully synchronous operation  Fast clock rate: 800/933MHz  Differential Clock, CK & CK#  Bidirectional differential data strobe - DQS & DQS# 8 internal banks for concurrent operation prefetch architecture  Pipelined internal architecture  Precharge & active power down  Programmable Mode & Extended Mode registers  Additive Latency (AL): 0, CL-1, CL-2  Programmable Burst lengths: 4, 8  Burst type: Sequential / Interleave  Output Driver Impedance Control  Average refresh period  8n-bit - 8192 cycles/64ms (7.8us at -40°C ≦ TC ≦ +85°C) - 8192 cycles/32ms (3.9us at +85°C ≦ TC ≦ +95°C)  Write Leveling  ZQ Calibration  Dynamic ODT (Rtt_Nom & Rtt_WR)  RoHS compliant  Auto Refresh and Self Refresh  96-ball 7.5 x 13.5 x 1.2mm FBGA package - Pb and Halogen Free Table 1. Ordering Information Part Number Clock Frequency Data Rate 800MHz 1600Mbps/pin EM6HE16EWAKG-12IH 933MHz 1866Mbps/pin EM6HE16EWAKG-10IH WAK: indicates 7.5 x 13.5 x 1.2mm FBGA Package G: indicates Generation Code I: indicates Industrial Grade H(last digit): indicates Pb and Halogen Free Power Supply VDD 1.35V, VDDQ 1.35V VDD 1.35V, VDDQ 1.35V Package FBGA FBGA Table 2. Speed Grade Information Speed Grade DDR3L-1600 DDR3L-1866 Clock Frequency 800MHz 933MHz CAS Latency 11 13 tRCD (ns) 13.75 13.91 tRP (ns) 13.75 13.91 Etron Technology, Inc. No. 6, Technology Rd. V, Hsinchu Science Park, Hsinchu, Taiwan 30078, R.O.C. TEL: (886)-3-5782345 FAX: (886)-3-5778671 Etron Technology, Inc. reserves the right to change products or specification without notice. EtronTech EM6HE16EWAKG Figure 1. Ball Assignment (FBGA Top View) 1 2 3 A VDDQ DQ13 B VSSQ C … 7 8 9 DQ15 DQ12 VDDQ VSS VDD VSS UDQS# DQ14 VSSQ VDDQ DQ11 DQ9 UDQS DQ10 VDDQ D VSSQ VDDQ UDM DQ8 VSSQ VDD E VSS VSSQ DQ0 LDM VSSQ VDDQ F VDDQ DQ2 LDQS DQ1 DQ3 VSSQ G VSSQ DQ6 LDQS# VDD VSS VSSQ H VREFDQ VDDQ DQ4 DQ7 DQ5 VDDQ J NC VSS RAS# CK VSS NC K ODT VDD CAS# CK# VDD CKE L NC CS# WE# A10/AP ZQ NC M VSS BA0 BA2 NC VREFCA VSS N VDD A3 A0 A12/BC # BA1 VDD P VSS A5 A2 A1 A4 VSS R VDD A7 A9 A11 A6 VDD T VSS RESET# A13 A14 A8 VSS Rev. 1.2 2 May /2020 EtronTech EM6HE16EWAKG Figure 2. Block Diagram CK CKE Row Decoder DLL CLOCK BUFFER CK# 32M x 16 CELL ARRAY (BANK #0) Column Decoder CS# RAS# CAS# WE# CONTROL SIGNAL GENERATOR 32M x 16 CELL ARRAY (BANK #1) Column Decoder Row Decoder COMMAND DECODER Row Decoder RESET# 32M x 16 CELL ARRAY (BANK #2) A10/AP A12/BC# COLUMN COUNTER Row Decoder Column Decoder MODE REGISTER 32M x 16 CELL ARRAY (BANK #3) Column Decoder A0 ~ A9 A11 A13 A14 BA0 BA1 BA2 Row Decoder ADDRESS BUFFER 32M x 16 CELL ARRAY (BANK #4) ZQ CAL REFRESH COUNTER Row Decoder Column Decoder 32M x 16 CELL ARRAY (BANK #5) Column Decoder RZQ LDQS LDQS# UDQS UDQS# Row Decoder VSSQ DATA STROBE BUFFER 32M x 16 CELL ARRAY (BANK #6) Column Decoder DQ Buffer DQ0 Row Decoder ~ DQ15 32M x 16 CELL ARRAY (BANK #7) Column Decoder ODT Rev. 1.2 3 LDM UDM May /2020 EtronTech EM6HE16EWAKG Figure 3. State Diagram This simplified State Diagram is intended to provide an overview of the possible state transitions and the commands to control them. In particular, situations involving more than one bank, the enabling or disabling of on-die termination, and some other events are not captured in full detail Power applied Power On Reset Procedure MRS,MPR, Write Leveling Initialization from any RESET state ZQCL E SR X SR MRS ZQCL,ZQCS Idle REF ACT E PD DX P ZQ Calibration Self Refresh Refreshing ACT = Active PRE = Precharge Active Power Down PREA = Precharge All MRS = Mode Register Set REF = Refresh Precharge Power Down Activating P PD DX E RESET = Start RESET Procedure Read = RD, RDS4, RDS8 Read A = RDA, RDAS4, RDAS8 Bank Activating Write = WR, WRS4, WRS8 ZQCS = ZQ Calibration Short WRITE RE AD A AD RE TE RI W ZQCL = ZQ Calibration Long WR ITE A Write A = WRA, WRAS4, WRAS8 READ PDE = Enter Power-down PDX = Exit Power-down Writing Reading READ WRITE SRE = Self-Refresh entry SRX = Self-Refresh exit MPR = Multi-Purpose Register WRITE A READ A RE AD A ITE WR A A RE ,P PR E ,P RE A E PR Writing PRE, PREA Automatic Sequence Command Sequence Reading Precharging Rev. 1.2 4 May /2020 EtronTech EM6HE16EWAKG Ball Descriptions Table 3. Ball Details Symbol Type Description CK, CK# Input Differential Clock: CK and CK# are driven by the system clock. All SDRAM input signals are sampled on the crossing of positive edge of CK and negative edge of CK#. Output (Read) data is referenced to the crossings of CK and CK# (both directions of crossing). CKE Input Clock Enable: CKE activates (HIGH) and deactivates (LOW) the CK signal. If CKE goes LOW synchronously with clock, the internal clock is suspended from the next clock cycle and the state of output and burst address is frozen as long as the CKE remains LOW. When all banks are in the idle state, deactivating the clock controls the entry to the Power Down and Self Refresh modes. BA0-BA2 Input Bank Address: BA0-BA2 define to which bank the BankActivate, Read, Write, or Bank Precharge command is being applied. A0-A14 Input Address Inputs: A0-A14 is sampled during row address (A0-A14) for Active commands and the column address (A0-A9) for Read/Write commands to select one location out of the memory array in the respective bank. (A10/AP and A12/BC# have additional functions). The address inputs also provide the op-code during Mode Register Set commands. A10/AP Input Auto-Precharge: A10 is sampled during Read/Write commands to determine whether Autoprecharge should be performed to the accessed bank after the Read/Write operation. (HIGH: Autoprecharge; LOW: no Autoprecharge). A10 is sampled during a Precharge command to determine whether the Precharge applies to one bank (A10 LOW) or all banks (A10 HIGH). A12/BC# Input Burst Chop: A12/BC# is sampled during Read and Write commands to determine if burst chop (on the fly) will be performed. (HIGH - no burst chop; LOW - burst chopped). CS# Input Chip Select: CS# enables (sampled LOW) and disables (sampled HIGH) the command decoder. All commands are masked when CS# is sampled HIGH. It is considered part of the command code. RAS# Input Row Address Strobe: The RAS# signal defines the operation commands in conjunction with the CAS# and WE# signals and is latched at the crossing of positive edges of CK and negative edge of CK#. When RAS# and CS# are asserted "LOW" and CAS# is asserted "HIGH" either the BankActivate command or the Precharge command is selected by the WE# signal. When the WE# is asserted "HIGH" the BankActivate command is selected and the bank designated by BA is turned on to the active state. When the WE# is asserted "LOW" the Precharge command is selected and the bank designated by BA is switched to the idle state after the precharge operation. CAS# Input Column Address Strobe: The CAS# signal defines the operation commands in conjunction with the RAS# and WE# signals and is latched at the crossing of positive edges of CK and negative edge of CK#. When RAS# is held "HIGH" and CS# is asserted "LOW" the column access is started by asserting CAS# "LOW". Then, the Read or Write command is selected by asserting WE# “HIGH" or “LOW". WE# Input Write Enable: The WE# signal defines the operation commands in conjunction with the RAS# and CAS# signals and is latched at the crossing of positive edges of CK and negative edge of CK#. The WE# input is used to select the BankActivate or Precharge command and Read or Write command. LDQS, Input / LDQS# Output Bidirectional Data Strobe: Specifies timing for Input and Output data. Read Data Strobe is edge triggered. Write Data Strobe provides a setup and hold time for data and DQM. LDQS is for DQ0~7, UDQS is for DQ8~15. The data strobes LDOS and UDQS are paired with LDQS# and UDQS# to provide differential pair signaling to the system during both reads and writes. UDQS UDQS# LDM, UDM Rev. 1.2 Input Data Input Mask: Input data is masked when DM is sampled HIGH during a write cycle. LDM masks DQ0-DQ7, UDM masks DQ8-DQ15. 5 May /2020 EtronTech EM6HE16EWAKG DQ0-DQ15 Input / Output Data I/O: The DQ0-DQ15 input and output data are synchronized with positive and negative edges of DQS and DQS#. TheI/Os are byte-maskable during Writes. ODT Input On Die Termination: ODT (registered HIGH) enables termination resistance internal to the DDR3L SDRAM. When enabled, ODT is applied to each DQ, DQS, DQS#. The ODT pin will be ignored if Mode-registers, MR1and MR2, are programmed to disable RTT. RESET# Input Active Low Asynchronous Reset: Reset is active when RESET# is LOW, and inactive when RESET# is HIGH. RESET# must be HIGH during normal operation. RESET# is a CMOS rail to rail signal with DC high and low at 80% and 20% of VDD. VDD Supply Power Supply: +1.35V -0.067V/+0.1V. VSS Supply Ground VDDQ Supply DQ Power: +1.35V -0.067V/+0.1V. VSSQ Supply DQ Ground VREFCA Supply Reference voltage for CA VREFDQ Supply Reference voltage for DQ ZQ Supply Reference pin for ZQ calibration. NC - Rev. 1.2 No Connect: These pins should be left unconnected. 6 May /2020 EtronTech EM6HE16EWAKG Operation Mode Truth Table The following tables provide a quick reference of available DDR3L SDRAM commands, including CKE powerdown modes and bank-to-bank commands. Table 4. Truth Table (Note (1), (2)) Command BankActivate Single Bank Precharge All Banks Precharge State CKEn-1(3) CKEn DM BA0-2 A10/AP A0-9, 11, 13-14 A12/BC# Idle(4) H H X V Any H H X V L V Row address CS# RAS# CAS# WE# L L H H V L L H L Any H H X V H V V L L H L Write (Fixed BL8 or BC4) Active(4) H H X V L V V L H L L Write (BC4, on the fly) Active(4) H H X V L V L L H L L Write (BL8, on the fly) Active(4) H H X V L V H L H L L Active(4) H H X V H V V L H L L Active(4) H H X V H V L L H L L Active(4) H H X V H V H L H L L Read (Fixed BL8 or BC4) Active(4) H H X V L V V L H L H Read (BC4, on the fly) Active(4) H H X V L V L L H L H Read (BL8, on the fly) Active(4) H H X V L V H L H L H Active(4) H H X V H V V L H L H Active(4) H H X V H V L L H L H Active(4) H H X V H V H L H L H (Extended) Mode Register Set Idle H H X V L L L L No-Operation Any H H X V V V V L H H H Device Deselect Any H H X X X X X H X X X Refresh Idle H H X V V V V L L L H SelfRefresh Entry Idle H L X V V V V L L L H X X X X H X X X V V V V L H H H X X X X H X X X V V V V L H H H X X X X H X X X V V V V L H H H X X X X X X X Write with Autoprecharge (Fixed BL8 or BC4) Write with Autoprecharge (BC4, on the fly) Write with Autoprecharge (BL8, on the fly) Read with Autoprecharge (Fixed BL8 or BC4) Read with Autoprecharge (BC4, on the fly) Read with Autoprecharge (BL8, on the fly) SelfRefresh Exit Idle L H X Power Down Mode Entry Idle H L X OP code Power Down Mode Exit Any L H X Data Input Mask Disable Active H X L X Data Input Mask Enable(5) Active H X H X X X X X X X X Idle H H X X H X X L H H L X L H H L ZQ Calibration Long ZQ Calibration Short Idle H H X X L X NOTE 1: V=Valid data, X=Don't Care, L=Low level, H=High level NOTE 2: CKEn signal is input level when commands are provided. NOTE 3: CKEn-1 signal is input level one clock cycle before the commands are provided. NOTE 4: These are states of bank designated by BA signal. NOTE 5: LDM and UDM can be enabled respectively. Rev. 1.2 7 May /2020 EtronTech EM6HE16EWAKG Functional Description The DDR3L SDRAM is a high-speed dynamic random access memory internally configured as an eight-bank DRAM. The DDR3L SDRAM uses an 8n prefetch architecture to achieve high speed operation. The 8n Prefetch architecture is combined with an interface designed to transfer two data words per clock cycle at the I/O pins. A single read or write operation for the DDR3L SDRAM consists of a single 8n-bit wide, four clock data transfer at the internal DRAM core and two corresponding n-bit wide, one-half clock cycle data transfers at the I/O pins. Read and write operation to the DDR3L SDRAM are burst oriented, start at a selected location, and continue for a burst length of eight or a ‘chopped’ burst of four in a programmed sequence. Operation begins with the registration of an Active command, which is then followed by a Read or Write command. The address bits registered coincident with the Active command are used to select the bank and row to be activated (BA0-BA2 select the bank; A0-A14 select the row). The address bit registered coincident with the Read or Write command are used to select the starting column location for the burst operation, determine if the auto precharge command is to be issued (via A10), and select BC4 or BL8 mode ‘on the fly’ (via A12) if enabled in the mode register. Prior to normal operation, the DDR3L SDRAM must be powered up and initialized in a predefined manner. The following sections provide detailed information covering device reset and initialization, register definition, command descriptions and device operation. Figure 4. Reset and Initialization Sequence at Power-on Ramping Ta Tb Tc Td Te Tf Tg Th Ti Tj Tk CK# CK VDD VDDQ tCKSRX T=200μs T=500μs RESET# Tmin=10ns tIS CKE tDLLK tIS COMMAND Note 1 BA tXPR tMRD tMRD tMRD tMOD MRS MRS MRS MRS MR2 MR3 MR1 MR0 tZQinit ZQCL Note 1 VALID tIS ODT VALID tIS Static LOW in case RTT_Nom is enabled at time Tg, otherwise static HIGH or LOW VALID RTT NOTE 1. From time point "Td" until "Tk " NOP or DES commands must be applied between MRS and ZQCL commands. TIME BREAK Rev. 1.2 8 Don't Care May /2020 EtronTech EM6HE16EWAKG Power-up and Initialization The Following sequence is required for POWER UP and Initialization 1. Apply power (RESET# is recommended to be maintained below 0.2 x VDD, all other inputs may be undefined). RESET# needs to be maintained for minimum 200us with stable power. CKE is pulled “Low” anytime before RESET# being de-asserted (min. time 10ns). The power voltage ramp time between 300mV to VDDmin must be no greater than 200ms; and during the ramp, VDD>VDDQ and (VDD-VDDQ)
