AUIRGS30B60K-IR

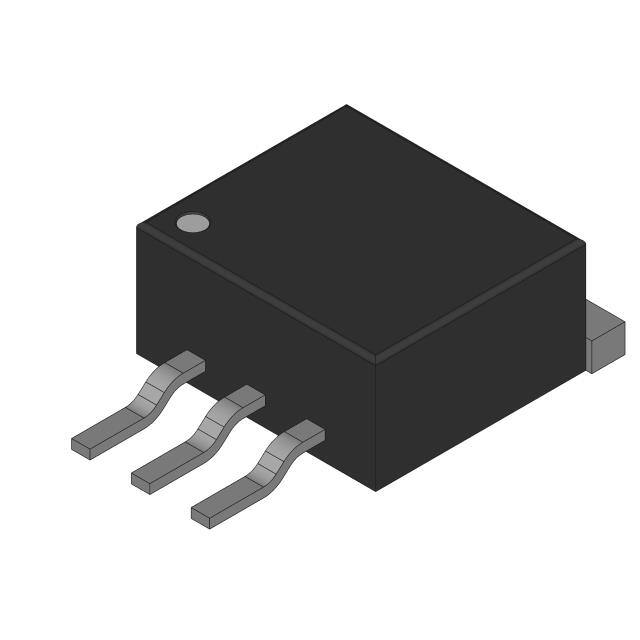

PD - 96334 AUTOMOTIVE GRADE INSULATED GATE BIPOLAR TRANSISTOR AUIRGS30B60K AUIRGSL30B60K C VCES = 600V Features • • • • • • • Low V CE(on) Non Punch Through IGBT Technology 10µs Short Circuit Capability Square RBSOA Positive V CE(on) Temperature Coefficient Maximum Junction Temperature rated at 175°C Lead-Free, RoHS Compliant Automotive Qualified * IC = 50A, TC=100°C at TJ=175°C G tsc > 10µs, TJ=150°C E VCE(on) typ. = 1.95V n-channel Benefits • Benchmark Efficiency for Motor Control • Rugged Transient Performance • Low EMI D2Pak AUIRGS30B60K • Excellent Current Sharing in Parallel Operation G Gate Absolute Maximum Ratings TO-262 AUIRGSL30B60K C Collector E Emitter Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only; and functional operation of the device at these or any other condition beyond those indicated in the specifications is not implied.Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. The thermal resistance and power dissipation ratings are measured under board mounted and still air conditions. Ambient temperature (TA) is 25°C, unless otherwise specified Parameter Max. Units V VCES Collector-to-Emitter Voltage 600 IC @ TC = 25°C Continuous Collector Current 78 IC @ TC = 100°C Continuous Collector Current 50 ICM 120 ILM Pulse Collector Current (Ref.Fig.C.T.5) Clamped Inductive Load current VISOL RMS Isolation Voltage, Terminal to Case, t=1 min. 2500 VGE Gate-to-Emitter Voltage ±20 PD @ TC = 25°C Maximum Power Dissipation 370 PD @ TC = 100°C Maximum Power Dissipation 180 c TJ Operating Junction and TSTG Storage Temperature Range A 120 V W -55 to +175 °C Soldering Temperature, for 10 sec. 300 (0.063 in. (1.6mm) from case) Thermal / Mechanical Characteristics Min. Typ. Max. RθJC Junction-to-Case- IGBT Parameter ––– ––– 0.41* RθCS Case-to-Sink, flat, greased surface ––– 0.50 ––– RθJA Junction-to-Ambient (PCB Mount, Steady State) ––– ––– 40 Wt Weight ––– 1.44 ––– d Units °C/W g * RθJC (end of life) = 0.65°C/W. This is the maximum measured value after 1000 temperature cycles from -55 to 150°C and is accounted for by the physical wearout of the die attach medium. www.irf.com 1 10/14/10 AUIRGS/SL30B60K Dynamic Electrical Characteristics @ TJ = 25°C (unless otherwise specified) Parameter V(BR)CES ∆V(BR)CES/∆TJ VCE(on) VGE(th) ∆VGE(th)/∆TJ Collector-to-Emitter Breakdown Voltage Temperature Coeff. of Breakdown Voltage Collector-to-Emitter Voltage gfe ICES Gate Threshold Voltage Threshold Voltage temp. coefficient Forward Transconductance Zero Gate Voltage Collector Current IGES Gate-to-Emitter Leakage Current Min. Typ. Max. Units 600 — — — — 3.5 — — — — — — Conditions Ref.Fig. — — V VGE = 0V, IC = 500µA 0.40 — V/°C VGE = 0V, IC = 1mA (25°C-150°C) IC = 30A, VGE = 15V, TJ = 25°C 1.95 2.35 2.40 2.75 V IC = 30A, VGE = 15V, TJ = 150°C IC = 30A, VGE = 15V, TJ = 175°C 2.6 2.95 4.5 5.5 V VCE = VGE, IC = 250µA -10 — mV/°C VCE = VGE, IC = 1.0mA (25°C-150°C) 18 — S VCE = 50V, IC = 50A, PW = 80µs VGE = 0V, VCE = 600V 5.0 250 1000 2000 µA VGE = 0V, VCE = 600V, TJ = 150°C VGE = 0V, VCE = 600V, TJ = 175°C 1830 3000 — ±100 nA VGE = ±20V, VCE = 0V 5,6,7 8,9,10 8,9,10 11 Static or Switching Characteristics @ TJ = 25°C (unless otherwise specified) Parameter Qg Qge Qgc Eon Eoff Etot td(on) tr td(off) tf Eon Eoff Etot td(on) tr td(off) tf LE Cies Coes Cres RBSOA SCSOA ISC (Peak) Total Gate Charge (turn-on) Gate-to-Emitter Charge (turn-on) Gate-to-Collector Charge (turn-on) Turn-On Switching Loss Turn-Off Switching Loss Total Switching Loss Turn-On delay time Rise time Turn-Off delay time Fall time Turn-On Switching Loss Turn-Off Switching Loss Total Switching Loss Turn-On delay time Rise time Turn-Off delay time Fall time Internal Emitter Inductance Input Capacitance Output Capacitance Reverse Transfer Capacitance Reverse Bias Safe Operating Area Short Circuit Safe Operating Area Peak Short Circuit Collector Current Min. Typ. Max. Units — 102 153 — 14 21 — 44 66 — 350 620 — 825 955 — 1175 1575 — 46 60 — 28 39 — 185 200 — 31 40 — 635 1085 — 1150 1350 — 1785 2435 — 46 60 — 28 39 — 205 235 — 32 42 — 7.5 — — 1750 — — 160 — — 60 — FULL SQUARE 10 — — 200 — — Conditions Ref.Fig. IC = 30A nC VCC = 400V VGE = 15V IC = 30A, VCC = 400V µJ VGE = 15V, RG = 10Ω, L = 200µH TJ = 25°C IC = 30A, VCC = 400V ns VGE = 15V, RG = 10Ω, L = 200µH TJ = 25°C 17 CT1 CT4 e µJ ns CT4 IC = 30A, VCC = 400V VGE = 15V, RG = 10Ω, L = 200µH TJ = 150°C IC = 30A, VCC = 400V VGE = 15V, RG = 10Ω, L = 200µH TJ = 150°C CT4 12,14 e WF1,WF2 13,15 CT4 WF1 WF2 nH Measured 5mm from package VGE = 0V pF VCC = 30V f = 1.0MHz TJ = 150°C, IC = 120A, Vp = 600V µs 16 4 VCC=500V,VGE = +15V to 0V,RG =10Ω CT2 TJ = 150°C, Vp = 600V, RG = 10Ω VCC=360V,V GE = +15V to 0V WF3 A CT3 WF3 Notes:  VCC = 80% (VCES), VGE = 20V, L = 28µH, RG = 22Ω. ‚ This is applied to D2Pak, when mounted on 1" square PCB ( FR-4 or G-10 Material ). For recommended footprint and soldering techniques refer to application note #AN-994. ƒ Energy losses include "tail" and diode reverse recovery. 2 www.irf.com AUIRGS/SL30B60K Qualification Information† Automotive (per AEC-Q101) Qualification Level Comments: This part number(s) passed Automotive qualification. IR’s Industrial and Consumer qualification level is granted by extension of the higher Automotive level. 2 D PAK Moisture Sensitivity Level MSL1 ††† (per IPC/JEDEC J-STD-020) TO-262 Machine Model †† N/A Class M4 (400V) AEC-Q101-002 ESD Human Body Model Class H2 (4000V) AEC-Q101-001 Charged Device Model Class C4 (1000V) AEC-Q101-005 RoHS Compliant † Yes Qualification standards can be found at International Rectifier’s web site: http://www.irf.com †† Exceptions to AEC-Q101 requirements are noted in the qualification report. ††† Higher MSL ratings may be available for the specific package types listed here. Please contact your International Rectifier sales representative for further information. www.irf.com 3 AUIRGS/SL30B60K 80 400 70 350 60 300 50 IC (A) 250 Ptot (W) 40 30 200 150 20 100 10 50 0 0 20 40 60 0 80 100 120 140 160 180 0 T C (°C) 20 40 60 80 100 120 140 160 180 T C (°C) Fig. 1 - Maximum DC Collector Current vs. Case Temperature Fig. 2 - Power Dissipation vs. Case Temperature 1000 1000 100 100 IC A) IC (A) 10 µs 10 100 µs 10 1ms 1 DC 0.1 1 10 100 1000 VCE (V) Fig. 3 - Forward SOA TC = 25°C; TJ ≤ 150°C 4 10000 1 10 100 1000 VCE (V) Fig. 4 - Reverse Bias SOA TJ = 150°C; VGE =15V www.irf.com AUIRGS/SL30B60K 60 50 VGE = 18V VGE = 15V 50 VGE = 18V VGE = 15V 40 VGE = 12V VGE = 10V 40 VGE = 12V VGE = 10V VGE = 8.0V ICE (A) ICE (A) 60 30 VGE = 8.0V 30 20 20 10 10 0 0 0 1 2 3 4 0 5 1 2 3 4 5 VCE (V) VCE (V) Fig. 5 - Typ. IGBT Output Characteristics TJ = -40°C; tp = 80µs Fig. 6 - Typ. IGBT Output Characteristics TJ = 25°C; tp = 80µs ICE (A) 60 50 VGE = 18V VGE = 15V 40 VGE = 12V VGE = 10V VGE = 8.0V 30 20 10 0 0 1 2 3 4 5 VCE (V) Fig. 7 - Typ. IGBT Output Characteristics TJ = 150°C; tp = 80µs www.irf.com 5 20 20 18 18 16 16 14 14 12 ICE = 15A 10 ICE = 30A 8 ICE = 60A VCE (V) VCE (V) AUIRGS/SL30B60K 12 ICE = 15A 10 ICE = 30A 8 ICE = 60A 6 6 4 4 2 2 0 0 5 10 15 20 5 10 VGE (V) 15 20 VGE (V) Fig. 9 - Typical VCE vs. VGE TJ = 25°C Fig. 8 - Typical VCE vs. VGE TJ = -40°C 250 20 18 T J = 25°C T J = 150°C 200 16 12 10 ICE = 15A ICE = 30A 8 ICE = 60A ICE (A) VCE (V) 14 150 100 6 T J = 150°C 50 4 T J = 25°C 2 0 0 5 10 15 VGE (V) Fig. 10 - Typical VCE vs. VGE TJ = 150°C 6 20 0 5 10 15 20 VGE (V) Fig. 11 - Typ. Transfer Characteristics VCE = 50V; tp = 10µs www.irf.com AUIRGS/SL30B60K 3000 1000 Swiching Time (ns) 2500 Energy (µJ) 2000 EOFF 1500 EON 1000 tdOFF 100 td ON tF 500 tR 0 0 20 40 60 10 80 0 IC (A) 20 40 60 80 IC (A) Fig. 12 - Typ. Energy Loss vs. IC TJ = 150°C; L=200µH; VCE= 400V, RG= 10Ω; VGE= 15V Fig. 13 - Typ. Switching Time vs. IC TJ = 150°C; L=200µH; VCE= 400V RG= 10Ω; VGE= 15V 10000 3000 Energy (µJ) 2000 Swiching Time (ns) 2500 EOFF EON 1500 1000 1000 tdOFF 100 tdON tF 500 tR 10 0 0 25 50 75 100 RG (Ω) Fig. 14 - Typ. Energy Loss vs. RG TJ = 150°C; L=200µH; VCE= 400V ICE= 30A; VGE= 15V www.irf.com 125 0 25 50 75 100 125 RG (Ω) Fig. 15 - Typ. Switching Time vs. RG TJ = 150°C; L=200µH; VCE= 400V ICE= 30A; VGE= 15V 7 AUIRGS/SL30B60K 16 10000 14 200V 12 1000 400V 10 VGE (V) Capacitance (pF) Cies Coes 100 8 6 4 2 Cres 0 10 0 20 40 60 80 0 100 25 50 75 100 125 Q G, Total Gate Charge (nC) VCE (V) Fig. 16- Typ. Capacitance vs. VCE VGE= 0V; f = 1MHz Fig. 17 - Typical Gate Charge vs. VGE ICE = 30A; L = 600µH Thermal Response ( Z thJC ) 10 1 0.1 0.01 D = 0.50 0.20 0.10 τJ 0.05 0.02 0.01 R1 R1 τJ τ1 R2 R2 τC τ1 τ2 τ2 τ Ri (°C/W) τi (sec) 0.200 0.000428 0.209 0.013031 Ci= τi/Ri Ci i/Ri Notes: 1. Duty Factor D = t1/t2 2. Peak Tj = P dm x Zthjc + Tc 0.001 SINGLE PULSE ( THERMAL RESPONSE ) 0.0001 1E-006 1E-005 0.0001 0.001 0.01 0.1 1 t1 , Rectangular Pulse Duration (sec) Fig 18. Maximum Transient Thermal Impedance, Junction-to-Case (IGBT) 8 www.irf.com AUIRGS/SL30B60K L L VCC DUT 0 + - 80 V DUT Fig.C.T.1 - Gate Charge Circuit (turn-off) Fig.C.T.2 - RBSOA Circuit diode clamp / DUT Driver L - 5V 360V DC 480V Rg 1K DUT / DRIVER DUT VCC Rg Fig.C.T.3 - S.C.SOA Circuit Fig.C.T.4 - Switching Loss Circuit R= DUT VCC ICM VCC Rg Fig.C.T.5 - Resistive Load Circuit www.irf.com 9 AUIRGS/SL30B60K 700 600 35 700 70 30 600 60 25 500 90% ICE tf 300 15 5% V CE 5% ICE 100 0 400 40 300 30 10 200 5 100 0 0 90% test current tr 10% test current 5% V CE 0.00 0.20 0.40 0.60 -5 0.80 -100 15.90 16.00 Time(µs) 16.10 10 16.20 -10 16.30 Time (µs) Fig. WF1- Typ. Turn-off Loss Waveform @ TJ = 150°C using Fig. CT.4 Fig. WF2- Typ. Turn-on Loss Waveform @ TJ = 150°C using Fig. CT.4 600 300 500 250 ICE 400 200 VCE (V) VCE 300 150 200 100 100 50 0 -5.00 0.00 5.00 10.00 ICE (A) -100 -0.20 20 0 Eon Loss Eof f Loss ICE (A) 20 VCE (V) 400 200 50 TEST CURRENT ICE (A) V CE (V) 500 0 15.00 time (µS) Fig. WF3- Typ. S.C Waveform @ TC = 150°C using Fig. CT.3 10 www.irf.com AUIRGS/SL30B60K TO-262 Package Outline Dimensions are shown in millimeters (inches) TO-262 Part Marking Information Part Number AUGSL30B60K YWWA IR Logo XX or Date Code Y= Year WW= Work Week A= Automotive, Lead Free XX Lot Code Note: For the most current drawing please refer to IR website at http://www.irf.com/package/ www.irf.com 11 AUIRGS/SL30B60K D2Pak (TO-263AB) Package Outline Dimensions are shown in millimeters (inches) D2Pak (TO-263AB) Part Marking Information Part Number AUGS30B60K YWWA IR Logo XX or Date Code Y= Year WW= Work Week A= Automotive, Lead Free XX Lot Code Note: For the most current drawing please refer to IR website at http://www.irf.com/package/ 12 www.irf.com AUIRGS/SL30B60K D2Pak (TO-263AB) Tape & Reel Information Dimensions are shown in millimeters (inches) TRR 1.60 (.063) 1.50 (.059) 4.10 (.161) 3.90 (.153) FEED DIRECTION 1.85 (.073) 1.65 (.065) 1.60 (.063) 1.50 (.059) 11.60 (.457) 11.40 (.449) 0.368 (.0145) 0.342 (.0135) 15.42 (.609) 15.22 (.601) 24.30 (.957) 23.90 (.941) TRL 10.90 (.429) 10.70 (.421) 1.75 (.069) 1.25 (.049) 4.72 (.136) 4.52 (.178) 16.10 (.634) 15.90 (.626) FEED DIRECTION 13.50 (.532) 12.80 (.504) 27.40 (1.079) 23.90 (.941) 4 330.00 (14.173) MAX. NOTES : 1. COMFORMS TO EIA-418. 2. CONTROLLING DIMENSION: MILLIMETER. 3. DIMENSION MEASURED @ HUB. 4. INCLUDES FLANGE DISTORTION @ OUTER EDGE. www.irf.com 60.00 (2.362) MIN. 26.40 (1.039) 24.40 (.961) 3 30.40 (1.197) MAX. 4 13 AUIRGS/SL30B60K Ordering Information Base part number AUIRGSL30B60K AUIRGS30B60K 14 Package Type TO-262 D2Pak Standard Pack Form Tube Tube Tape and Reel Left Tape and Reel Right Complete Part Number Quantity 50 50 800 800 AUIRGSL30B60K AUIRGS30B60K AUIRGS30B60KTRL AUIRGS30B60KTRR www.irf.com AUIRGS/SL30B60K IMPORTANT NOTICE Unless specifically designated for the automotive market, International Rectifier Corporation and its subsidiaries (IR) reserve the right to make corrections, modifications, enhancements, improvements, and other changes to its products and services at any time and to discontinue any product or services without notice. Part numbers designated with the “AU” prefix follow automotive industry and / or customer specific requirements with regards to product discontinuance and process change notification. All products are sold subject to IR’s terms and conditions of sale supplied at the time of order acknowledgment. IR warrants performance of its hardware products to the specifications applicable at the time of sale in accordance with IR’s standard warranty. Testing and other quality control techniques are used to the extent IR deems necessary to support this warranty. Except where mandated by government requirements, testing of all parameters of each product is not necessarily performed. IR assumes no liability for applications assistance or customer product design. Customers are responsible for their products and applications using IR components. To minimize the risks with customer products and applications, customers should provide adequate design and operating safeguards. Reproduction of IR information in IR data books or data sheets is permissible only if reproduction is without alteration and is accompanied by all associated warranties, conditions, limitations, and notices. Reproduction of this information with alterations is an unfair and deceptive business practice. IR is not responsible or liable for such altered documentation. Information of third parties may be subject to additional restrictions. Resale of IR products or serviced with statements different from or beyond the parameters stated by IR for that product or service voids all express and any implied warranties for the associated IR product or service and is an unfair and deceptive business practice. IR is not responsible or liable for any such statements. IR products are not designed, intended, or authorized for use as components in systems intended for surgical implant into the body, or in other applications intended to support or sustain life, or in any other application in which the failure of the IR product could create a situation where personal injury or death may occur. Should Buyer purchase or use IR products for any such unintended or unauthorized application, Buyer shall indemnify and hold International Rectifier and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that IR was negligent regarding the design or manufacture of the product. IR products are neither designed nor intended for use in military/aerospace applications or environments unless the IR products are specifically designated by IR as military-grade or “enhanced plastic.” Only products designated by IR as military-grade meet military specifications. Buyers acknowledge and agree that any such use of IR products which IR has not designated as military-grade is solely at the Buyer’s risk, and that they are solely responsible for compliance with all legal and regulatory requirements in connection with such use. IR products are neither designed nor intended for use in automotive applications or environments unless the specific IR products are designated by IR as compliant with ISO/TS 16949 requirements and bear a part number including the designation “AU”. Buyers acknowledge and agree that, if they use any non-designated products in automotive applications, IR will not be responsible for any failure to meet such requirements For technical support, please contact IR’s Technical Assistance Center http://www.irf.com/technical-info/ WORLD HEADQUARTERS: 233 Kansas St., El Segundo, California 90245 Tel: (310) 252-7105 www.irf.com 15
