BCX54 ...- BCX56...
NPN Silicon AF Transistors
• For AF driver and output stages
1
2
• High collector current
3
2
• Low collctor-emitter saturation voltage
• Complementary types: BCX51...BCX53 (PNP)
• Pb-free (RoHS compliant) package
• Qualified according AEC Q101
Type
Marking
Pin Configuration
BCX54-16
BD
1=B
2=C
3=E

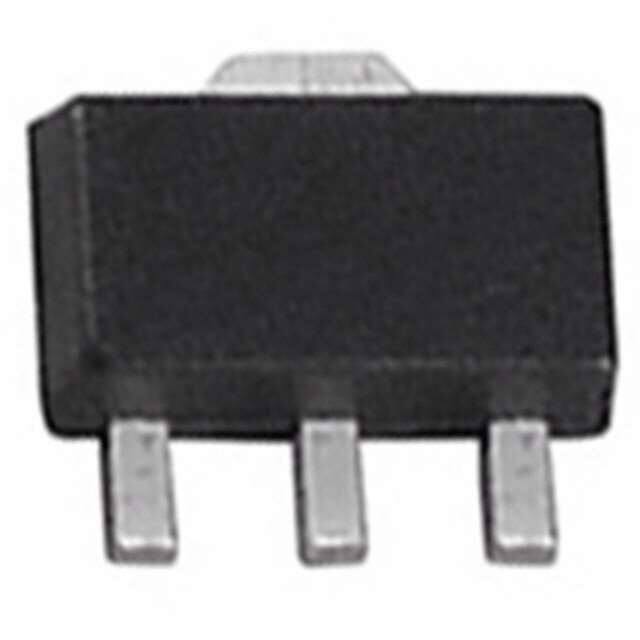

SOT89
BCX55
BE
1=B
2=C
3=E
SOT89
BCX55-16
BM
1=B
2=C
3=E
SOT89
BCX56
BH
1=B
2=C
3=E
SOT89
BCX56-10
BK
1=B
2=C
3=E
SOT89
BCX56-16
BL
1=B
2=C
3=E
SOT89
1
Package
2011-09-19
BCX54 ...- BCX56...
Maximum Ratings
Parameter
Symbol
Collector-emitter voltage
VCEO
Value
-
BCX54
45
BCX55
60
BCX56
80
Collector-base voltage
Unit
V
VCBO
BCX54
45
BCX55
60
BCX56
100
Emitter-base voltage
VEBO
5
Collector current
IC
1
Peak collector current, tp ≤ 10 ms
ICM
1.5
Base current
IB
100
Peak base current
IBM
200
Total power dissipation-
Ptot
2
W
150
°C
A
mA
TS ≤ 120°C
Junction temperature
Tj
Storage temperature
Tstg
Thermal Resistance
Parameter
Symbol
Junction - soldering point1)
RthJS
-65 ... 150
Value
≤ 15
Unit
K/W
1For calculation of R
thJA please refer to Application Note AN077 (Thermal Resistance Calculation)
2
2011-09-19
BCX54 ...- BCX56...
Electrical Characteristics at TA = 25°C, unless otherwise specified
Parameter
Symbol
Values
min.
typ. max.
DC Characteristics
Collector-emitter breakdown voltage
V(BR)CEO
IC = 10 mA, IB = 0 , BCX54
45
-
-
IC = 10 mA, IB = 0 , BCX55
60
-
-
IC = 10 mA, IB = 0 , BCX56
80
-
-
IC = 100 µA, IE = 0 , BCX54
45
-
-
IC = 100 µA, IE = 0 , BCX55
60
-
-
IC = 100 µA, IE = 0 , BCX56
100
-
-
5
-
-
Collector-base breakdown voltage
Unit
V
V(BR)CBO
Emitter-base breakdown voltage
V(BR)EBO
IE = 10 µA, IC = 0
Collector-base cutoff current
µA
ICBO
VCB = 30 V, IE = 0
-
-
0.1
VCB = 30 V, IE = 0 , TA = 150 °C
-
-
20
DC current gain1)
-
hFE
IC = 5 mA, VCE = 2 V
25
-
-
IC = 150 mA, VCE = 2 V, BCX55/BCX56
40
-
250
IC = 150 mA, VCE = 2 V, BCX55-10/BCX56-10
63
100
160
IC = 150 mA, VCE = 2 V, BCX54-16...BCX56-16
100
160
250
IC = 500 mA, VCE = 2 V
25
-
-
VCEsat
-
-
0.5
VBE(ON)
-
-
1
fT
-
100
-
Collector-emitter saturation voltage1)
V
IC = 500 mA, IB = 50 mA
Base-emitter voltageIC = 500 mA, VCE = 2 V
AC Characteristics
Transition frequency
MHz
IC = 50 mA, VCE = 10 V, f = 20 MHz
1Pulse
test: t < 300µs; D < 2%
3
2011-09-19
BCX54 ...- BCX56...
DC current gain hFE = ƒ(IC)
VCE = 2 V
Collector-emitter saturation voltage
IC = ƒ(VCEsat ), hFE = 10
10 3
4 BCX 54...56
10
EHP00449
mA
ΙC
3
10
5
100°C
10
2
25°C
100 ˚C
25 ˚C
-50 ˚C
2
10
5
-50°C
1
10
5
10 1 -1
10
10
0
10
1
10
2
10
0
10
3
0
0.2
0.4
0.6
V
0.8
VCE sat
Base-emitter saturation voltage
Collector current IC = ƒ(VBE )
IC = ƒ(VBEsat), hFE = 10
VCE = 2V
10 4
BCX 54...56
EHP00450
10 4
BCX 54...56
EHP00448
mA
mA
ΙC
ΙC
10 3
10 3
5
5
100 ˚C
25 ˚C
-50 ˚C
100 ˚C
25 ˚C
-50 ˚C
10 2
10 2
5
5
1
1
10
10
5
5
10 0
0
0.2
0.4
0.6
0.8
10 0
1.0 V 1.2
0
0.2
0.4
0.6
0.8
1.0 V 1.2
VBE
VBE sat
4
2011-09-19
BCX54 ...- BCX56...
Collector cutoff current ICBO = ƒ(TA)
VCBO = 30 V
BCX 54...56
10 4
nA
Ι CB0
Transition frequency fT = ƒ(IC)
VCE = parameter in V, f = 2 GHz
EHP00447
10 3
BCX 54...56
EHP00445
MHz
max
10 3
fT
5
5
10 2
5
10 2
typ
10 1
5
10
5
0
5
10 -1
0
50
100
˚C
10 1
10 0
150
5 10 1
5
10 2
mA
10 3
ΙC
TA
Total power dissipation P tot = ƒ(TS)
Permissible Pulse Load RthJS = ƒ(tp)
10 2
2.4
RthJS
Ptot
W
1.6
10 1
1.2
D = 0,5
0,2
0,1
0,05
0,02
0,01
0,005
0
10 0
0.8
0.4
0
0
15
30
45
60
75
90 105 120 °C
10 -1 -6
10
150
TS
10
-5
10
-4
10
-3
10
-2
s
10
0
tp
5
2011-09-19
BCX54 ...- BCX56...
Permissible Pulse Load
Ptotmax/PtotDC = ƒ(tp )
Ptotmax/PtotDC
10 3
-
D=0
0.005
0.01
0.02
0.05
0.1
0.2
0.5
10 2
10 1
10 0 -6
10
10
-5
10
-4
10
-3
10
-2
s
10
0
tp
6
2011-09-19
Package SOT89
BCX54 ...- BCX56...
Package Outline
4.5 ±0.1
45˚
B
1.5 ±0.1
1)
1.6 ±0.2
0.2 MAX.
2
2.75 +0.1
-0.15
10˚ MAX.
1 ±0.2
1
0.15
4 ±0.25
1 ±0.1
1)
2.5 ±0.1
0.25 ±0.05
3
1.5
0.35 ±0.1
0.45 +0.2
-0.1
3
0.15
M
B x3
0.2 B
1) Ejector pin markings possible
Foot Print
1.2
1.0
2.5
2.0
0.8
0.8
0.7
Marking Layout (Example)
BAW78D
Type code
Pin 1
2005, June
Date code (YM)
Manufacturer
Standard Packing
Reel ø180 mm = 1.000 Pieces/Reel
Reel ø330 mm = 4.000 Pieces/Reel
0.2
4.6
12
8
Pin 1
4.3
7
1.6
2011-09-19
