CY2305
CY2309
Low Cost 3.3 V Zero Delay Buffer
CY2305/CY2309, Low Cost 3.3 V Zero Delay Buffer
Features
Functional Description
■
10 MHz to 100/133 MHz operating range, compatible with CPU
and PCI bus frequencies
■
Zero input-output propagation delay
■
60-ps typical cycle-to-cycle jitter (high drive)
■
Multiple low skew outputs
❐ 85 ps typical output-to-output skew
❐ One input drives five outputs (CY2305)
❐ One input drives nine outputs, grouped as 4 + 4 + 1 (CY2309)
■
Compatible with Pentium-based systems
■
Test Mode to bypass phase-locked loop (PLL) (CY2309)
■
Packages:

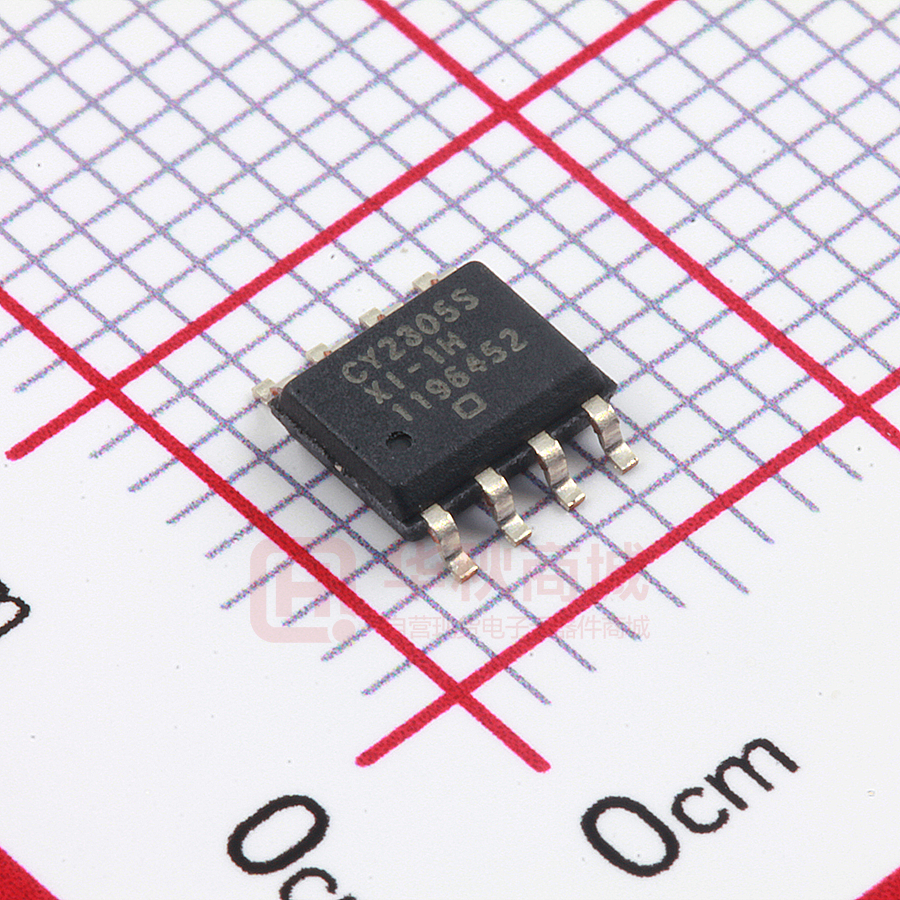

❐ 8-pin, 150-mil SOIC package (CY2305)
❐ 16-pin 150-mil SOIC or 4.4-mm TSSOP (CY2309)
■
3.3 V operation
■
Commercial and industrial temperature ranges
The CY2309 is a low-cost 3.3 V zero delay buffer designed to
distribute high speed clocks and is available in a 16-pin SOIC or
TSSOP package. The CY2305 is an 8-pin version of the
CY2309. It accepts one reference input, and drives out five low
skew clocks. The -1H versions of each device operate at up to
100-/133 MHz frequencies, and have higher drive than the -1
devices. All parts have on-chip PLLs which lock to an input clock
on the REF pin. The PLL feedback is on-chip and is obtained
from the CLKOUT pad.
The CY2309 has two banks of four outputs each, which can be
controlled by the select inputs as shown in Select Input Decoding
on page 5. If all output clocks are not required, BankB can be
three-stated. The select inputs also allow the input clock to be
directly applied to the outputs for chip and system testing
purposes.
The CY2305 and CY2309 PLLs enter a power-down mode when
there are no rising edges on the REF input. In this state, the
outputs are three-stated and the PLL is turned off, resulting in
less than 25.0 μA current draw for these parts. The CY2309 PLL
shuts down in one additional case as shown in Select Input
Decoding on page 5.
Multiple CY2305 and CY2309 devices can accept the same input
clock and distribute it. In this case, the skew between the outputs
of two devices is guaranteed to be less than 700 ps.
The CY2305/CY2309 is available in two or three different
configurations, as shown in Ordering Information on page 16.
The CY2305-1/CY2309-1 is the base part. The CY2305-1H/
CY2309-1H is the high-drive version of the -1, and its rise and
fall times are much faster than the -1.
For a complete list of related documentation, click here.
Logic Block Diagram
PLL
MUX
REF
CLKOUT
CLKA1
CLKA2
CLKA3
CLKA4
CLKB1
S2
Select Input
Decoding
CLKB2
CLKB3
S1
CLKB4
Cypress Semiconductor Corporation
Document Number: 38-07140 Rev. *Y
•
198 Champion Court
•
San Jose, CA 95134-1709
•
408-943-2600
Revised June 12, 2020
CY2305
CY2309
Contents
Pin Diagram ....................................................................... 3
Pin Description ................................................................. 3
Pin Diagram ....................................................................... 4
Pin Description ................................................................. 4
Select Input Decoding ...................................................... 5
Zero Delay and Skew Control .......................................... 5
Absolute Maximum Conditions ....................................... 6
Operating Conditions ....................................................... 6
Electrical Characteristics ................................................. 6
Operating Conditions ....................................................... 7
Electrical Characteristics ................................................. 7
Test Circuits ...................................................................... 8
Thermal Resistance .......................................................... 8
Typical Duty Cycle and IDD Trends ................................. 9
Typical Duty Cycle and IDD Trends ............................... 10
Switching Characteristics .............................................. 11
Switching Characteristics .............................................. 12
Switching Characteristics .............................................. 13
Switching Characteristics .............................................. 14
Switching Waveforms .................................................... 15
Document Number: 38-07140 Rev. *Y
Ordering Information ...................................................... 16
Ordering Information ...................................................... 16
Ordering Code Definitions ......................................... 17
Package Drawing and Dimensions ............................... 18
Acronyms ........................................................................ 20
Document Conventions ................................................. 20
Units of Measure ....................................................... 20
Errata ............................................................................... 21
Part Numbers Affected .............................................. 21
CY2305/CY2309 Qualification Status ....................... 22
CY2305/CY2309 Errata Summary ............................ 22
Document History Page ................................................. 23
Sales, Solutions, and Legal Information ...................... 25
Worldwide Sales and Design Support ....................... 25
Products .................................................................... 25
PSoC® Solutions ....................................................... 25
Cypress Developer Community ................................. 25
Technical Support ..................................................... 25
Page 2 of 25
CY2305
CY2309
Pin Diagram
Figure 1. 8-pin SOIC pinout
CY2305
REF
CLK2
CLK1
GND
1
8
2
7
3
6
4
5
CLKOUT
CLK4
VDD
CLK3
Pin Description
For CY2305
Pin
Signal
Description
1
REF[1]
Input reference frequency, 5-V tolerant input
2
CLK2[2]
Buffered clock output
3
CLK1[2]
Buffered clock output
4
GND
Ground
5
CLK3[2]
Buffered clock output
6
VDD
3.3-V supply
7
CLK4[2]
Buffered clock output
8
CLKOUT[2]
Buffered clock output, internal feedback on this pin
Notes
1. Weak pull down.
2. Weak pull down on all outputs.
Document Number: 38-07140 Rev. *Y
Page 3 of 25
CY2305
CY2309
Pin Diagram
Figure 2. 16-pin SOIC / TSSOP pinout
CY2309
REF
CLKA1
1
16
2
15
CLKA2
VDD
3
14
4
13
GND
CLKB1
CLKB2
S2
5
12
6
11
7
10
8
9
CLKOUT
CLKA4
CLKA3
VDD
GND
CLKB4
CLKB3
S1
Pin Description
For CY2309
Pin
Signal
[3]
Description
Input reference frequency, 5-V tolerant input
1
REF
2
CLKA1[4]
Buffered clock output, Bank A
3
[4]
Buffered clock output, Bank A
CLKA2
4
VDD
3.3-V supply
5
GND
Ground
6
CLKB1[4]
Buffered clock output, Bank B
7
CLKB2[4]
Buffered clock output, Bank B
8
S2[5]
Select input, bit 2
9
S1[5]
Select input, bit 1
CLKB3
[4]
11
CLKB4
[4]
12
GND
Ground
13
VDD
3.3-V supply
14
CLKA3[4]
15
[4]
10
16
CLKA4
CLKOUT
Buffered clock output, Bank B
Buffered clock output, Bank B
Buffered clock output, Bank A
Buffered clock output, Bank A
[4]
Buffered output, internal feedback on this pin
Notes
3. Weak pull down.
4. Weak pull down on all outputs.
5. Weak pull ups on these inputs.
Document Number: 38-07140 Rev. *Y
Page 4 of 25
CY2305
CY2309
Select Input Decoding
For CY2309
S2
S1
CLOCK A1–A4
CLOCK B1–B4
CLKOUT [6]
0
0
Three-state
Three-state
Driven
PLL
N
0
1
Driven
Three-state
Driven
PLL
N
Output Source
PLL Shutdown
1
0
Driven
Driven
Driven
Reference
Y
1
1
Driven
Driven
Driven
PLL
N
Figure 3. REF. Input to CLKA/CLKB Delay vs. Loading Difference between CLKOUT and CLKA/CLKB Pins
Zero Delay and Skew Control
All outputs must be uniformly loaded to achieve zero delay between the input and output. Because the CLKOUT pin is the internal
feedback to the PLL, its relative loading can adjust the input-output delay. This is shown in the above graph.
For applications requiring zero input-output delay, all outputs, including CLKOUT, must be equally loaded. Even if CLKOUT is not
used, it must have a capacitive load, equal to that on other outputs, for obtaining zero input-output delay. If input to output delay
adjustments are required, use Figure 3 to calculate loading differences between the CLKOUT pin and other outputs.
Note
6. This output is driven and has an internal feedback for the PLL. The load on this output can be adjusted to change the skew between the reference and output.
Document Number: 38-07140 Rev. *Y
Page 5 of 25
CY2305
CY2309
Absolute Maximum Conditions
Storage temperature .................................. –65°C to +150°C
Junction temperature ................................................. 150°C
Supply voltage to ground potential ..............–0.5 V to +7.0 V
Static discharge voltage
(per MIL-STD-883, Method 3015) ......................... > 2,000 V
DC input voltage (Except REF) .......... –0.5 V to VDD + 0.5 V
DC input voltage REF .......................................–0.5 V to 7 V
Operating Conditions
For CY2305SC-XX and CY2309SC-XX Commercial Temperature Devices
Parameter
Description
Min
Max
Unit
VDD
Supply voltage
3.0
3.6
V
TA
Operating temperature (ambient temperature)
0
70
°C
CL
Load capacitance, below 100 MHz
–
30
pF
CL
Load capacitance, from 100 MHz to 133 MHz
–
10
pF
CIN
Input capacitance
tPU
Power-up time for all VDDs to reach minimum specified voltage (power ramps must
be monotonic)
–
7
pF
0.05
50
ms
Min
Max
Unit
–
0.8
V
Electrical Characteristics
For CY2305SC-XX and CY2309SC-XX Commercial Temperature Devices
Parameter
VIL
Description
Input LOW voltage
[7]
[7]
VIH
Input HIGH voltage
IIL
Input LOW current
IIH
Input HIGH current
VOL
Test Conditions
2.0
–
V
–
50.0
μA
VIN = VDD
–
100.0
μA
IOL = 8 mA (–1)
–
0.4
V
2.4
–
V
VIN = 0 V
Output LOW voltage
[8]
Output HIGH voltage
[8]
IOL = 12 mA (–1H)
VOH
IOH = –8 mA (–1)
IOH = –12 mA (–1H)
IDD (PD mode) Power-down supply current
REF = 0 MHz
–
12.0
μA
IDD
Unloaded outputs at 66.67 MHz,
SEL inputs at VSS
–
32.0
mA
Supply current
Notes
7. REF input has a threshold voltage of VDD/2.
8. Parameter is guaranteed by design and characterization. Not 100% tested in production.
Document Number: 38-07140 Rev. *Y
Page 6 of 25
CY2305
CY2309
Operating Conditions
For CY2305SI-XX and CY2309SI-XX Industrial Temperature Devices
Parameter
Description
Min
Max
Unit
VDD
Supply voltage
3.0
3.6
V
TA
Operating temperature (ambient temperature)
–40
85
°C
CL
Load capacitance, below 100 MHz
–
30
pF
CL
Load capacitance, from 100 MHz to 133 MHz
–
10
pF
CIN
Input capacitance
tPU
Power-up time for all VDDs to reach minimum specified voltage (power ramps must
be monotonic)
–
7
pF
0.05
50
ms
Electrical Characteristics
For CY2305SI-XX and CY2309SI-XX Industrial Temperature Devices
Parameter
Min
Max
Unit
Input LOW voltage
[9]
–
0.8
V
VIH
Input HIGH voltage
[9]
2.0
–
V
IIL
Input LOW current
VIN = 0 V
–
50.0
μA
IIH
Input HIGH current
VIN = VDD
–
100.0
μA
IOL = 8 mA (–1)
–
0.4
V
2.4
–
V
REF = 0 MHz
–
25.0
μA
Unloaded outputs at 66.67 MHz, SEL inputs at
VSS
–
35.0
mA
VIL
VOL
Description
Output LOW voltage
[10]
Output HIGH voltage
[10]
Test Conditions
IOL =12 mA (–1H)
VOH
IOH = –8 mA (–1)
IOH = –12 mA (–1H)
IDD (PD mode) Power-down supply current
IDD
Supply current
Notes
9. REF input has a threshold voltage of VDD/2.
10. Parameter is guaranteed by design and characterization. Not 100% tested in production.
Document Number: 38-07140 Rev. *Y
Page 7 of 25
CY2305
CY2309
Test Circuits
Figure 4. Test Circuits
Test Circuit # 1
Test Circuit # 2
V DD
V DD
CLK
0.1 μ F
out
0.1 μ F
OUTPUTS
1 kΩ
OUTPUTS
10 pF
C LOAD
V DD
0.1 μ F
1 kΩ
V DD
0.1 μ F
GND
GND
GND
GND
For parameter t8 (output slew rate) on -1H devices
Thermal Resistance
Parameter [11]
Description
θJA
Thermal resistance
(junction to ambient)
θJC
Thermal resistance
(junction to case)
Test Conditions
Test conditions follow
standard test methods
and procedures for
measuring thermal
impedance, in
accordance with
EIA/JESD51.
8-pin SOIC
16-pin SOIC
16-pin TSSOP Unit
140
111
117
°C/W
54
60
22
°C/W
Note
11. These parameters are guaranteed by design and are not tested.
Document Number: 38-07140 Rev. *Y
Page 8 of 25
CY2305
CY2309
Typical Duty Cycle and IDD Trends
For CY2305-1 and CY2309-1 [12, 13]
Duty Cycle Vs VDD
(for 15 pF Loads over Frequency - 3.3V, 25C)
60
60
58
58
56
56
54
52
33 MHz
50
66 MHz
48
100 MHz
46
54
Duty Cycle (% )
Duty Cycle (% )
Duty Cycle Vs VD D
(for 30 pF Loads over Frequency - 3.3V, 25C)
33 MHz
52
66 MHz
50
100 MHz
48
133 MHz
46
44
44
42
42
40
40
3
3.1
3.2
3.3
3.4
3.5
3.6
3
3.1
3.2
VDD (V)
60
60
58
58
3.5
3.6
56
54
-40C
52
0C
50
25C
48
70C
46
85C
Duty Cycle (%)
56
Duty Cycle (%)
3.4
D uty Cycle Vs Fre que ncy
(for 15 pF Loads ov e r T e mpe rature - 3.3V)
Duty Cycle Vs Fre que ncy
(for 30 pF Loads ov e r T e mpe rature - 3.3V)
54
-40C
52
0C
50
25C
48
70C
46
85C
44
44
42
42
40
40
20
40
60
80
100
120
140
20
40
60
Fre que ncy (M Hz)
80
100
120
140
Fre que ncy (M Hz)
IDD vs Number of Loaded Outputs
(for 30 pF Loads over Frequency - 3.3V, 25C)
IDD vs Number of Loaded Outputs
(for 15 pF Loads over Frequency - 3.3V, 25C)
140
140
120
120
100
33 MHz
80
66 MHz
60
100 MHz
IDD (mA)
100
IDD (mA)
3.3
VDD (V)
33 MHz
80
66 MHz
60
40
40
20
20
100 MHz
0
0
0
1
2
3
4
5
6
# of Loaded Outputs
7
8
9
0
1
2
3
4
5
6
7
8
9
# of Loaded Outputs
Notes
12. Duty cycle is taken from typical chip measured at 1.4 V.
13. IDD data is calculated from IDD = ICORE + nCVf, where ICORE is the unloaded current. (n = # of outputs; C = Capacitance load per output (F); V = Supply Voltage (V);
f = frequency (Hz)).
Document Number: 38-07140 Rev. *Y
Page 9 of 25
CY2305
CY2309
Typical Duty Cycle and IDD Trends
For CY2305-1H and CY2309-1H [14, 15]
Duty Cycle Vs VDD
(for 15 pF Loads over Frequency - 3.3V, 25C)
Duty Cycle Vs VD D
(for 30 pF Loads over Frequency - 3.3V, 25C)
60
58
58
56
56
Duty Cycle (% )
54
52
33 MHz
50
66 MHz
48
100 MHz
46
Duty Cycle (% )
60
54
33 MHz
52
66 MHz
50
100 MHz
48
133 MHz
46
44
44
42
42
40
40
3
3.1
3.2
3.3
3.4
3.5
3
3.6
3.1
3.2
3.3
Duty C ycle Vs Fre que ncy
(for 30 pF Loads ov e r T e mpe rature - 3.3V)
3.6
D uty C ycle Vs Fre que ncy
60
60
58
58
56
54
-40C
52
0C
50
25C
48
70C
46
85C
Duty Cycle (%)
Duty Cycle (%)
3.5
(for 15 pF Loads ov e r T e mpe rature - 3.3V)
56
44
54
-40C
52
0C
50
25C
48
70C
46
85C
44
42
42
40
40
20
40
60
80
100
120
140
20
40
60
Fre que ncy (M Hz)
80
100
120
140
Fre que ncy (M Hz)
IDD vs Number of Loaded Outputs
(for 30 pF Loads over Frequency - 3.3V, 25C)
IDD vs Number of Loaded Outputs
(for 15 pF Loads over Frequency - 3.3V, 25C)
160
160
140
140
120
120
100
33 MHz
80
66 MHz
60
100 MHz
IDD (mA)
IDD (mA)
3.4
VDD (V)
VDD (V)
100
80
33 MHz
60
66 MHz
100 MHz
40
40
20
20
0
0
0
1
2
3
4
5
6
# of Loaded Outputs
7
8
9
0
1
2
3
4
5
6
7
8
9
# of Loaded Outputs
Notes
14. Duty cycle is taken from typical chip measured at 1.4 V.
15. IDD data is calculated from IDD = ICORE + nCVf, where ICORE is the unloaded current. (n = # of outputs; C = Capacitance load per output (F); V = Supply Voltage (V);
f = frequency (Hz)).
Document Number: 38-07140 Rev. *Y
Page 10 of 25
CY2305
CY2309
Switching Characteristics
For CY2305SC-1 and CY2309SC-1 Commercial Temperature Devices
Parameter [16]
t1
Description
Test Conditions
Output frequency
30-pF load
10-pF load
[17]
tDC
Duty cycle
t3
Rise time [17]
t4
Fall time
[17]
[17]
Typ
Max
Unit
10
–
100
MHz
10
–
133.33
MHz
40.0
50.0
60.0
%
Measured between 0.8 V and 2.0 V
–
–
2.50
ns
Measured between 0.8 V and 2.0 V
–
–
2.50
ns
All outputs equally loaded
–
85
250
ps
Measured at 1.4 V,
Fout = 66.67 MHz
= t2 ÷ t1
Min
t5
Output-to-output skew
t6A
Delay, REF rising edge to
CLKOUT rising edge [17]
Measured at VDD/2
–
0
±350
ps
t6B
Delay, REF rising edge to
CLKOUT rising edge [17]
Measured at VDD/2.
Measured in PLL Bypass Mode,
CY2309 device only.
1
5
8.7
ns
t7
Device-to-device skew [17]
Measured at VDD/2 on the CLKOUT
pins of devices
–
–
700
ps
tJ
Cycle-to-cycle jitter [17]
Measured at 66.67 MHz,
loaded outputs
–
70
200
ps
tLOCK
PLL lock time [17, 18, 19]
Stable power supply, valid clock
presented on REF pin
–
–
1.0
ms
Notes
16. All parameters specified with loaded outputs.
17. Parameter is guaranteed by design and characterization. Not 100% tested in production.
18. The clock outputs are undefined until PLL is locked.
19. For on the fly change in reference input frequency, PLL lock time is only guaranteed when stop time between change in input reference frequency is > 10 µs, Figure 10.
Document Number: 38-07140 Rev. *Y
Page 11 of 25
CY2305
CY2309
Switching Characteristics
For CY2305SC-1H and CY2309SC-1H Commercial Temperature Devices
Parameter [20]
t1
Description
Output frequency
Condition
30 pF load
10 pF load
Min
Typ
Max
Unit
10
–
100
MHz
10
–
133.33
MHz
Measured at 1.4 V, Fout = 66.67 MHz
40.0
50.0
60.0
%
Duty cycle [21] = t2 ÷ t1
Measured at 1.4 V, Fout < 50 MHz
45.0
50.0
55.0
%
t3
Rise time [21]
Measured between 0.8 V and 2.0 V
–
–
1.50
ns
t4
Fall time [21]
Measured between 0.8 V and 2.0 V
–
–
1.50
ns
t5
Output-to-output skew [21]
All outputs equally loaded
–
85
250
ps
t6A
Delay, REF rising edge to
CLKOUT rising edge [21]
Measured at VDD/2
–
–
±350
ps
t6B
Delay, REF rising edge to
CLKOUT rising edge [21]
Measured at VDD/2.
Measured in PLL Bypass Mode,
CY2309 device only.
1
5
8.7
ns
t7
Device-to-device skew [21]
Measured at VDD/2 on the CLKOUT
pins of devices
–
–
700
ps
t8
Output slew rate [21]
Measured between 0.8 V and 2.0 V
using Test Circuit #2
1
–
tJ
Cycle-to-cycle jitter [21]
Measured at 66.67 MHz,
loaded outputs
–
60
200
ps
tLOCK
PLL lock time [21, 22, 23]
Stable power supply, valid clock
presented on REF pin
–
–
1.0
ms
tDC
Duty cycle
tDC
[21]
= t2 ÷ t1
V/ns
Notes
20. All parameters specified with loaded outputs.
21. Parameter is guaranteed by design and characterization. Not 100% tested in production.
22. The clock outputs are undefined until PLL is locked.
23. For on the fly change in reference input frequency, PLL lock time is only guaranteed when stop time between change in input reference frequency is > 10 µs, Figure 10.
Document Number: 38-07140 Rev. *Y
Page 12 of 25
CY2305
CY2309
Switching Characteristics
For CY2305SI-1 and CY2309SI-1 Industrial Temperature Devices
Parameter [24]
t1
Description
Output frequency
Test Conditions
30 pF load
10 pF load
Min
Typ
Max
Unit
10
–
100
MHz
10
–
133.33
MHz
Measured at 1.4 V, Fout = 66.67 MHz
40.0
50.0
60.0
%
Rise time [25]
Measured between 0.8 V and 2.0 V
–
–
2.50
ns
t4
Fall time [25]
Measured between 0.8 V and 2.0 V
–
–
2.50
ns
t5
Output-to-output skew [25]
All outputs equally loaded
–
85
250
ps
t6A
Delay, REF rising edge to
CLKOUT rising edge [25]
Measured at VDD/2
–
–
±350
ps
t6B
Delay, REF rising edge to
CLKOUT rising edge [25]
Measured at VDD/2. Measured in
PLL Bypass Mode, CY2309 device
only.
1
5
8.7
ns
t7
Device-to-device skew [25]
Measured at VDD/2 on the CLKOUT
pins of devices
–
–
700
ps
tJ
Cycle-to-cycle jitter [25]
Measured at 66.67 MHz, loaded
outputs
–
70
200
ps
tLOCK
PLL lock time [25, 26, 27]
Stable power supply, valid clock
presented on REF pin
–
–
1.0
ms
tDC
Duty cycle
t3
[25]
= t2 ÷ t1
Notes
24. All parameters specified with loaded outputs.
25. Parameter is guaranteed by design and characterization. Not 100% tested in production.
26. The clock outputs are undefined until PLL is locked.
27. For on the fly change in reference input frequency, PLL lock time is only guaranteed when stop time between change in input reference frequency is > 10 µs, Figure 10.
Document Number: 38-07140 Rev. *Y
Page 13 of 25
CY2305
CY2309
Switching Characteristics
For CY2305SI-1H and CY2309SI-1H Industrial Temperature Devices
Parameter [28]
t1
Description
Output frequency
Conditions
30 pF load
10 pF load
Min
Typ
Max
Unit
10
–
100
MHz
10
–
133.33
MHz
Measured at 1.4 V, Fout = 66.67 MHz
40.0
50.0
60.0
%
Duty cycle [29] = t2 ÷ t1
Measured at 1.4 V, Fout < 50 MHz
45.0
50.0
55.0
%
t3
Rise time [29]
Measured between 0.8 V and 2.0 V
–
–
1.50
ns
t4
Fall time [29]
Measured between 0.8 V and 2.0 V
–
–
1.50
ns
t5
Output-to output skew [29]
All outputs equally loaded
–
85
250
ps
t6A
Delay, REF rising edge to
CLKOUT rising edge [29]
Measured at VDD/2
–
–
±350
ps
t6B
Delay, REF rising edge to
CLKOUT rising edge [29]
Measured at VDD/2. Measured in
PLL Bypass Mode, CY2309 device
only.
1
5
8.7
ns
t7
Device-to-device skew [29]
Measured at VDD/2 on the CLKOUT
pins of devices
–
–
700
ps
t8
Output slew rate [29]
Measured between 0.8 V and 2.0 V
using Test Circuit #2
1
–
–
V/ns
tJ
Cycle-to-cycle jitter [29]
Measured at 66.67 MHz, loaded
outputs
–
60
200
ps
tLOCK
PLL lock time [29, 30, 31]
Stable power supply, valid clock
presented on REF pin
–
–
1.0
ms
tDC
Duty cycle
tDC
[29]
= t2 ÷ t1
Notes
28. All parameters specified with loaded outputs.
29. Parameter is guaranteed by design and characterization. Not 100% tested in production.
30. The clock outputs are undefined until PLL is locked.
31. For on the fly change in reference input frequency, PLL lock time is only guaranteed when stop time between change in input reference frequency is > 10 µs, Figure 10.
Document Number: 38-07140 Rev. *Y
Page 14 of 25
CY2305
CY2309
Switching Waveforms
Figure 5. Duty Cycle Timing
t1
t2
1.4 V
1.4 V
1.4 V
Figure 6. All Outputs Rise/Fall Time
OUTPUT
2.0 V
0.8 V
2.0 V
0.8 V
3.3 V
0V
t4
t3
Figure 7. Output-Output Skew
OUTPUT
1.4 V
1.4 V
OUTPUT
t5
Figure 8. Input-Output Propagation Delay
INPUT
VDD/2
VDD/2
OUTPUT
t6
Figure 9. Device-Device Skew
CLKOUT, Device 1
VDD/2
VDD/2
CLKOUT, Device 2
t7
Figure 10. Stop Time between Change in Input Reference Frequency
Stop Time
Document Number: 38-07140 Rev. *Y
Page 15 of 25
CY2305
CY2309
Ordering Information
For CY2305
Ordering Code
Package Type
Operating Range
CY2305SC-1
8-pin SOIC (150 Mils)
Commercial
CY2305SC-1T
8-pin SOIC (150 Mils) – Tape and Reel
Commercial
CY2305SXC-1
8-pin SOIC (150 Mils)
Commercial
CY2305SXC-1T
8-pin SOIC (150 Mils) – Tape and Reel
Commercial
CY2305SXI-1
8-pin SOIC (150 Mils)
Industrial
CY2305SXI-1T
8-pin SOIC (150 Mils) – Tape and Reel
Industrial
CY2305SXC-1H
8-pin SOIC (150 Mils)
Commercial
CY2305SXC-1HT
8-pin SOIC (150 Mils) – Tape and Reel
Commercial
CY2305SXI-1H
8-pin SOIC (150 Mils)
Industrial
CY2305SXI-1HT
8-pin SOIC (150 Mils) – Tape and Reel
Industrial
Pb-free
Ordering Information
For CY2309
Ordering Code
Package Type
Operating Range
Pb-free
CY2309SXC-1
16-pin SOIC (150 Mils)
Commercial
CY2309SXC-1T
16-pin SOIC (150 Mils) – Tape and Reel
Commercial
CY2309SXI-1
16-pin SOIC (150 Mils)
Industrial
CY2309SXI-1T
16-pin SOIC (150 Mils) – Tape and Reel
Industrial
CY2309SXC-1H
16-pin SOIC (150 Mils)
Commercial
CY2309SXC-1HT
16-pin SOIC (150 Mils) – Tape and Reel
Commercial
CY2309SXI-1H
16-pin SOIC (150 Mils)
Industrial
CY2309SXI-1HT
16-pin SOIC (150 Mils) – Tape and Reel
Industrial
CY2309ZXC-1H
16-pin TSSOP (4.4 mm)
Commercial
CY2309ZXC-1HT
16-pin TSSOP (4.4 mm) – Tape and Reel
Commercial
CY2309ZXI-1H
16-pin TSSOP (4.4 mm)
Industrial
CY2309ZXI-1HT
16-pin TSSOP (4.4 mm) – Tape and Reel
Industrial
Document Number: 38-07140 Rev. *Y
Page 16 of 25
CY2305
CY2309
Ordering Code Definitions
CY 2305 S (X) C – 1 (H) (T)
Tape and reel
Output Drive:
1 = standard drive
1H = high drive
Temperature Range:
C = Commercial
I = Industrial
Package:
S = SOIC, leaded
Z = TSSOP, leaded
SX = SOIC, Pb-free
ZX = TSSOP, Pb-free
Base device part number
2305 = 5-output zero delay buffer
2309 = 9-output zero delay buffer
Company ID: CY = Cypress
Document Number: 38-07140 Rev. *Y
Page 17 of 25
CY2305
CY2309
Package Drawing and Dimensions
Figure 11. 8-pin SOIC (150 Mils) S0815/SZ815/SW815 Package Outline, 51-85066
51-85066 *I
Document Number: 38-07140 Rev. *Y
Page 18 of 25
CY2305
CY2309
Package Drawing and Dimensions (continued)
Figure 12. 16-pin SOIC (150 Mils) S16.15/SZ16.15 Package Outline, 51-85068
51-85068 *F
Figure 13. 16-pin TSSOP (4.40 mm Body) Z16.173/ZZ16.173 Package Outline, 51-85091
51-85091 *E
Document Number: 38-07140 Rev. *Y
Page 19 of 25
CY2305
CY2309
Acronyms
Acronym
Document Conventions
Description
Units of Measure
PCI
Personal Computer Interconnect
PLL
Phase Locked Loop
°C
degree Celsius
SDRAM
Synchronous Dynamic Random Access Memory
µA
microampere
SOIC
Small Outline Integrated Circuit
mA
milliampere
TSSOP
Thin Small Outline Package
ms
millisecond
ZDB
Zero Delay Buffer
MHz
megahertz
ns
nanosecond
pF
picofarad
ps
picosecond
V
volt
Document Number: 38-07140 Rev. *Y
Symbol
Unit of Measure
Page 20 of 25
CY2305
CY2309
Errata
This section describes the errata for Cypress Zero Delay Clock Buffers of the family CY2305/CY2309. Details include errata trigger
conditions, scope of impact, available workaround, and silicon revision applicability. Contact your local Cypress Sales Representative
if you have questions.
Part Numbers Affected
Part Number
Device Characteristics
CY2305SC-1
All Variants
CY2305SC-1T
All Variants
CY2305SC-1H
All Variants
CY2305SC-1HT
All Variants
CY2305SI-1H
All Variants
CY2305SI-1HT
All Variants
CY2305SXC-1
All Variants
CY2305SXC-1T
All Variants
CY2305SXI-1
All Variants
CY2305SXI-1H
All Variants
CY2305SXC-1HT
All Variants
CY2305SXI-1H
All Variants
CY2305SXI-1HT
All Variants
CY2309NZSXC-1H
All Variants
CY2309NZSXC-1HT
All Variants
CY2309NZSXI-1H
All Variants
CY2309NZSXI-1HT
All Variants
CY2309SC-1HT
All Variants
CY2309SXC-1H
All Variants
CY2309SXC-1HT
All Variants
CY2309SXI-1H
All Variants
CY2309SXI-1HT
All Variants
CY2309ZC-1H
All Variants
CY2309ZC-1HT
All Variants
CY2309ZXC-1H
All Variants
CY2309ZXC-1HT
All Variants
CY2309ZXI-1H
All Variants
CY2309ZXI-1HT
All Variants
CY2309SXC-1
All Variants
CY2309SXC-1T
All Variants
CY2309SXI-1
All Variants
CY2309SXI-1T
All Variants
CY2309SC-1
All Variants
CY2309SC-1T
All Variants
CY2309SXC-1
All Variants
CY2309SXC-1T
All Variants
CY2309SXI-1
All Variants
CY2309SXI-1T
All Variants
Document Number: 38-07140 Rev. *Y
Page 21 of 25
CY2305
CY2309
CY2305/CY2309 Qualification Status
Product Status: In production
Qualification report last updated on 11/27/2012 (http://www.cypress.com/?rID=72595)
CY2305/CY2309 Errata Summary
Items
[1.] Start up lock time issue.
Part Number
Silicon Revision
CY2305
B
CY2309
Fix Status
Silicon fixed. New silicon available
from WW 25 of 2011
Silicon fixed. New silicon available
from WW 10 of 2013
1. Start up lock time issue.
Problem Definition
Output of CY2305/CY2309 fails to locks within 1 ms (as per data sheet spec).
Parameters Affected
PLL lock time.
Trigger Condition(s)
Start up.
Scope of Impact
It can impact the performance of system and its throughput.
Workaround
Apply reference input (RefClk) before power up (VDD) Input noise propagates to output due to absence
of reference input signal during power up. If reference input is present during power up, the noise will
not propagate to output and device will start normally without problems.
Fix Status
This issue is due to design marginality. Two minor design modifications have been made to address this
problem.
❐ Addition of VCO bias detector block as shown in the following figure which keeps comparator power
down till VCO bias is present and thereby eliminating the propagation of noise to feedback.
❐ Bias generator enhancement for successful initialization.
Document Number: 38-07140 Rev. *Y
Page 22 of 25
CY2305
CY2309
Document History Page
Document Title: CY2305/CY2309, Low Cost 3.3 V Zero Delay Buffer
Document Number: 38-07140
Revision
ECN
Submission
Date
Description of Change
**
110249
10/19/01
Change from Spec number: 38-00530 to 38-07140
*A
111117
03/01/02
Added t6B row to the Switching Characteristics Table; also added the letter “A” to the t6A row
Corrected the table title from CY2305SC-IH and CY2309SC-IH to CY2305SI-IH and
CY2309SI-IH
*B
117625
10/21/02
Added eight-pin TSSOP packages (CY2305ZC-1 and CY2305ZC-1T) to the ordering information table.
Added the Tape and Reel option to all the existing packages:
CY2305SC-1T, CY2305SI-1T, CY2305SC-1HT, CY2305SI-1HT, CY2305ZC-1T,
CY2309SC-1T, CY2309SI-1T, CY2309SC-1HT, CY2309SI-1HT, CY2309ZC-1HT,
CY2309ZI-1HT
*C
121828
12/14/02
Power up requirements added to Operating Conditions information
*D
131503
12/12/03
Added Lead-free for all the devices in the ordering information table
*E
214083
See ECN
Added a Lead-free with the new coding for all SOIC devices in the ordering information table
*F
291099
See ECN
Added TSSOP Lead-free devices
*G
390582
See ECN
Added typical values for jitter
*H
2542461
07/23/08
Updated template. Added Note “Not recommended for new designs.”
Added part number CY2305ESXC-1, CY2305ESXC-1T, CY2305ESXI-1, CY2305ESXI-1T,
CY2305ESXC-1H, CY2305ESXC-1HT, CY2305ESXI-1H, CY2305ESXI-1HT,
CY2309ESXC-1, CY2309ESXC-1T, CY2309ESXI-1, CY2309ESXI-1T, CY2309ESXC-1H,
CY2309ESXC-1HT, CY2309ESXI-1H, CY2309ESXI-1HT, CY2309EZXC-1H,
CY2309EZXC-1HT, CY2309EZXI-1H, and CY2309EZXI-1HT in ordering information table.
Removed part number CY2305SZC-1, CY2305SZC-1T, CY2305SZI-1, CY2305SZI-1T,
CY2305SZC-1H, CY2305SZC-1HT, CY2305SZI-1H, CY2305SZI-1HT, CY2309SZC-1,
CY2309SZC-1T, CY2309SZI-1, CY2309SZI-1T, CY2309SZC-1H, CY2309SZC-1HT,
CY2309SZI-1H, CY2309SZI-1HT, CY2309ZZC-1H, CY2309ZZC-1HT, CY2309ZI-1H,
CY2309ZI-1HT, CY2309ZZI-1H, and CY2309ZZI-1HT in Ordering Information table.
Changed Lead-Free to Pb-Free.
*I
2565153
09/18/08
Removed part number CY2305ESXC-1, CY2305ESXC-1T, CY2305ESXI-1,
CY2305ESXI-1T, CY2305ESXC-1H, CY2305ESXC-1HT, CY2305ESXI-1H,
CY2305ESXI-1HT, CY2309ESXC-1, CY2309ESXC-1T, CY2309ESXI-1, CY2309ESXI-1T,
CY2309ESXC-1H, CY2309ESXC-1HT, CY2309ESXI-1H, CY2309ESXI-1HT,
CY2309EZXC-1H, CY2309EZXC-1HT, CY2309EZXI-1H, and CY2309EZXI-1HT in
ordering information table.
Removed note references to note 10 in Pb-Free sections of ordering information table.
Changed IDD (PD mode) from 12.0 to 25.0 μA for commercial temperature devices
Deleted Duty Cycle parameters for Fout < 50 MHz commercial and industrial devices.
*J
2673353
03/13/09
Reverted IDD (PD mode) and Duty Cycle parameters back to the values in revision *H:
Changed IDD (PD mode) from 25 to 12 μA for commercial devices.
Added Duty Cycle parameters for Fout < 50 MHz for commercial and industrial devices.
*K
2904641
04/05/10
Updated Ordering Information:
Removed parts CY2305SI-1, CY2305SI-1T, CY2309SI-1, CY2309SI-1H, CY2309SI-1HT,
CY2309SI-1T.
Updated Package Drawing and Dimensions.
*L
3047136
10/04/2010
Added Ordering Code Definitions under Ordering Information.
Updated Package Drawing and Dimensions.
Added Acronyms and Units of Measure.
*M
3146330
01/18/2011
Added “Not recommended for new designs” statement to Features on page 1. Added ‘not
recommended for new designs’ footnote to all parts in the ordering information table.
Document Number: 38-07140 Rev. *Y
Page 23 of 25
CY2305
CY2309
Document History Page (continued)
Document Title: CY2305/CY2309, Low Cost 3.3 V Zero Delay Buffer
Document Number: 38-07140
Revision
ECN
Submission
Date
Description of Change
*N
3241160
05/09/2011
Added Footnote 9 on page 6 (CDT 97105).
Removed first bullet point “Not recommended for new designs. The CY2305C and CY2309C
are form, fit, function compatible devices with improved specifications.” from Features
section. (CDT 99798).
Removed Footnote 20 and all its references from document. (CDT 99798).
*O
3400613
10/10/2011
Added Footnote 19 and its reference to all PLL lock time parameters throughout the
document.
Added Figure 10 for Stop Time Illustration.
*P
3859773
01/07/2013
Updated Ordering Information (Updated part numbers).
Updated Ordering Information (Updated part numbers).
Updated Package Drawing and Dimensions:
spec 51-85068 – Changed revision from *D to *E.
*Q
3997602
05/11/2013
Updated Package Drawing and Dimensions:
spec 51-85066 – Changed revision from *E to *F.
Added Errata.
*R
4124780
10/24/2013
Updated to new template.
Completing Sunset Review.
*S
4307827
03/13/2014
Updated Errata.
*T
4578443
11/25/2014
Updated Functional Description:
Added “For a complete list of related documentation, click here.” at the end.
Updated Ordering Information (Updated part numbers).
Updated Ordering Information (Updated part numbers).
*U
5206812
04/05/2016
Updated Zero Delay and Skew Control:
Updated description.
Updated Package Drawing and Dimensions:
spec 51-85066 – Changed revision from *F to *H.
Updated to new template.
*V
5242499
04/26/2016
Updated Electrical Characteristics:
Updated details in “Test Conditions” column corresponding to VOL and VOH parameters.
Updated Operating Conditions:
Added tPU parameter and its details.
Updated Electrical Characteristics:
Updated details in “Test Conditions” column corresponding to VOL and VOH parameters.
Added Thermal Resistance.
*W
5516682
11/10/2016
Updated to new template.
Completing Sunset Review.
*X
5708778
04/27/2017
Updated Cypress Logo and Copyright.
*Y
6897833
06/12/2020
Updated Package Drawing and Dimensions:
spec 51-85066 – Changed revision from *H to *I.
spec 51-85068 – Changed revision from *E to *F.
Updated to template.
Document Number: 38-07140 Rev. *Y
Page 24 of 25
CY2305
CY2309
Sales, Solutions, and Legal Information
Worldwide Sales and Design Support
Cypress maintains a worldwide network of offices, solution centers, manufacturer’s representatives, and distributors. To find the office
closest to you, visit us at Cypress Locations.
PSoC® Solutions
Products
Arm® Cortex® Microcontrollers
Automotive
cypress.com/arm
cypress.com/automotive
Clocks & Buffers
Interface
Internet of Things
Memory
cypress.com/clocks
cypress.com/interface
cypress.com/iot
cypress.com/memory
Microcontrollers
cypress.com/mcu
PSoC
cypress.com/psoc
Power Management ICs
Touch Sensing
USB Controllers
Wireless Connectivity
PSoC 1 | PSoC 3 | PSoC 4 | PSoC 5LP | PSoC 6 MCU
Cypress Developer Community
Community | Code Examples | Projects | Video | Blogs |
Training | Components
Technical Support
cypress.com/support
cypress.com/pmic
cypress.com/touch
cypress.com/usb
cypress.com/wireless
© Cypress Semiconductor Corporation, 2001-2020. This document is the property of Cypress Semiconductor Corporation and its subsidiaries (“Cypress”). This document, including any software or
firmware included or referenced in this document (“Software”), is owned by Cypress under the intellectual property laws and treaties of the United States and other countries worldwide. Cypress reserves
all rights under such laws and treaties and does not, except as specifically stated in this paragraph, grant any license under its patents, copyrights, trademarks, or other intellectual property rights. If
the Software is not accompanied by a license agreement and you do not otherwise have a written agreement with Cypress governing the use of the Software, then Cypress hereby grants you a personal,
non-exclusive, nontransferable license (without the right to sublicense) (1) under its copyright rights in the Software (a) for Software provided in source code form, to modify and reproduce the Software
solely for use with Cypress hardware products, only internally within your organization, and (b) to distribute the Software in binary code form externally to end users (either directly or indirectly through
resellers and distributors), solely for use on Cypress hardware product units, and (2) under those claims of Cypress's patents that are infringed by the Software (as provided by Cypress, unmodified)
to make, use, distribute, and import the Software solely for use with Cypress hardware products. Any other use, reproduction, modification, translation, or compilation of the Software is prohibited.
TO THE EXTENT PERMITTED BY APPLICABLE LAW, CYPRESS MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARD TO THIS DOCUMENT OR ANY SOFTWARE
OR ACCOMPANYING HARDWARE, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. No computing
device can be absolutely secure. Therefore, despite security measures implemented in Cypress hardware or software products, Cypress shall have no liability arising out of any security breach, such
as unauthorized access to or use of a Cypress product. CYPRESS DOES NOT REPRESENT, WARRANT, OR GUARANTEE THAT CYPRESS PRODUCTS, OR SYSTEMS CREATED USING
CYPRESS PRODUCTS, WILL BE FREE FROM CORRUPTION, ATTACK, VIRUSES, INTERFERENCE, HACKING, DATA LOSS OR THEFT, OR OTHER SECURITY INTRUSION (collectively, “Security
Breach”). Cypress disclaims any liability relating to any Security Breach, and you shall and hereby do release Cypress from any claim, damage, or other liability arising from any Security Breach. In
addition, the products described in these materials may contain design defects or errors known as errata which may cause the product to deviate from published specifications. To the extent permitted
by applicable law, Cypress reserves the right to make changes to this document without further notice. Cypress does not assume any liability arising out of the application or use of any product or
circuit described in this document. Any information provided in this document, including any sample design information or programming code, is provided only for reference purposes. It is the responsibility
of the user of this document to properly design, program, and test the functionality and safety of any application made of this information and any resulting product. “High-Risk Device” means any
device or system whose failure could cause personal injury, death, or property damage. Examples of High-Risk Devices are weapons, nuclear installations, surgical implants, and other medical devices.
“Critical Component” means any component of a High-Risk Device whose failure to perform can be reasonably expected to cause, directly or indirectly, the failure of the High-Risk Device, or to affect
its safety or effectiveness. Cypress is not liable, in whole or in part, and you shall and hereby do release Cypress from any claim, damage, or other liability arising from any use of a Cypress product
as a Critical Component in a High-Risk Device. You shall indemnify and hold Cypress, its directors, officers, employees, agents, affiliates, distributors, and assigns harmless from and against all claims,
costs, damages, and expenses, arising out of any claim, including claims for product liability, personal injury or death, or property damage arising from any use of a Cypress product as a Critical
Component in a High-Risk Device. Cypress products are not intended or authorized for use as a Critical Component in any High-Risk Device except to the limited extent that (i) Cypress's published
data sheet for the product explicitly states Cypress has qualified the product for use in a specific High-Risk Device, or (ii) Cypress has given you advance written authorization to use the product as a
Critical Component in the specific High-Risk Device and you have signed a separate indemnification agreement.
Cypress, the Cypress logo, Spansion, the Spansion logo, and combinations thereof, WICED, PSoC, CapSense, EZ-USB, F-RAM, and Traveo are trademarks or registered trademarks of Cypress in
the United States and other countries. For a more complete list of Cypress trademarks, visit cypress.com. Other names and brands may be claimed as property of their respective owners.
Document Number: 38-07140 Rev. *Y
Revised June 12, 2020
Page 25 of 25
