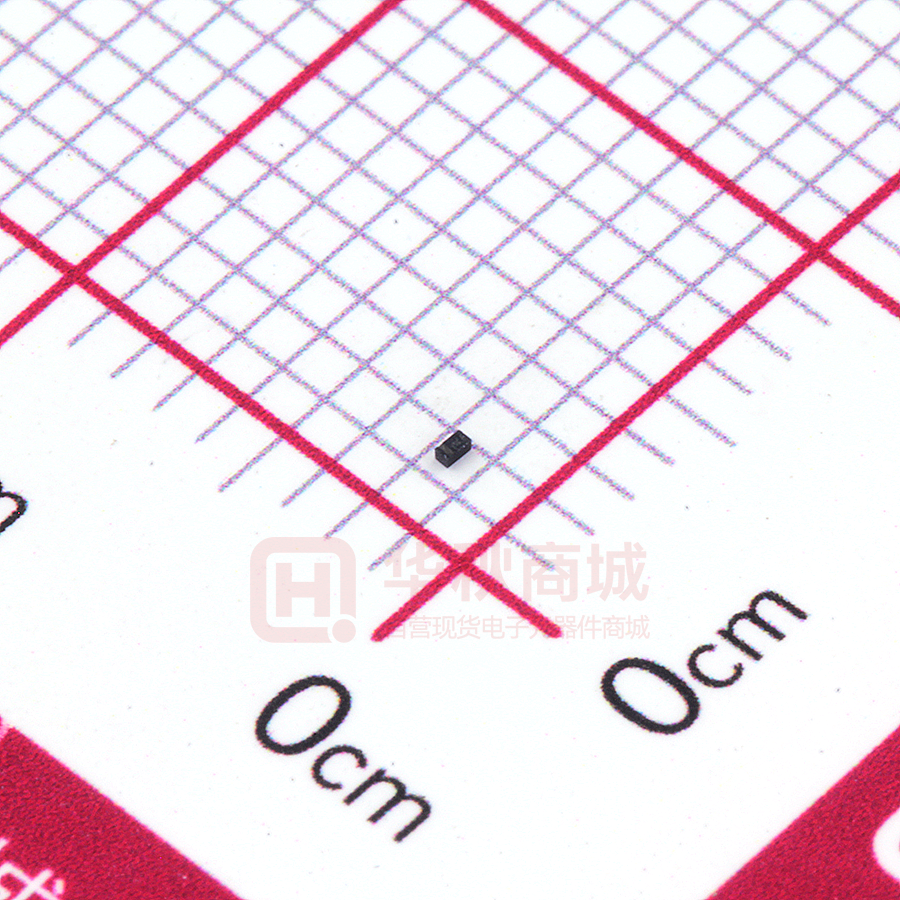

ESD101B102ELSE6327XTSA1

ESD101-B1-02 Series Protection device TVS (transient voltage suppressor) Bi-directional, 5.5 V, 0.1 pF, 0201, 0402, RoHS and halogen free compliant Features • • • • • • • ESD/transient protection of high speed data lines according to: - IEC61000-4-2 (ESD): ±14 kV (air), ±12 kV (contact) - IEC61000-4-4 (EFT): ±1.5 kV/±30 A (5/50 ns) - IEC61000-4-5 (surge): ±2 A (8/20 μs) Bi-directional working voltage up to: VRWM = ±5.5 V Extremely low capacitance CL = 0.1 pF (typical) at f = 1 GHz Clamping voltage: VCL = 30 V (typical) at ITLP = 16 A with RDYN = 1.5 Ω (typical) Very low reverse current: IR < 0.1 nA Small form factor SMD sizes 0201 and 0402 low profile Bi-directional and symmetric I/V characteristics for optimized design/assembly Potential applications Tailored for ESD protection of capacitance-susceptible application like: • Super high speed interface • RF antenna For further application information please refer to application note AN327 [3]. Product validation Qualified for industrial applications according to the relevant tests of JEDEC47/20/22 Device information Pin 1 marking (lasered) Pin 1 Pin 1 Pin 2 Pin 2 Figure 1 Pin configuration and schematic diagram Table 1 Part information Type Package Configuration Marking code ESD101-B1-02ELS TSSLP-2-4 1 line, bi-directional R ESD101-B1-02EL TSLP-2-20 1 line, bi-directional R Datasheet www.infineon.com Please read the Important Notice and Warnings at the end of this document Revision 1.4 2017-10-26 ESD101-B1-02 Series Protection device Table of contents Table of contents Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Potential applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Product validation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 Device information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Table of contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 1 Maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 2 Electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 3 Typical characteristic diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 4 4.1 4.2 Package information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 TSSLP-2-4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 TSLP-2-20 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 5 References . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Disclaimer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Datasheet 2 Revision 1.4 2017-10-26 ESD101-B1-02 Series Protection device Maximum ratings 1 Maximum ratings Note: TA = 25 °C, unless otherwise specified Table 2 Maximum ratings Parameter Symbol ESD air discharge 1) VESD Values ±14 ESD contact discharge 1) Unit Note or test condition kV – ±12 Peak pulse power PPK 30 W – Peak pulse current 2) IPP ±2 A – Operating temperature TOP -55 to 125 °C – Storage temperature Tstg -65 to 150 °C – Attention: Stresses above the maximum values listed here may cause permanent damage to the device. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Maximum ratings are absolute ratings. Exceeding only one of these values may cause irreversible damage to the component. 1 2 VESD according to IEC61000-4-2 Non-repetitive current pulse 8/20 μs exponential decay waveform according to IEC61000-4-5 Datasheet 3 Revision 1.4 2017-10-26 ESD101-B1-02 Series Protection device Electrical characteristics 2 Electrical characteristics Note: TA = 25 °C, unless otherwise specified. Device is electrically symmetrical. IF I PP I TLP VR VF IF ... Forward voltage VR IR ... Reverse voltage RDYN ... Forward current ΔV ΔI ΔI ... Reverse current VCL VTLP Vt1 Vh VRWM IR IT IR VRWM Vh IT ΔI ΔV RDYN ΔV ΔI I PP I TLP IR Figure 2 Datasheet ΔV RDYN VRWM Vt1 Vh VCL VTLP IR Ipp ITLP IT Vt1 VCL VTLP VF ... Dynamic resistance ... Reverse working voltage max. ... Trigger voltage ... Holding voltage ... Clamping voltage ... TLP voltage ... Reverse leakage current ... Peak pulse current ... TLP current ... Test current Diode_Characteristic_Curve_with_snapback_Bi-directional.svg Definitions of electrical characteristics 4 Revision 1.4 2017-10-26 ESD101-B1-02 Series Protection device Electrical characteristics Table 3 DC characteristics Parameter Symbol Values Min. Unit Typ. Note or test condition Max. Reverse current IRWM -5.5 – 5.5 Trigger voltage 1) Vt1 6.1 – – Holding voltage Vh 6.1 7.3 8.2 IT = 1 mA 6.1 7.0 7.9 IT = 10 mA –
