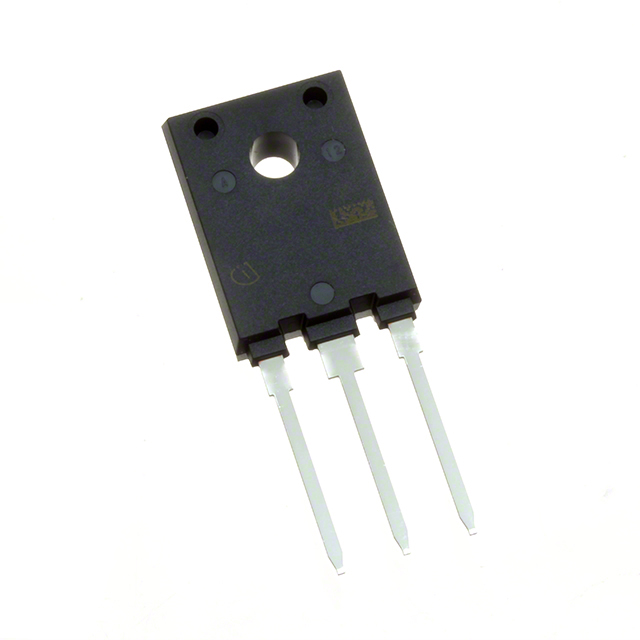

IKFW50N60DH3EXKSA1

IKFW50N60DH3E TRENCHSTOPTMAdvancedIsolation HighspeedswitchingseriesthirdgenerationIGBTcopackedwithRapid1 fastandsoftantiparalleldiodeinfullyisolatedpackage  Features: C TRENCHSTOP™technologyoffers: •Shortcircuitwithstandtime5µsatTvj=175°C •PositivetemperaturecoefficientinVCE(sat) •LowEMI •Verysoft,fastrecoveryanti-paralleldiode •Maximumjunctiontemperature175°C •2500VRMSelectricalisolation,50/60Hz,t=1min •100%testedisolatedmountingsurface •Pb-freeleadplating;RoHScompliant •CompleteproductspectrumandPSpiceModels: http://www.infineon.com/igbt G E PotentialApplications: •AirConditioningPFC •GeneralPurposeDrives(GPD) •ServoDrives Fully isolated package TO-247 ProductValidation: Qualifiedforindustrialapplicationsaccordingtotherelevanttests ofJEDEC47/20/22 KeyPerformanceandPackageParameters Type IKFW50N60DH3E Datasheet www.infineon.com VCE IC VCEsat,Tvj=25°C Tvjmax Marking Package 600V 40A 2.2V 175°C K50DDH3E PG-TO247-3-AI PleasereadtheImportantNoticeandWarningsattheendofthisdocument V2.1 2017-09-21 IKFW50N60DH3E TRENCHSTOPTMAdvancedIsolation TableofContents Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Thermal Resistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Electrical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Electrical Characteristics Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Package Drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 Testing Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 Disclaimer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 Datasheet 2 V2.1 2017-09-21 IKFW50N60DH3E TRENCHSTOPTMAdvancedIsolation MaximumRatings Foroptimumlifetimeandreliability,Infineonrecommendsoperatingconditionsthatdonotexceed80%ofthemaximumratingsstatedinthisdatasheet. Parameter Symbol Value Unit Collector-emittervoltage,Tvj≥25°C VCE 600 V DCcollectorcurrent,limitedbyTvjmax Th=25°Cvaluelimitedbybondwire Th=65°C Th=65°C IC 40.0 37.0 60.01) Pulsedcollectorcurrent,tplimitedbyTvjmax ICpuls 120.0 A Turn off safe operating area VCE≤600V,Tvj≤175°C,tp=1µs - 120.0 A Diodeforwardcurrent,limitedbyTvjmax Th=25°Cvaluelimitedbybondwire Th=65°C IF 40.0 29.0 A Diodepulsedcurrent,tplimitedbyTvjmax IFpuls 120.0 A Gate-emitter voltage TransientGate-emittervoltage(tp≤10µs,D
