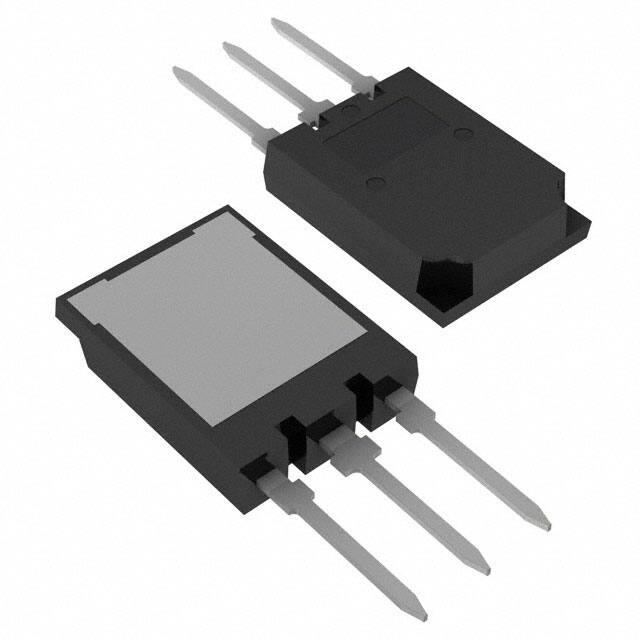

IKQ40N120CT2XKSA1

IKQ40N120CT2 TRENCHSTOPTM2lowVce(sat)secondgenerationIGBT LowVce(sat)IGBTinTRENCHSTOP™2technologycopackedwithsoft,fast recoveryfullcurrentratedanti-parallelEmitterControlledDiode  Features: C TRENCHSTOP™2technologyoffers: •VerylowVCE(sat),1.75Vatnominalcurrent •10µsecshortcircuitwithstandtimeatTvj=175°C •Easyparallelingcapabilityduetopositivetemperature coefficientinVCE(sat) •LowEMI •Verysoft,fastrecoveryfullcurrentanti-paralleldiode •Maximumjunctiontemperature175°C •Pb-freeleadplating;RoHScompliant •CompleteproductspectrumandPSpiceModels: http://www.infineon.com/igbt G E Applications: •GPD(GeneralPurposeDrives) •ServoDrives •CommercialVehicles •AgriculturalVehicles •Three-levelSolarStringInverter •Welding ProductValidation: Qualifiedforindustrialapplicationsaccordingtotherelevanttests ofJEDEC47/20/22 KeyPerformanceandPackageParameters Type IKQ40N120CT2 Datasheet www.infineon.com VCE IC VCEsat,Tvj=25°C Tvjmax Marking Package 1200V 40A 1.75V 175°C K40MCT2 PG-TO247-3-46 PleasereadtheImportantNoticeandWarningsattheendofthisdocument V2.3 2019-04-15 IKQ40N120CT2 TRENCHSTOPTM2lowVce(sat)secondgenerationIGBT TableofContents Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Thermal Resistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Electrical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Electrical Characteristics Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Package Drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 Testing Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 Disclaimer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 Datasheet 2 V2.3 2019-04-15 IKQ40N120CT2 TRENCHSTOPTM2lowVce(sat)secondgenerationIGBT MaximumRatings Foroptimumlifetimeandreliability,Infineonrecommendsoperatingconditionsthatdonotexceed80%ofthemaximumratingsstatedinthisdatasheet. Parameter Symbol Value Unit Collector-emittervoltage,Tvj≥25°C VCE 1200 V DCcollectorcurrent,limitedbyTvjmax Tc=25°Cvaluelimitedbybondwire Tc=135°C IC 80.0 40.0 A Pulsedcollectorcurrent,tplimitedbyTvjmax ICpuls 160.0 A Turn off safe operating area VCE≤1200V,Tvj≤175°C,tp=1µs - 160.0 A Diodeforwardcurrent,limitedbyTvjmax Tc=25°Cvaluelimitedbybondwire Tc=100°C IF 80.0 40.0 A Diodepulsedcurrent,tplimitedbyTvjmax IFpuls 160.0 A Gate-emitter voltage TransientGate-emittervoltage(tp≤10µs,D
