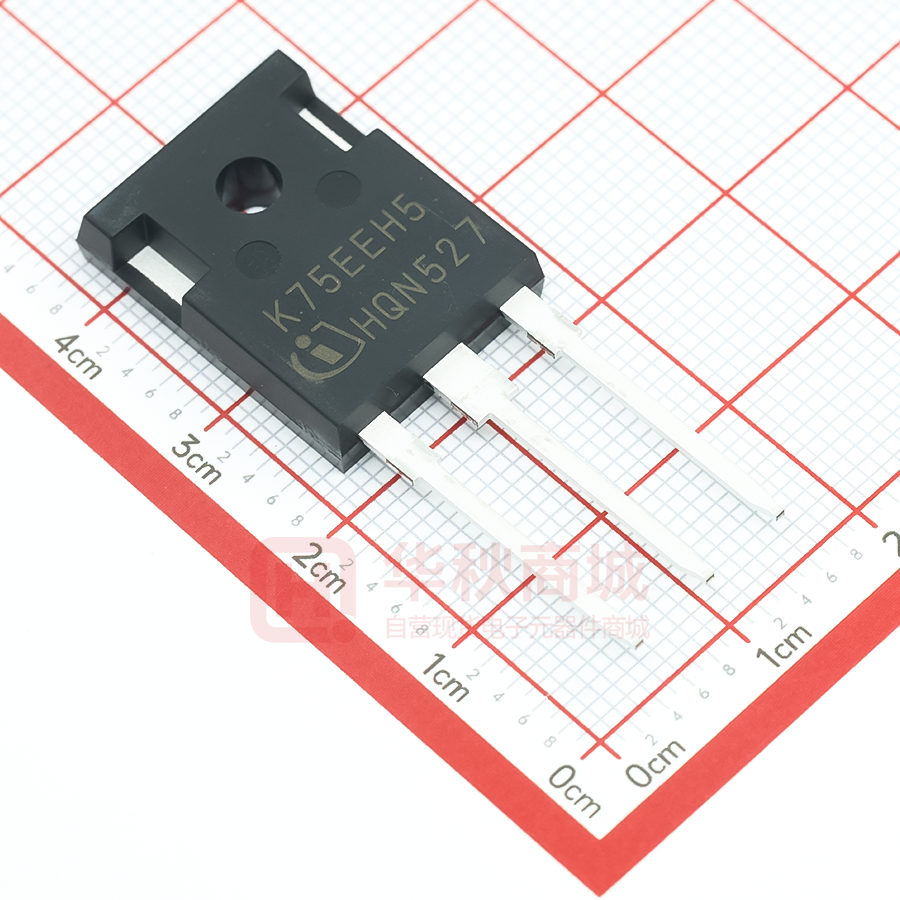

IKW75N65EH5

IKW75N65EH5 Highspeedseriesfifthgeneration Highspeed5IGBTinTRENCHSTOPTM5technologycopackedwithfull-rated RAPID1fastandsoftantiparalleldiode  FeaturesandBenefits: C HighspeedH5technologyoffering •Best-in-Classefficiencyinhardswitchingandresonant topologies •PlugandplayreplacementofpreviousgenerationIGBTs •650Vbreakdownvoltage •LowgatechargeQG •IGBTcopackedwithfull-ratedRAPID1fastandsoftantiparallel diode •Maximumjunctiontemperature175°C •QualifiedaccordingtoJEDECfortargetapplications •Pb-freeleadplating;RoHScompliant •CompleteproductspectrumandPSpiceModels: http://www.infineon.com/igbt/ G E Applications: •Uninterruptiblepowersupplies •Solarconverters •Weldingconverters •Midtohighrangeswitchingfrequencyconverters 1 Packagepindefinition: 2 3 •Pin1-gate •Pin2&backside-collector •Pin3-emitter KeyPerformanceandPackageParameters Type IKW75N65EH5 Datasheet www.infineon.com VCE IC VCEsat,Tvj=25°C Tvjmax Marking Package 650V 75A 1.65V 175°C K75EEH5 PG-TO247-3 PleasereadtheImportantNoticeandWarningsattheendofthisdocument V2.2 2017-07-27 IKW75N65EH5 Highspeedseriesfifthgeneration TableofContents Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Thermal Resistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Electrical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Electrical Characteristics Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Package Drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 Testing Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 Disclaimer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17 Datasheet 2 V2.2 2017-07-27 IKW75N65EH5 Highspeedseriesfifthgeneration MaximumRatings Foroptimumlifetimeandreliability,Infineonrecommendsoperatingconditionsthatdonotexceed80%ofthemaximumratingsstatedinthisdatasheet. Parameter Symbol Value Unit Collector-emittervoltage,Tvj≥25°C VCE 650 V DCcollectorcurrent,limitedbyTvjmax TC=25°Cvaluelimitedbybondwire TC=100°C IC 90.0 75.0 A Pulsedcollectorcurrent,tplimitedbyTvjmax1) ICpuls 300.0 A Turn off safe operating area VCE≤650V,Tvj≤175°C,tp=1µs1) - 300.0 A Diodeforwardcurrent,limitedbyTvjmax TC=25°Cvaluelimitedbybondwire TC=100°C IF 90.0 75.0 A Diodepulsedcurrent,tplimitedbyTvjmax1) IFpuls 300.0 A Gate-emitter voltage TransientGate-emittervoltage(tp≤10µs,D
