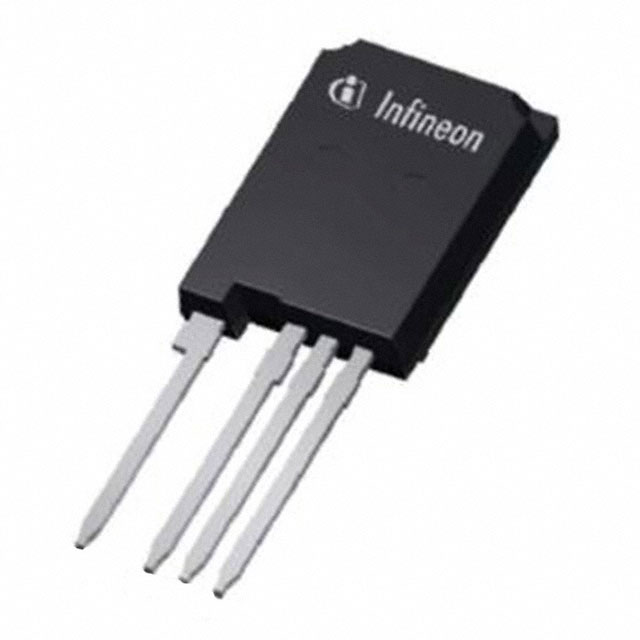

IKY75N120CS6XKSA1

IKY75N120CS6 Sixthgeneration,highspeedsoftswitchingseries HighspeedsoftswitchingTRENCHSTOPTMIGBT6inTrenchandFieldstop technologycopackedwithsoftandfastrecoveryanti-paralleldiode  Features: 1200VTRENCHSTOPTMIGBT6technologyoffering: •Highefficiencyinhardswitchingandresonanttopologies •Easyparallelingcapabilityduetopositivetemperature coefficientinVCEsat •LowEMI •LowGateChargeQg •Verysoft,fastrecoveryfullcurrentanti-paralleldiode •Maximumjunctiontemperature175°C •Pb-freeleadplating;RoHScompliant •CompleteproductspectrumandPSpiceModels: http://www.infineon.com/igbt/ Applications: •IndustrialUPS •Charger •Energystorage •Three-levelSolarStringInverter •Welding ProductValidation: Qualifiedforindustrialapplicationsaccordingtotherelevanttests ofJEDEC47/20/22 KeyPerformanceandPackageParameters Type IKY75N120CS6 Datasheet www.infineon.com VCE IC VCEsat,Tvj=25°C Tvjmax Marking Package 1200V 75A 1.85V 175°C K75MCS6 PG-TO247-4-2 PleasereadtheImportantNoticeandWarningsattheendofthisdocument V2.2 2018-08-07 IKY75N120CS6 Sixthgeneration,highspeedsoftswitchingseries TableofContents Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Thermal Resistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Electrical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Electrical Characteristics Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Package Drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 Testing Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 Disclaimer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 Datasheet 2 V2.2 2018-08-07 IKY75N120CS6 Sixthgeneration,highspeedsoftswitchingseries MaximumRatings Foroptimumlifetimeandreliability,Infineonrecommendsoperatingconditionsthatdonotexceed80%ofthemaximumratingsstatedinthisdatasheet. Parameter Symbol Value Unit Collector-emittervoltage,Tvj≥25°C VCE 1200 V DCcollectorcurrent,limitedbyTvjmax Tc=25°C Tc=100°C IC 150.0 75.0 A Pulsedcollectorcurrent,tplimitedbyTvjmax ICpuls 300.0 A TurnoffsafeoperatingareaVCE≤1200V,Tvj≤175°C - 300.0 A Diodeforwardcurrent,limitedbyTvjmax Tc=25°C Tc=100°C IF 150.0 75.0 A Diodepulsedcurrent,tplimitedbyTvjmax IFpuls 300.0 A Gate-emitter voltage TransientGate-emittervoltage(tp≤0.5µs,D
