IPA50R380CE
MOSFET
500VCoolMOSªCEPowerTransistor
PG-TO220FP
CoolMOS™isarevolutionarytechnologyforhighvoltagepower
MOSFETs,designedaccordingtothesuperjunction(SJ)principleand
pioneeredbyInfineonTechnologies.CoolMOS™CEisa
price-performanceoptimizedplatformenablingtotargetcostsensitive
applicationsinConsumerandLightingmarketsbystillmeetinghighest
efficiencystandards.Thenewseriesprovidesallbenefitsofafast
switchingSuperjunctionMOSFETwhilenotsacrificingeaseofuseand
offeringthebestcostdownperformanceratioavailableonthemarket.
Features
•ExtremelylowlossesduetoverylowFOMRdson*QgandEoss
•Veryhighcommutationruggedness
•Easytouse/drive
•Pb-freeplating,Halogenfreemoldcompound
•Qualifiedforstandardgradeapplications
Drain
Pin 2
Gate
Pin 1
Applications
Source
Pin 3
PFCstages,hardswitchingPWMstagesandresonantswitchingstages
fore.g.PCSilverbox,Adapter,LCD&PDPTVandindoorlighting.
Pleasenote:ForMOSFETparallelingtheuseofferritebeadsonthegate
orseparatetotempolesisgenerallyrecommended.
Table1KeyPerformanceParameters
Parameter
Value
Unit
VDS @ Tj,max
550
V
RDS(on),max
0.38
Ω
ID
14.1
A
Qg,typ
24.8
nC
ID,pulse
32.4
A
Eoss @ 400V
2.54
µJ
Type/OrderingCode
Package
Marking

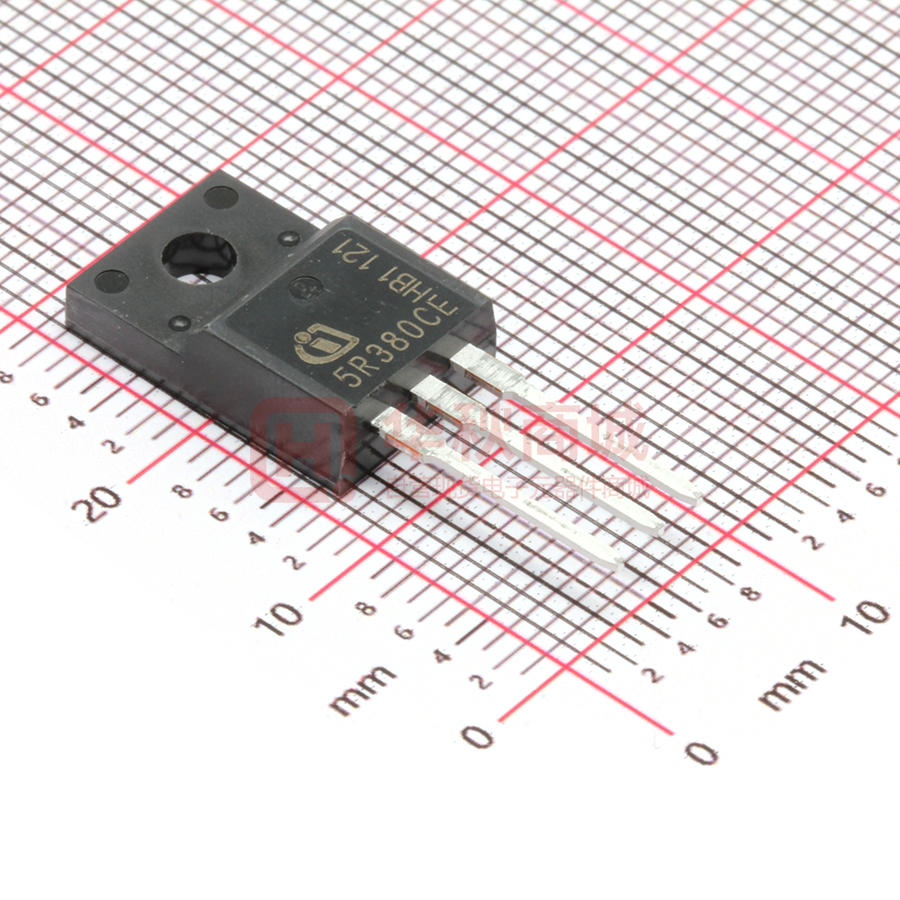

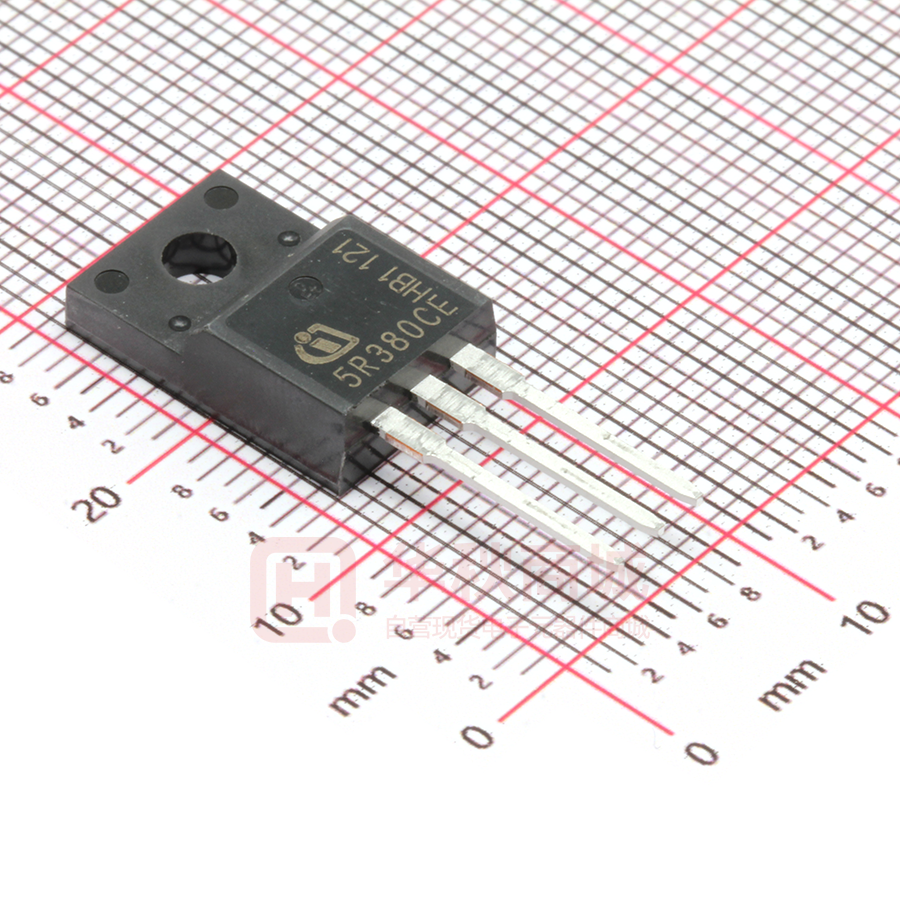

IPA50R380CE
PG-TO 220 FullPAK
5R380CE
Final Data Sheet
1
RelatedLinks
see Appendix A
Rev.2.4,2016-07-12
500VCoolMOSªCEPowerTransistor
IPA50R380CE
TableofContents
Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Thermal characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Electrical characteristics diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Test Circuits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Package Outlines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Appendix A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Trademarks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Disclaimer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Final Data Sheet
2
Rev.2.4,2016-07-12
500VCoolMOSªCEPowerTransistor
IPA50R380CE
1Maximumratings
atTj=25°C,unlessotherwisespecified
Table2Maximumratings
Parameter
Symbol
Continuous drain current1)
Values
Unit
Note/TestCondition
14.1
8.9
A
TC = 25°C
TC = 100°C
-
32.4
A
TC=25°C
-
-
173
mJ
ID =4A; VDD = 50V
EAR
-
-
0.26
mJ
ID =4A; VDD = 50V
Avalanche current, repetitive
IAR
-
-
4.0
A
-
MOSFET dv/dt ruggedness
dv/dt
-
-
50
V/ns
VDS=0...400V
Gate source voltage
VGS
-20
-30
-
20
30
V
static;
AC (f>1 Hz)
Power disspiation (FullPAK)
Ptot
-
-
29.2
W
TC=25°C
Operating and storage temperature
Tj,Tstg
-40
-
150
°C
-
Mounting torque
-
-
-
50
Ncm M2.5 screws
IS
-
-
5.4
A
TC=25°C
IS,pulse
-
-
32.4
A
TC = 25°C
dv/dt
-
-
15
V/ns
VDS=0...400V,ISD
