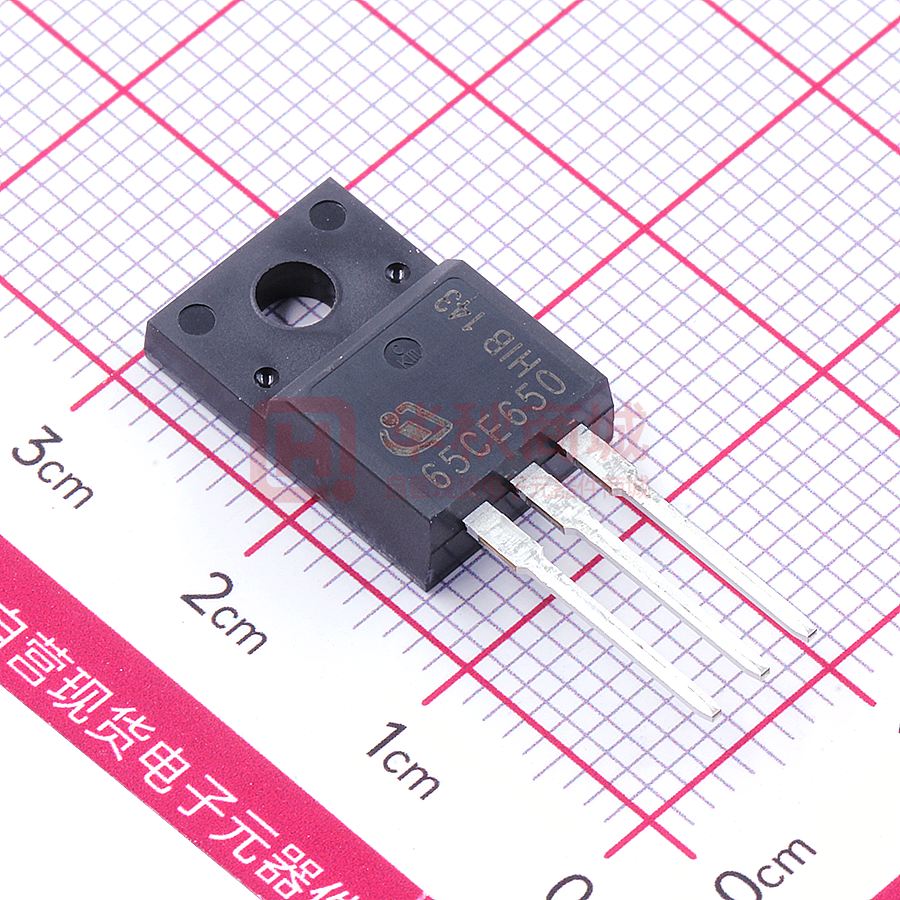

IPD65R650CE,IPA65R650CE MOSFET 650VCoolMOSªCEPowerTransistor DPAK CoolMOS™isarevolutionarytechnologyforhighvoltagepower MOSFETs,designedaccordingtothesuperjunction(SJ)principleand pioneeredbyInfineonTechnologies.CoolMOS™CEisa price-performanceoptimizedplatformenablingtotargetcostsensitive applicationsinConsumerandLightingmarketsbystillmeetinghighest efficiencystandards.Thenewseriesprovidesallbenefitsofafast switchingSuperjunctionMOSFETwhilenotsacrificingeaseofuseand offeringthebestcostdownperformanceratioavailableonthemarket. PG-TO220FP tab 1 2 3 Features Drain Pin 2, Tab Gate Pin 1 •ExtremelylowlossesduetoverylowFOMRdson*QgandEoss •Veryhighcommutationruggedness •Easytouse/drive •Pb-freeplating,Halogenfreemoldcompound •Qualifiedforstandardgradeapplications Source Pin 3 Applications PFCstages,hardswitchingPWMstagesandresonantswitchingstages fore.g.PCSilverbox,Adapter,LCD&PDPTVandindoorlighting. Pleasenote:Note1:ForMOSFETparallelingtheuseofferritebeadson thegateorseparatetotempolesisgenerallyrecommended. Note2:*65CE650isFullPAKmarkingonly Table1KeyPerformanceParameters Parameter Value Unit VDS @ Tj,max 700 V RDS(on),max 650 mΩ ID. 10.1 A Qg.typ 23 nC ID,pulse 18 A Eoss@400V 2 µJ Type/OrderingCode Package IPD65R650CE PG-TO 252 IPA65R650CE PG-TO 220 FullPAK Final Data Sheet Marking 65S650CE / 65CE650* 1 RelatedLinks see Appendix A Rev.2.4,2016-12-07 650VCoolMOSªCEPowerTransistor IPD65R650CE,IPA65R650CE TableofContents Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Thermal characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Electrical characteristics diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Test Circuits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Package Outlines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Appendix A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Trademarks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Disclaimer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Final Data Sheet 2 Rev.2.4,2016-12-07 650VCoolMOSªCEPowerTransistor IPD65R650CE,IPA65R650CE 1Maximumratings atTj=25°C,unlessotherwisespecified Table2Maximumratings Parameter Symbol Continuous drain current1) Values Unit Note/TestCondition 10.1 6.4 A TC=25°C TC=100°C - 18 A TC=25°C - - 142 mJ ID=1.3A; VDD=50V; see table 11 EAR - - 0.21 mJ ID=1.3A; VDD=50V; see table 11 Avalanche current, repetitive IAR - - 1.3 A - MOSFET dv/dt ruggedness dv/dt - - 50 V/ns VDS=0...480V Gate source voltage (static) VGS -20 - 20 V static; Gate source voltage (dynamic) VGS -30 - 30 V AC (f>1 Hz) Power dissipation (Non FullPAK) TO-252 Ptot - - 86 W TC=25°C Storage temperature Tstg -40 - 150 °C - Operating junction temperature Tj -40 - 150 °C - Continuous diode forward current IS - - 7.1 A TC=25°C Diode pulse current IS,pulse - - 18 A TC=25°C Reverse diode dv/dt3) dv/dt - - 15 V/ns VDS=0...400V,ISD
