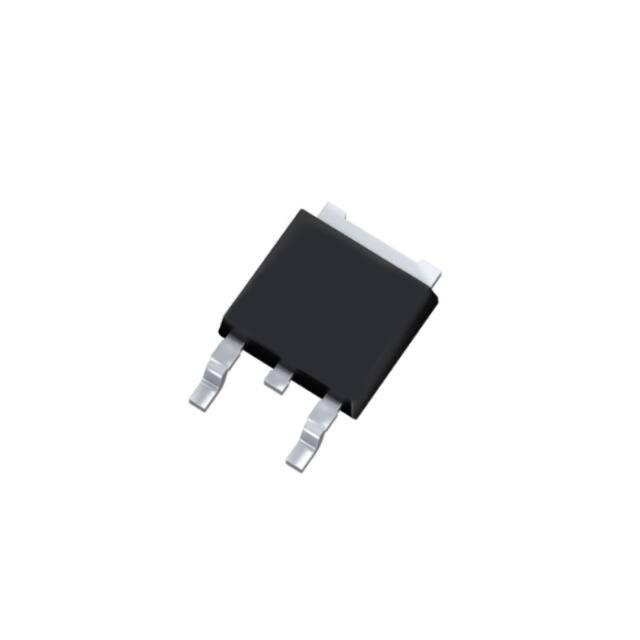

IPD50R950CEAUMA1

IPD50R950CE,IPU50R950CE MOSFET 500VCoolMOSªCEPowerTransistor DPAK CoolMOS™isarevolutionarytechnologyforhighvoltagepower MOSFETs,designedaccordingtothesuperjunction(SJ)principleand pioneeredbyInfineonTechnologies.CoolMOS™CEisa price-performanceoptimizedplatformenablingtotargetcostsensitive applicationsinConsumerandLightingmarketsbystillmeetinghighest efficiencystandards.Thenewseriesprovidesallbenefitsofafast switchingSuperjunctionMOSFETwhilenotsacrificingeaseofuseand offeringthebestcostdownperformanceratioavailableonthemarket. Features IPAK tab 1 tab 2 1 3 2 3 Drain Pin 2 Gate Pin 1 •ExtremelylowlossesduetoverylowFOMRdson*QgandEoss •Veryhighcommutationruggedness •Easytouse/drive •Pb-freeplating,Halogenfreemoldcompound •Qualifiedforstandardgradeapplications Source Pin 3 Applications PFCstages,hardswitchingPWMstagesandresonantswitchingstages fore.g.PCSilverbox,Adapter,LCD&PDPTVandindoorlighting. Pleasenote:ForMOSFETparallelingtheuseofferritebeadsonthegate orseparatetotempolesisgenerallyrecommended. Table1KeyPerformanceParameters Parameter Value Unit VDS @ Tj,max 550 V RDS(on),max 0.95 Ω ID 6.6 A Qg,typ 10.5 nC ID,pulse 12.8 A Eoss @ 400V 1.28 µJ Type/OrderingCode Package IPD50R950CE PG-TO 252 IPU50R950CE PG-TO 251 Final Data Sheet Marking 50S950CE 1 RelatedLinks see Appendix A Rev.2.3,2016-06-13 500VCoolMOSªCEPowerTransistor IPD50R950CE,IPU50R950CE TableofContents Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Thermal characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Electrical characteristics diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Test Circuits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Package Outlines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Appendix A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Trademarks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Disclaimer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Final Data Sheet 2 Rev.2.3,2016-06-13 500VCoolMOSªCEPowerTransistor IPD50R950CE,IPU50R950CE 1Maximumratings atTj=25°C,unlessotherwisespecified Table2Maximumratings Parameter Symbol Continuous drain current1) Values Unit Note/TestCondition 6.6 4.2 A TC = 25°C TC = 100°C - 12.8 A TC=25°C - - 68 mJ ID =1.6A; VDD = 50V EAR - - 0.10 mJ ID =1.6A; VDD = 50V Avalanche current, repetitive IAR - - 1.6 A - MOSFET dv/dt ruggedness dv/dt - - 50 V/ns VDS=0...400V Gate source voltage VGS -20 -30 - 20 30 V static; AC (f>1 Hz) Power dissipation (non FullPAK) TO-252, TO-251 Ptot - - 53 W TC=25°C Operating and storage temperature Tj,Tstg -55 - 150 °C - Continuous diode forward current IS - - 4.6 A TC=25°C Diode pulse current IS,pulse - - 12.8 A TC = 25°C Reverse diode dv/dt3) dv/dt - - 15 V/ns VDS=0...400V,ISD
