IPL65R210CFD
MOSFET
650VCoolMOSªCFD2PowerTransistor

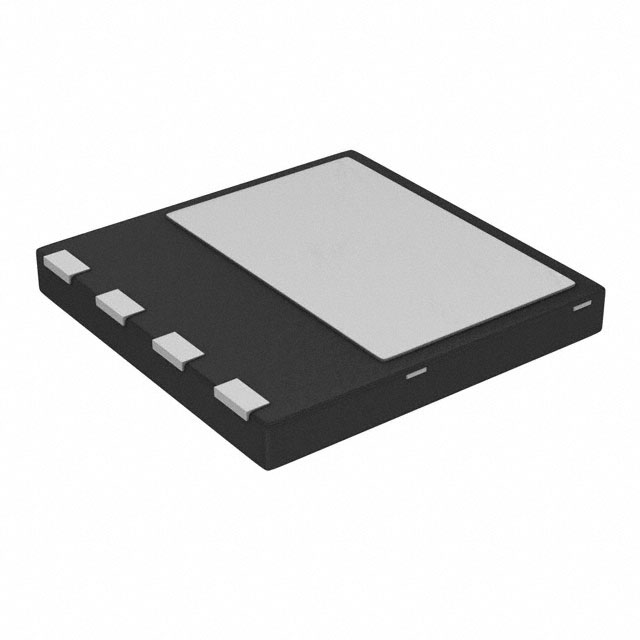

ThinPAK8x8
CoolMOS™isarevolutionarytechnologyforhighvoltagepower
MOSFETs,designedaccordingtothesuperjunction(SJ)principleand
pioneeredbyInfineonTechnologies.650VCoolMOS™CFD2series
combinestheexperienceoftheleadingSJMOSFETsupplierwithhigh
classinnovation.Theresultingdevicesprovideallbenefitsofafast
switchingSJMOSFETwhileofferinganextremelyfastandrobustbody
diode.Thiscombinationofextremelylowswitching,commutationand
conductionlossestogetherwithhighestrobustnessmakeespecially
resonantswitchingapplicationsmorereliable,moreefficient,lighterand
cooler.
ThinPAK
ThinPAKisaanewleadlessSMDpackageforHVMOSFETs.Thenew
packagehasaverysmallfootprintofonly64mm²(vs.150mm²forthe
D²PAK)andaverylowprofilewithonly1mmheight(vs.4.4mmforthe
D²PAK).Thesignificantlysmallerpackagesize,combinedwithbenchmark
lowparasiticinductances,providesdesignerswithanewandeffectiveway
todecreasesystemsolutionsizeinpower-densitydrivendesigns.
Drain
Pin 5
Gate
Pin 1
Driver
Source
Pin 2
Power
Source
Pin 3,4
Features
•Reducedboardspaceconsumption
•Increasedpowerdensity
•Shortcommutationloop
•Smoothswitchingwaveform
•Ultra-fastbodydiode
•Veryhighcommutationruggedness
•ExtremelylowlossesduetoverylowFOMRdson*QgandEoss
•Easytouse/drive
•QualifiedforindustrialgradeapplicationsaccordingtoJEDEC
(J-STD20andJESD22)
•Pb-freeplating,Halogenfreemoldcompound
Potentialapplications
650VCoolMOS™CFD2isespeciallysuitableforresonantswitching
stagesfore.g.PCSilverbox,LCDTV,Lighting,ServerandTelecom.
Table1KeyPerformanceParameters
Parameter
Value
Unit
Vds @ Tjmax
700
V
RDS(on),max
0.21
Ω
Qg,typ
68
nC
ID,pulse
53
A
Eoss @ 400V
5.7
µJ
Body diode diF/dt
900
A/µs
Qrr
0.5
µC
tr
120
ns
Irrm
7.6
A
Type/OrderingCode
Package
Marking
IPL65R210CFD
PG-VSON-4
65F6210
Final Data Sheet
1
RelatedLinks
see Appendix A
Rev.2.1,2017-09-07
650VCoolMOSªCFD2PowerTransistor
IPL65R210CFD
TableofContents
Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Thermal characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Electrical characteristics diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Test Circuits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Package Outlines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Appendix A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Trademarks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Disclaimer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Final Data Sheet
2
Rev.2.1,2017-09-07
650VCoolMOSªCFD2PowerTransistor
IPL65R210CFD
1Maximumratings
atTj=25°C,unlessotherwisespecified
Table2Maximumratings
Parameter
Symbol
Continuous drain current1)
Values
Unit
Note/TestCondition
16.6
10.5
A
TC = 25°C
TC = 100°C
-
53
A
TC=25 °C
-
-
484
mJ
ID =3.3 A; VDD = 50 V
EAR
-
-
0.70
mJ
ID =3.3 A; VDD = 50 V
Avalanche current, repetitive
IAR
-
-
3.3
A
-
MOSFET dv/dt ruggedness
dv/dt
-
-
50
V/ns
VDS=0...400V
Gate source voltage
VGS
-20
-30
-
20
30
V
static;
AC (f>1 Hz)
Power dissipation
Ptot
-
-
151
W
TC=25°C
Operating and storage temperature
Tj,Tstg
-40
-
150
°C
-
Continuous diode forward current
IS
-
-
16.6
A
TC=25°C
Diode pulse current
IS,pulse
-
-
53
A
TC = 25°C
Reverse diode dv/dt3)
dv/dt
-
-
50
V/ns
VDS=0...400V,ISD
