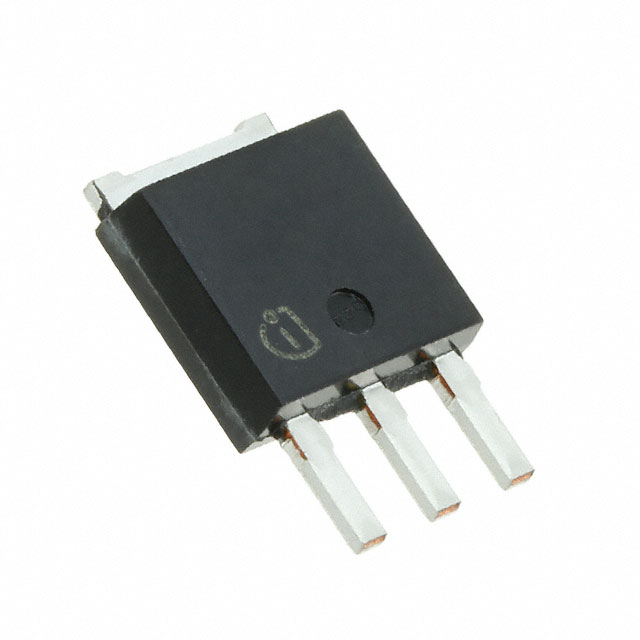

IPSA70R950CEAKMA1

IPSA70R950CE MOSFET 700VCoolMOSªCEPowerTransistor IPAK-shortleadwithISO-Standoff CoolMOS™isarevolutionarytechnologyforhighvoltagepower MOSFETs,designedaccordingtothesuperjunction(SJ)principleand pioneeredbyInfineonTechnologies.CoolMOS™CEisa price-performanceoptimizedplatformenablingtotargetcostsensitive applicationsinConsumerandLightingmarketsbystillmeetinghighest efficiencystandards.Thenewseriesprovidesallbenefitsofafast switchingSuperjunctionMOSFETwhilenotsacrificingeaseofuseand offeringthebestcostdownperformanceratioavailableonthemarket. Features •ExtremelylowlossesduetoverylowFOMRdson*QgandEoss •Veryhighcommutationruggedness •Easytouse/drive •Pb-freeplating,Halogenfreemoldcompound •Qualifiedforstandardgradeapplications •Standoffisolationbetweenleads Drain Pin 2, Tab Gate Pin 1 Source Pin 3 Applications Adapter,LCD&PDPTVandIndoorlighting Table1KeyPerformanceParameters Parameter Value Unit VDS @ Tj,max 750 V RDS(on),max 950 mΩ Qg.typ 15.3 nC ID 8.7 A ID,pulse 12 A Eoss@400V 1.5 µJ Type/OrderingCode Package IPSA70R950CE PG-TO 251 Final Data Sheet Marking 70S950CE 1 RelatedLinks see Appendix A Rev.2.0,2016-09-07 700VCoolMOSªCEPowerTransistor IPSA70R950CE TableofContents Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Thermal characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Electrical characteristics diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Test Circuits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Package Outlines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Appendix A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Trademarks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Disclaimer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Final Data Sheet 2 Rev.2.0,2016-09-07 700VCoolMOSªCEPowerTransistor IPSA70R950CE 1Maximumratings atTj=25°C,unlessotherwisespecified Table2Maximumratings Parameter Symbol Continuous drain current1) Values Unit Note/TestCondition 8.7 5.5 A TC=25°C TC=100°C - 12 A TC=25°C - - 50 mJ ID=1A; VDD=50V; see table 10 EAR - - 0.15 mJ ID=1A; VDD=50V; see table 10 Avalanche current, repetitive IAR - - 1.0 A - MOSFET dv/dt ruggedness dv/dt - - 50 V/ns VDS=0...480V Gate source voltage (static) VGS -20 - 20 V static; Gate source voltage (dynamic) VGS -30 - 30 V AC (f>1 Hz) Power dissipation Ptot - - 94 W TC=25°C Storage temperature Tstg -40 - 150 °C - Operating junction temperature Tj -40 - 150 °C - Continuous diode forward current IS - - 3.9 A TC=25°C Diode pulse current IS,pulse - - 12 A TC=25°C Reverse diode dv/dt3) dv/dt - - 15 V/ns VDS=0...400V,ISD
