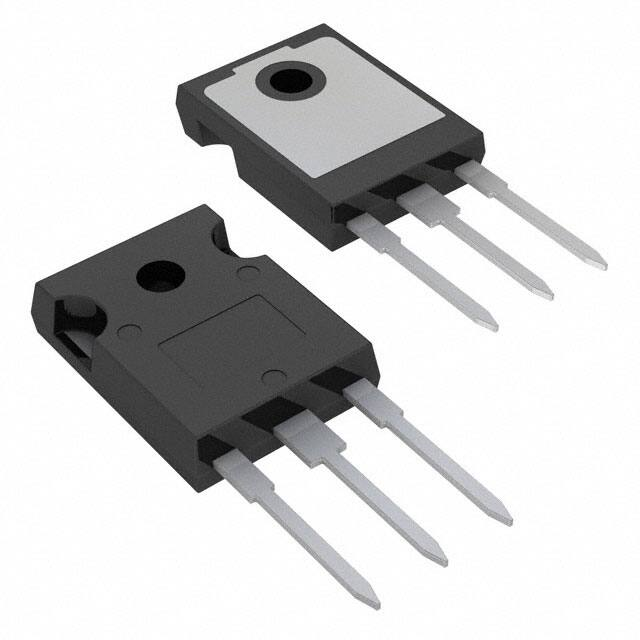

IPW60R024P7XKSA1

IPW60R024P7 MOSFET 600VCoolMOSªP7PowerTransistor PG-TO247-3 TheCoolMOS™7thgenerationplatformisarevolutionarytechnologyfor highvoltagepowerMOSFETs,designedaccordingtothesuperjunction (SJ)principleandpioneeredbyInfineonTechnologies.The600V CoolMOS™P7seriesisthesuccessortotheCoolMOS™P6series.It combinesthebenefitsofafastswitchingSJMOSFETwithexcellentease ofuse,e.g.verylowringingtendency,outstandingrobustnessofbody diodeagainsthardcommutationandexcellentESDcapability. Furthermore,extremelylowswitchingandconductionlossesmake switchingapplicationsevenmoreefficient,morecompactandmuch cooler. Features •Suitableforhardandsoftswitching(PFCandLLC)duetoanoutstanding  commutationruggedness •Significantreductionofswitchingandconductionlosses •ExcellentESDrobustness>2kV(HBM)forallproducts •BetterRDS(on)/packageproductscomparedtocompetitionenabledbya  lowRDS(on)*A(below1Ohm*mm²) Drain Pin 2, Tab Gate Pin 1 Source Pin 3 Benefits •Easeofuseandfastdesign-inthroughlowringingtendencyandusage  acrossPFCandPWMstages •Simplifiedthermalmanagementduetolowswitchingandconduction  losses •Increasedpowerdensitysolutionsenabledbyusingproductswith  smallerfootprintandhighermanufacturingqualitydueto>2kVESD  protection •Suitableforawidevarietyofapplicationsandpowerranges Potentialapplications PFCstages,hardswitchingPWMstagesandresonantswitchingstages fore.g.PCSilverbox,Adapter,LCD&PDPTV,Lighting,Server,Telecom andUPS. Productvalidation FullyqualifiedaccordingtoJEDECforIndustrialApplications Pleasenote:ForMOSFETparallelingtheuseofferritebeadsonthegate orseparatetotempolesisgenerallyrecommended. Table1KeyPerformanceParameters Parameter Value Unit VDS @ Tj,max 650 V RDS(on),max 24 mΩ Qg,typ 164 nC ID,pulse 386 A Eoss @ 400V 16.7 µJ Body diode diF/dt 900 A/µs Type/OrderingCode Package IPW60R024P7 PG-TO 247-3 Final Data Sheet Marking 60R024P7 1 RelatedLinks see Appendix A Rev.2.0,2019-02-28 600VCoolMOSªP7PowerTransistor IPW60R024P7 TableofContents Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Thermal characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Electrical characteristics diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Test Circuits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Package Outlines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Appendix A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Trademarks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Disclaimer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Final Data Sheet 2 Rev.2.0,2019-02-28 600VCoolMOSªP7PowerTransistor IPW60R024P7 1Maximumratings atTj=25°C,unlessotherwisespecified Table2Maximumratings Parameter Symbol Continuous drain current1) Values Unit Note/TestCondition 101 63 A TC=25°C TC=100°C - 386 A TC=25°C - - 406 mJ ID=12.2A; VDD=50V; see table 10 EAR - - 2.03 mJ ID=12.2A; VDD=50V; see table 10 Avalanche current, single pulse IAS - - 12.2 A - MOSFET dv/dt ruggedness dv/dt - - 80 V/ns VDS=0...400V Gate source voltage (static) VGS -20 - 20 V static; Gate source voltage (dynamic) VGS -30 - 30 V AC (f>1 Hz) Power dissipation Ptot - - 291 W TC=25°C Storage temperature Tstg -55 - 150 °C - Operating junction temperature Tj -55 - 150 °C - Mounting torque - - - 60 Ncm M3 and M3.5 screws IS - - 101 A TC=25°C Diode pulse current IS,pulse - - 386 A TC=25°C Reverse diode dv/dt3) dv/dt - - 50 V/ns VDS=0...400V,ISD
