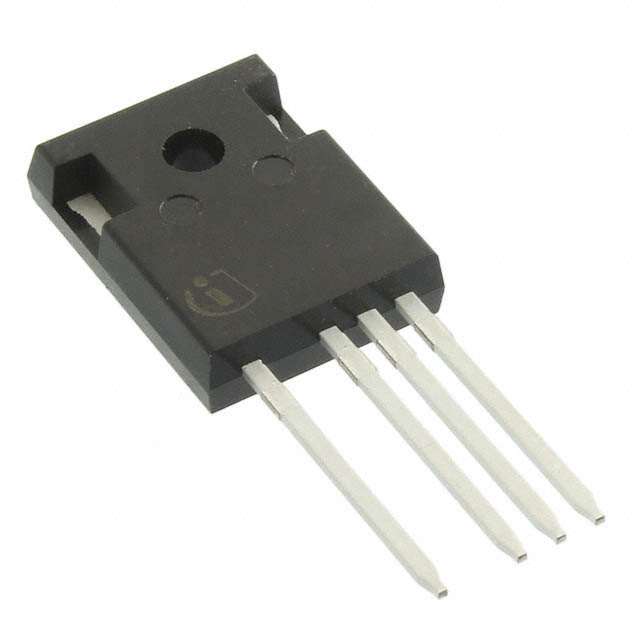

IPZ65R095C7XKSA1

MOSFET MetalOxideSemiconductorFieldEffectTransistor CoolMOS™C7 650VCoolMOS™C7PowerTransistor IPZ65R095C7 DataSheet Rev.2.0 Final PowerManagement&Multimarket 650VCoolMOS™C7PowerTransistor IPZ65R095C7 1Description PG-TO247-4 CoolMOS™isarevolutionarytechnologyforhighvoltagepower MOSFETs,designedaccordingtothesuperjunction(SJ)principleand pioneeredbyInfineonTechnologies. CoolMOS™C7seriescombinestheexperienceoftheleadingSJ MOSFETsupplierwithhighclassinnovation.Theproductportfolio providesallbenefitsoffastswitchingsuperjunctionMOSFETsoffering betterefficiency,reducedgatecharge,easyimplementationand outstandingreliability. Features •IncreasedMOSFETdv/dtruggedness •BetterefficiencyduetobestinclassFOMRDS(on)*EossandRDS(on)*Qg •BestinclassRDS(on)/package •Easytouse/driveduetodriversourcepinforbettercontrolofthegate. •Pb-freeplating,halogenfreemoldcompound •QualifiedforindustrialgradeapplicationsaccordingtoJEDEC(J-STD20 andJESD22) Benefits •Enablinghighersystemefficiency •Enablinghigherfrequency/increasedpowerdensitysolutions •Systemcost/sizesavingsduetoreducedcoolingrequirements •Highersystemreliabilityduetoloweroperatingtemperatures Applications PFCstagesandhardswitchingPWMstagesfore.g.Computing,Server, Telecom,UPSandSolar. Pleasenote:Thesourceandsensesourcepinsarenotexchangeable. Theirexchangemightleadtomalfunction. Table1KeyPerformanceParameters Parameter Value Unit VDS @ Tj,max 700 V RDS(on),max 95 mΩ Qg.typ 45 nC ID,pulse 100 A Eoss@400V 5.5 µJ Body diode di/dt 60 A/µs Type/OrderingCode Package Marking IPZ65R095C7 PG-TO 247-4 65C7095 Final Data Sheet 2 RelatedLinks see Appendix A Rev.2.0,2013-10-11 650VCoolMOS™C7PowerTransistor IPZ65R095C7 TableofContents Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Thermal characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Electrical characteristics diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Test Circuits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Package Outlines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Appendix A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Disclaimer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Final Data Sheet 3 Rev.2.0,2013-10-11 650VCoolMOS™C7PowerTransistor IPZ65R095C7 2Maximumratings atTj=25°C,unlessotherwisespecified Table2Maximumratings Parameter Symbol Continuous drain current 1) Values Unit Note/TestCondition 24 15 A TC=25°C TC=100°C - 100 A TC=25°C - - 118 mJ ID=8.4A; VDD=50V; see table 10 EAR - - 0.59 mJ ID=8.4A; VDD=50V; see table 10 Avalanche current, single pulse IAS - - 8.4 A - MOSFET dv/dt ruggedness dv/dt - - 100 V/ns VDS=0...400V Gate source voltage (static) VGS -20 - 20 V static; Gate source voltage (dynamic) VGS -30 - 30 V AC (f>1 Hz) Power dissipation Ptot - - 128 W TC=25°C Storage temperature Tstg -55 - 150 °C - Operating junction temperature Tj -55 - 150 °C - Mounting torque - - - 60 Ncm M3 and M3.5 screws Continuous diode forward current IS - - 24 A TC=25°C Diode pulse current2) IS,pulse - - 100 A TC=25°C Reverse diode dv/dt 3) dv/dt - - 1.5 V/ns VDS=0...400V,ISD
