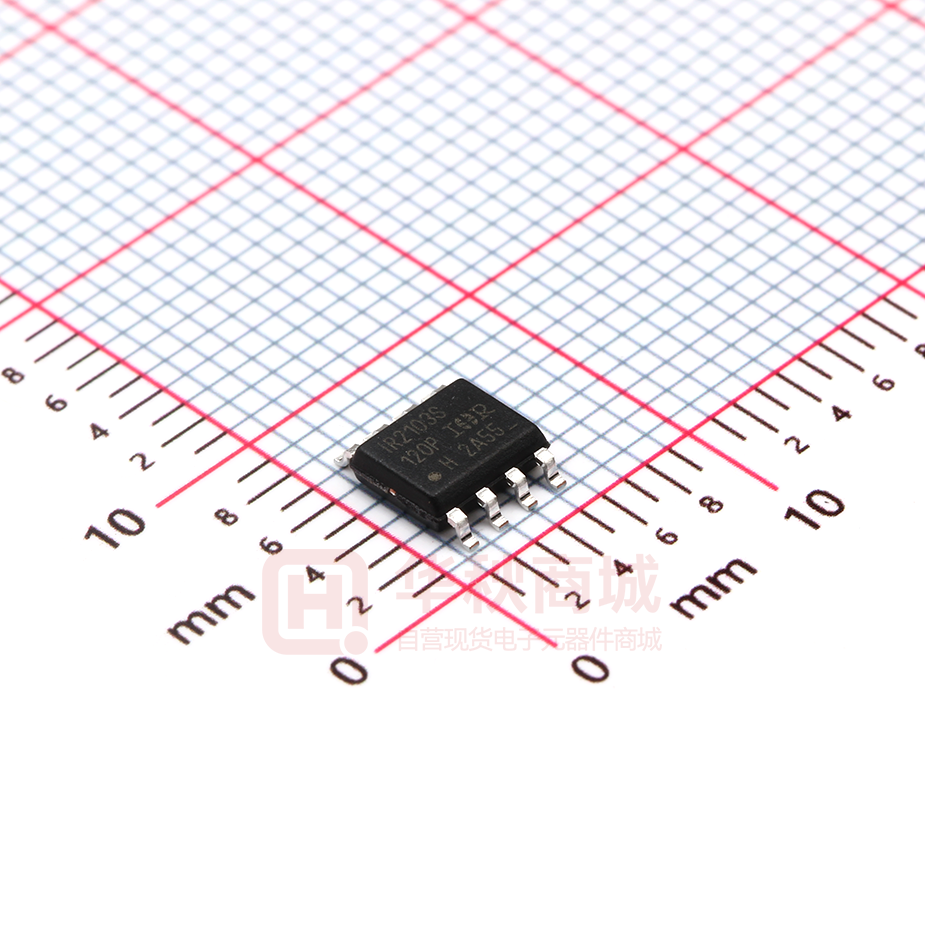

IR2103STRPBF

IR2103(S)PBF Half-Bridge Driver Features             Product Summary Floating channel designed for bootstrap operation Fully operational to +600V Tolerant to negative transient voltage dV/dt immune Gate drive supply range from 10 to 20V Undervoltage lockout 3.3V, 5V and 15V logic compatible Cross-conduction prevention logic Matched propagation delay for both channels Internal set deadtime High side output in phase with HIN input Low side output out of phase with LIN input VOFFSET (max) 600V IO+/- 130mA / 270mA VOUT 10V – 20V ton/off (typ.) 680 & 150 ns Deadtime (typ.) 520 ns Package Options Description The IR2103(S) are high voltage, high speed power MOSFET and IGBT drivers with dependent high and low side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output, down to 3.3V logic. The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction. The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high side configuration which operates up to 600 volts. 8 Lead SOIC 8 Lead PDIP Ordering Information Standard Pack Base Part Number Package Type Form Quantity IR2103SPBF SO8N Tube 95 IR2103SPBF SO8N Tape and Reel 2500 IR2103PBF PDIP8 Tube 50 1 www.irf.com © 2013 International Rectifier Orderable Part Number IR2103SPBF IR2103STRPBF IR2103PBF April 18, 2013 IR2103(S)PBF Table of Contents Page Description 1 Ordering Information 1 Typical Connection Diagram 3 Absolute Maximum Ratings 4 Recommended Operating Conditions 4 Dynamic Electrical Characteristics 5 Static Electrical Characteristics 5 Functional Block Diagrams 6 Lead Definitions 7 Lead Assignments 7 Application Information and Additional Details 8 Package Details: PDIP8, SO8N 15 Tape and Reel Details: SO8N 16 Part Marking Information 17 Qualification Information 18 2 www.irf.com © 2013 International Rectifier April 18, 2013 IR2103(S)PBF Typical Connection Diagram 3 www.irf.com © 2013 International Rectifier April 18, 2013 IR2103(S)PBF Absolute Maximum Ratings Absolute maximum ratings indicate sustained limits beyond which damage to the device may occur. All voltage parameters are absolute voltages referenced to COM. The thermal resistance and power dissipation ratings are measured under board mounted and still air conditions. Symbol VB VS Definition High side floating absolute voltage High side floating supply offset voltage Min. -0.3 VB - 25 Max. 625 VB + 0.3 VHO High side floating output voltage VS - 0.3 VB + 0.3 VCC Low side and logic fixed supply voltage -0.3 VLO Low side output voltage -0.3 25 VCC + 0.3 VIN Logic input voltage (HIN & ¯¯¯) LIN -0.3 VCC + 0.3 — — — — 50 1 0.625 125 — — -55 — 200 150 150 300 dVS/dt PD RthJA Allowable offset supply voltage transient 8 lead PDIP Package power dissipation @ TA ≤ +25°C 8 lead SOIC Thermal resistance, junction to ambient 8 lead PDIP 8 lead SOIC Junction temperature Storage temperature Lead temperature (soldering, 10 seconds) TJ TS TL Units V V/ns W °C/W °C Recommended Operating Conditions The input/output logic timing diagram is shown in figure 1. For proper operation the device should be used within the recommended conditions. The VS offset rating is tested with all supplies biased at 15V differential. Symbol Min. Max. VS + 10 † VS + 20 600 VB 20 VB VS VHO High side floating absolute voltage High side floating supply offset voltage High side floating output voltage VS VCC Low side and logic fixed supply voltage VLO Low side output voltage 10 0 VIN TA † Definition Logic input voltage (HIN & LIN) Ambient temperature 0 -40 Units V VCC VCC 125 °C Logic operational for VS of -5 to +600V. Logic state held for VS of -5V to -VBS. (Please refer to the Design Tip DT97-3 for more details). 4 www.irf.com © 2013 International Rectifier April 18, 2013 IR2103(S)PBF Dynamic Electrical Characteristics VBIAS (VCC, VBS) = 15V, CL = 1000 pF and TA = 25°C unless otherwise specified. Symbol Definition Min. Typ. Max. Units Test Conditions ton Turn-on propagation delay — 680 820 VS = 0V toff Turn-off propagation delay — 150 220 VS = 600V Turn-on rise time Turn-off fall time Deadtime, LS turn-off to HS turn-on & HS turn-on to LS turn-off Delay matching, HS & LS turn on/off — — 100 50 170 60 400 520 650 — — 60 tr tf DT MT ns Static Electrical Characteristics VBIAS (VCC, VBS) = 15V and TA = 25°C unless otherwise specified. The VIN, VTH, and IIN parameters are referenced to COM. The VO and IO parameters are referenced to COM and are applicable to the respective output leads: HO or LO. Symbol VIH VIL VOH VOL ILK IQBS IQCC IIN+ IINVCCUV+ VCCUVIO+ IO- 5 Definition Logic ―1‖ (HIN) & Logic ―0‖ ( ¯¯¯) LIN input voltage Logic ―0‖ (HIN) & Logic ―1‖ ( ¯¯¯) LIN input voltage High level output voltage VBIAS - VO Low level output voltage, VO Offset supply leakage current Quiescent VBS supply current Quiescent VCC supply current Logic ―1‖ input bias current Logic ―0‖ input bias current VCC supply undervoltage positive going threshold VCC supply undervoltage negative going threshold Output high short circuit pulsed current Output low short circuit pulsed current www.irf.com © 2013 International Rectifier Min. Typ. Max. 3 — — — — 0.8 — — — — — — — — — 30 150 3 — 100 100 50 55 270 10 1 8 8.9 9.8 7.4 8.2 9 130 210 — 270 360 — Units Test Conditions VCC = 10V to 20V V VCC = 10V to 20V mV μA IO = 0A IO = 0A VB = VS = 600V VIN = 0V or 5V VIN = 0V or 5V HIN = 5V, ¯¯¯ LIN =0V HIN = 0V, ¯¯¯ LIN =5V V mA VO = 0V, VIN = VIH PW ≤ 10 μs VO = 15V , VIN = VIL PW ≤ 10 μs April 18, 2013 IR2103(S)PBF Functional Block Diagram 6 www.irf.com © 2013 International Rectifier April 18, 2013 IR2103(S)PBF Lead Definitions Symbol Description HIN ¯¯¯ LIN Logic input for high side gate driver output (HO), in phase Logic input for low side gate driver output (LO), out of phase High side floating supply VB HO High side gate drive output VS High side floating supply return VCC LO Low side and logic fixed supply COM Low side return Low side gate drive output Lead Assignments 7 www.irf.com 1 VCC VB 8 2 HIN HO 7 3 LIN VS 6 4 COM LO 5 © 2013 International Rectifier April 18, 2013 IR2103(S)PBF Application Information and Additional Details Figure 1. Input/Output Timing Diagram Figure 2. Switching Time Waveform Definitions Figure 3. Deadtime Waveform Definitions 8 www.irf.com © 2013 International Rectifier April 18, 2013 IR2103(S)PBF Figure 4A. Turn-On Time vs. Temperature Figure 4B. Turn-On Time vs. Supply Voltage Figure 4C. Turn-On Time vs. Input Voltage Figure 5A. Turn-Off Time vs. Temperature Figure 5B. Turn-Off Time vs. Supply Voltage Figure 5C. Turn-Off Time vs. Input Voltage 9 www.irf.com © 2013 International Rectifier April 18, 2013 IR2103(S)PBF Figure 6A. Turn-On Rise Time vs. Temperature Figure 6B. Turn-On Rise Time vs. Voltage Figure 7A. Turn Off Fall Time vs. Temperature Figure 7B. Turn Off Fall Time vs. Voltage Figure 8A. Deadtime vs. Temperature Figure 8B. Deadtime vs. Voltage 10 www.irf.com © 2013 International Rectifier April 18, 2013 IR2103(S)PBF Figure 9A. Logic “1” ( HIN ¯¯¯) & Logic “0” ( ¯¯¯) LIN Input Voltage vs. Temperature Figure 9B. Logic “1” ( HIN ¯¯¯) & Logic “0” ( ¯¯¯) LIN Input Voltage vs. Voltage Figure 10A. Logic “0” ( HIN ¯¯¯)) & Logic “1” ( ¯¯¯) LIN Input Voltage vs. Temperature Figure 10B. Logic “0” (HIN) & Logic “1” (LIN) Input Voltage vs. Voltage Figure 11A. High Level Output vs. Temperature Figure 11B. High Level Output vs. Voltage 11 www.irf.com © 2013 International Rectifier April 18, 2013 IR2103(S)PBF Figure 12A. Low Level Output vs. Temperature Figure 12B. Low Level Output vs. Voltage Figure 13A. Offset Supply Current vs. Temperature Figure 13B. Offset Supply Current vs. Voltage Figure 14A. VBS Supply Current vs. Temperature Figure 14B. VBS Supply Current vs. Voltage 12 www.irf.com © 2013 International Rectifier April 18, 2013 IR2103(S)PBF Figure 15A. VCC Supply Current vs. Temperature Figure 15B. VCC Supply Current vs. Voltage Figure 16A. Logic “1” Input Current vs. Temperature Figure 16B. Logic “1” Input Current vs. Voltage Figure 17A. Logic “0” Input Current vs. Temperature Figure 17B. Logic “0” Input Current vs. Voltage 13 www.irf.com © 2013 International Rectifier April 18, 2013 IR2103(S)PBF Figure 18A. VCC Undervoltage Threshold (+) vs. Temperature Figure 18B. VCC Undervoltage Threshold (-) vs. Temperature Figure 19A. Output Source Current vs. Temperature Figure 19B. Output Source Current vs. Voltage Figure 20A. Output Sink Current vs. Temperature Figure 20A. Output Sink Current vs. Voltage 14 www.irf.com © 2013 International Rectifier April 18, 2013 IR2103(S)PBF Package Details: PDIP8, SO8N 15 www.irf.com © 2013 International Rectifier April 18, 2013 IR2103(S)PBF Tape and Reel Details: SO8N LOADED TAPE FEED DIRECTION A B H D F C NOTE : CONTROLLING DIMENSION IN MM E G CARRIER TAPE DIMENSION FOR 8SOICN Metric Imperial Code Min Max Min Max A 7.90 8.10 0.311 0.318 B 3.90 4.10 0.153 0.161 C 11.70 12.30 0.46 0.484 D 5.45 5.55 0.214 0.218 E 6.30 6.50 0.248 0.255 F 5.10 5.30 0.200 0.208 G 1.50 n/a 0.059 n/a H 1.50 1.60 0.059 0.062 F D C B A E G H REEL DIMENSIONS FOR 8SOICN Metric Code Min Max A 329.60 330.25 B 20.95 21.45 C 12.80 13.20 D 1.95 2.45 E 98.00 102.00 F n/a 18.40 G 14.50 17.10 H 12.40 14.40 16 www.irf.com Imperial Min Max 12.976 13.001 0.824 0.844 0.503 0.519 0.767 0.096 3.858 4.015 n/a 0.724 0.570 0.673 0.488 0.566 © 2013 International Rectifier April 18, 2013 IR2103(S)PBF Part Marking Information IRxxxxx Part number YWW ? Date code Pin 1 Identifier ? XXXX ? MARKING CODE P Lead Free Released Non-Lead Free Released 17 www.irf.com IR logo © 2013 International Rectifier Lot Code (Prod mode – 4 digit SPN code) Assembly site code Per SCOP 200-002 April 18, 2013 IR2103(S)PBF Qualification Information † †† Industrial (per JEDEC JESD 47) Comments: This family of ICs has passed JEDEC’s Industrial qualification. IR’s Consumer qualification level is granted by extension of the higher Industrial level. ††† MSL2 SOIC8N (per IPC/JEDEC J-STD 020) Qualification Level Moisture Sensitivity Level PDIP8 RoHS Compliant Not applicable (non-surface mount package style) Yes † †† Qualification standards can be found at International Rectifier’s web site http://www.irf.com/ Higher qualification ratings may be available should the user have such requirements. Please contact your International Rectifier sales representative for further information. ††† Higher MSL ratings may be available for the specific package types listed here. Please contact your International Rectifier sales representative for further information. The information provided in this document is believed to be accurate and reliable. However, International Rectifier assumes no responsibility for the consequences of the use of this information. International Rectifier assumes no responsibility for any infringement of patents or of other rights of third parties which may result from the use of this information. No license is granted by implication or otherwise under any patent or patent rights of International Rectifier. The specifications mentioned in this document are subject to change without notice. This document supersedes and replaces all information previously supplied. For technical support, please contact IR’s Technical Assistance Center http://www.irf.com/technical-info/ WORLD HEADQUARTERS: 233 Kansas St., El Segundo, California 90245 Tel: (310) 252-7105 18 www.irf.com © 2013 International Rectifier April 18, 2013
