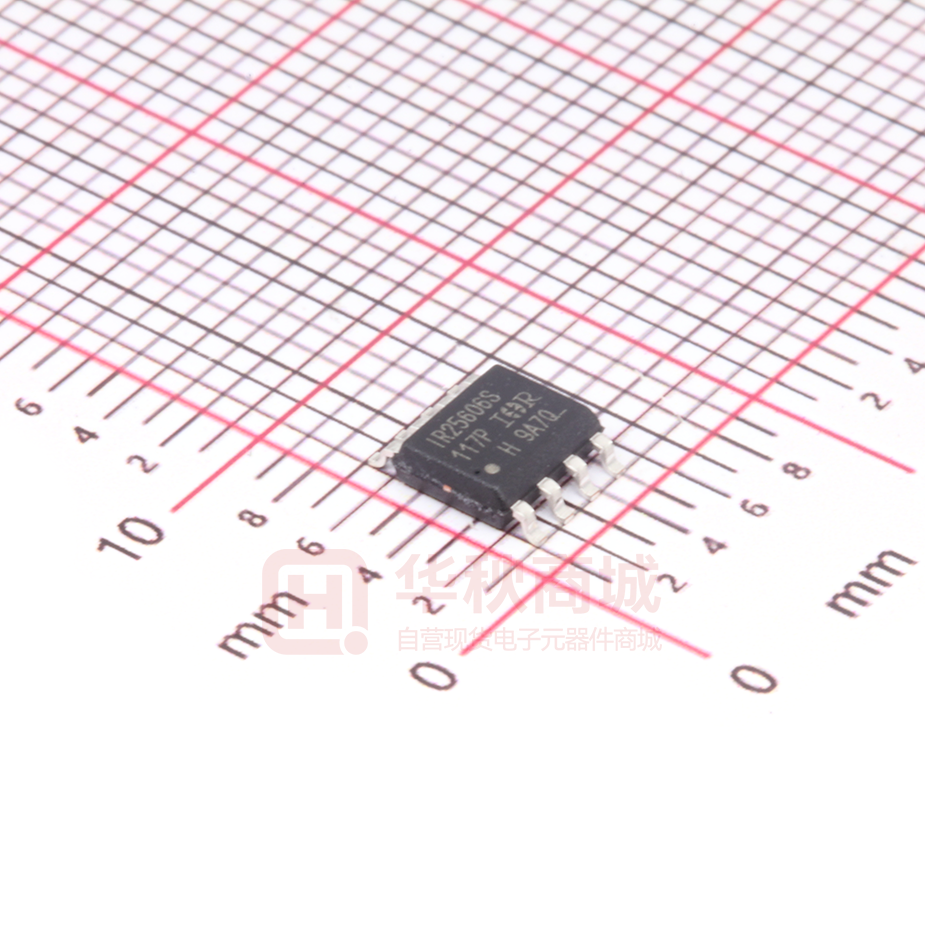

IR25606STRPBF

IR25606SPBF Half-Bridge Driver Features • • • • • • • • • • • • • Product Summary Floating channel designed for bootstrap operation Fully operational to +600V Tolerant to negative transient voltage dV/dt immune Gate drive supply range from 10 to 20V Undervoltage lockout for both channels 3.3V, 5V and 15V input logic compatible Cross-conduction prevention logic Matched propagation delay for both channels Outputs in phase with inputs Logic and power ground +/-5V offset Internal 540ns dead-time Lower di/dt gate driver for better noise immunity VOFFSET 600V max. IO+/- 200 mA / 350 mA VOUT 10 – 20V Ton/off (typ.) 220 & 200 ns Dead time (typ.) 540 ns Description Package Options The IR25606 is a high voltage, high speed power MOSFET and IGBT driver with independent high and low side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output, down to 3.3V logic. The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction. The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high side configuration which operates up to 600 V. 8 Lead SOIC Ordering Information Standard Pack Base Part Number Package Type Form Quantity IR25606SPBF SO8N Tube 95 IR25606SPBF SO8N Tape and Reel 2500 1 www.irf.com © 2013 International Rectifier Orderable Part Number IR25606SPBF IR25606STRPBF May 1, 2013 IR25606SPBF Typical Connection Diagram 2 www.irf.com © 2013 International Rectifier May 1, 2013 IR25606SPBF Absolute Maximum Ratings Absolute maximum ratings indicate sustained limits beyond which damage to the device may occur. All voltage parameters are absolute voltages referenced to COM. The thermal resistance and power dissipation ratings are measured under board mounted and still air conditions. Symbol VB VS VHO VCC VLO VIN dVs/dt PD RthJA TJ TS TL Definition High side floating absolute voltage High side floating supply offset voltage High side floating output voltage Low side and logic fixed supply voltage Low side output voltage Min. -0.3 Max. 625 Units VB - 25 VS - 0.3 -0.3 -0.3 VB + 0.3 VB + 0.3 25 VCC + 0.3 Logic input voltage (HIN & LIN) Allowable offset supply voltage transient -0.3 — VCC + 0.3 50 V/ns Package power dissipation @ TA ≤ +25°C — 0.625 W Thermal resistance, junction to ambient — 200 °C/W Junction temperature Storage temperature Lead temperature (soldering, 10 seconds) — -55 — 150 150 300 °C V Recommended Operating Conditions For proper operation the device should be used within the recommended conditions. The VS offset rating is tested with all supplies biased at 15V differential. Symbol VB VS VHO VCC VLO VIN TA Definition Min. Max. VS + 10 † VS + 20 600 Low side and logic fixed supply voltage Low side output voltage VS 10 0 Logic input voltage Ambient temperature 0 -40 VB 20 VCC VCC 125 High side floating supply absolute voltage High side floating supply offset voltage High side floating output voltage Units V °C † Logic operational for VS of -5 to +600V. Logic state held for VS of -5V to -VBS. (Please refer to Design Tip DT97-3 for more details). 3 www.irf.com © 2013 International Rectifier May 1, 2013 IR25606SPBF Dynamic Electrical Characteristics VBIAS (VCC, VBS) = 15V, CL = 1000 pF and TA = 25°C unless otherwise specified. Symbol Definition Min. Typ. Max. Units Test Conditions ton Turn-on propagation delay — 220 300 VS = 0V toff Turn-off propagation delay — 200 280 VS = 0V or 600V tr tf DT Turn-on rise time Turn-off fall time Deadtime — — 400 150 50 540 220 80 680 MT Delay matching, HS & LS turn-on/off — 0 46 ns VS = 0V VS = 0V Static Electrical Characteristics VBIAS (VCC, VBS) = 15V and TA = 25°C unless otherwise specified. The VIN, VTH and IIN parameters are referenced to COM. The VO and IO parameters are referenced to COM and are applicable to the respective output leads: HO and LO. Symbol VIH VIL VOH VOL ILK IQBS IQCC IIN+ IINVCCUV+ VBSUV+ VCCUVVBSUVVCCUVH VBSUVH IO+ IO- 4 Definition Min. Typ. Max. 2.9 — — — — 0.8 — 0.8 1.4 — — 20 0.4 — — 0.3 — 60 1.0 5 1 0.6 50 150 1.6 20 2 VCC and VBS supply undervoltage positive going threshold 8 8.9 10 VCC and VBS supply undervoltage negative going threshold 7.4 8.2 9 Hysteresis 0.3 0.7 — 97 200 — Logic “1” input voltage Logic “0” input voltage High level output voltage, VBIAS VO Low level output voltage, VO Offset supply leakage current Quiescent VBS supply current Quiescent VCC supply current Logic “1” input bias current Logic “0” input bias current Output high short circuit pulsed current Output low short circuit pulsed current www.irf.com © 2013 International Rectifier Units VCC = 10V to 20V VCC = 10V to 20V V μA mA μA 350 — IO = 20 mA IO = 20 mA VB = VS = 600V VIN = 0V or 5V VIN = 0V or 5V VIN = 5V VIN = 0V V mA 250 Test Conditions VO = 0V PW ≤ 10 μs VO = 15V PW ≤ 10 μs May 1, 2013 IR25606SPBF Functional Block Diagram 5 www.irf.com © 2013 International Rectifier May 1, 2013 IR25606SPBF Lead Definitions Symbol Description HIN LIN VB HO Logic input for high side gate driver outputs (HO), in phase Logic input for low side gate driver outputs (LO), in phase High side floating supply High side gate drive output High side floating supply return Low side and logic fixed supply Low side gate drive output Low side return VS VCC LO COM Lead Assignments 1 VCC VB 8 2 HIN HO 7 3 LIN VS 6 4 COM LO 5 6 www.irf.com © 2013 International Rectifier May 1, 2013 IR25606SPBF Application Information and Additional Details Figure 2. Switching Time Waveform Definitions Figure 1. Input/Output Timing Diagram Figure 3. Deadtime Waveform Definitions 7 www.irf.com © 2013 International Rectifier May 1, 2013 IR25606SPBF Package Details 8 www.irf.com © 2013 International Rectifier May 1, 2013 IR25606SPBF Tape and Reel Details LOADED TAPE FEED DIRECTION A B H D F C NOTE : CONTROLLING DIMENSION IN MM E G CARRIER TAPE DIMENSION FOR 8SOICN Metric Imperial Code Min Max Min Max A 7.90 8.10 0.311 0.318 B 3.90 4.10 0.153 0.161 C 11.70 12.30 0.46 0.484 D 5.45 5.55 0.214 0.218 E 6.30 6.50 0.248 0.255 F 5.10 5.30 0.200 0.208 G 1.50 n/a 0.059 n/a H 1.50 1.60 0.059 0.062 F D C B A E G H REEL DIMENSIONS FOR 8SOICN Metric Code Min Max A 329.60 330.25 B 20.95 21.45 C 12.80 13.20 D 1.95 2.45 E 98.00 102.00 F n/a 18.40 G 14.50 17.10 H 12.40 14.40 9 www.irf.com Imperial Min Max 12.976 13.001 0.824 0.844 0.503 0.519 0.767 0.096 3.858 4.015 n/a 0.724 0.570 0.673 0.488 0.566 © 2013 International Rectifier May 1, 2013 IR25606SPBF Part Marking Information IRxxxxx Part number YWW ? Date code Pin 1 Identifier ? XXXX ? MARKING CODE P Lead Free Released Non-Lead Free Released 10 www.irf.com IR logo © 2013 International Rectifier Lot Code (Prod mode – 4 digit SPN code) Assembly site code Per SCOP 200-002 May 1, 2013 IR25606SPBF Qualification Information † †† Industrial (per JEDEC JESD 47) Comments: This family of ICs has passed JEDEC’s Industrial qualification. IR’s Consumer qualification level is granted by extension of the higher Industrial level. ††† MSL2 (per IPC/JEDEC J-STD-020) Yes Qualification Level Moisture Sensitivity Level RoHS Compliant † †† Qualification standards can be found at International Rectifier’s web site http://www.irf.com/ Higher qualification ratings may be available should the user have such requirements. Please contact your International Rectifier sales representative for further information. ††† Higher MSL ratings may be available for the specific package types listed here. Please contact your International Rectifier sales representative for further information. The information provided in this document is believed to be accurate and reliable. However, International Rectifier assumes no responsibility for the consequences of the use of this information. International Rectifier assumes no responsibility for any infringement of patents or of other rights of third parties which may result from the use of this information. No license is granted by implication or otherwise under any patent or patent rights of International Rectifier. The specifications mentioned in this document are subject to change without notice. This document supersedes and replaces all information previously supplied. For technical support, please contact IR’s Technical Assistance Center http://www.irf.com/technical-info/ WORLD HEADQUARTERS: 233 Kansas St., El Segundo, California 90245 Tel: (310) 252-7105 11 www.irf.com © 2013 International Rectifier May 1, 2013
