PD - 94954D
IRF3710PbF
HEXFET® Power MOSFET
l
l
l
l
l
l
l
Advanced Process Technology
Ultra Low On-Resistance
Dynamic dv/dt Rating
175°C Operating Temperature
Fast Switching
Fully Avalanche Rated
Lead-Free
D
VDSS = 100V
RDS(on) = 23mΩ
G
ID = 57A
S
Description
Advanced HEXFET® Power MOSFETs from International Rectifier utilize
advanced processing techniques to achieve extremely low on-resistance
per silicon area. This benefit, combined with the fast switching speed and
ruggedized device design that HEXFET power MOSFETs are well known
for, provides the designer with an extremely efficient and reliable device for
use in a wide variety of applications.
The TO-220 package is universally preferred for all commercial-industrial
applications at power dissipation levels to approximately 50 watts. The low
thermal resistance and low package cost of the TO-220 contribute to its wide
acceptance throughout the industry.

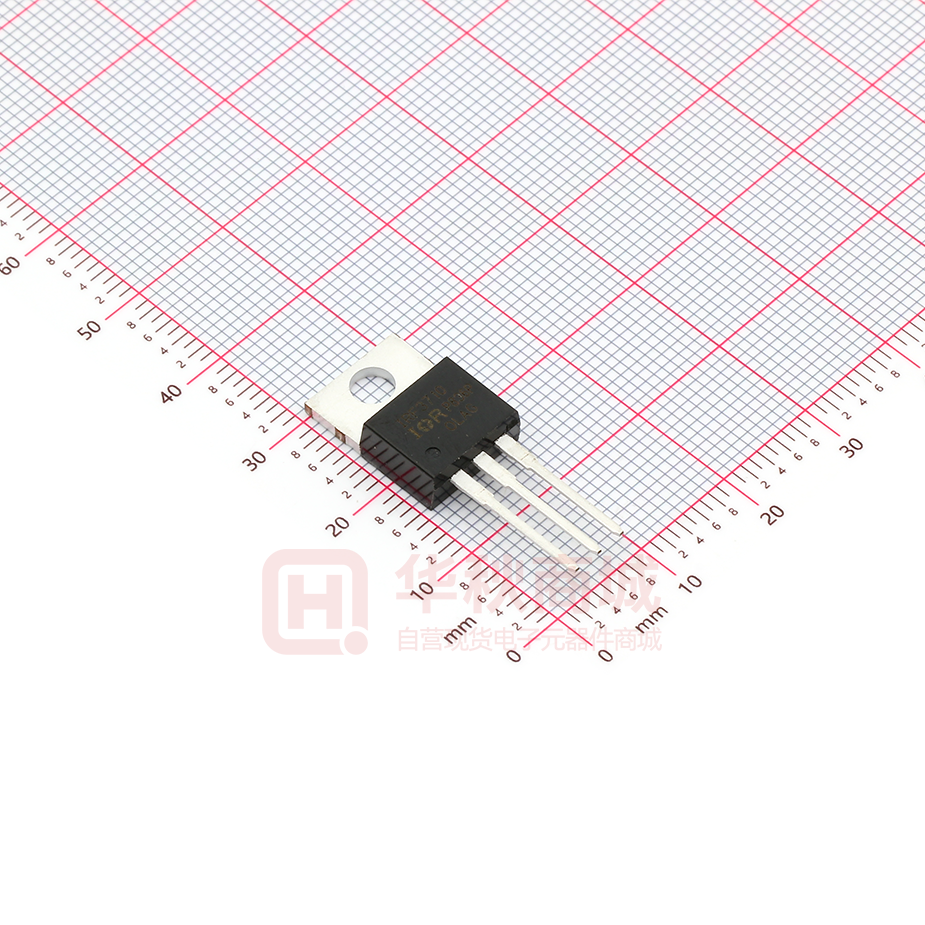

TO-220AB
Absolute Maximum Ratings
Parameter
ID @ TC = 25°C
ID @ TC = 100°C
IDM
PD @TC = 25°C
VGS
IAR
EAR
dv/dt
TJ
TSTG
Continuous Drain Current, VGS @ 10V
Continuous Drain Current, VGS @ 10V
Pulsed Drain Current
Power Dissipation
Linear Derating Factor
Gate-to-Source Voltage
Avalanche Current
Repetitive Avalanche Energy
Peak Diode Recovery dv/dt
Operating Junction and
Storage Temperature Range
Soldering Temperature, for 10 seconds
Mounting torque, 6-32 or M3 srew
Max.
Units
57
40
180
200
1.3
± 20
28
20
5.8
-55 to + 175
A
W
W/°C
V
A
mJ
V/ns
°C
300 (1.6mm from case )
10 lbf•in (1.1N•m)
Thermal Resistance
Parameter
RθJC
RθCS
RθJA
www.irf.com
Junction-to-Case
Case-to-Sink, Flat, Greased Surface
Junction-to-Ambient
Typ.
Max.
Units
–––
0.50
–––
0.75
–––
62
°C/W
1
07/23/10
IRF3710PbF
Electrical Characteristics @ TJ = 25°C (unless otherwise specified)
RDS(on)
VGS(th)
gfs
Parameter
Drain-to-Source Breakdown Voltage
Breakdown Voltage Temp. Coefficient
Static Drain-to-Source On-Resistance
Gate Threshold Voltage
Forward Transconductance
Qg
Qgs
Qgd
td(on)
tr
td(off)
tf
Gate-to-Source Forward Leakage
Gate-to-Source Reverse Leakage
Total Gate Charge
Gate-to-Source Charge
Gate-to-Drain ("Miller") Charge
Turn-On Delay Time
Rise Time
Turn-Off Delay Time
Fall Time
Min.
100
–––
–––
2.0
32
–––
–––
–––
–––
–––
–––
–––
–––
–––
–––
–––
IDSS
Drain-to-Source Leakage Current
LD
Internal Drain Inductance
–––
LS
Internal Source Inductance
–––
Ciss
Coss
Crss
EAS
Input Capacitance
Output Capacitance
Reverse Transfer Capacitance
Single Pulse Avalanche Energy
–––
–––
–––
–––
V(BR)DSS
∆V(BR)DSS/∆TJ
IGSS
Typ.
–––
0.13
–––
–––
–––
–––
–––
–––
–––
–––
–––
–––
12
58
45
47
Max. Units
Conditions
–––
V
VGS = 0V, ID = 250µA
––– V/°C Reference to 25°C, ID = 1mA
23
mΩ VGS = 10V, ID =28A
4.0
V
VDS = VGS, ID = 250µA
–––
S
VDS = 25V, ID = 28A
25
VDS = 100V, VGS = 0V
µA
250
VDS = 80V, VGS = 0V, TJ = 150°C
100
VGS = 20V
nA
-100
VGS = -20V
130
ID = 28A
26
nC
VDS = 80V
43
VGS = 10V, See Fig. 6 and 13
–––
VDD = 50V
–––
ID = 28A
ns
–––
RG = 2.5Ω
–––
VGS = 10V, See Fig. 10
Between lead,
4.5 –––
6mm (0.25in.)
nH
G
from package
7.5 –––
and center of die contact
3130 –––
VGS = 0V
410 –––
VDS = 25V
72 –––
pF
ƒ = 1.0MHz, See Fig. 5
1060
280 mJ IAS = 28A, L = 0.70mH
D
S
Source-Drain Ratings and Characteristics
IS
ISM
VSD
trr
Qrr
ton
Parameter
Continuous Source Current
(Body Diode)
Pulsed Source Current
(Body Diode)
Diode Forward Voltage
Reverse Recovery Time
Reverse Recovery Charge
Forward Turn-On Time
Min. Typ. Max. Units
Conditions
D
MOSFET symbol
57
––– –––
showing the
A
G
integral reverse
––– ––– 230
S
p-n junction diode.
––– ––– 1.2
V
TJ = 25°C, IS = 28A, VGS = 0V
––– 140 220
ns
TJ = 25°C, IF = 28A
––– 670 1010 nC
di/dt = 100A/µs
Intrinsic turn-on time is negligible (turn-on is dominated by LS+LD)
Notes:
Repetitive rating; pulse width limited by
max. junction temperature. (See fig. 11)
ISD ≤ 28A, di/dt ≤ 380A/µs, VDD ≤ V(BR)DSS,
TJ ≤ 175°C
Pulse width ≤ 400µs; duty cycle ≤ 2%.
RG = 25Ω, IAS = 28A, VGS=10V (See Figure 12)
This is a typical value at device destruction and represents
Starting TJ = 25°C, L = 0.70mH
operation outside rated limits.
This is a calculated value limited to TJ = 175°C .
2
www.irf.com
IRF3710PbF
1000
1000
VGS
16V
10V
7.0V
6.0V
5.0V
4.5V
4.0V
BOTTOM 3.5V
100
VGS
16V
10V
7.0V
6.0V
5.0V
4.5V
4.0V
BOTTOM 3.5V
TOP
10
3.5V
1
20µs PULSE WIDTH
Tj = 25°C
ID, Drain-to-Source Current (A)
ID, Drain-to-Source Current (A)
TOP
100
0.1
10
3.5V
1
20µs PULSE WIDTH
Tj = 175°C
0.1
0.1
1
10
100
0.1
1
VDS, Drain-to-Source Voltage (V)
Fig 1. Typical Output Characteristics
100
Fig 2. Typical Output Characteristics
1000.00
3.0
I D = 57A
2.5
R DS(on) , Drain-to-Source On Resistance
100.00
T J = 175°C
10.00
T J = 25°C
1.00
VDS = 15V
50V
20µs PULSE WIDTH
0.10
3.0
4.0
5.0
6.0
7.0
8.0
VGS, Gate-to-Source Voltage (V)
Fig 3. Typical Transfer Characteristics
www.irf.com
9.0
2.0
(Normalized)
ID, Drain-to-Source Current (Α )
10
VDS, Drain-to-Source Voltage (V)
1.5
1.0
0.5
V GS = 10V
0.0
-60
-40
-20
0
20
40
60
80
TJ , Junction Temperature
100 120 140 160 180
( °C)
Fig 4. Normalized On-Resistance
Vs. Temperature
3
IRF3710PbF
100000
Ciss
1000
Coss
Crss
100
ID = 28A
10
7
5
2
0
1
10
0
100
20
60
80
100
Fig 6. Typical Gate Charge Vs.
Gate-to-Source Voltage
Fig 5. Typical Capacitance Vs.
Drain-to-Source Voltage
1000
ID, Drain-to-Source Current (A)
1000.00
ISD, Reverse Drain Current (A)
40
QG, Total Gate Charge (nC)
VDS, Drain-to-Source Voltage (V)
100.00
OPERATION IN THIS AREA
LIMITED BY R DS(on)
100
TJ = 175°C
10.00
T J = 25°C
1.00
100µsec
10
1msec
10msec
1
Tc = 25°C
Tj = 175°C
Single Pulse
VGS = 0V
0.10
0.1
0.0
0.5
1.0
1.5
VSD, Source-toDrain Voltage (V)
Fig 7. Typical Source-Drain Diode
Forward Voltage
4
VDS = 80V
VDS = 50V
VDS = 20V
10
VGS , Gate-to-Source Voltage (V)
Coss = Cds + Cgd
10000
C, Capacitance(pF)
12
VGS = 0V,
f = 1 MHZ
Ciss = Cgs + Cgd, Cds SHORTED
Crss = Cgd
2.0
1
10
100
1000
VDS , Drain-toSource Voltage (V)
Fig 8. Maximum Safe Operating Area
www.irf.com
IRF3710PbF
60
RD
VDS
VGS
50
D.U.T.
RG
+
-VDD
I D , Drain Current (A)
40
V GS
30
Pulse Width ≤ 1 µs
Duty Factor ≤ 0.1 %
20
Fig 10a. Switching Time Test Circuit
VDS
10
90%
0
25
50
75
100
TC , Case Temperature
125
150
175
( °C)
10%
VGS
Fig 9. Maximum Drain Current Vs.
Case Temperature
td(on)
tr
t d(off)
tf
Fig 10b. Switching Time Waveforms
1
(Z thJC)
D = 0.50
Thermal Response
0.20
0.1
0.10
P DM
0.05
0.02
SINGLE PULSE
(THERMAL RESPONSE)
t1
t2
0.01
Notes:
1. Duty factor D =
2. Peak T
0.01
0.00001
0.0001
0.001
0.01
t1/ t 2
J = P DM x Z thJC
+TC
0.1
1
t 1, Rectangular Pulse Duration (sec)
Fig 11. Maximum Effective Transient Thermal Impedance, Junction-to-Case
www.irf.com
5
IRF3710PbF
550
ID
15V
TOP
D.U.T
RG
20V
VGS
IAS
440
DRIVER
+
V
- DD
A
0.01Ω
tp
Fig 12a. Unclamped Inductive Test Circuit
V(BR)DSS
tp
EAS , Single Pulse Avalanche Energy (mJ)
L
VDS
11A
20A
28A
BOTTOM
330
220
110
0
25
50
75
100
125
150
175
( °C)
Starting T , Junction
Temperature
J
Fig 12c. Maximum Avalanche Energy
Vs. Drain Current
I AS
Fig 12b. Unclamped Inductive Waveforms
Current Regulator
Same Type as D.U.T.
50KΩ
QG
12V
.2µF
.3µF
VGS
QGS
D.U.T.
QGD
+
V
- DS
VGS
VG
3mA
Charge
Fig 13a. Basic Gate Charge Waveform
6
IG
ID
Current Sampling Resistors
Fig 13b. Gate Charge Test Circuit
www.irf.com
IRF3710PbF
Peak Diode Recovery dv/dt Test Circuit
+
D.U.T*
Circuit Layout Considerations
• Low Stray Inductance
• Ground Plane
• Low Leakage Inductance
Current Transformer
+
-
-
+
RG
• dv/dt controlled by RG
• ISD controlled by Duty Factor "D"
• D.U.T. - Device Under Test
VGS
*
+
-
VDD
Reverse Polarity of D.U.T for P-Channel
Driver Gate Drive
P.W.
Period
D=
P.W.
Period
[VGS=10V ] ***
D.U.T. ISD Waveform
Reverse
Recovery
Current
Body Diode Forward
Current
di/dt
D.U.T. VDS Waveform
Diode Recovery
dv/dt
Re-Applied
Voltage
Body Diode
[VDD]
Forward Drop
Inductor Curent
Ripple ≤ 5%
[ISD ]
*** VGS = 5.0V for Logic Level and 3V Drive Devices
Fig 14. For N-channel HEXFET® power MOSFETs
www.irf.com
7
IRF3710PbF
TO-220AB Package Outline
Dimensions are shown in millimeters (inches)
TO-220AB Part Marking Information
EXAMPLE: T HIS IS AN IRF1010
LOT CODE 1789
ASS EMBLED ON WW 19, 2000
IN T HE AS S EMBLY LINE "C"
Note: "P" in assembly line position
indicates "Lead - Free"
INT ERNAT IONAL
RECT IFIER
LOGO
AS SEMBLY
LOT CODE
PART NUMBER
DAT E CODE
YEAR 0 = 2000
WEEK 19
LINE C
TO-220AB package is not recommended for Surface Mount Application
Notes:
1. For an Automotive Qualified version of this part please seehttp://www.irf.com/product-info/auto/
2. For the most current drawing please refer to IR website at http://www.irf.com/package/
Data and specifications subject to change without notice.
This product has been designed and qualified for the Industrial market.
Qualification Standards can be found on IR’s Web site.
IR WORLD HEADQUARTERS: 233 Kansas St., El Segundo, California 90245, USA Tel: (310) 252-7105
TAC Fax: (310) 252-7903
Visit us at www.irf.com for sales contact information.07/2010
