PD - 95178
IRF7306PbF
Generation V Technology
Ultra Low On-Resistance
Dual P-Channel Mosfet
Surface Mount
Available in Tape & Reel
Dynamic dv/dt Rating
Fast Switching
Lead-Free
l
l
l
l
l
l
l
l
HEXFET® Power MOSFET
S1
1
8
D1
G1
2
7
D1
S2
3
6
D2
G2
4
5
D2
Description
VDSS = -30V
RDS(on) = 0.10Ω
Top View
Fifth Generation HEXFETs from International Rectifier
utilize advanced processing techniques to achieve
the lowest possible on-resistance per silicon area.
This benefit, combined with the fast switching speed
and ruggedized device design that HEXFET Power
MOSFETs are well known for, provides the designer
with an extremely efficient device for use in a wide
variety of applications.
The SO-8 has been modified through a customized
leadframe for enhanced thermal characteristics and
multiple-die capability making it ideal in a variety of
power applications. With these improvements,
multiple devices can be used in an application with
dramatically reduced board space. The package is
designed for vapor phase, infra red, or wave soldering
techniques. Power dissipation of greater than 0.8W
is possible in a typical PCB mount application.

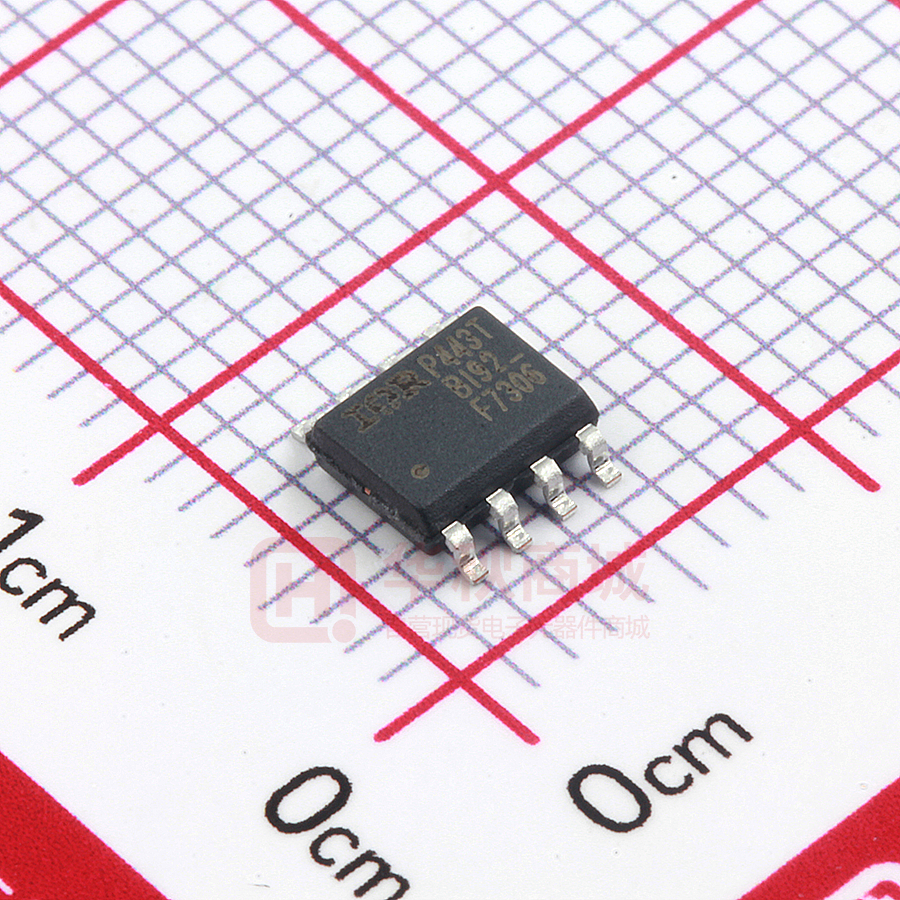

SO-8
Absolute Maximum Ratings
Parameter
ID @ TA = 25°C
ID @ TA = 25°C
ID @ TA = 70°C
IDM
PD @TA = 25°C
VGS
dv/dt
TJ, TSTG
Max.
10 Sec. Pulsed Drain Current, VGS @ -10V
Continuous Drain Current, VGS @ -10V
Continuous Drain Current, VGS @ -10V
Pulsed Drain Current
Power Dissipation
Linear Derating Factor
Gate-to-Source Voltage
Peak Diode Recovery dv/dt
Junction and Storage Temperature Range
Units
-4.0
-3.6
-2.9
-14
2.0
0.016
±20
-5.0
-55 to + 150
A
W
W/°C
V
V/ns
°C
Thermal Resistance Ratings
Parameter
RθJA
Maximum Junction-to-Ambient
Typ.
Max.
Units
62.5
°C/W
10/7/04
IRF7306PbF
Electrical Characteristics @ TJ = 25°C (unless otherwise specified)
Parameter
Drain-to-Source Breakdown Voltage
∆V(BR)DSS/∆TJ Breakdown Voltage Temp. Coefficient
Qg
Qgs
Qgd
td(on)
tr
td(off)
tf
Gate-to-Source Forward Leakage
Gate-to-Source Reverse Leakage
Total Gate Charge
Gate-to-Source Charge
Gate-to-Drain ("Miller") Charge
Turn-On Delay Time
Rise Time
Turn-Off Delay Time
Fall Time
Min. Typ. Max. Units
Conditions
-30
V
VGS = 0V, ID = -250µA
-0.037 V/°C Reference to 25°C, ID = -1mA
0.10
VGS = -10V, I D = -1.8A
Ω
0.16
VGS = -4.5V, ID = -1.5A
-1.0
V
VDS = VGS, I D = -250µA
2.5
S
VDS = -24V, ID = -1.8A
-1.0
VDS = -24V, VGS = 0V
µA
-25
VDS = -24V, VGS = 0V, TJ = 125°C
-100
VGS = -20V
nA
100
VGS = 20V
25
ID = -1.8A
2.9
nC VDS = -24V
9.0
VGS = -10V, See Fig. 6 and 12
11
VDD = -15V
17
ID = -1.8A
ns
25
RG = 6.0Ω
18
RD = 8.2Ω, See Fig. 10
LD
Internal Drain Inductance
LS
Internal Source Inductance
6.0
Ciss
Coss
Crss
Input Capacitance
Output Capacitance
Reverse Transfer Capacitance
440
200
93
V(BR)DSS
RDS(ON)
Static Drain-to-Source On-Resistance
V GS(th)
gfs
Gate Threshold Voltage
Forward Transconductance
IDSS
Drain-to-Source Leakage Current
IGSS
4.0
D
nH
Between lead tip
and center of die contact
pF
VGS = 0V
VDS = -25V
= 1.0MHz, See Fig. 5
G
S
Source-Drain Ratings and Characteristics
IS
I SM
V SD
t rr
Q rr
ton
Parameter
Continuous Source Current
(Body Diode)
Pulsed Source Current
(Body Diode)
Diode Forward Voltage
Reverse Recovery Time
Reverse RecoveryCharge
Forward Turn-On Time
Min. Typ. Max. Units
Conditions
D
MOSFET symbol
-2.5
showing the
A
G
integral reverse
-14
p-n junction diode.
S
-1.0
V
TJ = 25°C, IS = -1.8A, VGS = 0V
53
80
ns
TJ = 25°C, IF = -1.8A
66
99
nC di/dt = 100A/µs
Intrinsic turn-on time is negligible (turn-on is dominated by LS+LD)
Notes:
Repetitive rating; pulse width limited by
Pulse width ≤ 300µs; duty cycle ≤ 2%.
ISD ≤ -1.8A, di/dt ≤ 90A/µs, VDD ≤ V(BR)DSS,
Surface mounted on FR-4 board, t ≤ 10sec.
max. junction temperature. ( See fig. 11 )
TJ ≤150°C
IRF7306PbF
100
100
VGS
- 15V
- 10V
- 8.0V
- 7.0V
- 6.0V
- 5.5V
- 5.0V
BOTTOM - 4.5V
-4.5V
10
20µs PULSE WIDTH
TJ = 25°C
A
1
0.1
VGS
- 15V
- 10V
- 8.0V
- 7.0V
- 6.0V
- 5.5V
- 5.0V
BOTTOM - 4.5V
TOP
-I D , Drain-to-Source Current (A)
-ID , Drain-to-Source Current (A)
TOP
1
10
10
-4.5V
20µs PULSE WIDTH
TJ = 150°C
1
0.1
100
1
-VDS , Drain-to-Source Voltage (V)
Fig 2. Typical Output Characteristics
R DS(on) , Drain-to-Source On Resistance
(Normalized)
-I D , Drain-to-Source Current (A)
100
TJ = 25°C
TJ = 150°C
10
VDS = -15V
20µs PULSE WIDTH
4
5
6
7
8
9
-VGS , Gate-to-Source Voltage (V)
Fig 3. Typical Transfer Characteristics
A
100
-VDS , Drain-to-Source Voltage (V)
Fig 1. Typical Output Characteristics
1
10
10
A
2.0
I D = -3.0A
1.5
1.0
0.5
VGS = -10V
0.0
-60
-40
-20
0
20
40
60
80
A
100 120 140 160
TJ , Junction Temperature (°C)
Fig 4. Normalized On-Resistance
Vs. Temperature
IRF7306PbF
1000
600
-VGS , Gate-to-Source Voltage (V)
800
C, Capacitance (pF)
20
V GS = 0V,
f = 1MHz
C iss = Cgs + C gd , Cds SHORTED
C rss = C gd
C oss = C ds + C gd
Ciss
Coss
400
Crss
200
0
1
10
100
A
ID = -3.0A
VDS = -24V
16
12
8
4
FOR TEST CIRCUIT
SEE FIGURE 12
0
0
-VDS , Drain-to-Source Voltage (V)
10
15
20
25
A
Q G , Total Gate Charge (nC)
Fig 5. Typical Capacitance Vs.
Drain-to-Source Voltage
Fig 6. Typical Gate Charge Vs.
Gate-to-Source Voltage
100
100
OPERATION IN THIS AREA LIMITED
BY RDS(on)
-IID , Drain Current (A)
-ISD , Reverse Drain Current (A)
5
10
TJ = 150°C
TJ = 25°C
1
VGS = 0V
0.1
0.0
0.3
0.6
0.9
1.2
-VSD , Source-to-Drain Voltage (V)
Fig 7. Typical Source-Drain Diode
Forward Voltage
A
1.5
100us
10
1ms
1
TC = 25 °C
TJ = 150 °C
Single Pulse
1
10ms
10
100
-VDS , Drain-to-Source Voltage (V)
Fig 8. Maximum Safe Operating Area
IRF7306PbF
4.0
V DS
-ID , Drain Current (A)
V GS
3.0
RD
D.U.T.
RG
-
+
V DD
-10
PulseVWidth ≤ 1 µs
Duty Factor ≤ 0.1 %
2.0
Fig 10a. Switching Time Test Circuit
1.0
VDS
90%
0.0
25
50
75
100
125
150
TC , Case Temperature ( °C)
10%
VGS
Fig 9. Maximum Drain Current Vs.
Ambient Temperature
td(on)
tr
t d(off)
tf
Fig 10b. Switching Time Waveforms
Thermal Response (Z thJA )
100
D = 0.50
0.20
10
0.10
0.05
0.02
1
PDM
0.01
t1
SINGLE PULSE
(THERMAL RESPONSE)
0.1
0.0001
t2
Notes:
1. Duty factor D = t 1 / t 2
2. Peak T J = P DM x Z thJA + TA
0.001
0.01
0.1
1
10
t1 , Rectangular Pulse Duration (sec)
Fig 11. Maximum Effective Transient Thermal Impedance, Junction-to-Ambient
100
IRF7306PbF
Current Regulator
Same Type as D.U.T.
50KΩ
QG
-10 V
QGS
.2µF
12V
.3µF
QGD
D.U.T.
+VDS
VGS
VG
-3mA
Charge
Fig 12a. Basic Gate Charge Waveform
IG
ID
Current Sampling Resistors
Fig 12b. Gate Charge Test Circuit
IRF7306PbF
Peak Diode Recovery dv/dt Test Circuit
+
D.U.T
Circuit Layout Considerations
• Low Stray Inductance
• Ground Plane
• Low Leakage Inductance
Current Transformer
+
-
-
+
**
RG
• dv/dt controlled by RG
• ISD controlled by Duty Factor "D"
• D.U.T. - Device Under Test
VGS*
+
-
*
V DD
*
Reverse Polarity for P-Channel
** Use P-Channel Driver for P-Channel Measurements
Driver Gate Drive
P.W.
Period
D=
P.W.
Period
[VGS=10V ] ***
D.U.T. ISD Waveform
Reverse
Recovery
Current
Body Diode Forward
Current
di/dt
D.U.T. VDS Waveform
Diode Recovery
dv/dt
Re-Applied
Voltage
Body Diode
[VDD]
Forward Drop
Inductor Curent
Ripple ≤ 5%
*** VGS = 5.0V for Logic Level and 3V Drive Devices
Fig 13. For P-Channel HEXFETS
[ ISD ]
IRF7306PbF
SO-8 Package Outline
Dimensions are shown in milimeters (inches)
D
DIM
B
5
A
8
6
7
6
H
E
1
6X
2
3
0.25 [.010]
4
A
e
e1
0.25 [.010]
MIN
.0532
.0688
1.35
1.75
MAX
A1 .0040
0.25
.0098
0.10
b
.013
.020
0.33
0.51
c
.0075
.0098
0.19
0.25
D
.189
.1968
4.80
5.00
E
.1497
.1574
3.80
4.00
e
.050 BASIC
1.27 BASIC
e1
.025 BASIC
0.635 BAS IC
H
.2284
.2440
5.80
6.20
K
.0099
.0196
0.25
0.50
L
.016
.050
0.40
1.27
y
0°
8°
0°
8°
K x 45°
A
C
8X b
MILLIMET ERS
MAX
A
5
INCHES
MIN
y
0.10 [.004]
A1
8X L
8X c
7
C A B
FOOT PRINT
NOT ES :
1. DIMENS IONING & T OLERANCING PER AS ME Y14.5M-1994.
8X 0.72 [.028]
2. CONT ROLLING DIMENS ION: MILLIMET ER
3. DIMENS IONS ARE S HOWN IN MILLIMET ERS [INCHES ].
4. OUT LINE CONFORMS T O JEDEC OUT LINE MS -012AA.
5 DIMENS ION DOES NOT INCLUDE MOLD PROT RUS IONS.
MOLD PROT RUS IONS NOT T O EXCEED 0.15 [.006].
6 DIMENS ION DOES NOT INCLUDE MOLD PROT RUS IONS.
MOLD PROT RUS IONS NOT T O EXCEED 0.25 [.010].
6.46 [.255]
7 DIMENS ION IS T HE LENGT H OF LEAD FOR S OLDERING T O
A SUBS T RAT E.
3X 1.27 [.050]
8X 1.78 [.070]
SO-8 Part Marking Information (Lead-Free)
EXAMPLE: T HIS IS AN IRF7101 (MOSFET )
INT ERNAT IONAL
RECT IFIER
LOGO
XXXX
F 7101
DAT E CODE (YWW)
P = DES IGNAT ES LEAD-FREE
PRODUCT (OPTIONAL)
Y = LAST DIGIT OF T HE YEAR
WW = WEEK
A = AS SEMBLY S IT E CODE
LOT CODE
PART NUMBER
IRF7306PbF
SO-8 Tape and Reel
Dimensions are shown in milimeters (inches)
TERMINAL NUMBER 1
12.3 ( .484 )
11.7 ( .461 )
8.1 ( .318 )
7.9 ( .312 )
FEED DIRECTION
NOTES:
1. CONTROLLING DIMENSION : MILLIMETER.
2. ALL DIMENSIONS ARE SHOWN IN MILLIMETERS(INCHES).
3. OUTLINE CONFORMS TO EIA-481 & EIA-541.
330.00
(12.992)
MAX.
14.40 ( .566 )
12.40 ( .488 )
NOTES :
1. CONTROLLING DIMENSION : MILLIMETER.
2. OUTLINE CONFORMS TO EIA-481 & EIA-541.
Data and specifications subject to change without notice.
This product has been designed and qualified for the Consumer market.
Qualifications Standards can be found on IR’s Web site.
IR WORLD HEADQUARTERS: 233 Kansas St., El Segundo, California 90245, USA Tel: (310) 252-7105
TAC Fax: (310) 252-7903
Visit us at www.irf.com for sales contact information.10/04
IMPORTANT NOTICE
The information given in this document shall in no
event be regarded as a guarantee of conditions or
characteristics (“Beschaffenheitsgarantie”) .
With respect to any examples, hints or any typical
values stated herein and/or any information
regarding the application of the product, Infineon
Technologies hereby disclaims any and all
warranties and liabilities of any kind, including
without limitation warranties of non-infringement
of intellectual property rights of any third party.
In addition, any information given in this document
is subject to customer’s compliance with its
obligations stated in this document and any
applicable legal requirements, norms and
standards concerning customer’s products and any
use of the product of Infineon Technologies in
customer’s applications.
The data contained in this document is exclusively
intended for technically trained staff. It is the
responsibility of customer’s technical departments
to evaluate the suitability of the product for the
intended application and the completeness of the
product information given in this document with
respect to such application.
For further information on the product, technology,
delivery terms and conditions and prices please
contact your nearest Infineon Technologies office
(www.infineon.com).
WARNINGS
Due to technical requirements products may
contain dangerous substances. For information on
the types in question please contact your nearest
Infineon Technologies office.
Except as otherwise explicitly approved by Infineon
Technologies in a written document signed by
authorized
representatives
of
Infineon
Technologies, Infineon Technologies’ products may
not be used in any applications where a failure of
the product or any consequences of the use thereof
can reasonably be expected to result in personal
injury.
